The Excitech Smart Factory offers an automated woodworking production line with advanced features like auto labeling, robotic handling, and high-speed operation. It includes a nesting cell, edgebanding cell, and drilling cell for efficient panel furniture manufacturing. The E4-1224D model boasts a vacuum table, 9.6kw Italian spindle, and Yaskawa servo system, ensuring precision and speed. With a traveling speed of 80m min and energy savings of 15%, it enhances productivity while reducing costs. Certified for quality, this equipment supports large-scale, customized production.

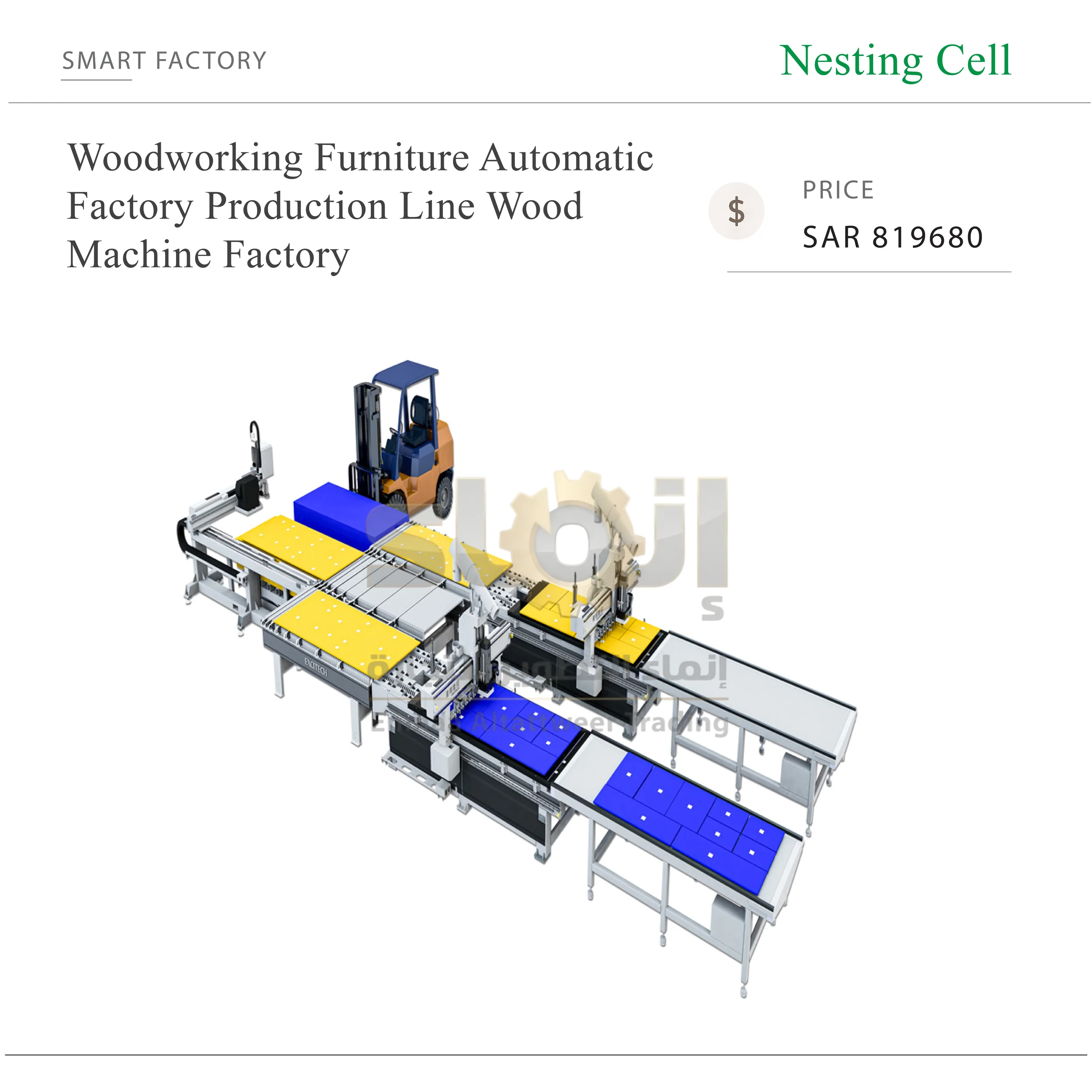

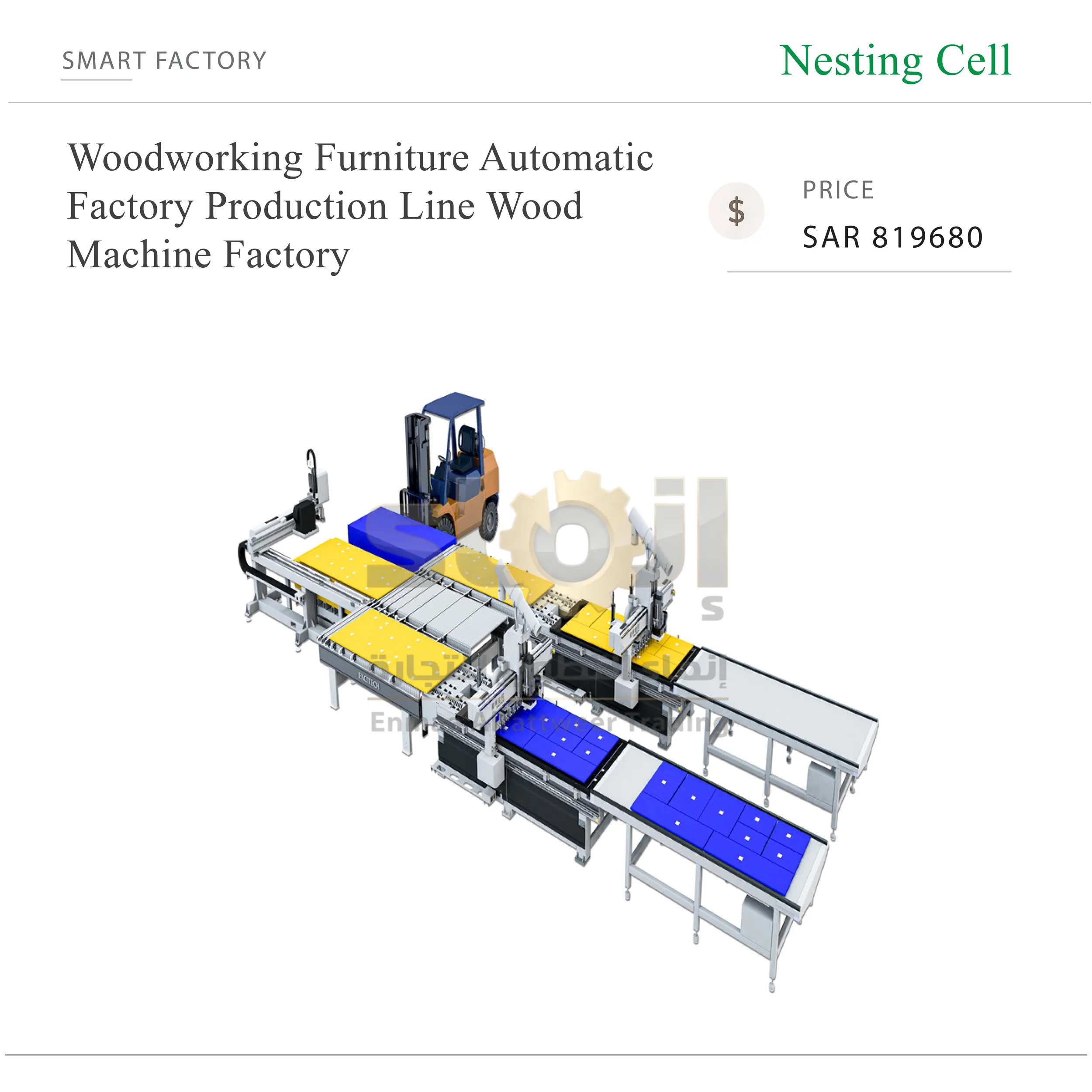

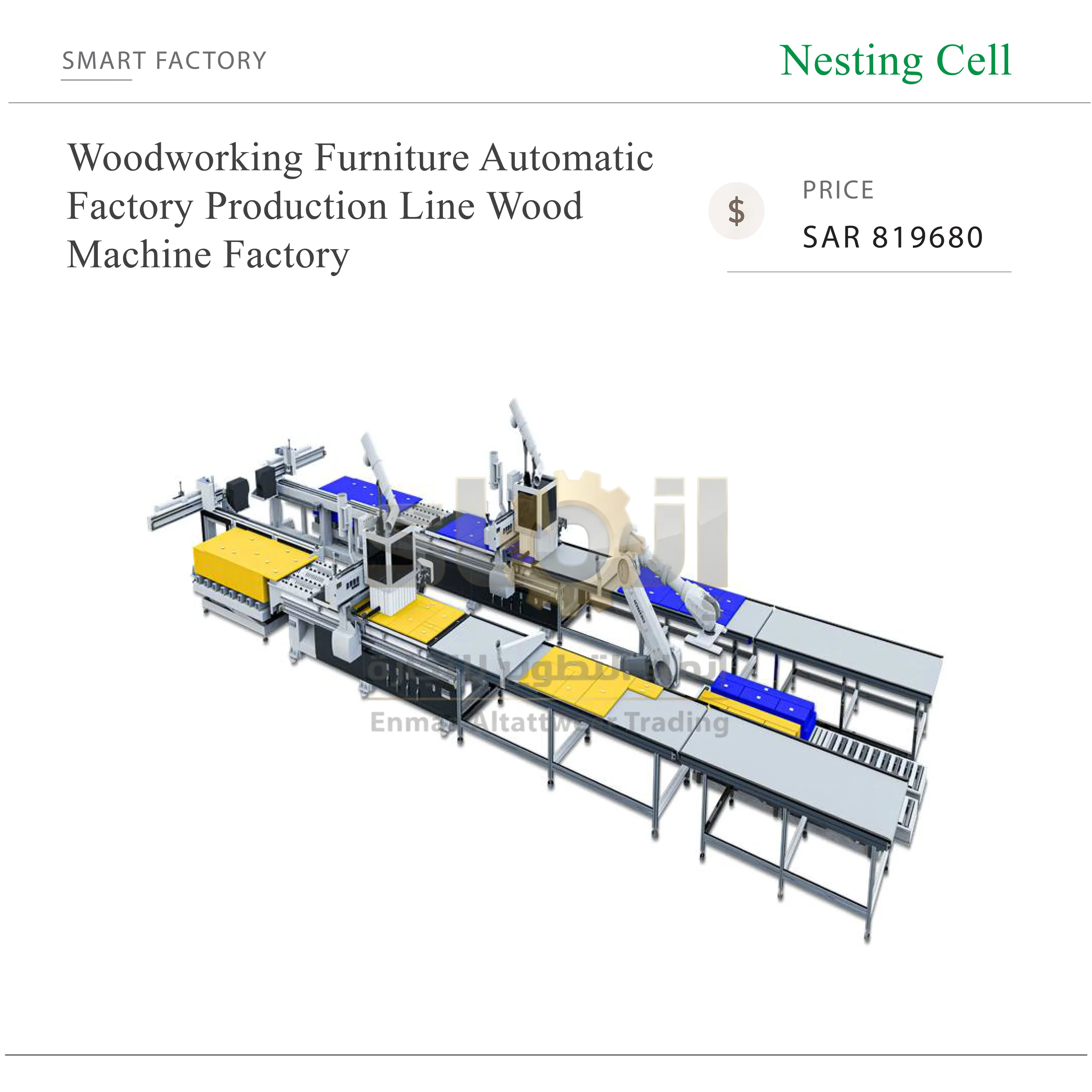

Excitech Smart Factory strives to make your production smarter, faster and more cost-efficient with minimun human labor required. It composed of nesting Cell, Edgebanding Cell and Drilling Cell. Basically, Nesting Cell has E4-auto labeling machine, Machnical robot, Return Conveyors, Cabinet Box and Excitech software.

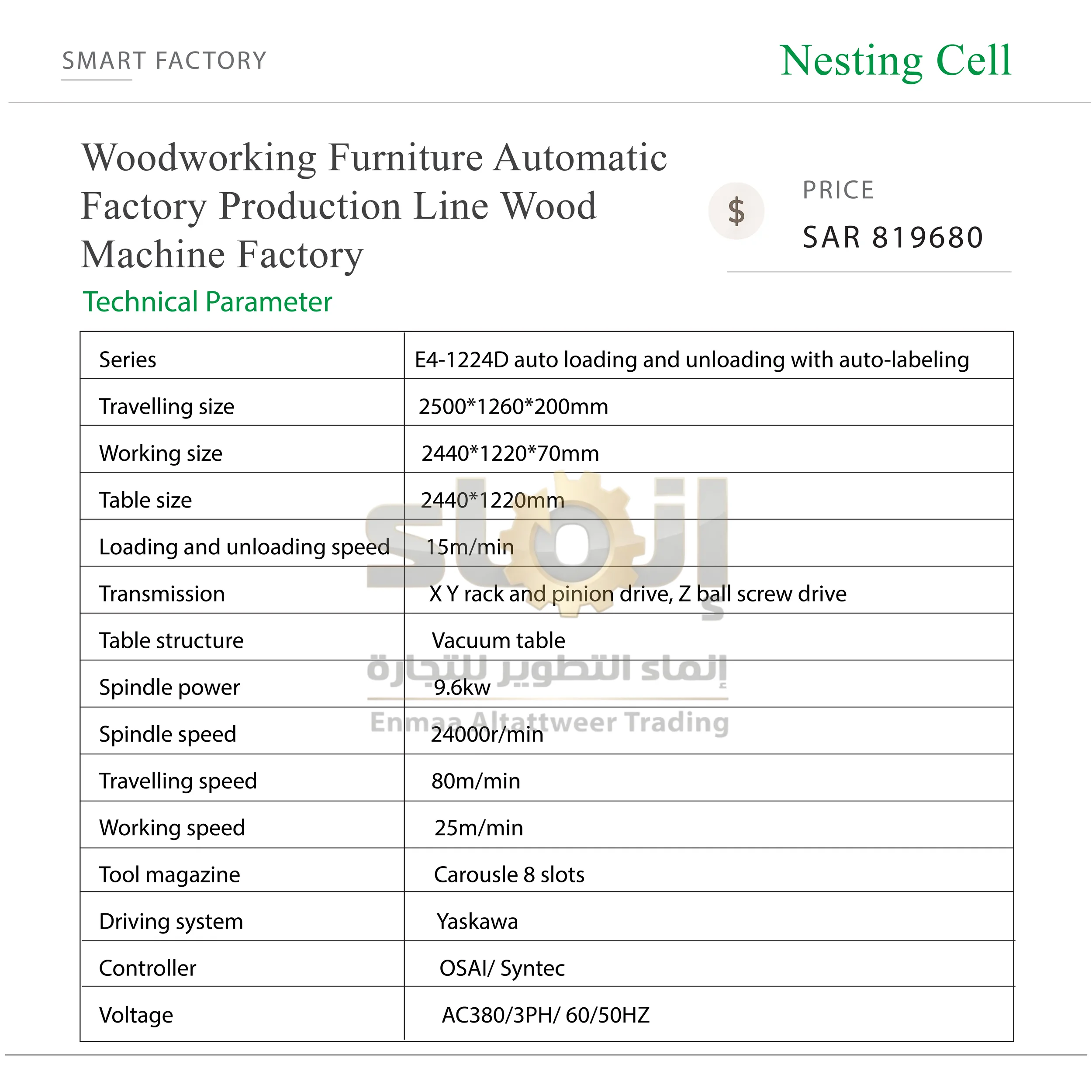

| Series | E4-1224D auto loading and unloading with auto-labeling |
| Travelling size | 2500*1260*200mm |
| Working size | 2440*1220*70mm |
| Table size | 2440*1220mm |
| Loading and unloading speed | 15m/min |
| Transmission | X Y rack and pinion drive, Z ball screw drive |
| Table structure | Vacuum table |
| Spindle power | 9.6kw |
| Spindle speed | 24000r/min |
| Travelling speed | 80m/min |
| Working speed | 25m/min |
| Tool magazine | Carousle 8 slots |
| Driving system | Yaskawa |
| Controller | OSAI/ Syntec |
| Voltage | AC380/3PH/50HZ |
Conveyor Table : 3500*2700*900mm

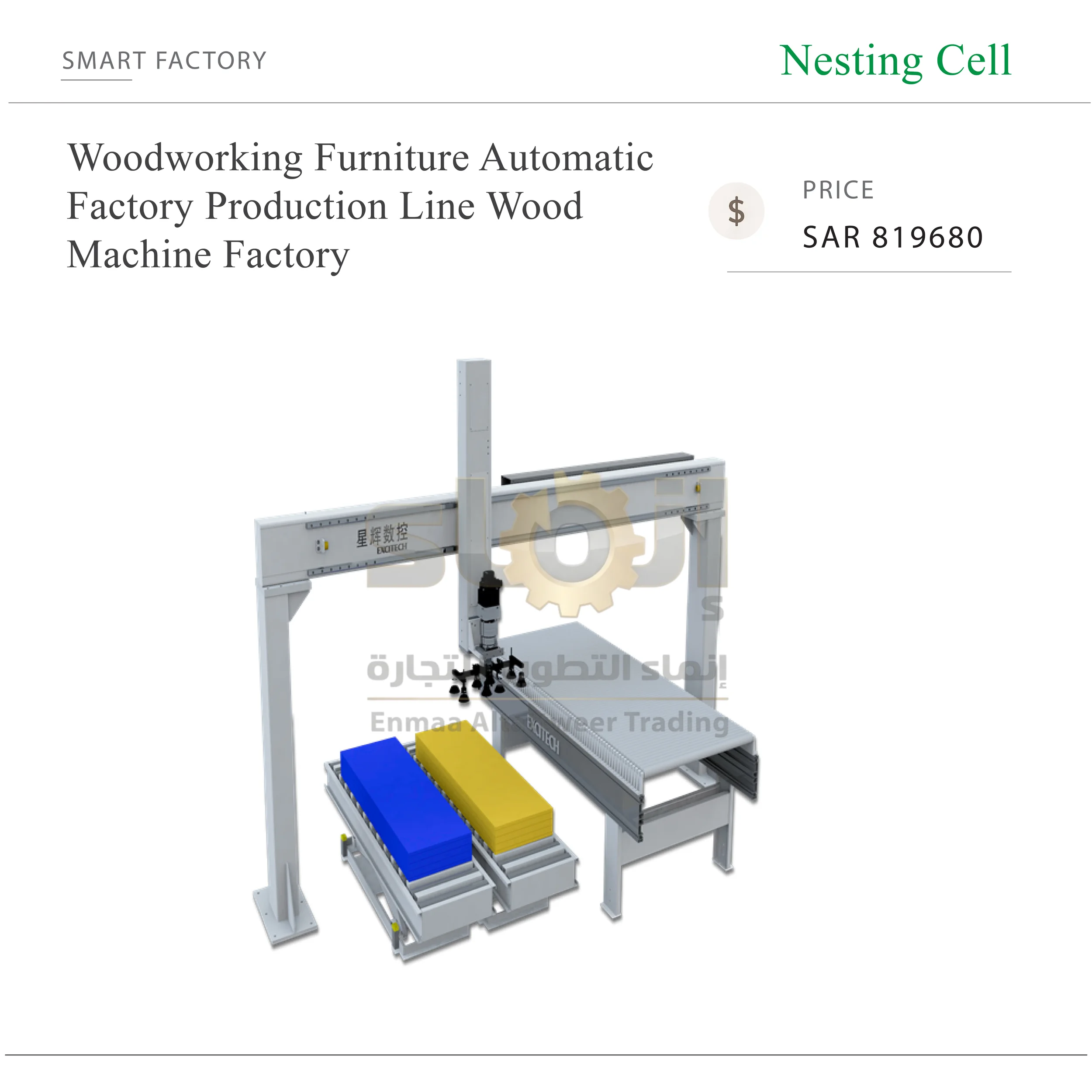

1. Nested-based CNC with Pre-labeling

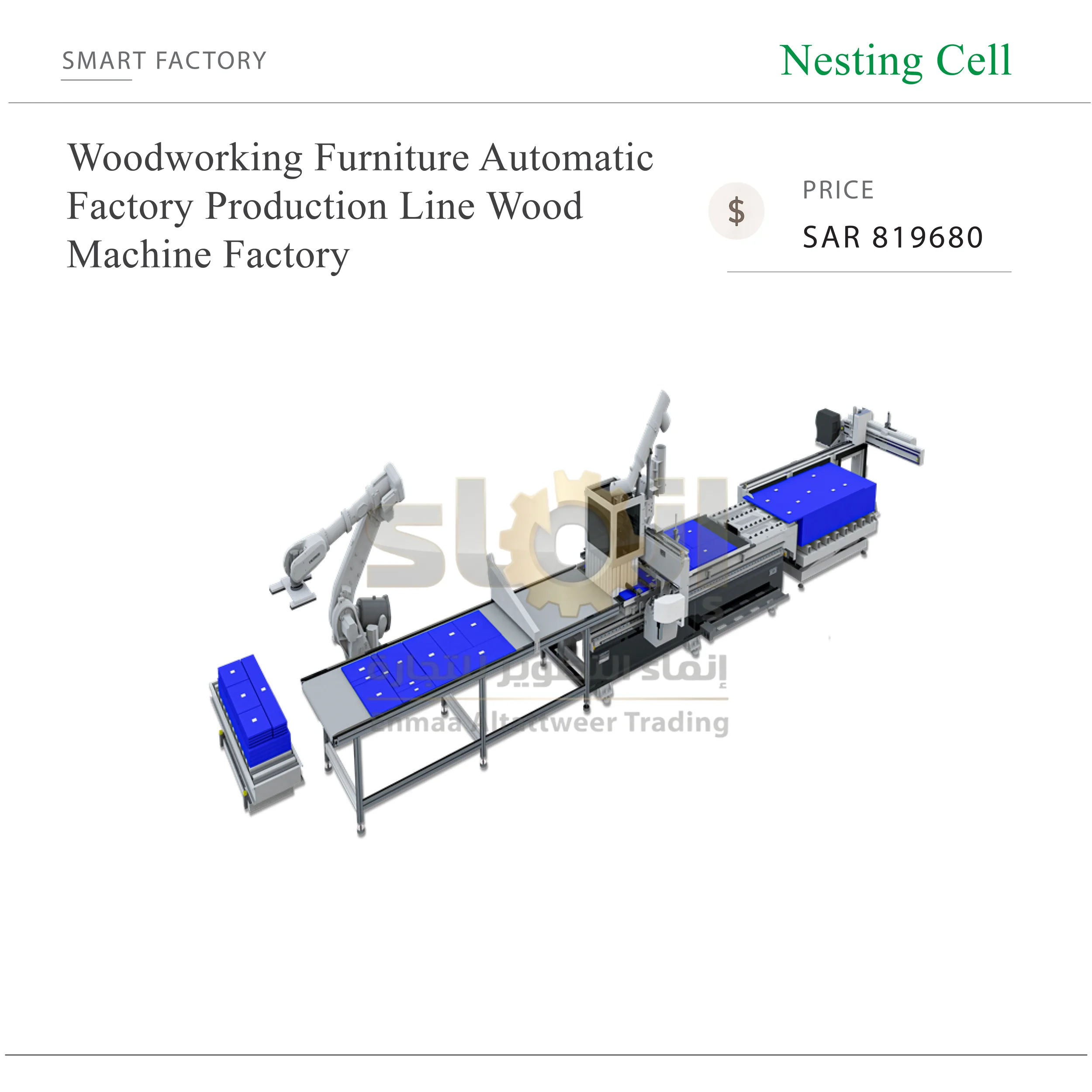

2. Robot
Robot automatically puts the semi-finished product on the conveying roller table for subsequent operation.
Application: widely used for processing Panel Furniture Production Line such as cabinet door, wooden door, solid wood furniture, panel wood furniture, etc.
