The six-sided drilling machine processes six sides in a single cycle, ensuring high precision and efficiency. It features a double adjustable gripper system for firm workpiece holding, an air flotation table for reduced friction, and a versatile head with vertical drill bits, horizontal drill bits, saws, and spindle for multiple operations. Suitable for modular cabinet furniture and various woodworking applications. Equipped with Yaskawa driving system and Syntec controller for reliable performance.
Six-sided drilling machine is mainly used for horizontal,vertical drilling and slotting in various types of artificial panels, with small power spindle for slotting, solid wood panels, etc. Simple operation, fast drilling processing speed, with small spindle slotting, it is suitable for processing all kinds of modular cabinet-type furniture. Six-sided drilling machine can fix the workpiece in one clamping and multi-face machining. It simplifies the overall machining process of the workpiece, simplifies the process, improves the machining efficiency. It has also completely solved the problem that the complicated workpiece needs the error caused by multiple clamping, which reduces the work difference and improves the machining precision.

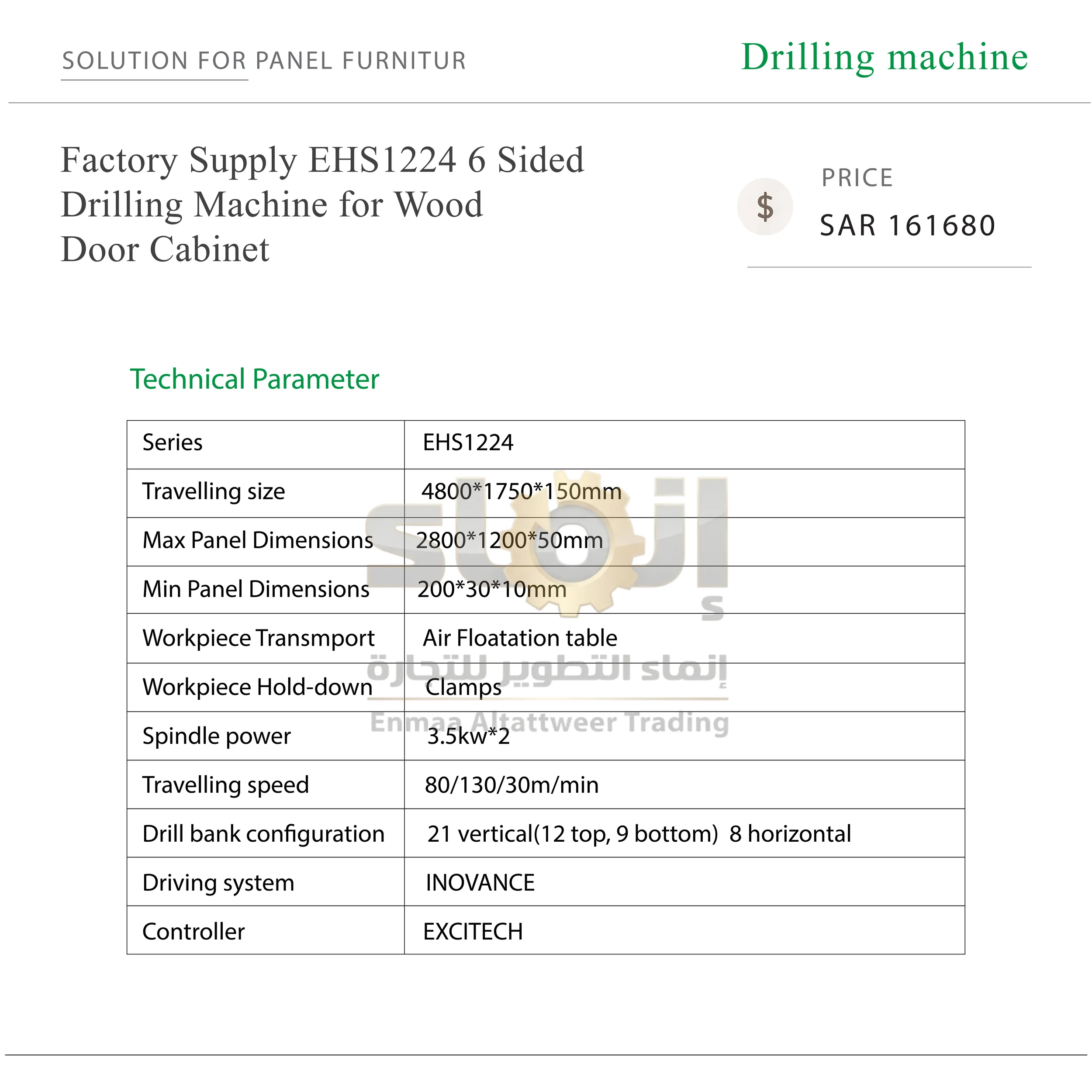

Feature:
| Series | EHS 0924 | EHS1224 |
| Travelling size | 4800*1450*150mm | 4800*1750*150mm |
| Max Panel Dimensions | 2440*900*50mm | 2800*1200*50mm |
| Min Panel Dimensions | 200*30*10mm | 200*30*10mm |

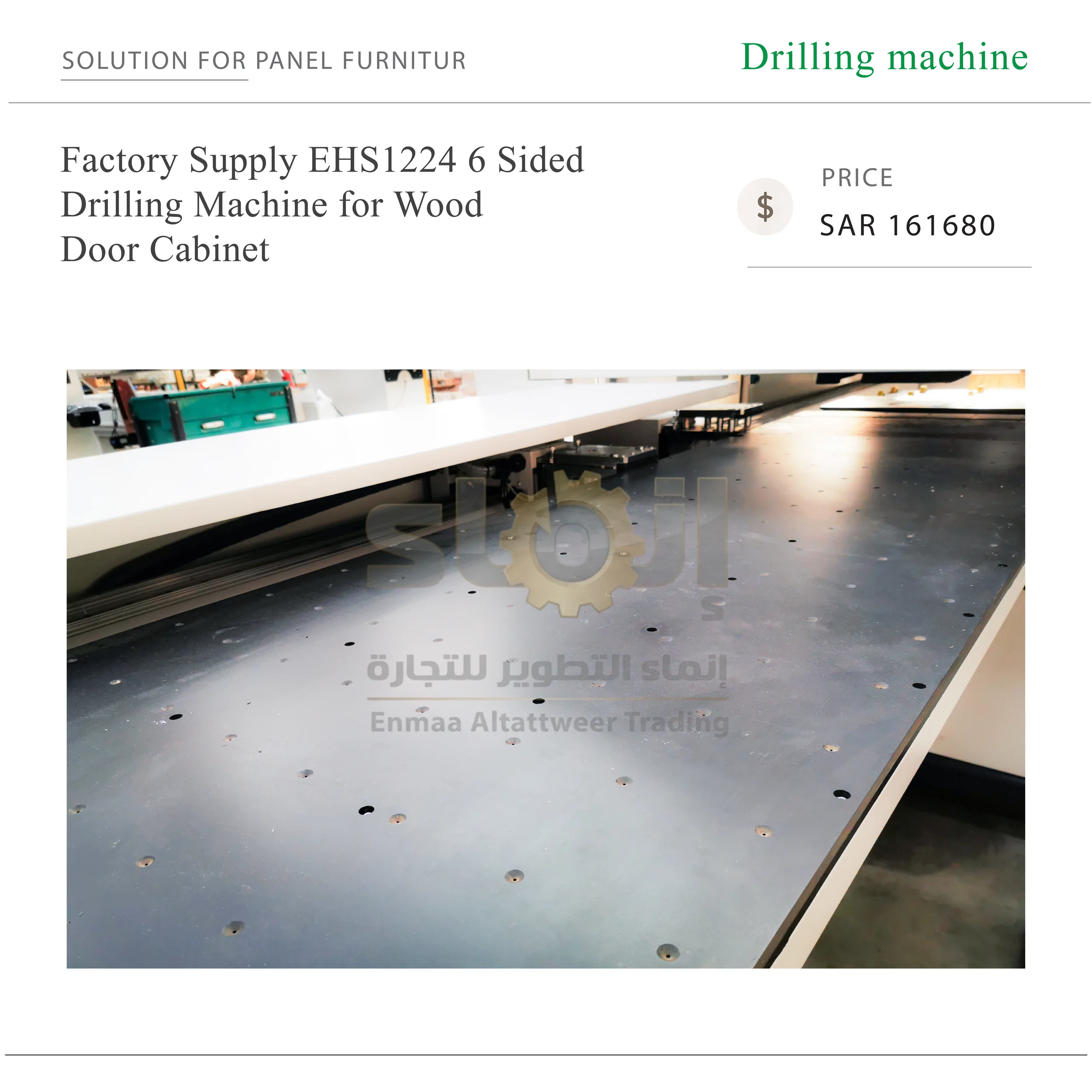

| Workpiece Transmport | Air Floatation table | |
| Workpiece Hold-down | Clamps | |
| Spindle power | 3.5kw*2 | |
| Travelling speed | 80/130/30m/min | |
| Drill bank configuration | 21 vertical(12 top, 9 bottom) 8 horizontal | |
| Driving system | Yaskawa | |
| Controller | Syntec | |
1. Pressing device

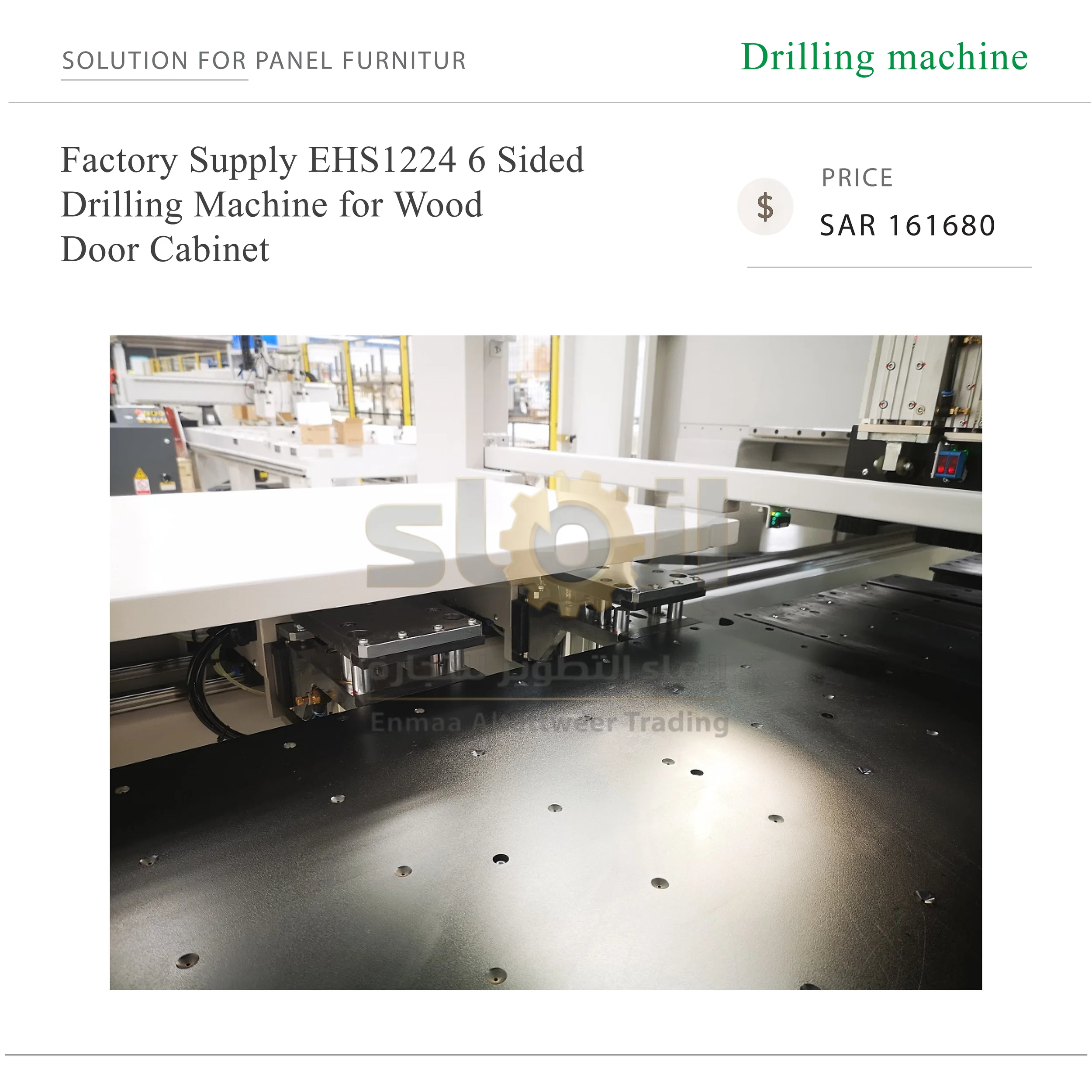

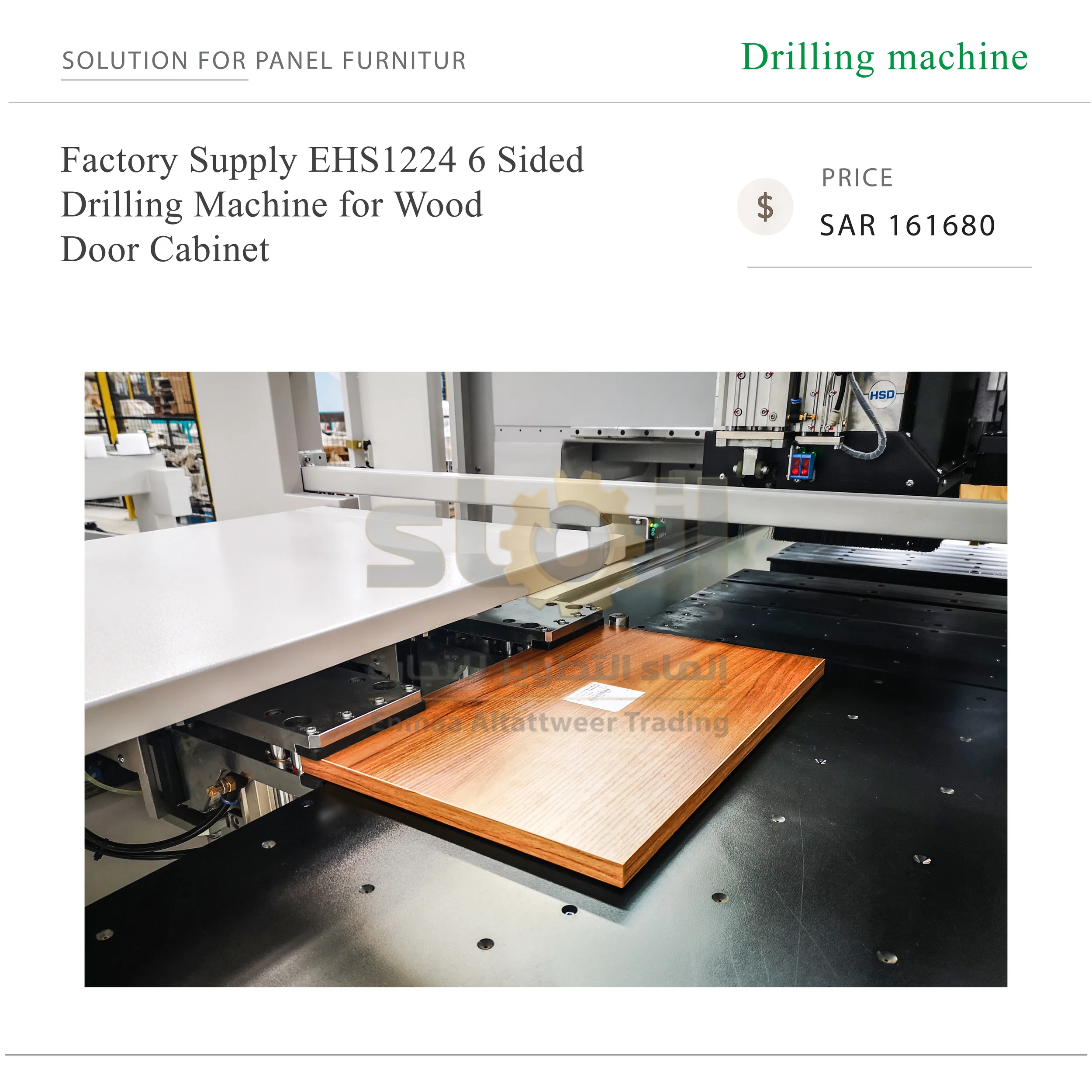

Grippers are automatically positioned to accommodate different sized workpiece.
2. Drilling bank

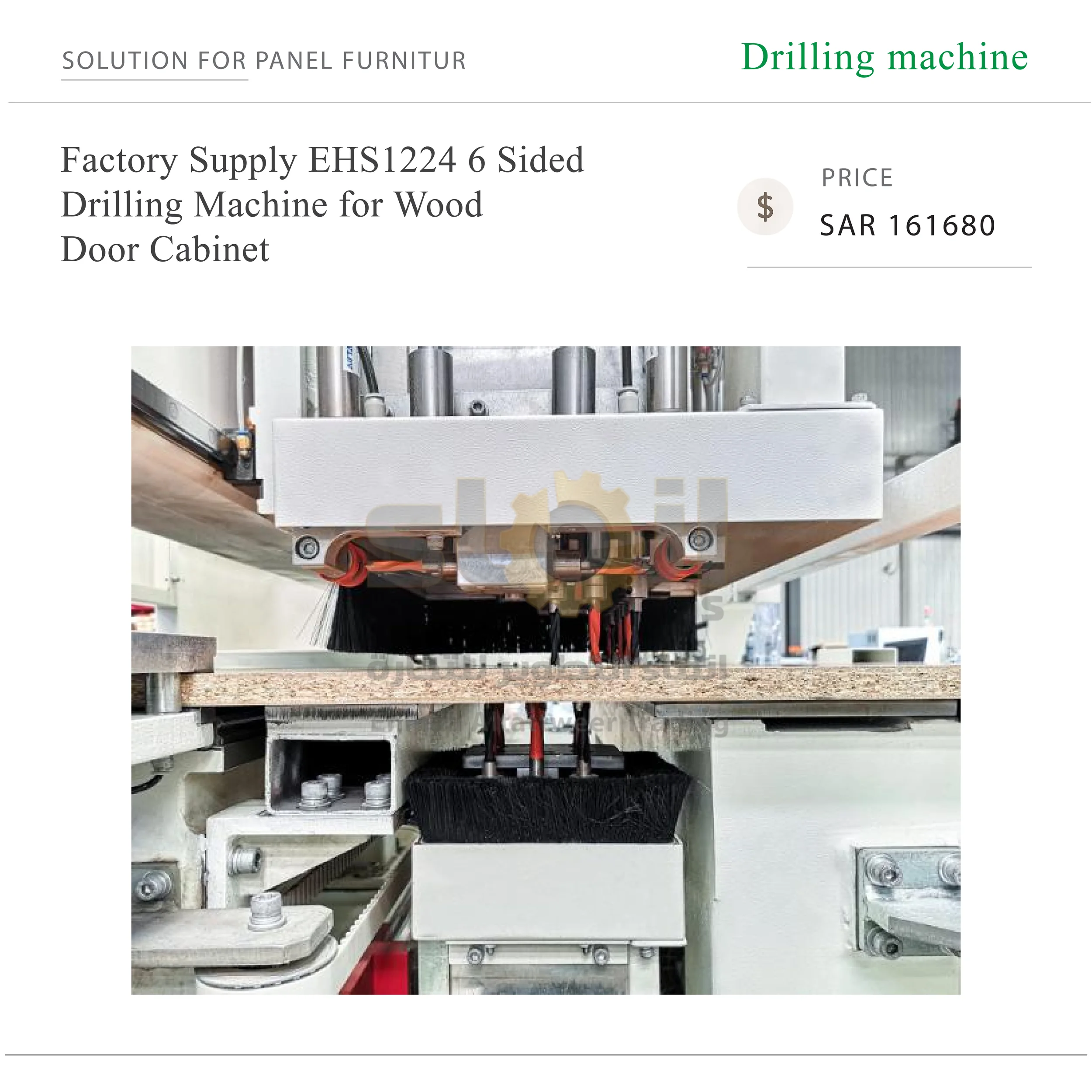

The head is configured with vertical drill bits, horizontal drill bits, saws and spindle so the machine could perform multiple jobs.

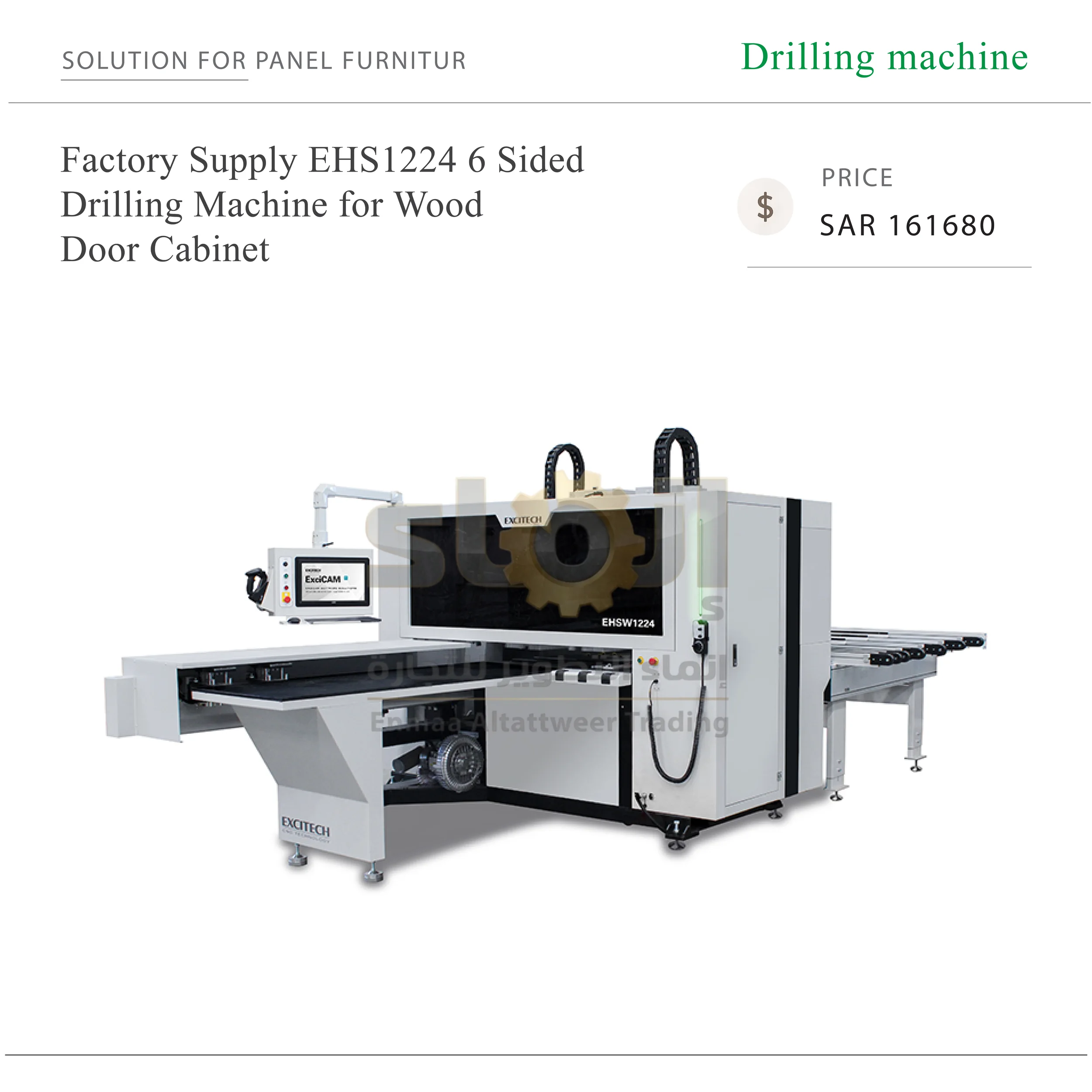

Six-sided drilling machine with bridge structure processes six sides in a single cycle.
3.Panel hold-down device

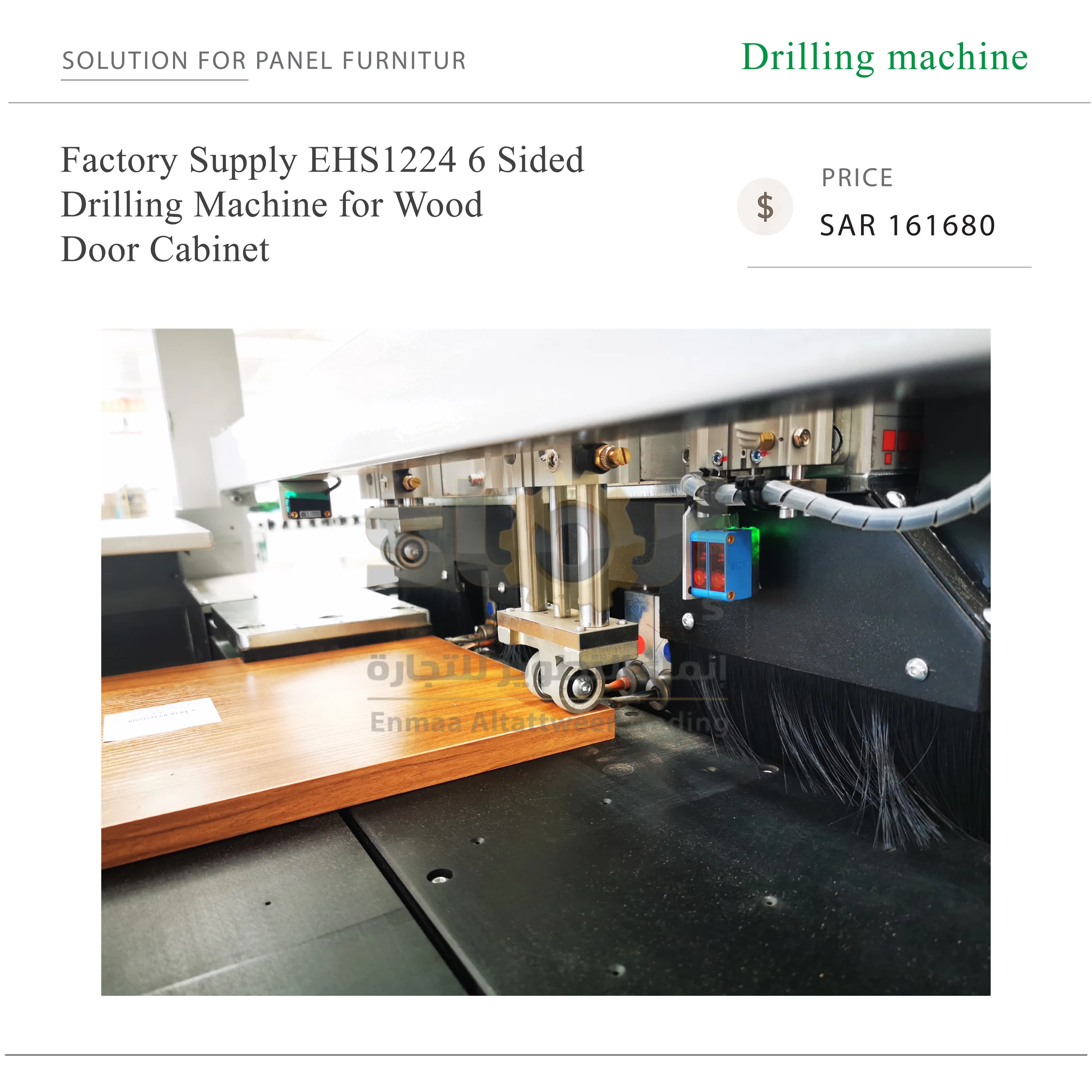

Panel hold-down device with rubber feet guarantees accurate processing.
Application:
Furniture:ideally suitable for processing cabinet door, wooden door, solid wood furniture, panel wood furniture, windows, tables and chairs, etc.
Other wooden products: stereo box, computer desk, musical instruments, etc.
Well-suited for processing panel, insulating materials, plastic, epoxy resin, carbon mixed compound, etc.
Decoration: acrylic, PVC, density board, artificial stone, organic glass, soft metals like aluminum and copper, etc.
