Mainly used to deal with the panel edge banding. Edge banding is a very important process for the panel furniture
The quality of the edge banding will effect the panel furniture quality, price and the levels
The machine has Pre Milling,Gluing,Pressing,End Trimming,Rough Trimming,Fine Trimming,Corner Trimming,Scraping and Buffing functions.
| Model | EF583 |
| Working Speed | 18-24m/min |
| Panel Thickness | 10-60mm |
| Minimum Workpiece | 60x150mm |
| Edge Thickness | 0.4-3mm |
| Edge Width | 16-65mm |
| Power | 16kW |
| Net Weight | 3300kg |
| Voltage | 3PH/50/60V/50HZ |
| Dimension | 7040*1800*980mm |

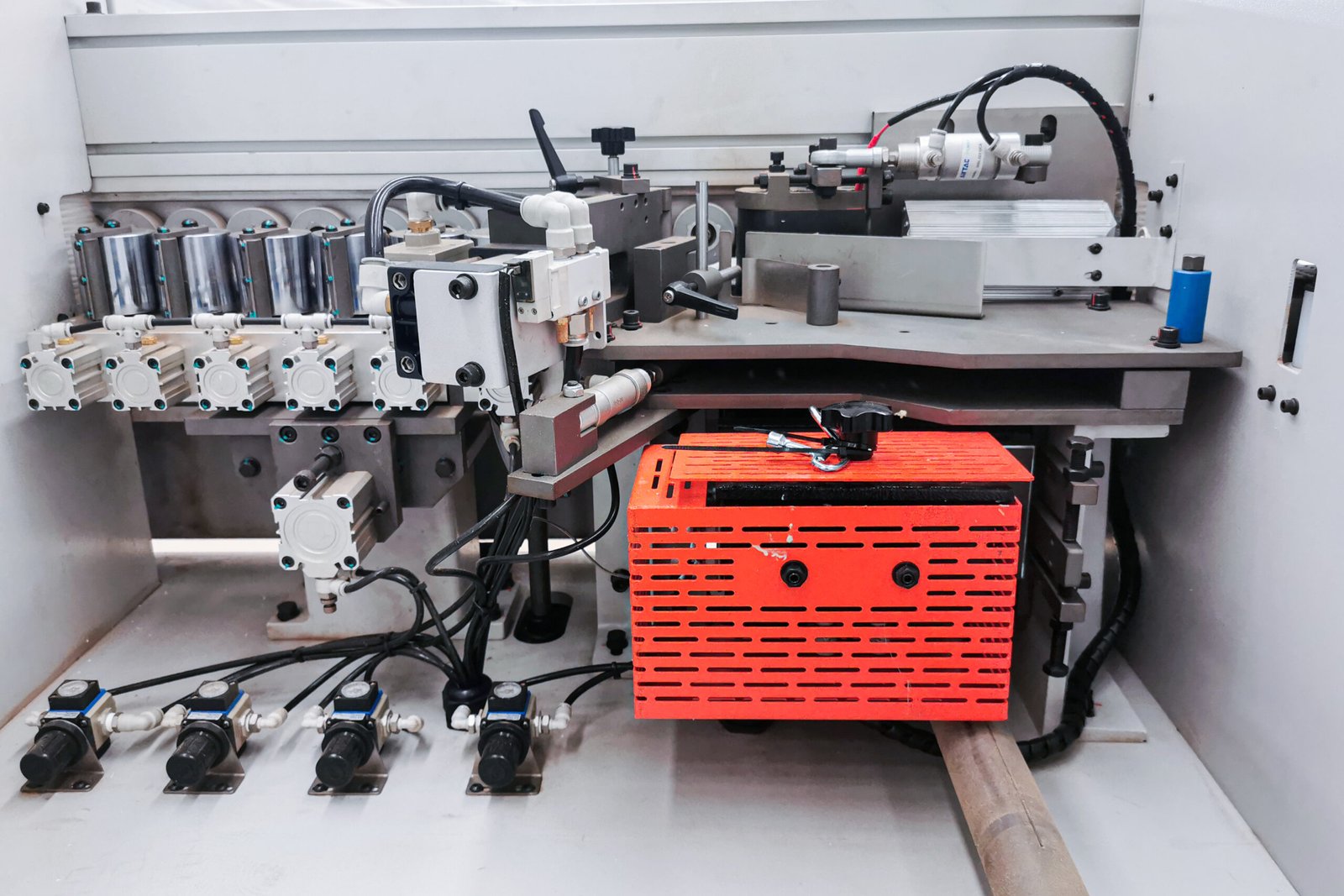

1.Glue Pot

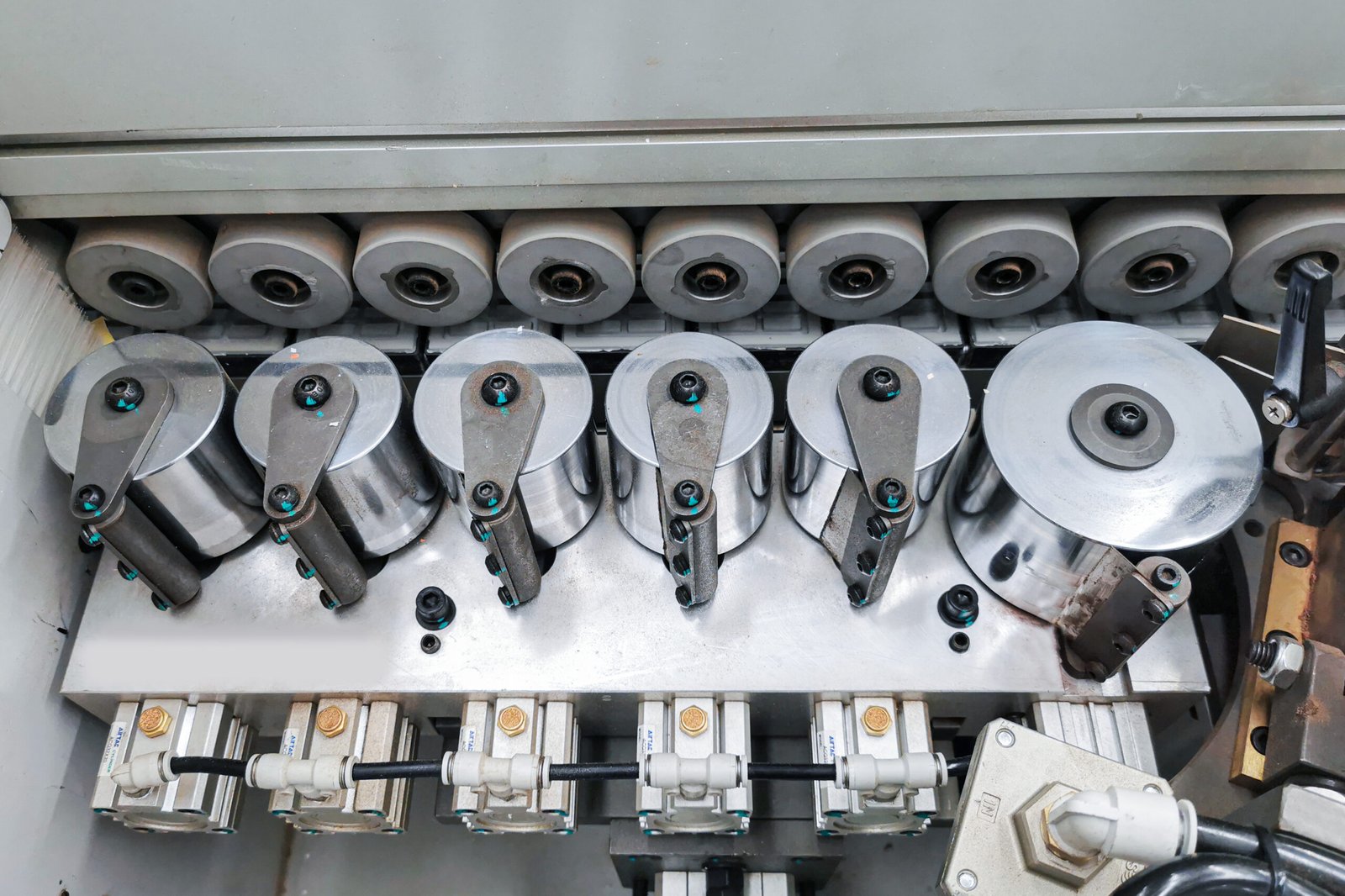

2.Pressing
The big roller and gluing rollers press simultaneously. The latter further ensures that the edge is properly pressed to the work piece.

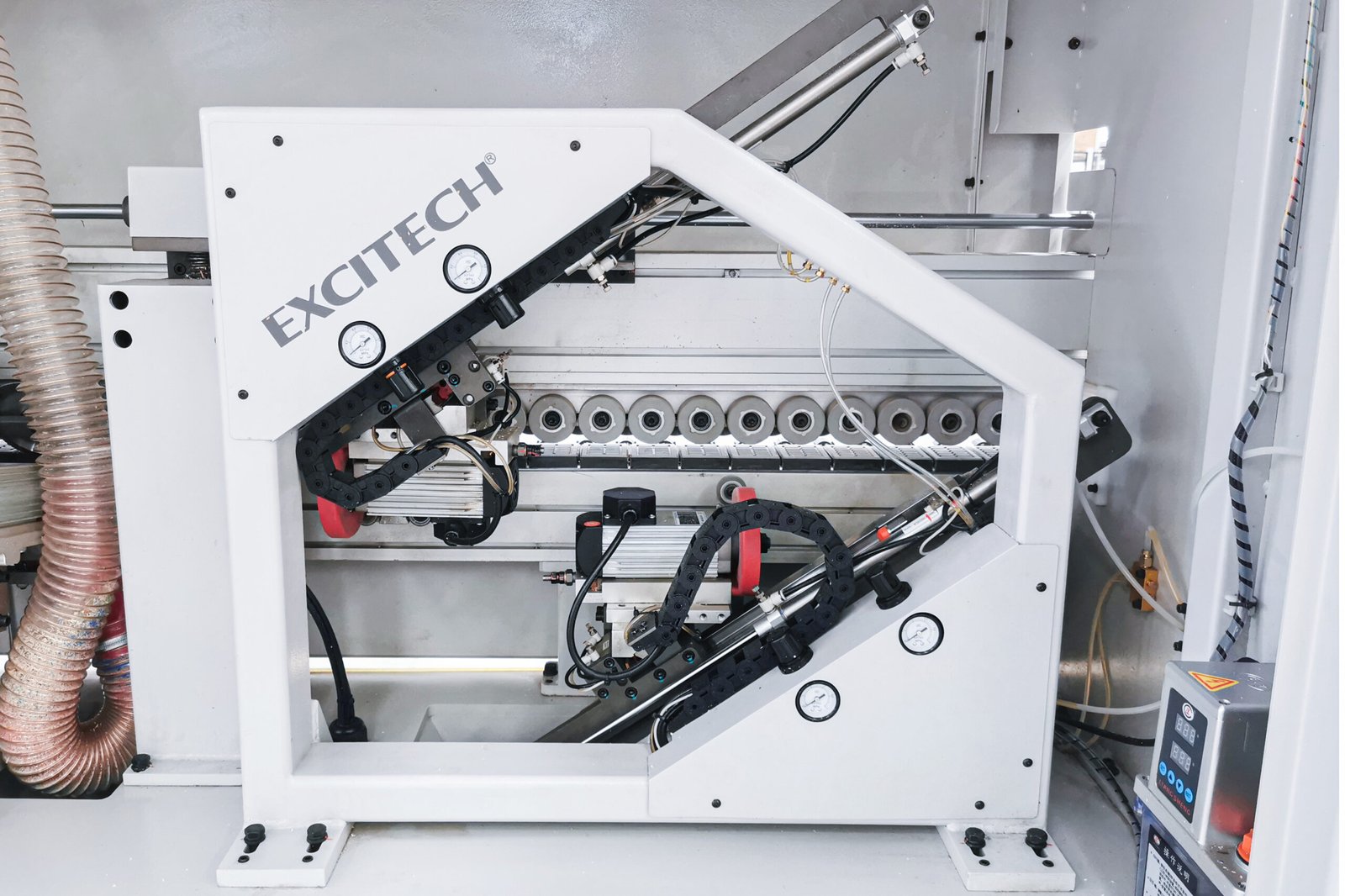

3.End Trimming
Through the precise linear guide rail movement,the automatic tracking of the master and the rapid cutting structure of the high-frequency high-speed motor are adopted to ensure that the cut surface is smooth and smooth

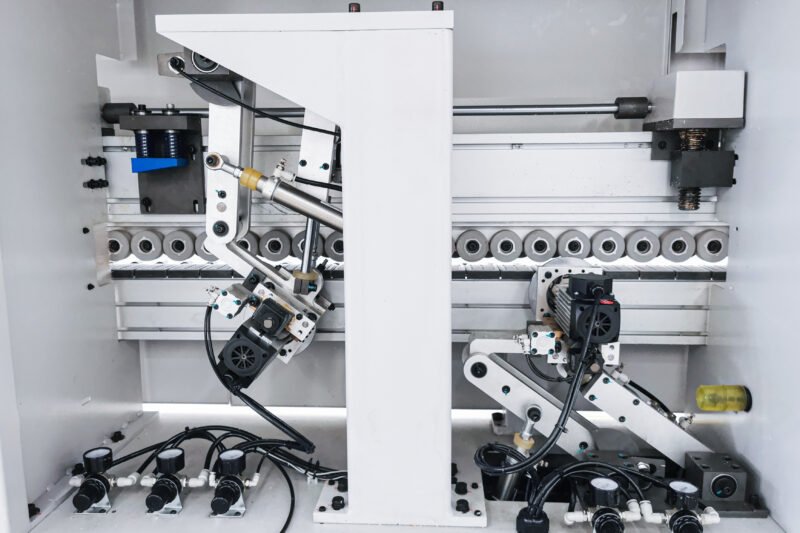

4.Rough and fine trimming
Manually control, the small profile wheel is driven by linear guide rails and is accurately positioned.
5.Corner Trimming
With 2 motors,this device works well with various edge thicknesses and invariably result in perfect round corner.It is most suitable for edge banding of 1.5-3mm.
6.Scraping
Non-power scraping unit, suitable for PVC/ ABS edge within 3mm.
