Highly automated CNC router with automatic loading unloading, utilizing world-class components like an Italian HSD spindle and German helical drives. Versatile for nesting, routing, drilling, and engraving, ideal for wood furniture production. CE certification ensures compliance with EU safety standards, enhancing market access.

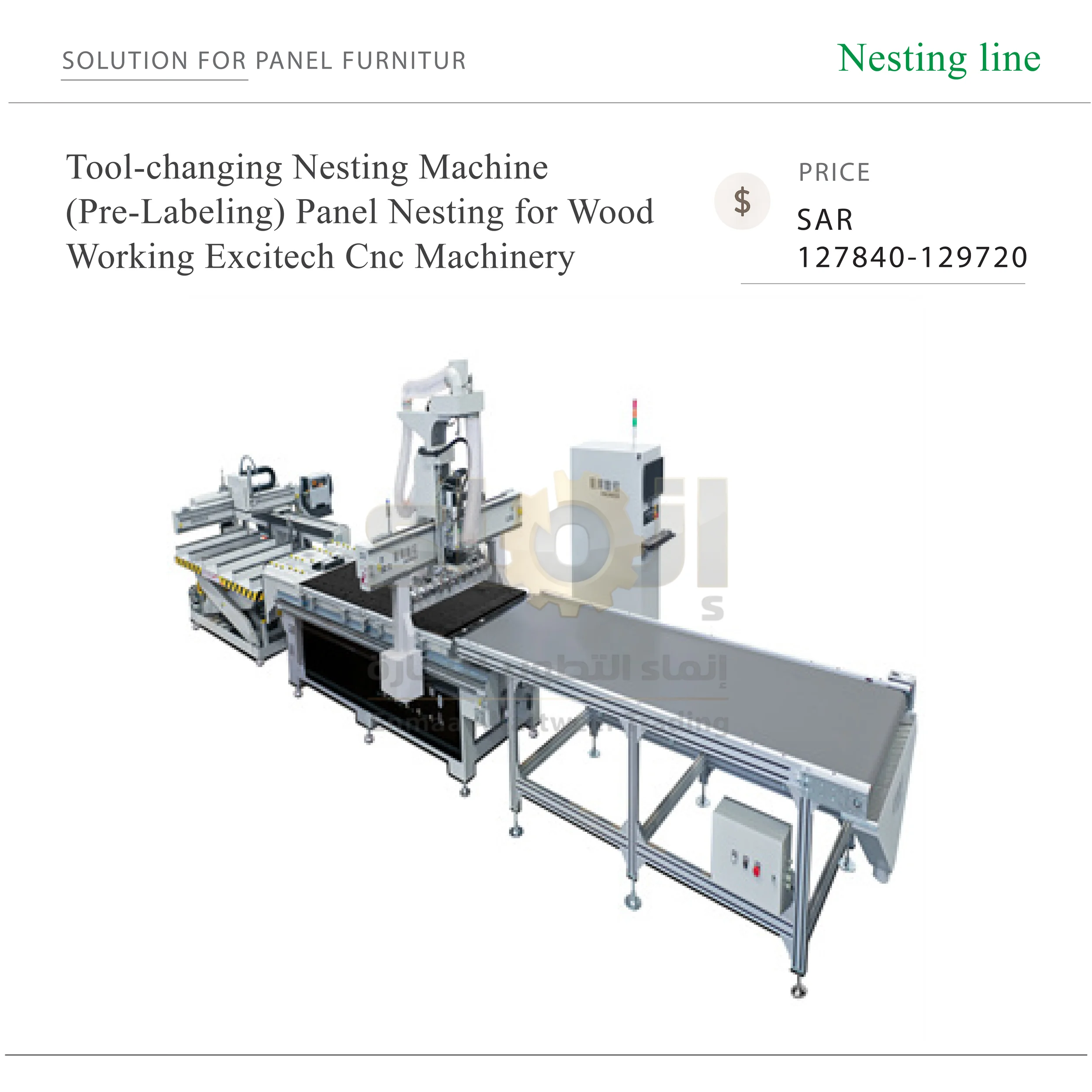

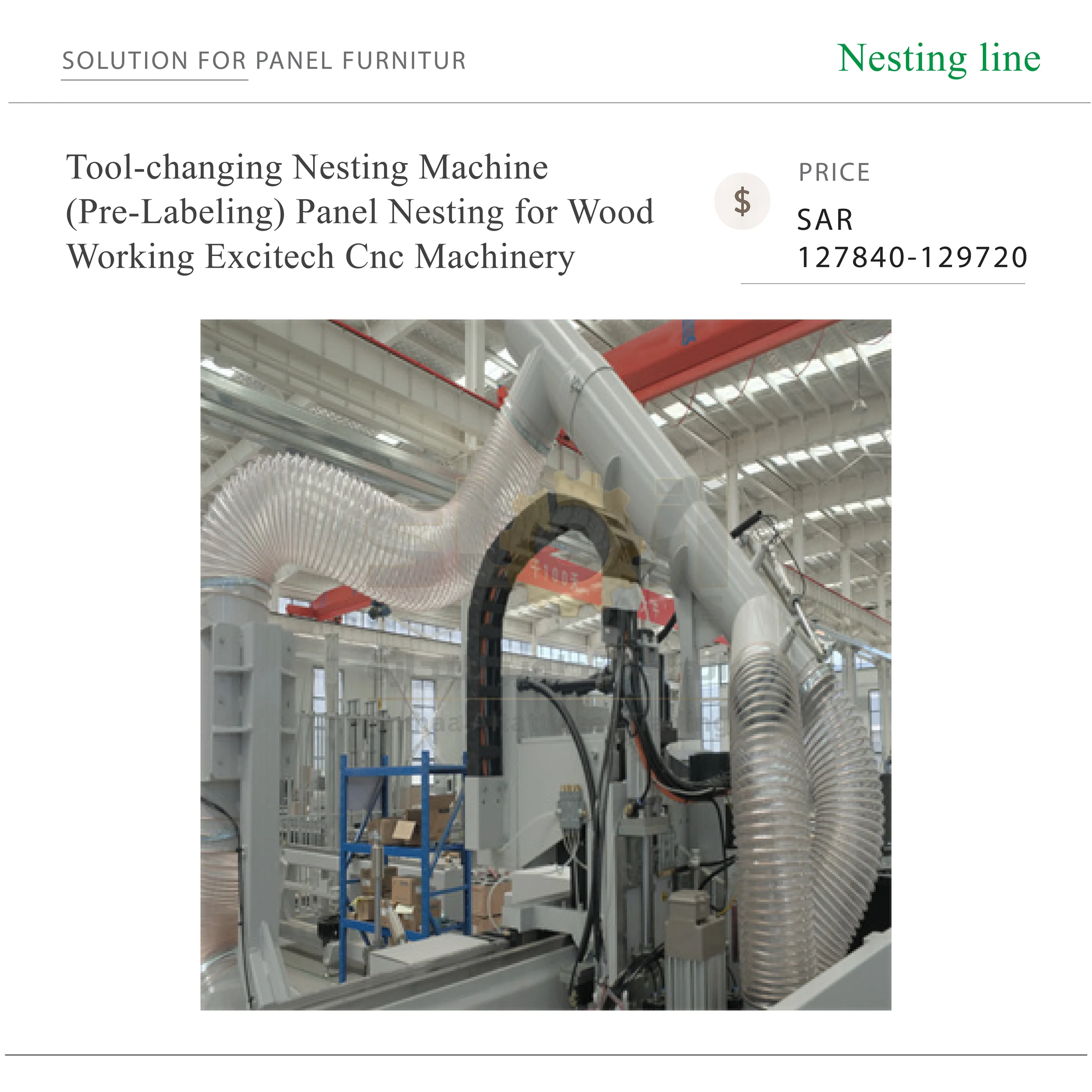

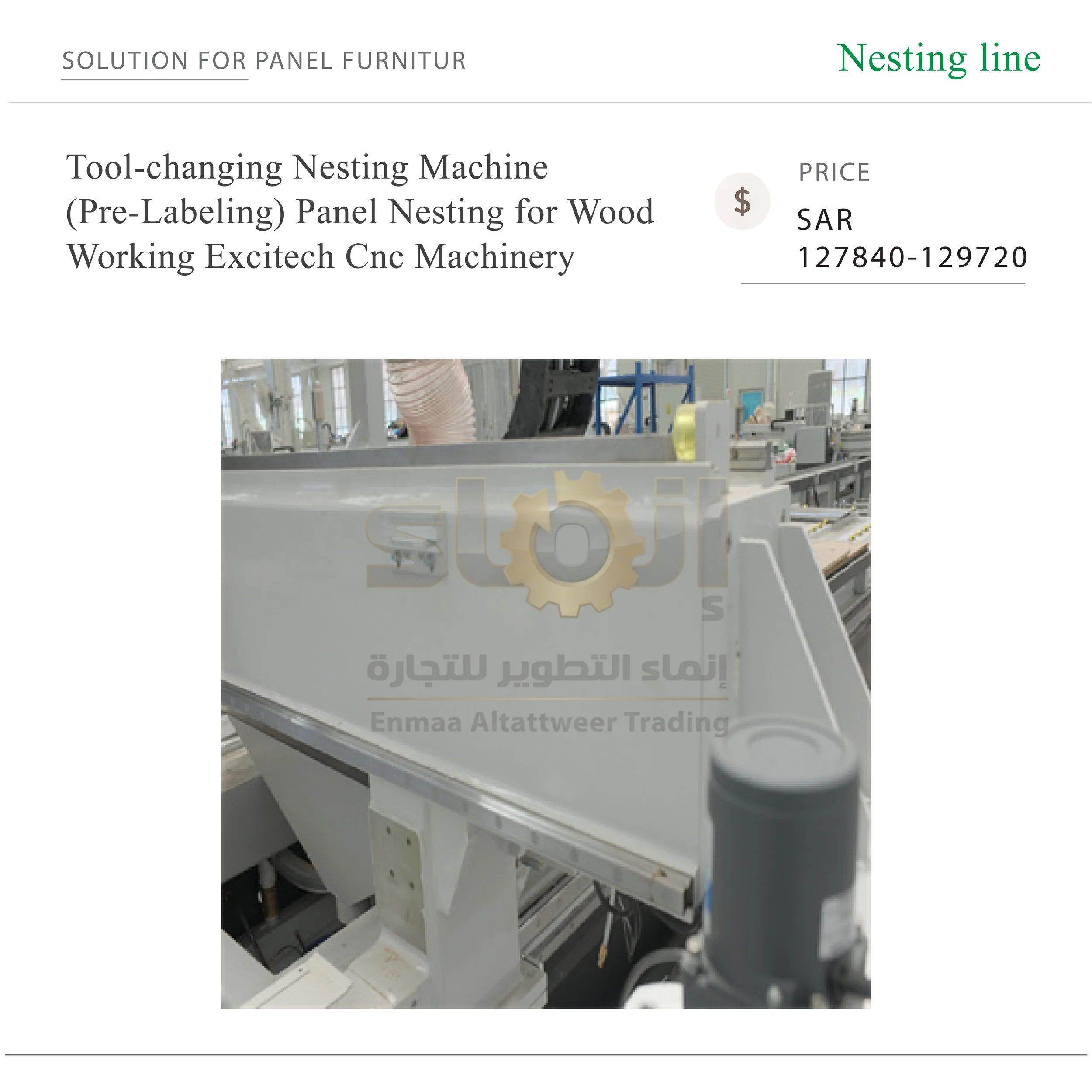

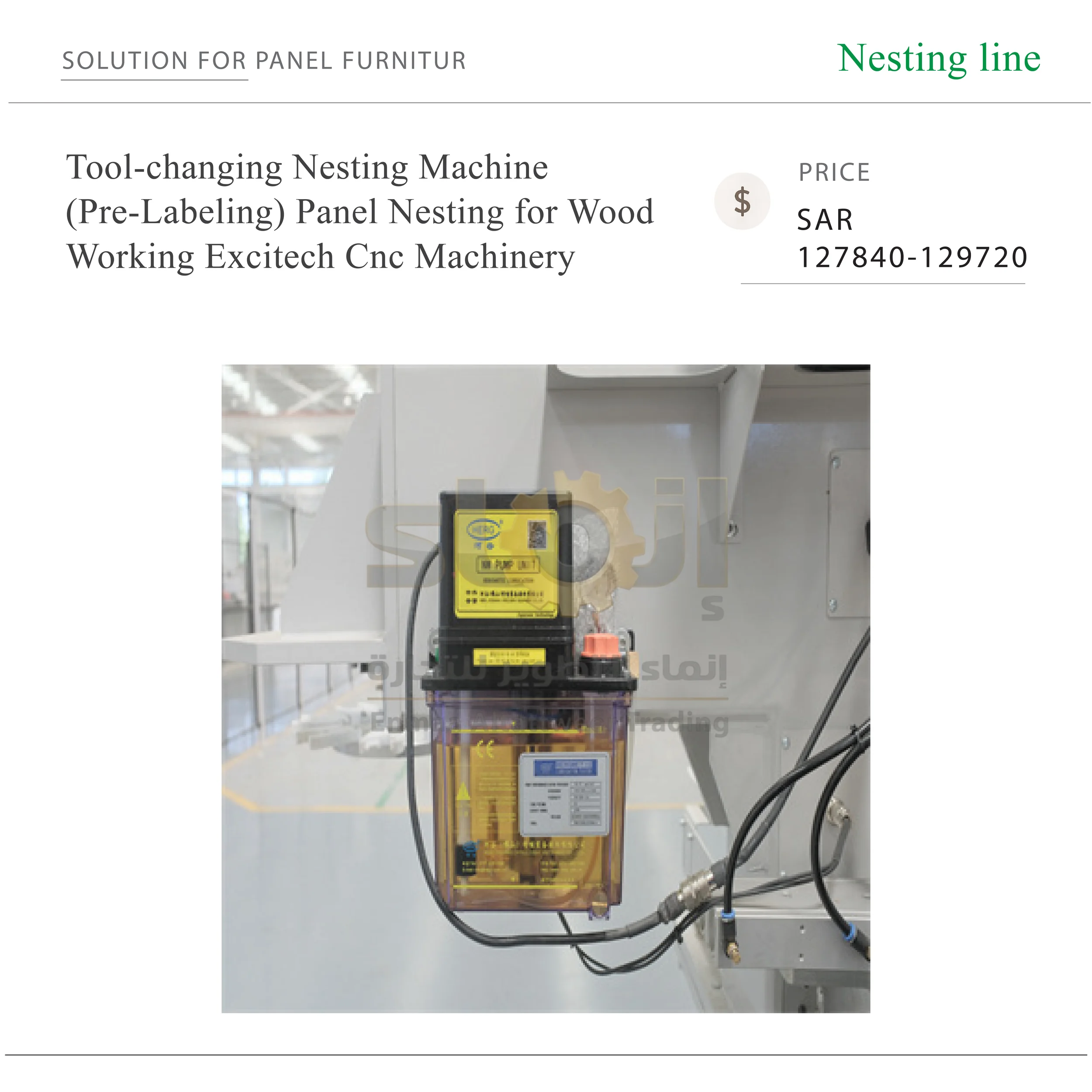

Highly automated nesting solution with automatic loading and unloading system. The complete work cycle of loading, nesting, drilling and unloading is carried out automatically, which results in maximum productivity and zero down time. World’s first class components–Italian high-frequency electro spindle, controller system and drill bank, German helical rack and pinion drives, Japanese self-lubricating and dust-proof square linear guides and high precision planetary gear reducers, etc.Truly versatile–nesting, routering, vertical drilling and engraving all in one. It is well-suited for panel furniture, office furniture, cabinets production.

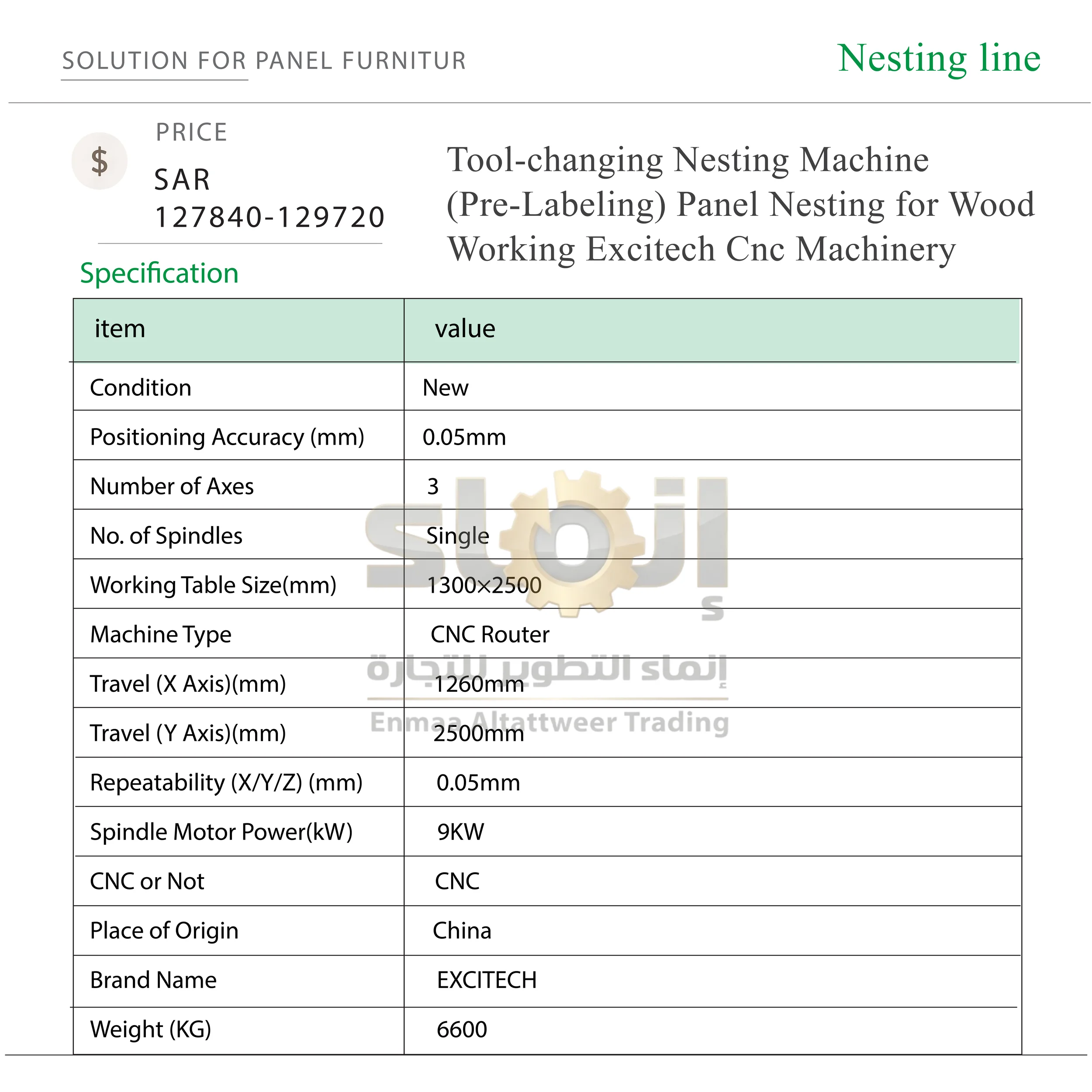

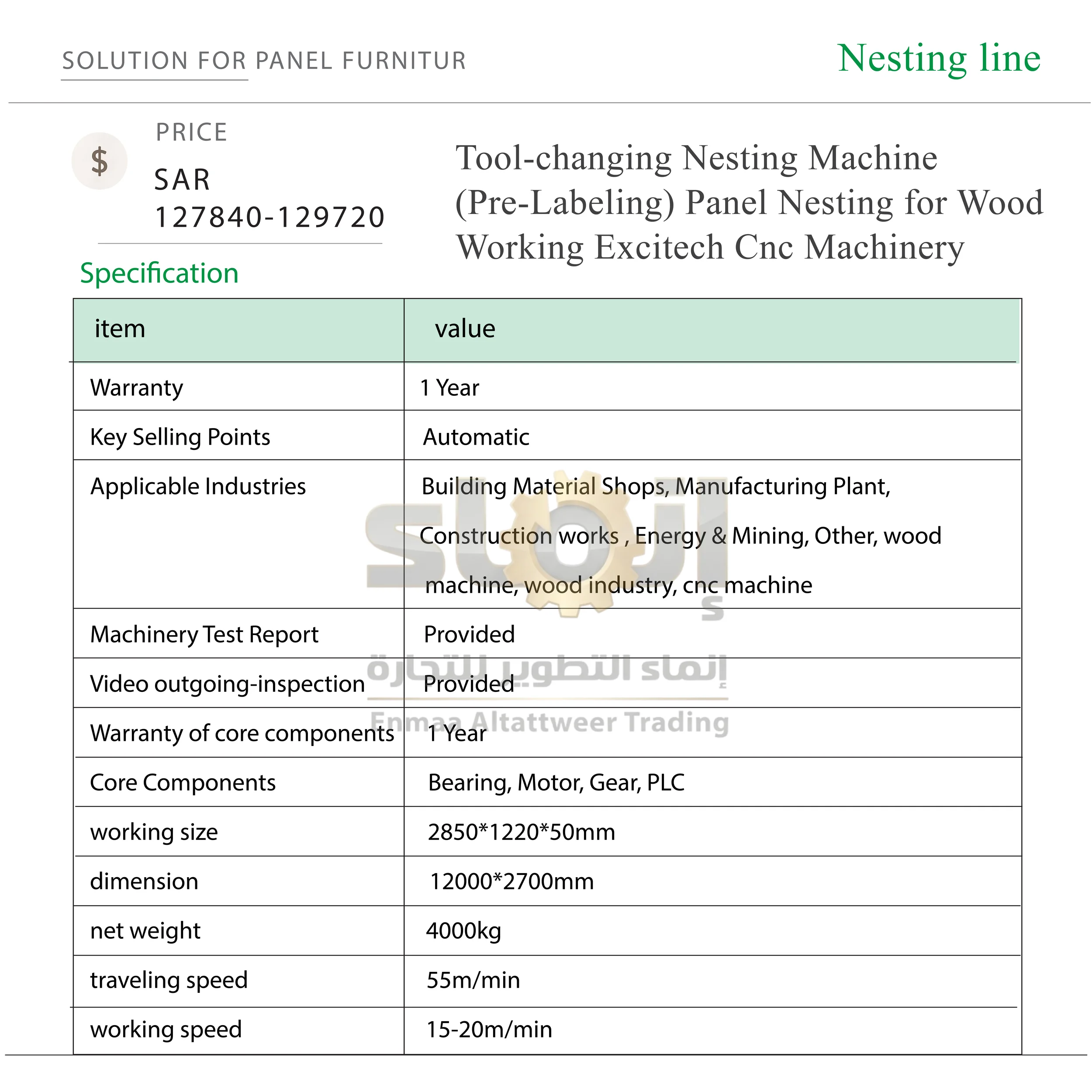

Series | E4-1224D | E4-1530D | E4-1537D | E4-2128D | E4-2138D |
Travelling size | 2500*1260*200mm | 3140*1600*200mm | 3700*1600*200mm | 2900*2160*200mm | 3860*2170*200mm |
Working size | 2440*1220*70mm | 3074*1550*70mm | 3685*1550*70mm | 2850*2130*70mm | 3800*2130*70mm |
Table size | 2440*1228mm | 3074*1550mm | 3685*1550mm | 2850*2130mm | 3800*2130mm |
Transmission | X Y rack and pinion drive, Z ball screw drive | ||||
Table structure | Vacuum table | ||||
Spindle power | 9.6kw | ||||
Spindle speed | 24000r/min | ||||
Travelling speed | 80m/min | ||||
Working speed | 25m/min | ||||
Tool magazine | Carousle 8 slots | ||||

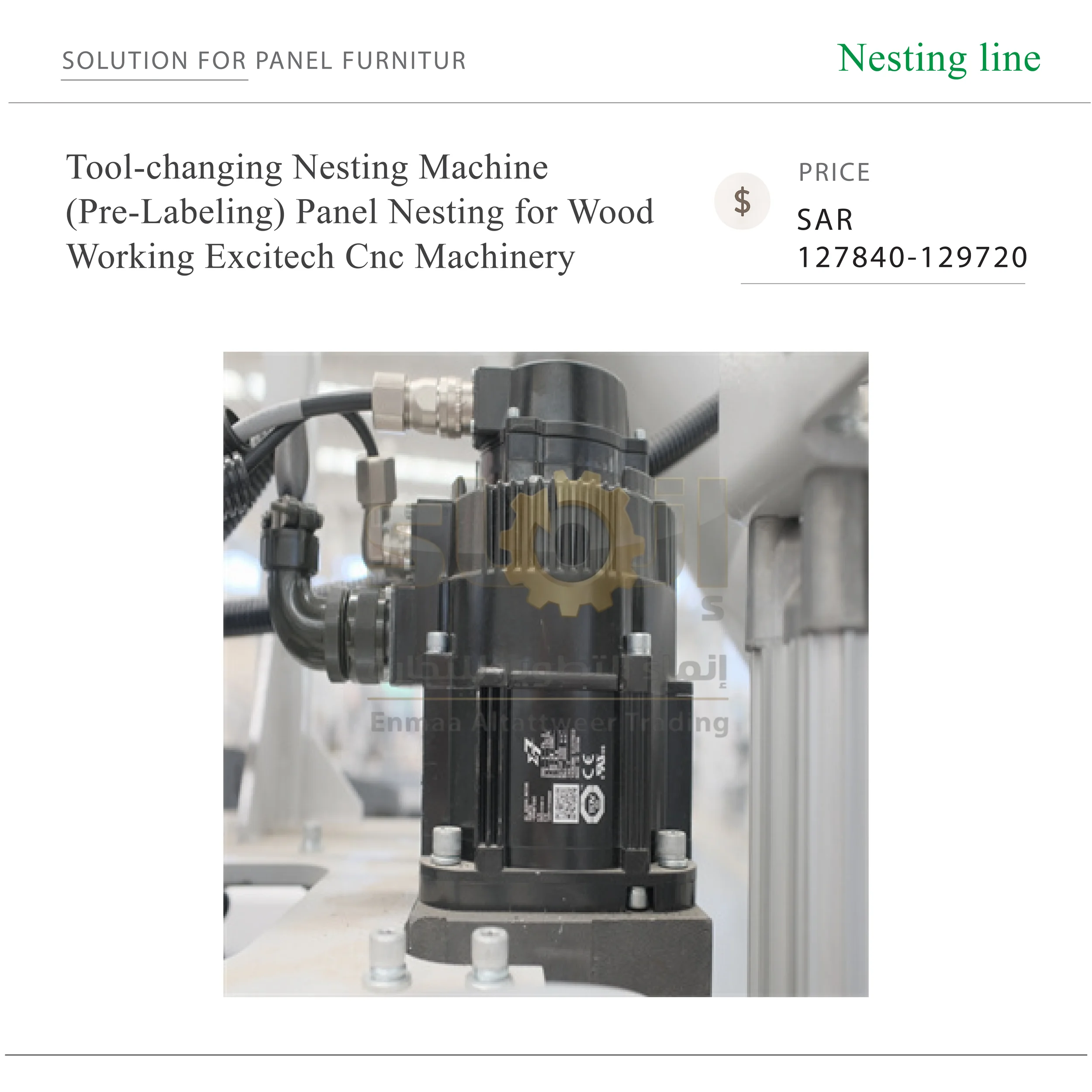

Driving system | Yaskawa | ||||
Controller | OSAI/ Syntec | ||||
Voltage | 380V/3PH/50HZ | ||||
1. Tool changer
The machine adopot carousel tool magazine, standard equipped with 8 tools, and the number of tool magazines can be selected according to the needs, which can effectively reduce the tool change time and improve work efficiency.

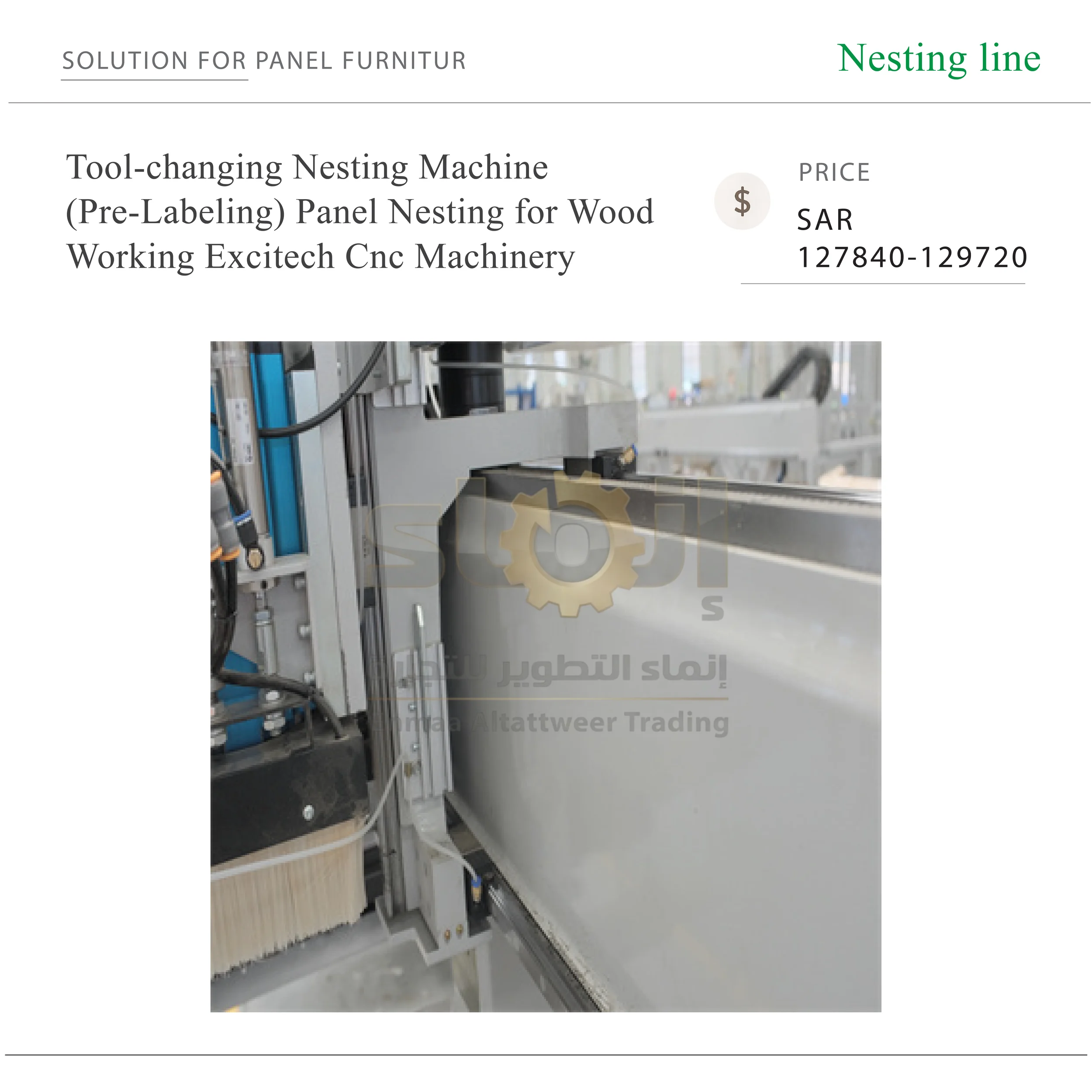

2. HSD spindle with boring unit
The machine adopts HSD automatic tool change spindle and Italy imported drills, including 9 vertical drills, which can meet more processing requirements of users.
3. Automatic loading system(optional: automatic barcode labeling machine)
The machine is equipped with an automatic loading platform, which solve the diffcullty of manually lifting the plates, saving labor and saving production costs. At the same time, the automatic labeling machine can be optional according to the needs of customers.
4. Automatic unloading system
After wood panel are processed, it is automatically unloading by the conveyor belt, inproving the working efficieny. At the same time, the end of the unloading system comes with the optical detection sensor, it can detect if the workpiece have been transported to this area for easy reach. It also make sure that the workpiece are not transported beyond this point so as not to fall off the table.
Application:
Furniture:ideally suitable for processing cabinet door, wooden door, solid wood furniture, panel wood furniture, windows, tables and chairs, etc.
Other wooden products: stereo box, computer desk, musical instruments, etc.
Well-suited for processing panel, insulating materials, plastic, epoxy resin, carbon mixed compound, etc.
Decoration: acrylic, PVC, density board, artificial stone, organic glass, soft metals like aluminum and copper, etc.
