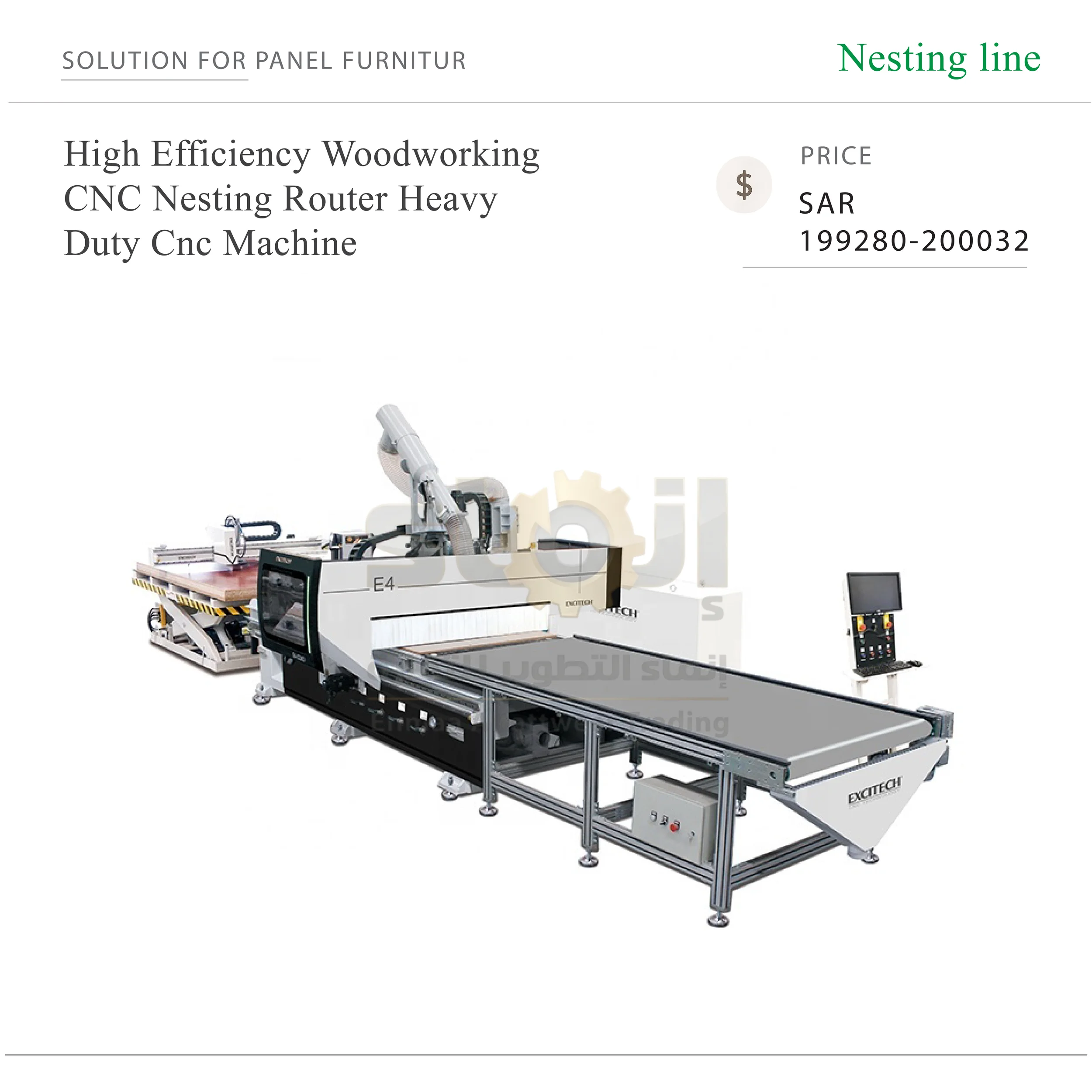

This CNC woodworking router features a 3-axis design with a 2900*1260*300mm working size, powered by a 9kw spindle and Japan Yaskawa servo motors for precision. Equipped with a Syntec control system, THK rail guides, and a vacuum table, it ensures high accuracy (0.2mm) and repeatability, ideal for furniture manufacturing and wood cutting.

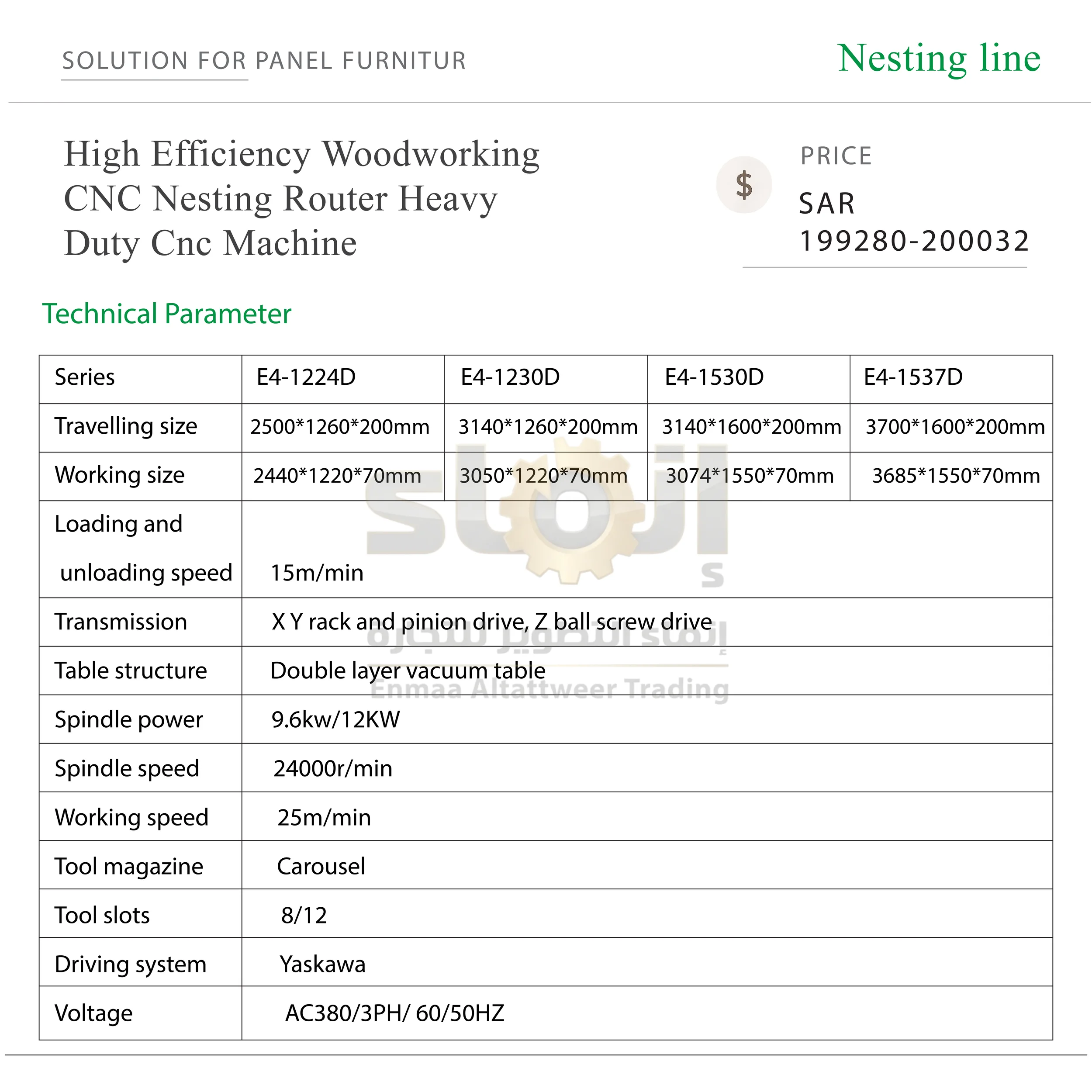

item | value |
Condition | New |
Range of Spindle Speed(r.p.m) | 18000rpm – 24000rpm |
Positioning Accuracy (mm) | 0.2mm |
Number of Axes | 3 |
No. of Spindles | Single |
Working Table Size(mm) | 2900*1260*300mm |
Machine Type | CNC Router |
Travel (X Axis)(mm) | 1260mm |
Travel (Y Axis)(mm) | 2500mm |
Repeatability (X/Y/Z) (mm) | 0.2mm |
Spindle Motor Power(kW) | 9/12 |
CNC or Not | CNC |
Place of Origin | China |
Brand Name | EXCITECH |
Voltage | AC380/3PH/50HZ |
Dimension(L*W*H) | 3850*2250*2100 |
Power (kW) | 22 |
Weight (KG) | 1800 |
Warranty | 12 months |
Key Selling Points | Flexible Manufacturing |
Applicable Industries | Manufacturing Plant, Other, Construction works , Energy & Mining, Advertising Company, woodworking, wood machine, cnc machine, wood cutting |
Machinery Test Report | Provided |
Video outgoing-inspection | Provided |
Warranty of core components | 1 Year |
Core Components | Bearing, Motor, Pump, Gear, Gearbox |
Product name | Nesting cnc woodworking machine for furniture |
Working size | 2900*1260*300mm |
Transmission | X Y axis rack and pinion transmission, Z axis ball screw transmission |
Spindle power | 9kw |

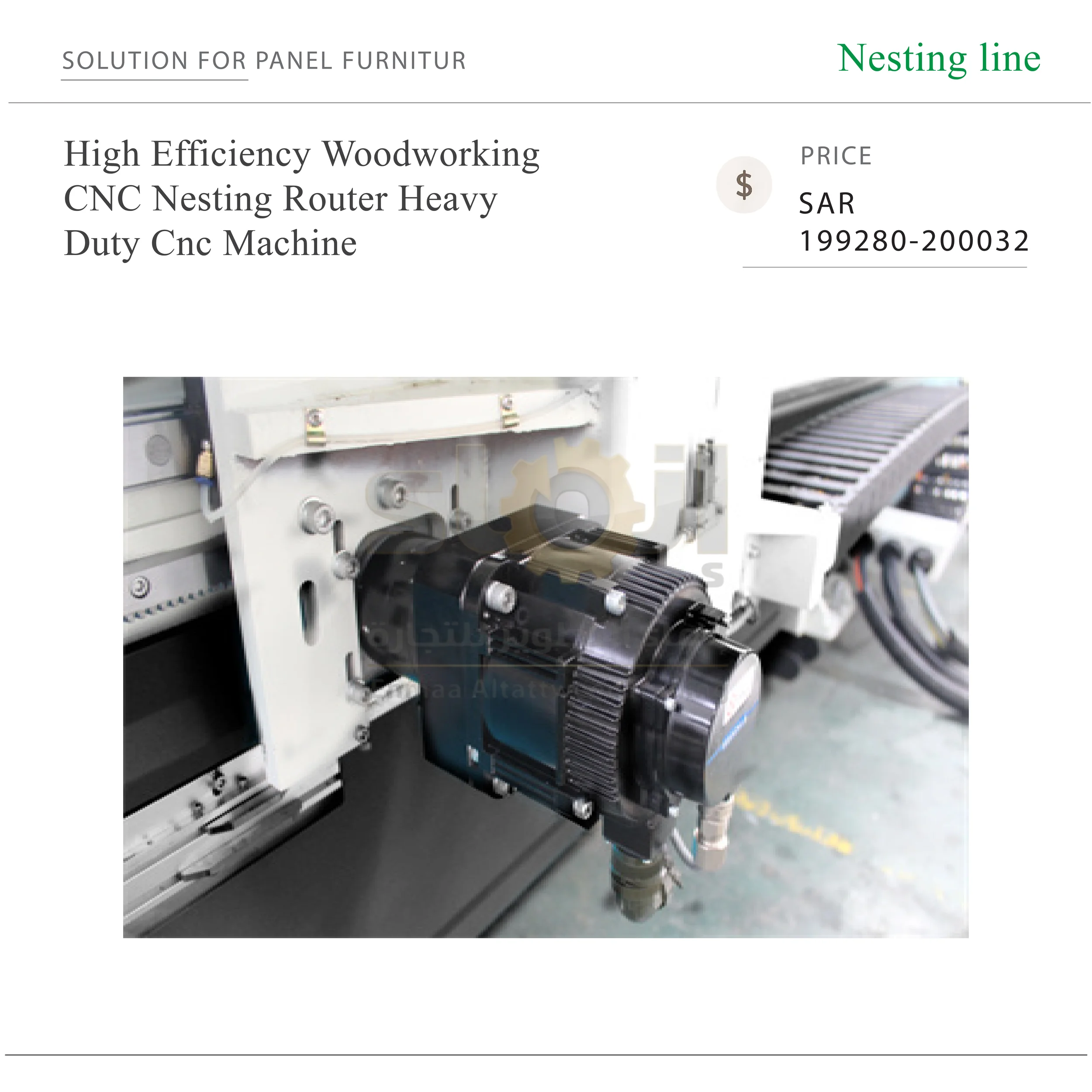

Motor and driver | Japan Yaskawa Servo Motor and driver |
Controller | Syntec control system |

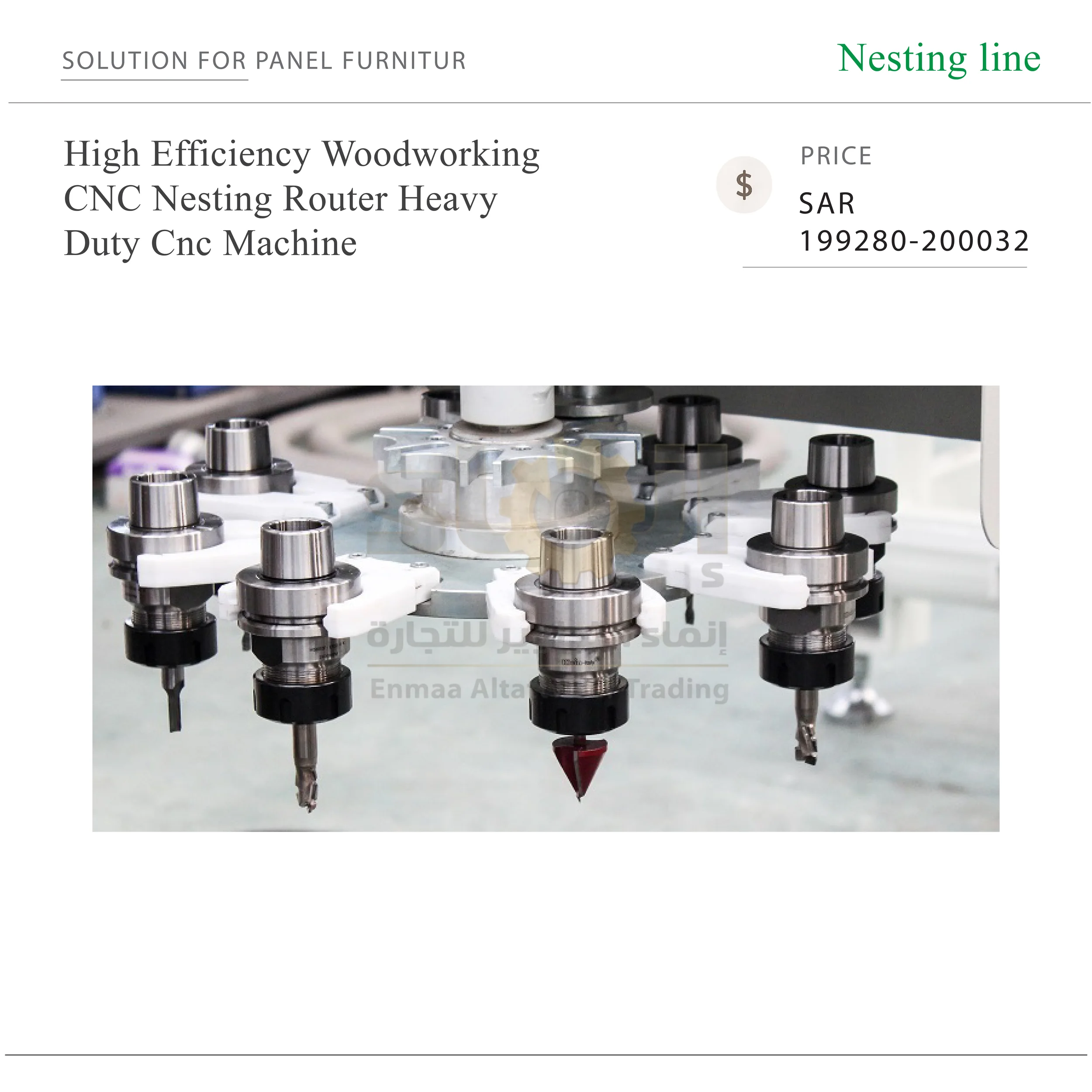

Tool magazine | Linear 12 slots |
Table structure | T-slot and Vacuum table |
Rail guide | Japan THK rail guide |
Power | 22KW |
