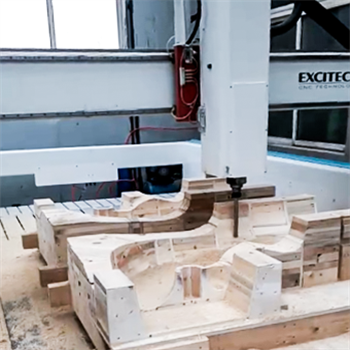

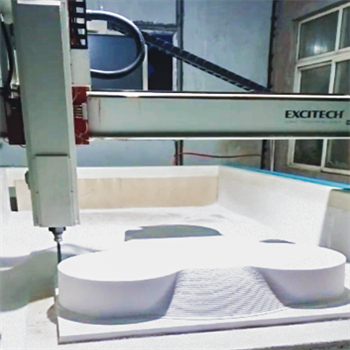

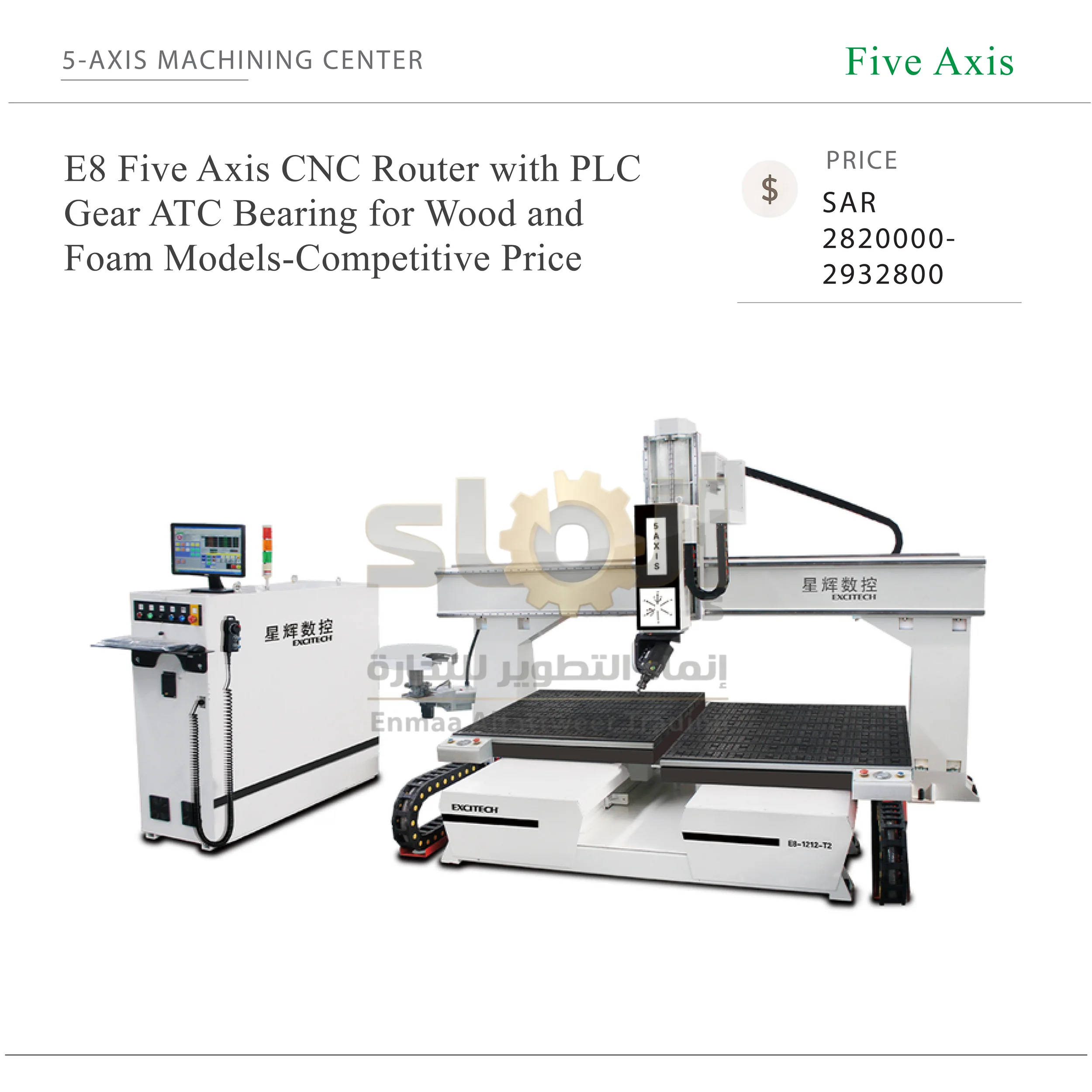

This mini 5-axis CNC lathe router is designed for wood milling and engraving, featuring a 1220*1220*500mm working size, Japan Yaskawa servo motor, Italy OSAI control system, and a vacuum table. It ensures precision with Y-axis rack and pinion transmission and X Z-axis ball screw transmission. The product offers a 1-year warranty on core components, supports 20m min working speed, and includes an 8-slot carousel tool magazine for enhanced versatility.
item | value |
Place of Origin | China |
Shandong | |
Condition | New |
Max. Swing Diameter (mm) | 1200mm |
Max. Length of Workpiece (mm) | 1300mm |
Max. Turned Length (mm) | 12500mm |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | New Product 2022 |
Warranty of core components | 1 Year |
Core Components | PLC, Bearing, Motor |
Brand Name | EXCITECH |
Voltage | 50/60V |
Dimension(L*W*H) | 3.4*4*2.5M |
Weight (KG) | 1700 |
Warranty | 12 months |
Key Selling Points | Competitive Price |
Applicable Industries | Building Material Shops, Manufacturing Plant, Construction works , Energy & Mining, Other, woodworking, wood cabinet, cnc machine, furniture making |
Showroom Location | None |

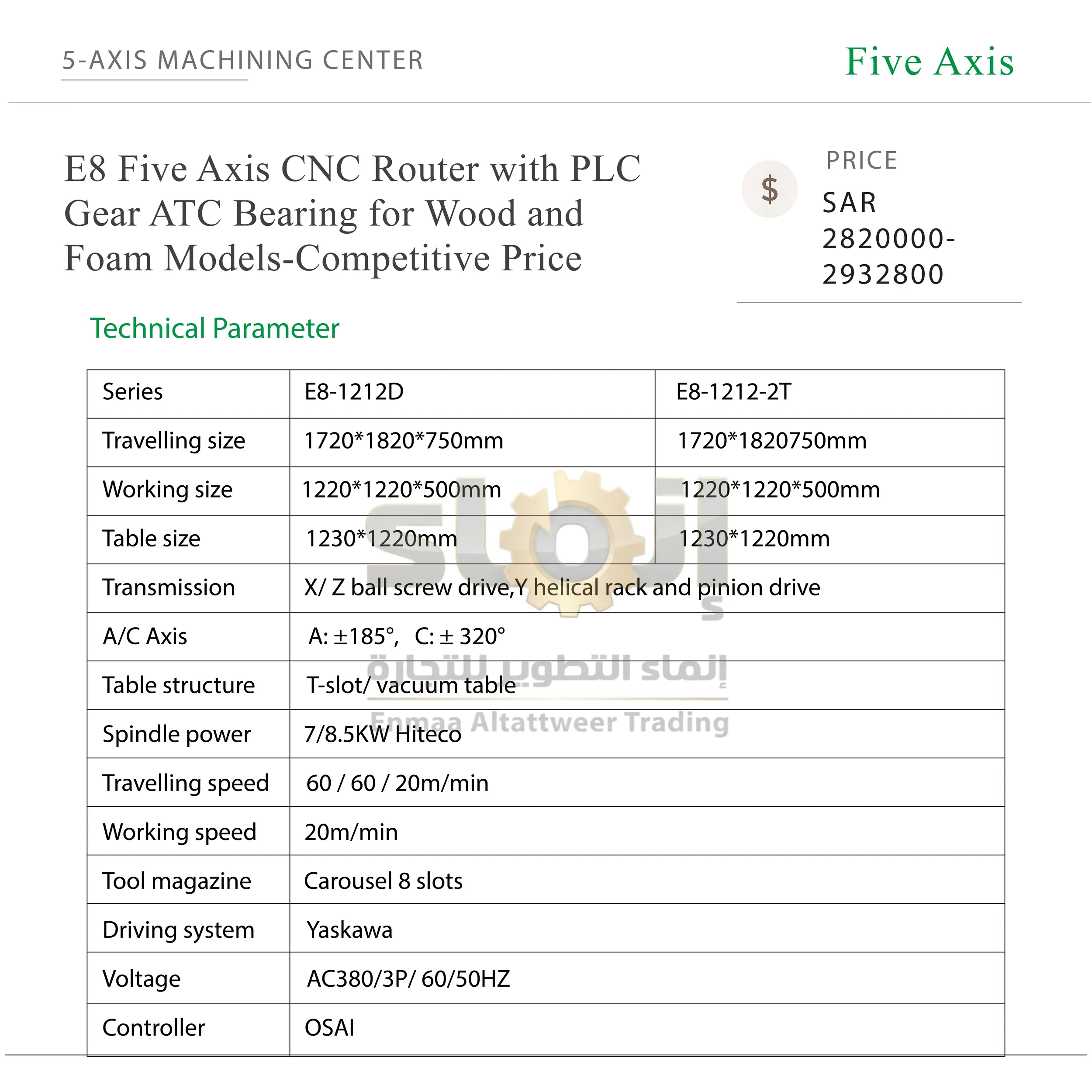

Product name | Hot sale mini 5 axis cnc lathe router for wood milling engraving |
Working size | 1220*1220*500mm |
Transmission | Y axis rack and pinion transmission, X Z axis ball screw transmission |
Spindle Power | 7KW/ 8.5KW |
Motor and driver | Japan Yaskawa Servo Motor and driver |

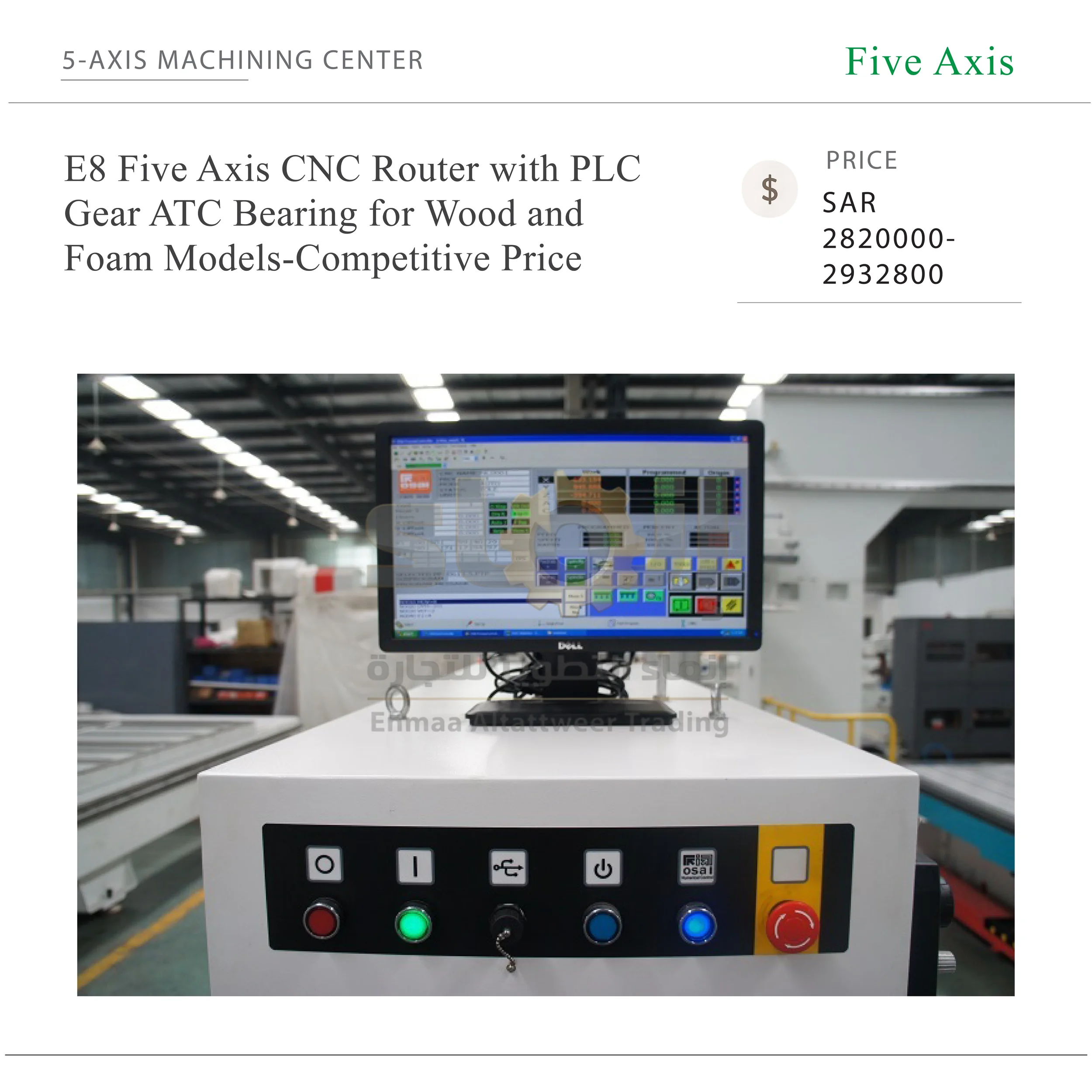

Controller | Italy OSAI control system |
Table structure | Vacuum Table/ T-slot Table |
Working speed | 20m/min |
Spindle Speed | 18000r/min |

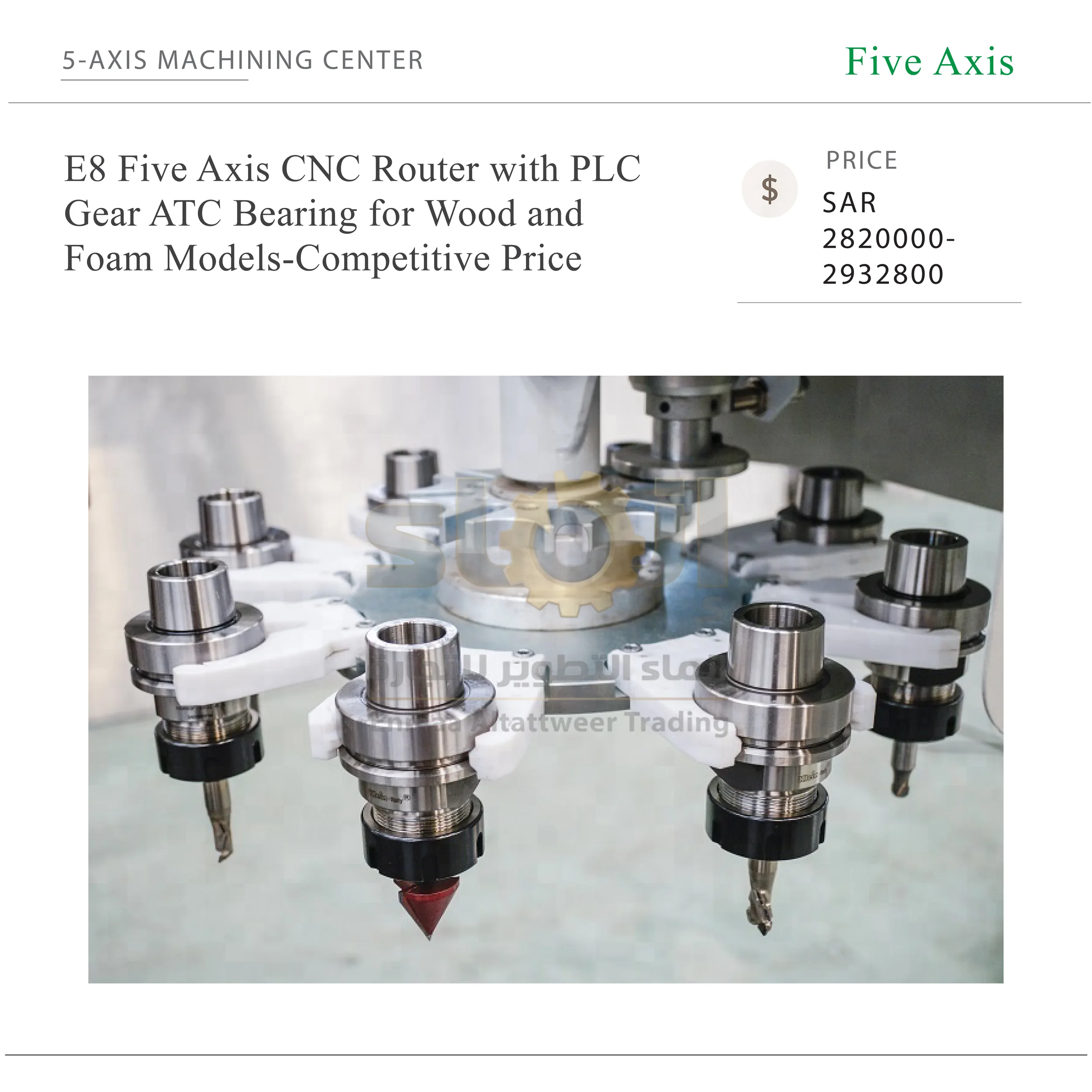

Tool magazine | Carousel 8 slots |
