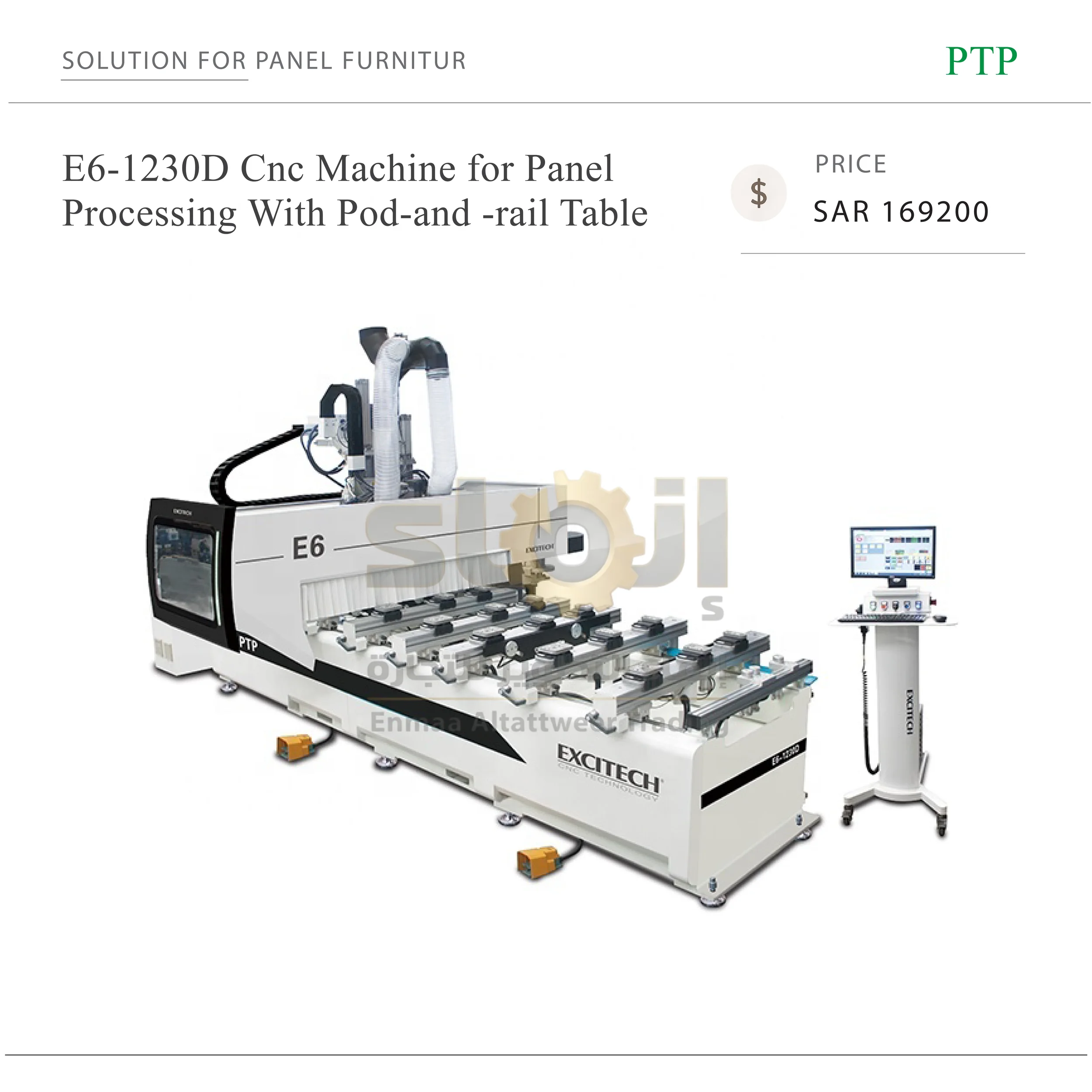

The E6-1230D CNC Woodworking Center offers high precision and versatility for complex woodworking tasks, including routing, drilling, cutting, and milling. It features an 8-slot carousel tool changer, enabling quick tool changes within 8 seconds, and is equipped with a Yaskawa driving system for enhanced accuracy and stability. The machine’s table structure supports both full-page and point-to-point adsorption, improving efficiency in loading and unloading. CE certified, ensuring compliance with EU safety standards and facilitating market access.
The machine is designed to meet diverse complicated processing requirements, highly versatile with routing, drilling, cutting, side milling, sawing and other functions. At the same time, the machine is also equipped with 8-slots carousel tool changer, tool changes to be performed within 8 seconds. Vacuum table fitted with suction cups. Cropping the full sheet to your ideal size, routing, drilling, sawing, cutting, and milling—multiple functions, all in one. Easy for loading and unloading, spend less time but get more out of it.

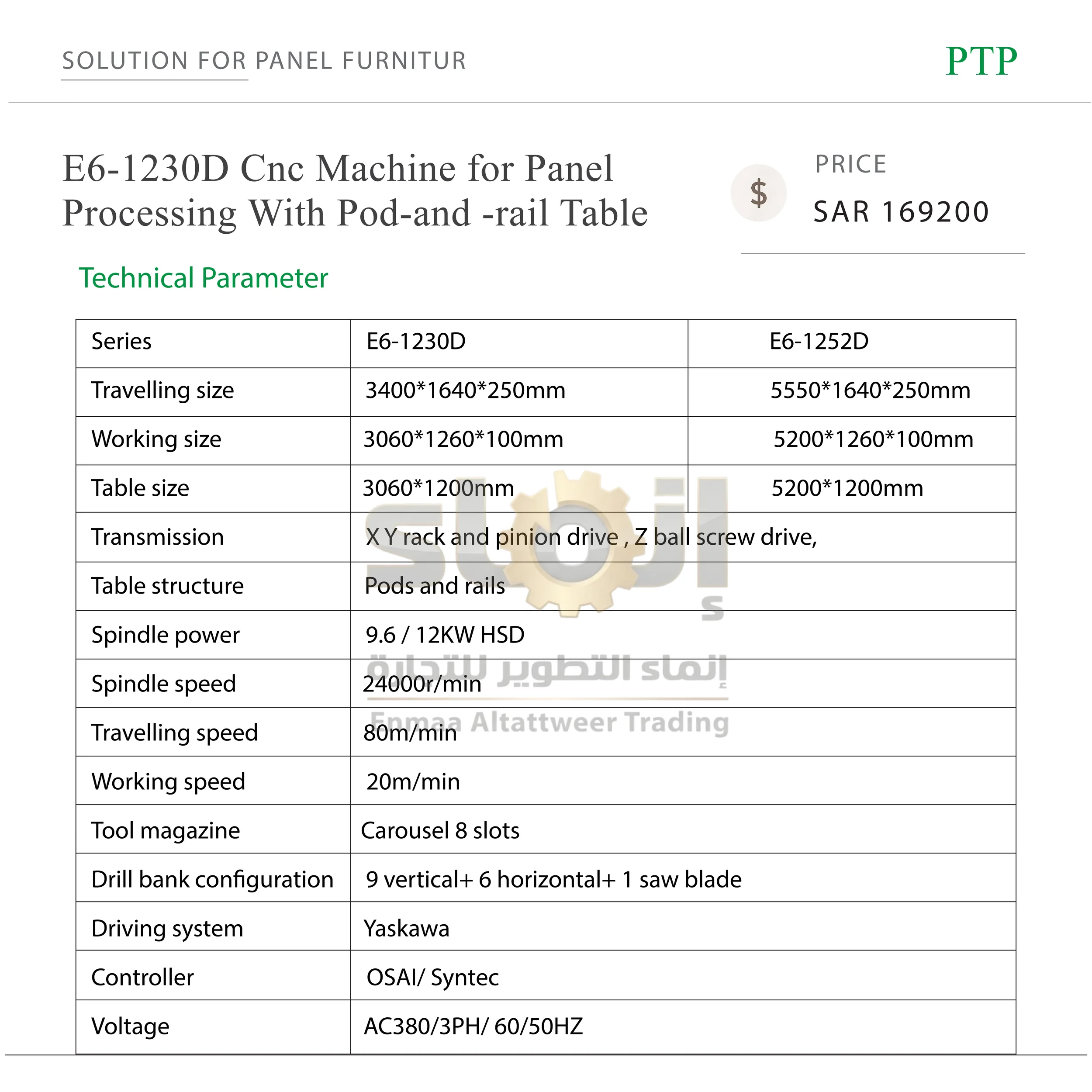

Series | E6-1230D | E6-1252D |
Travelling size | 3400*1640*250mm | 5550*1640*250mm |
Working size | 3060*1260*100mm | 5200*1260*100mm |
Table size | 3060*1200mm | 5200*1200mm |
Transmission | X Y rack and pinion drive , Z ball screw drive, | |
Table structure | Pods and rails | |
Spindle power | 9.6 / 12KW HSD | |
Spindle speed | 24000r/min | |
Travelling speed | 80m/min | |
Working speed | 20m/min | |
Tool magazine | Carousel 8 slots | |
Drill bank configuration | 9 vertical+ 6 horizontal+ 1 saw blade | |
Driving system | Yaskawa | |
Controller | OSAI/ Syntec | |
Voltage | AC380/3PH/50HZ | |

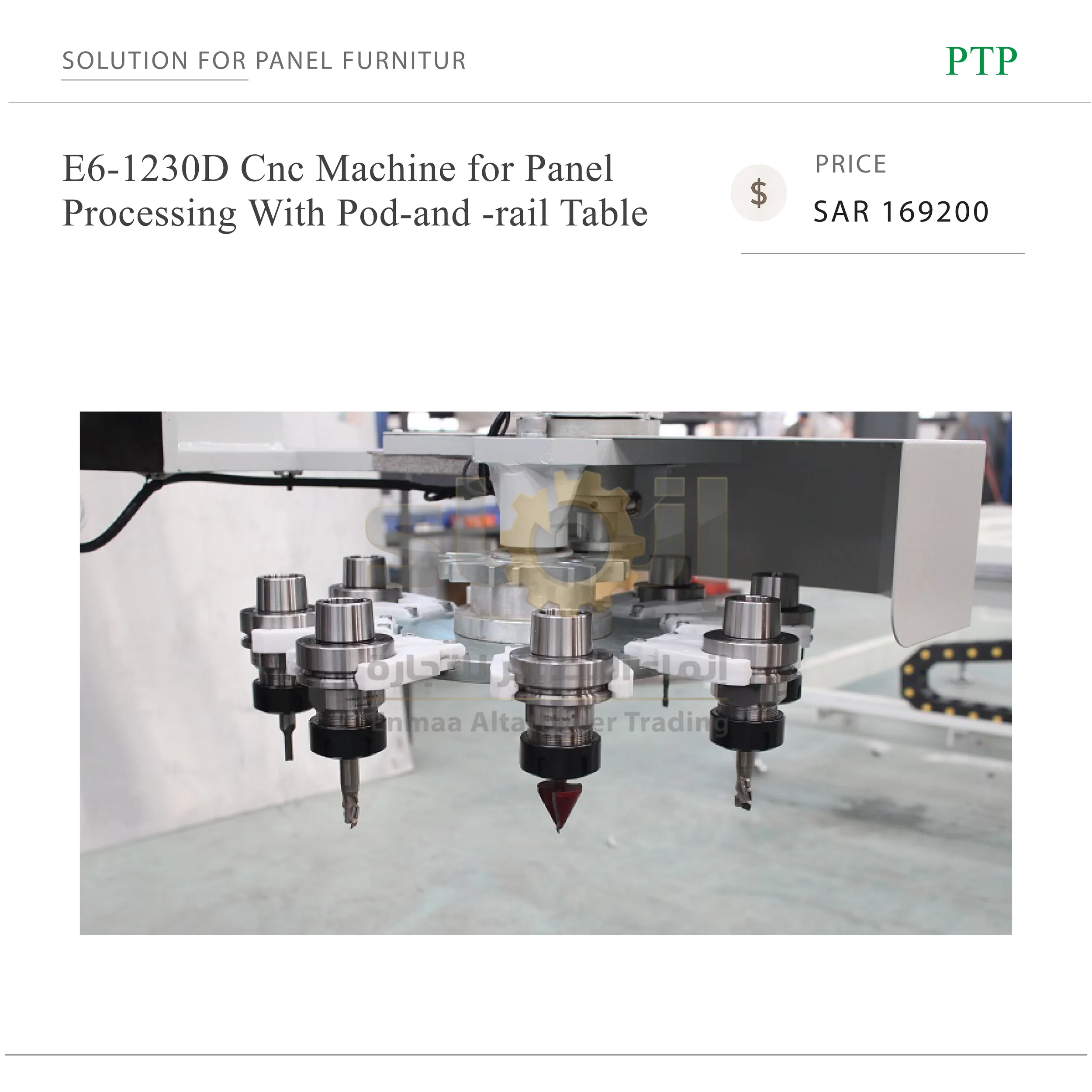

1. Tool changer
The machine adpots carousel tool magazine, standard equipped with 8 tools, and the number of tool magazines can be selected according to the needs, which can effectively reduce the tool change time and improve work efficiency.

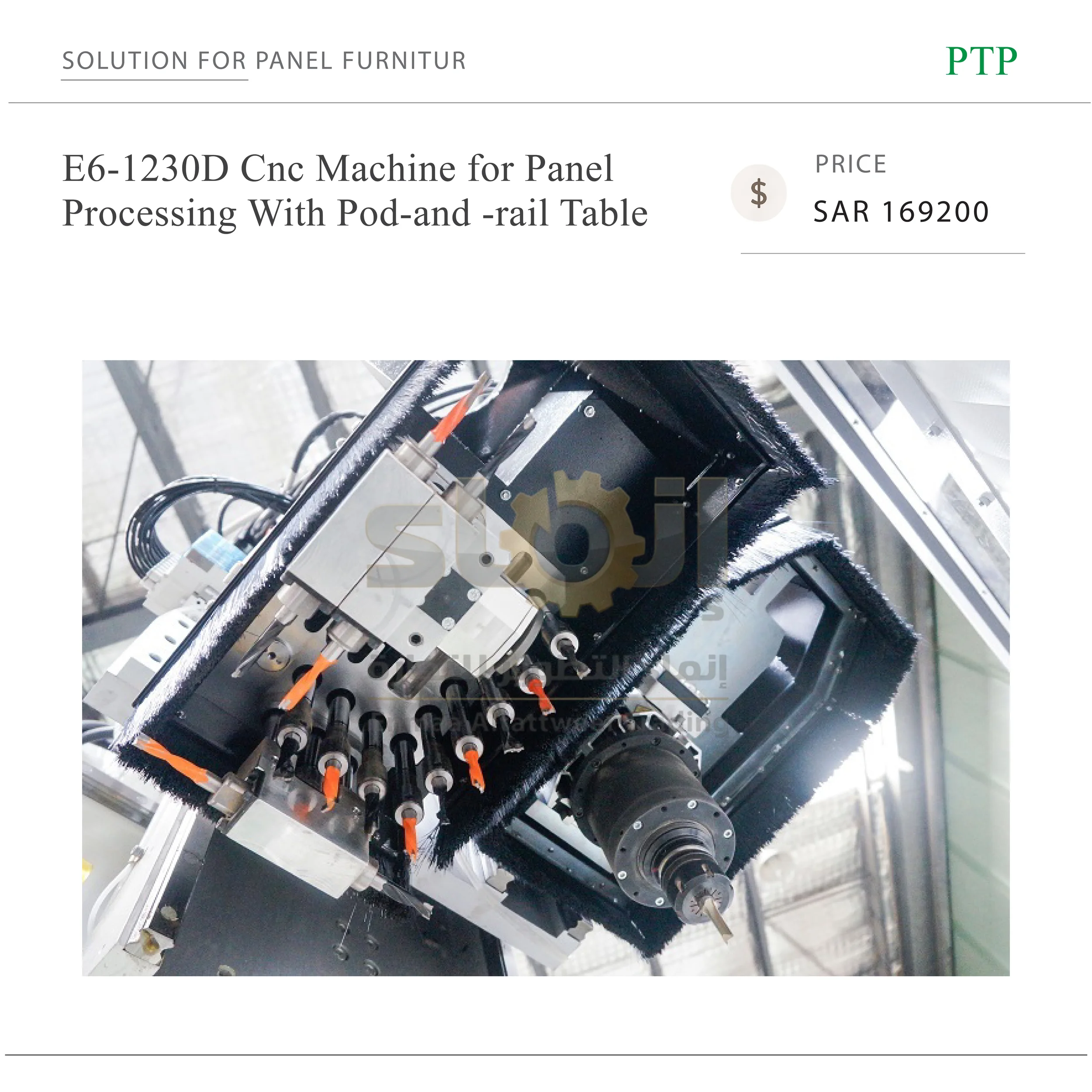

2. HSD spindle with boring unit
The machine adopts HSD automatic tool change spindle and Italy imported drills, including 9 vertical drills, 6 horizontal drills and 1 saw blade drill, which can meet more processing requirements of users.

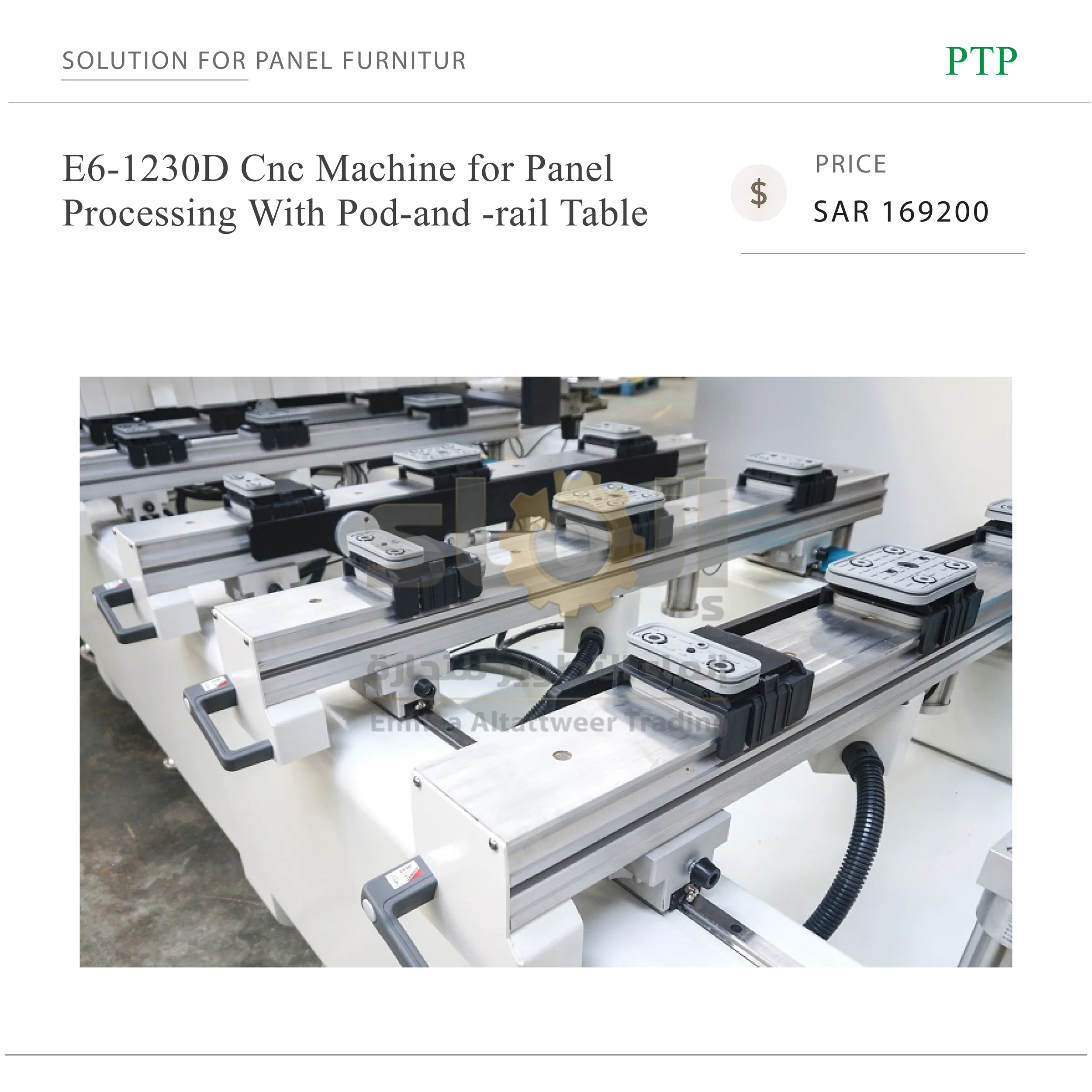

3. Double station operating area

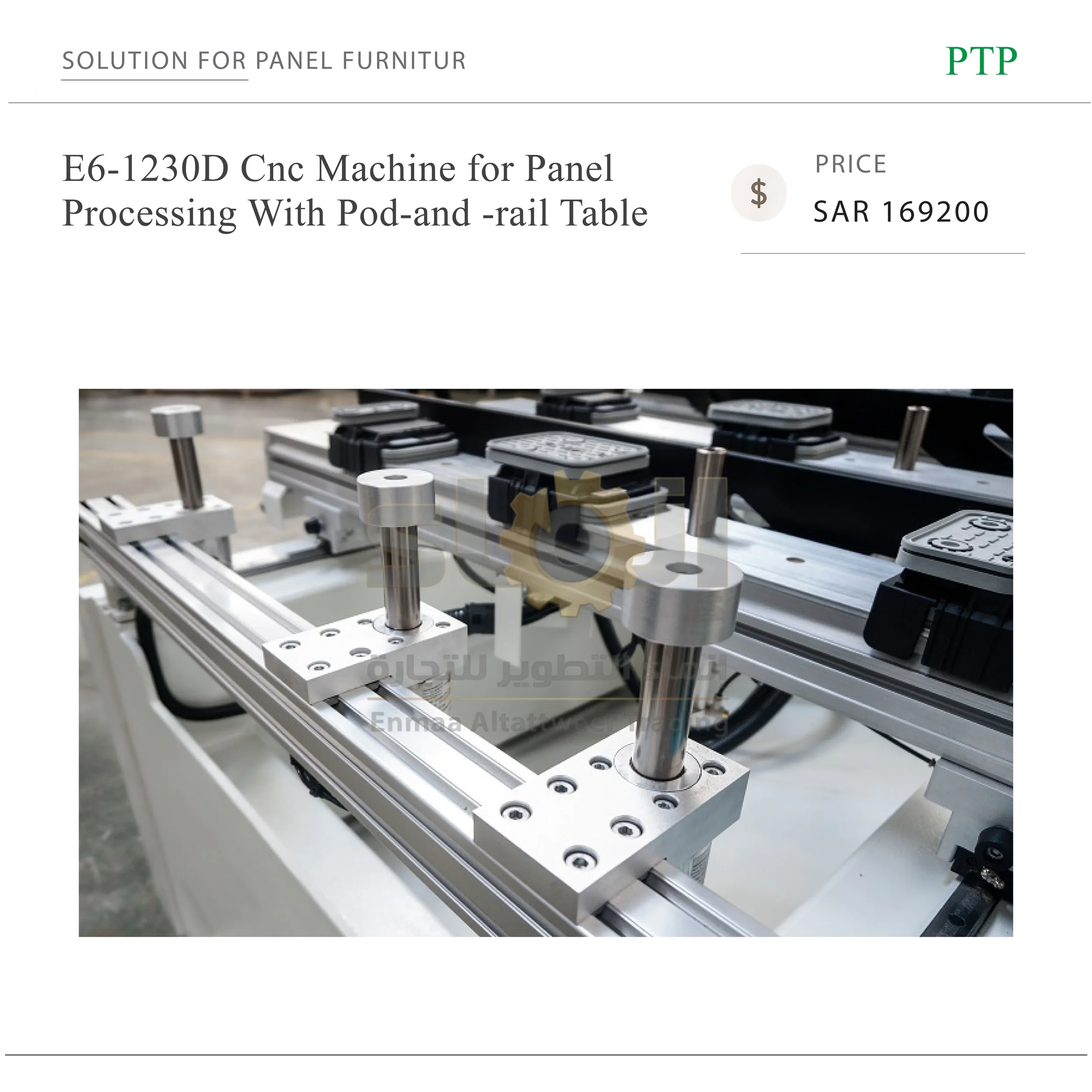

The machine is equipped with a double-station operating area, equipped with 18 pieces of German Schmitz vacuum adsorption blocks and 2 rows of positioning cylinders. It can be used for full-page adsorption and point-to-point adsorption. Easy for loading and unloading, spend less time.
4. Japan Yaskawa servo motor and driver
The machine adopts Japan Yaskawa servo motor and driver, with high precision, high speed performance, strong anti-overload capability and good stability.

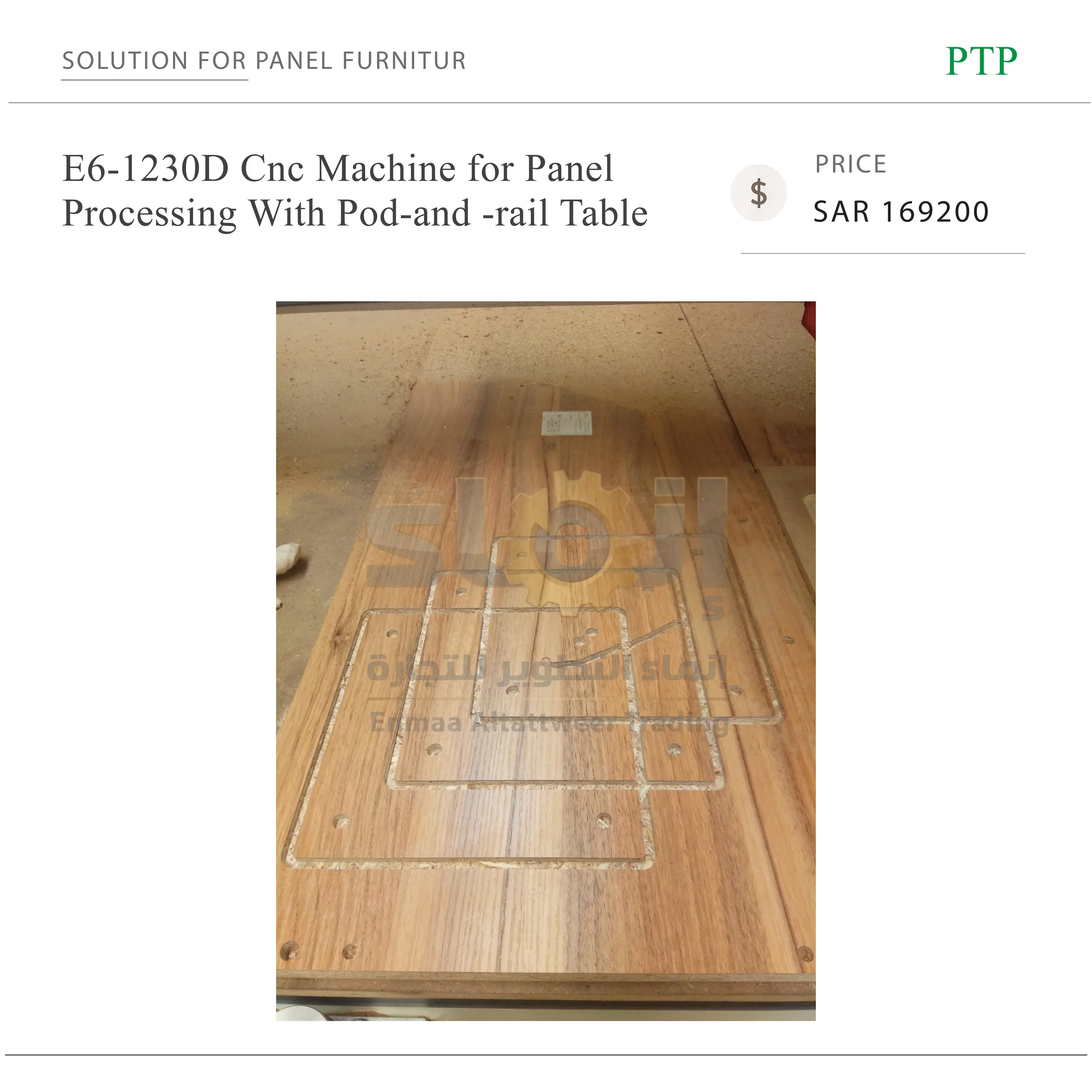

Application:
Furniture:ideally suitable for processing cabinet door, wooden door, solid wood furniture, panel wood furniture, windows, tables and chairs, etc.
Other wooden products: stereo box, computer desk, musical instruments, etc.
Well-suited for processing panel, insulating materials, plastic, epoxy resin, carbon mixed compound, etc.
Decoration: acrylic, PVC, density board, artificial stone, organic glass, soft metals like aluminum and copper, etc.
