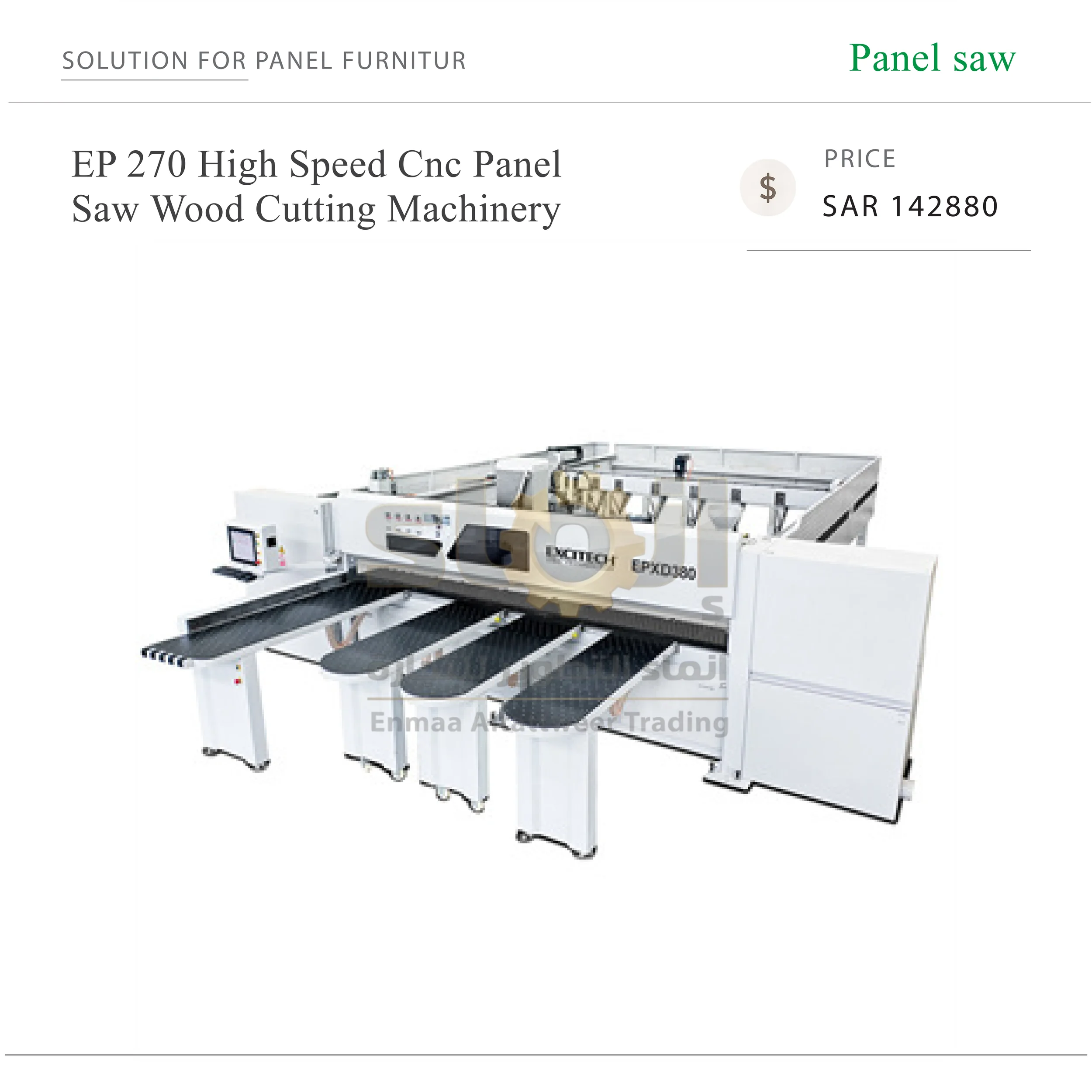

High Performance Precision Wood Cutting Board Panel Saw Machinery

The machine is mainly used for all kinds of density boards, shaving boards, wood-based panels, ABS panels, PVC panels, organic glass plates and solid wood cutting.
Feature:

• Precision helical rack and pinion drives ensure smooth and dynamic running even at the highest speed, at the same time reducing noise to the miniumum.

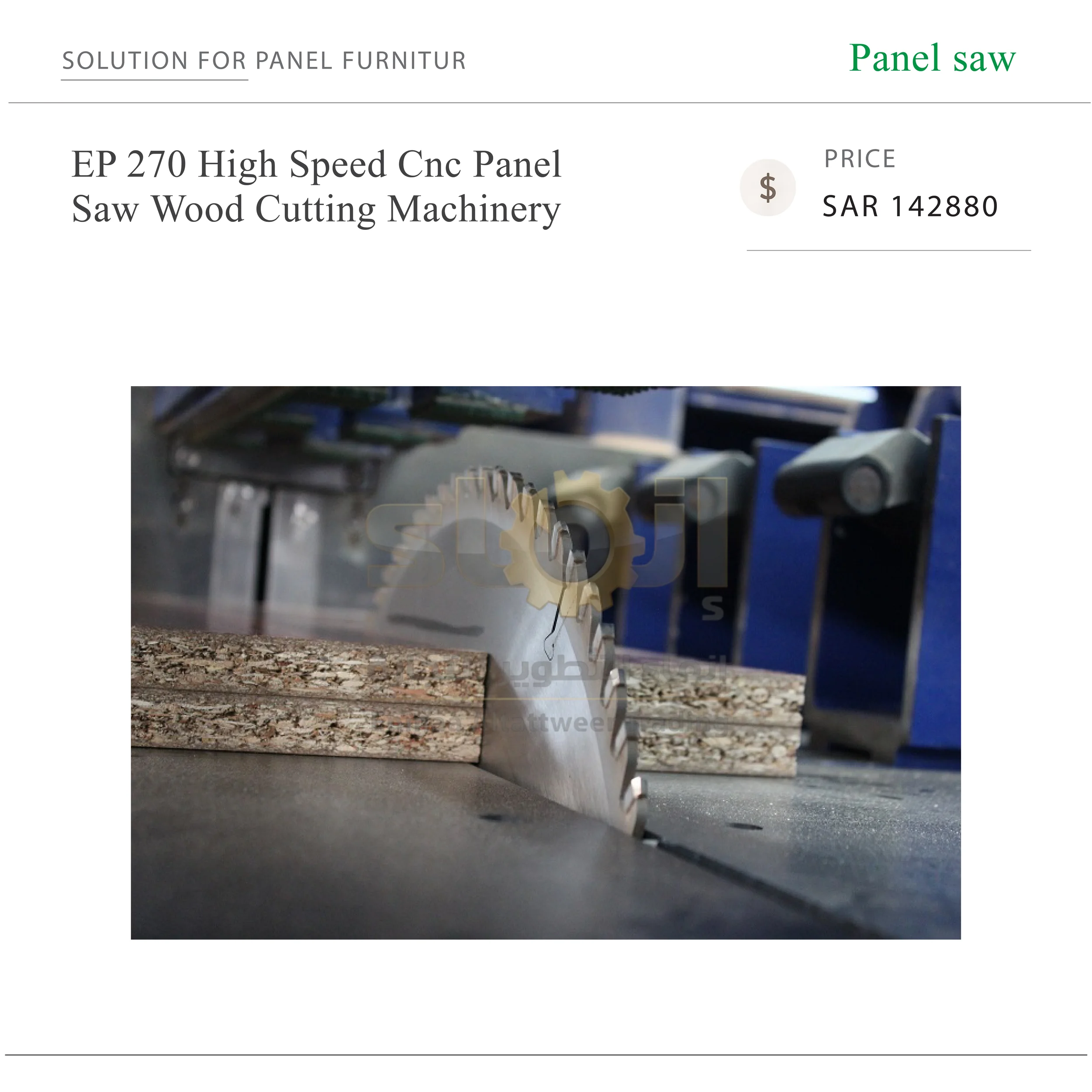

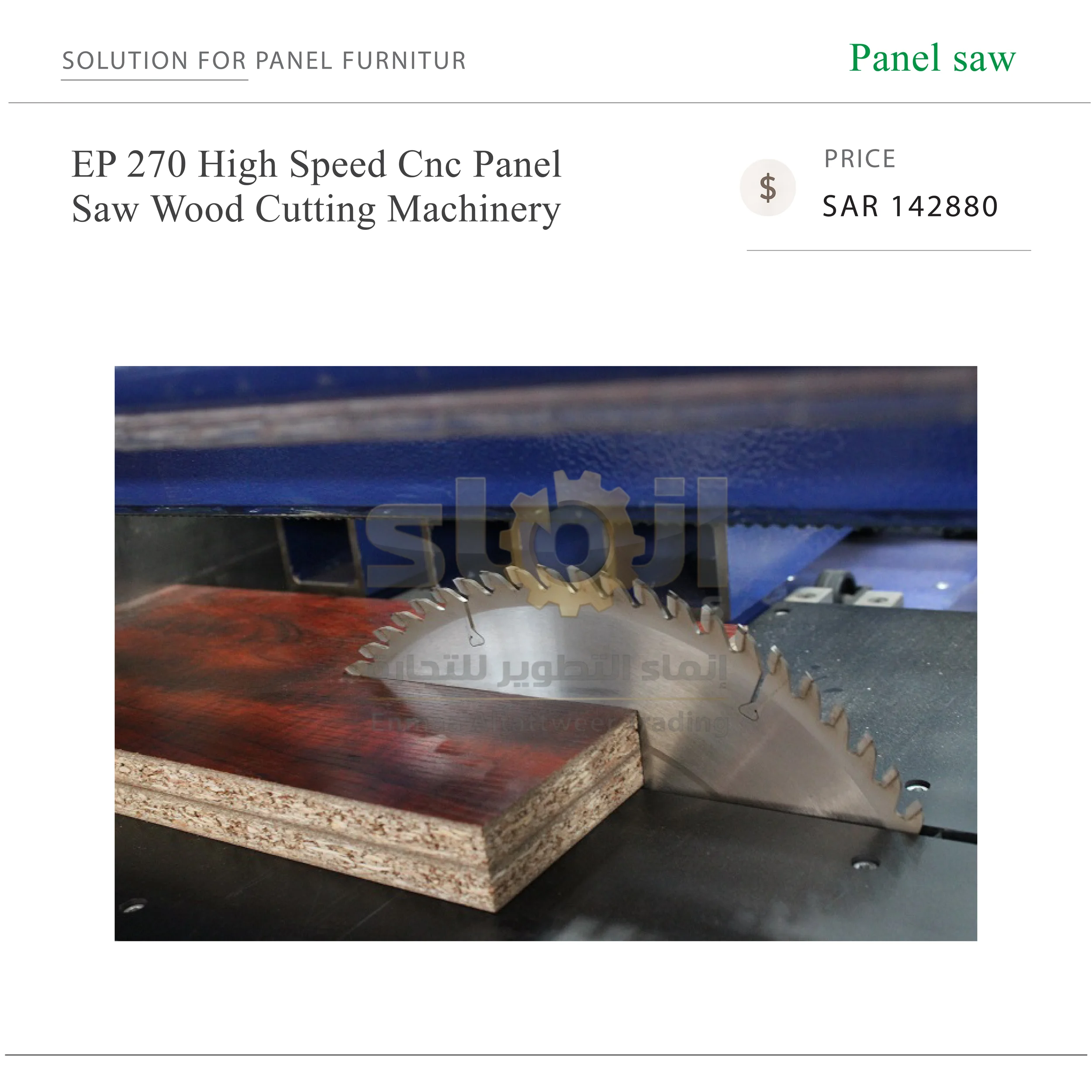

• Main saw motor is linked to the saws by V-ribbed belt that results in the clean precision cut.
• Cutting is automatically adjusted to the size of the panels according to the value set-dramatically reduces the cycle time.
• Saw blades are easy to be loaded and unloaded in an efficient manner.

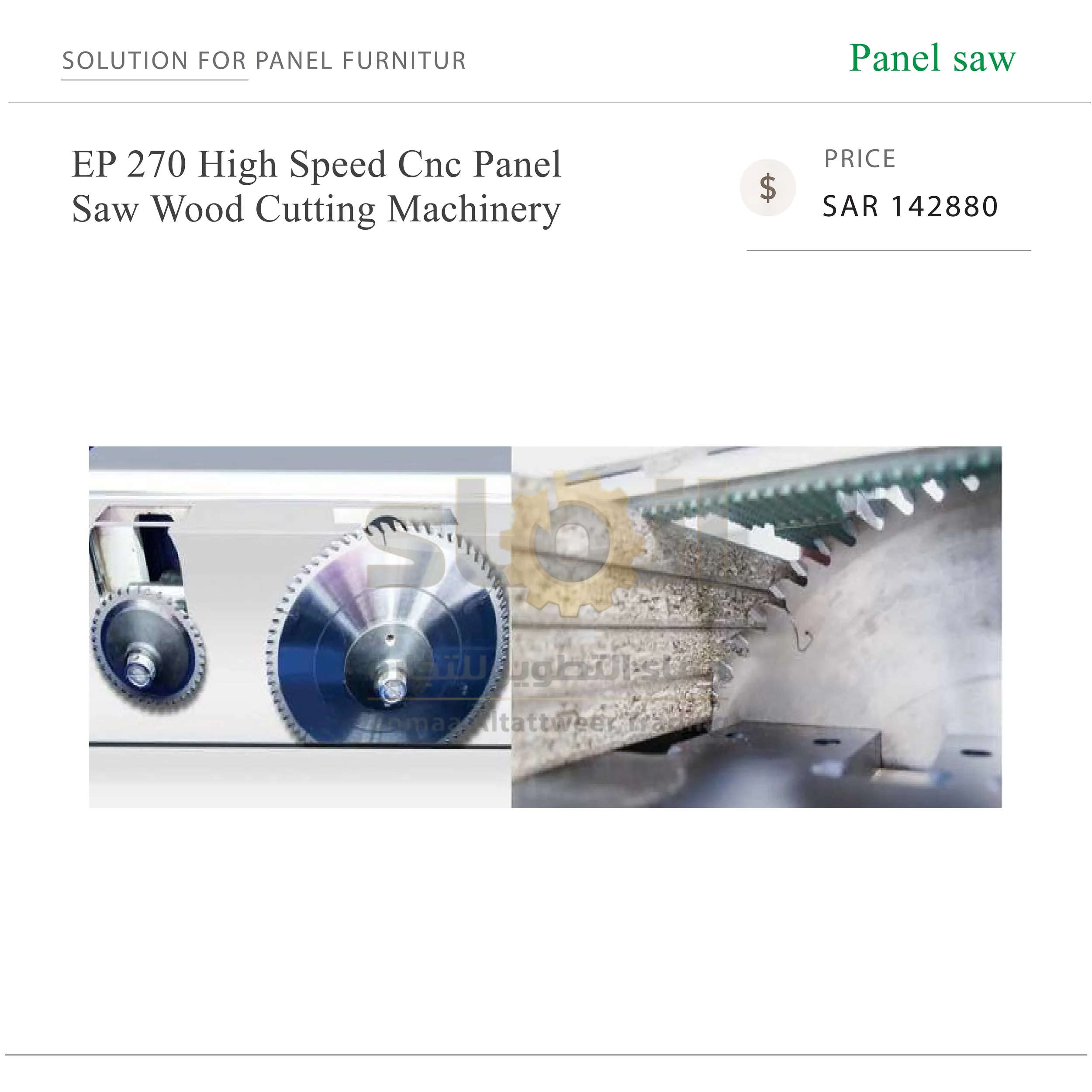

• The main saw and the scoring saw with electronic lift feed on the linear guide that obtains lasting straight- line precision and rigidity and guarantees excellent cutting finish.

1. Heavy Frame

Heavy-duty frame ensures stable movement of the saw frame for precise sawing quality.

2. Movable air table

Air table reduces the friction to the minumun to prevent chipping and wearing of the materials.

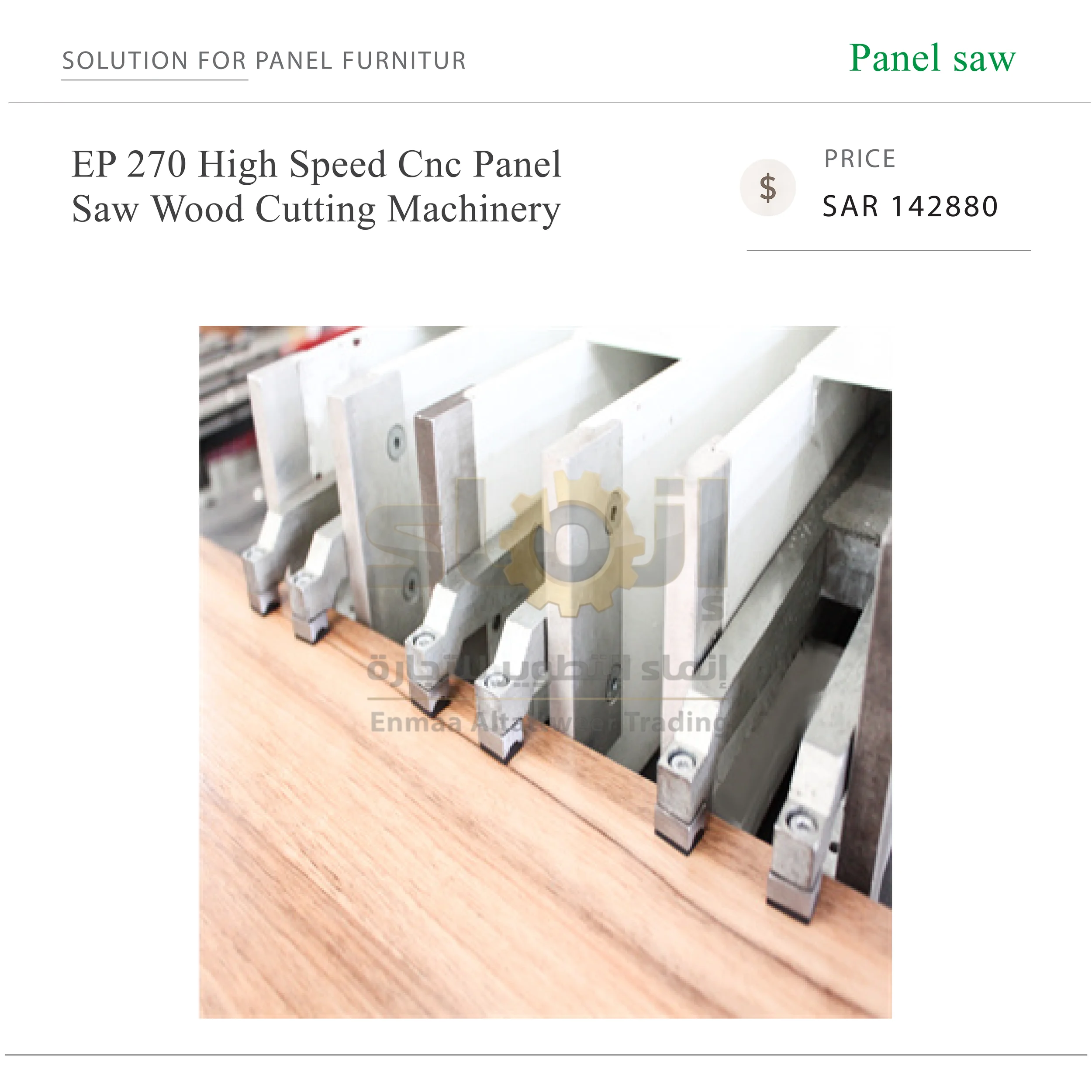

3. The clamps

The clamps wrapped with rubber hold the material firmly and gently. Contact pressure adjustable to accommodate different material and deliver invariably perfect cut quality.

4. Saw carriage

The precise and powerful movement of the servo motor driven saw carriage, along with 15kw mian saw motor guarantee a clean finish even when cutting multiple panels.

Application:

Mainly used for all kinds of density boards, shaving boards, wood-based panels, ABS panels, PVC panels, organic glass plates and solid wood cutting.
