The Excitech Smart Factory offers an automated production line for wood furniture and cabinets with advanced features such as a robotic system (SRA166L-01) enabling high-speed, precise operations, a vacuum table structure, and a YASKAWA servo system. It ensures minimal human labor, energy savings of 15%, and compatibility with international standards, enhancing productivity while reducing cycle times. Certifications include compliance with EU and US quality standards, ensuring reliable, long-term industrial use and global market access.

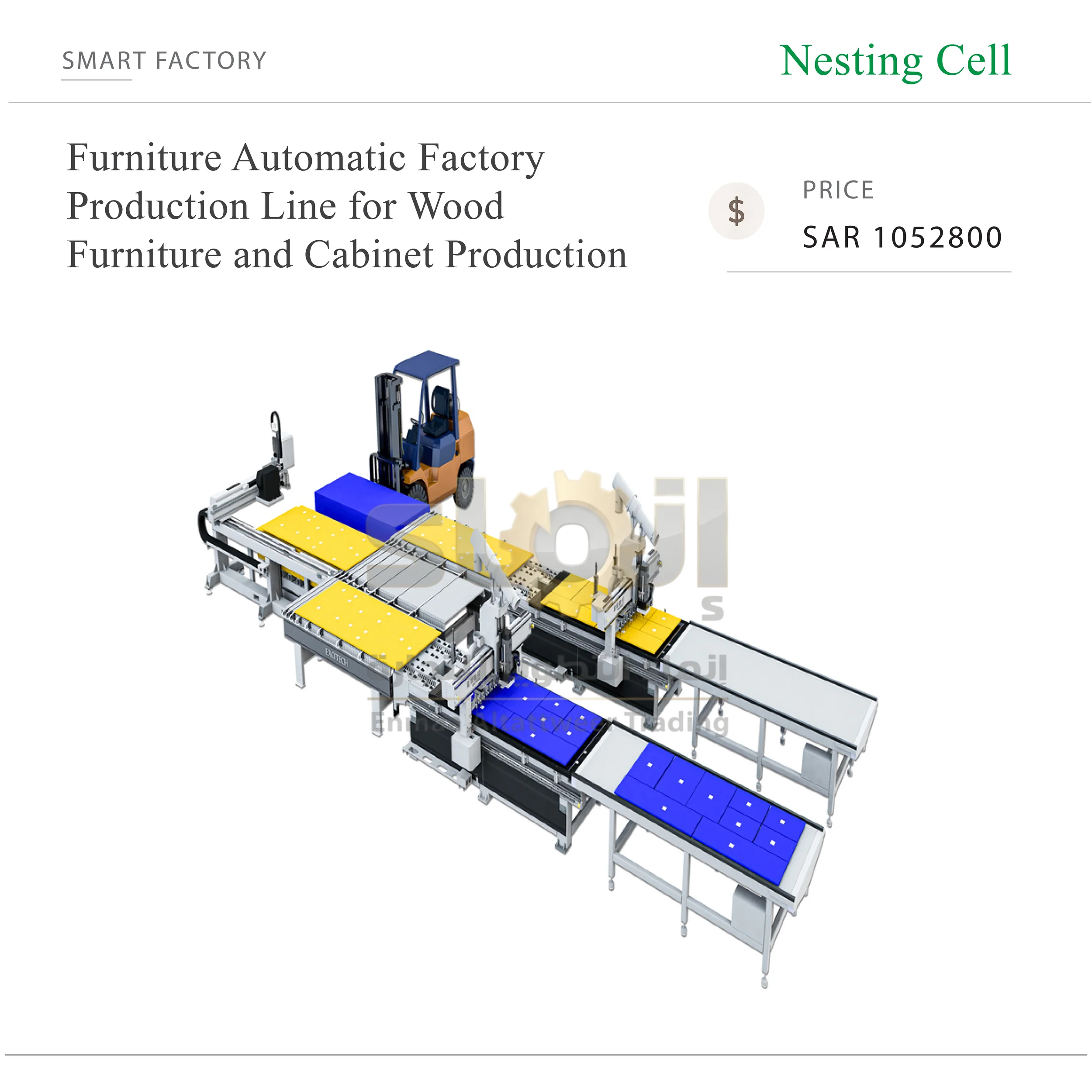

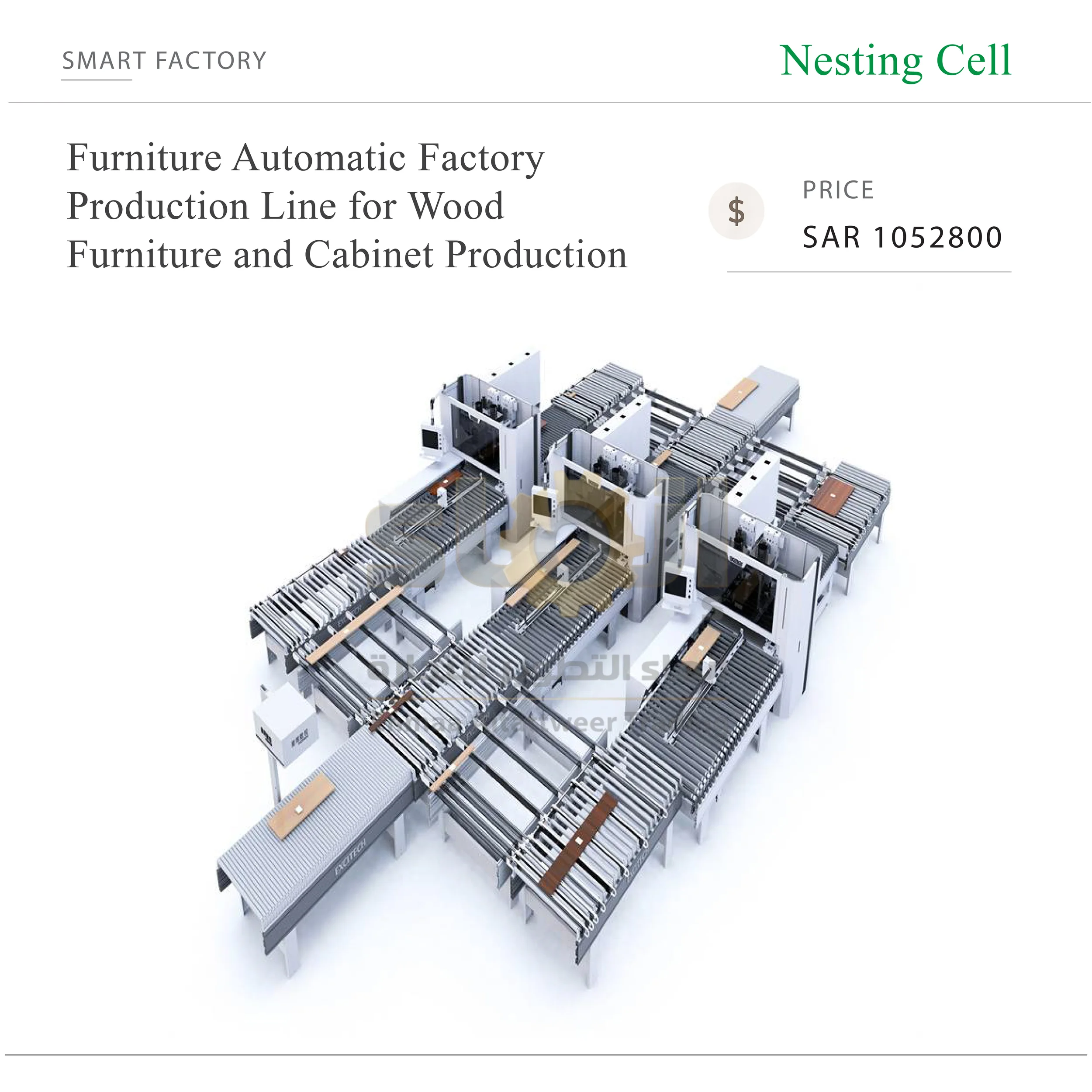

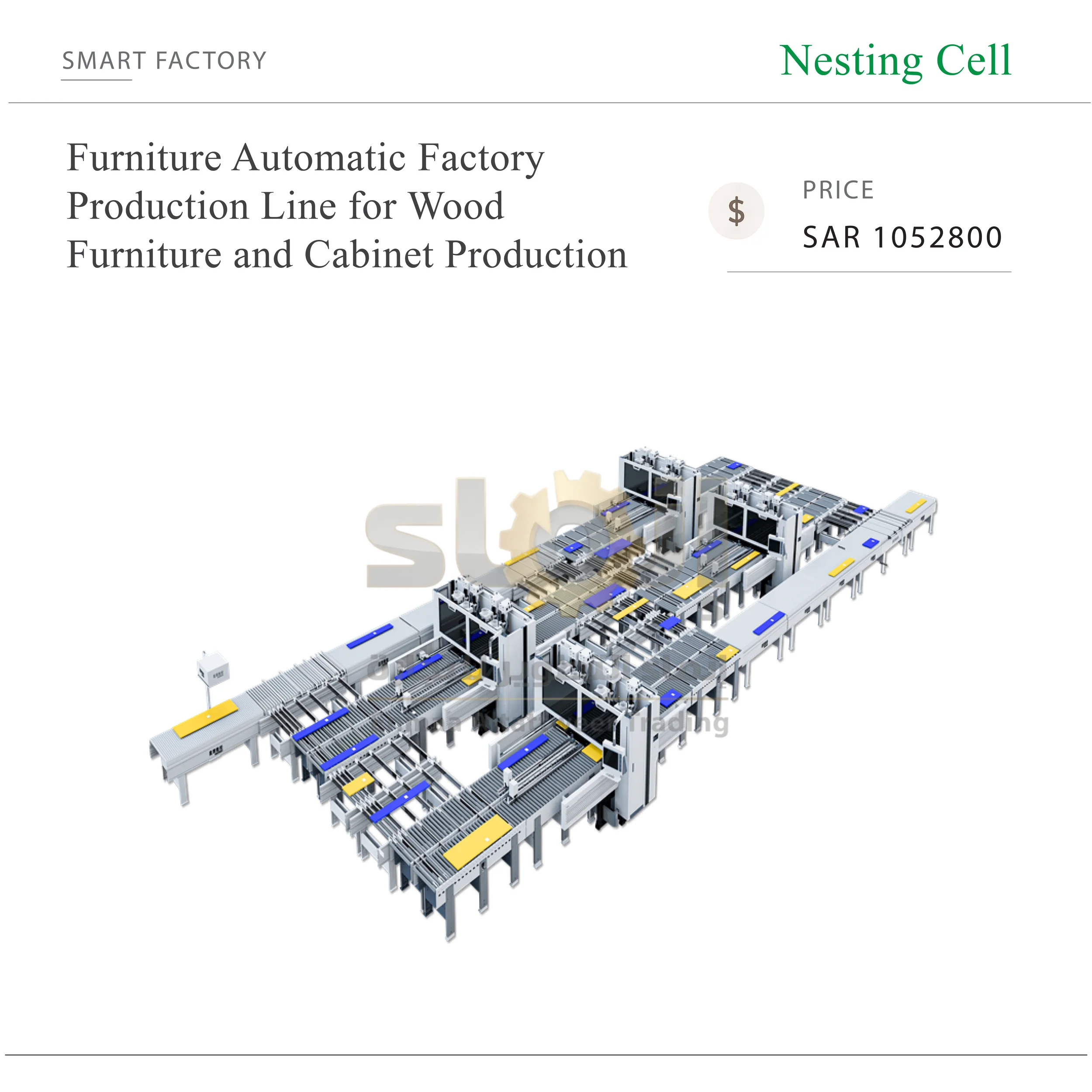

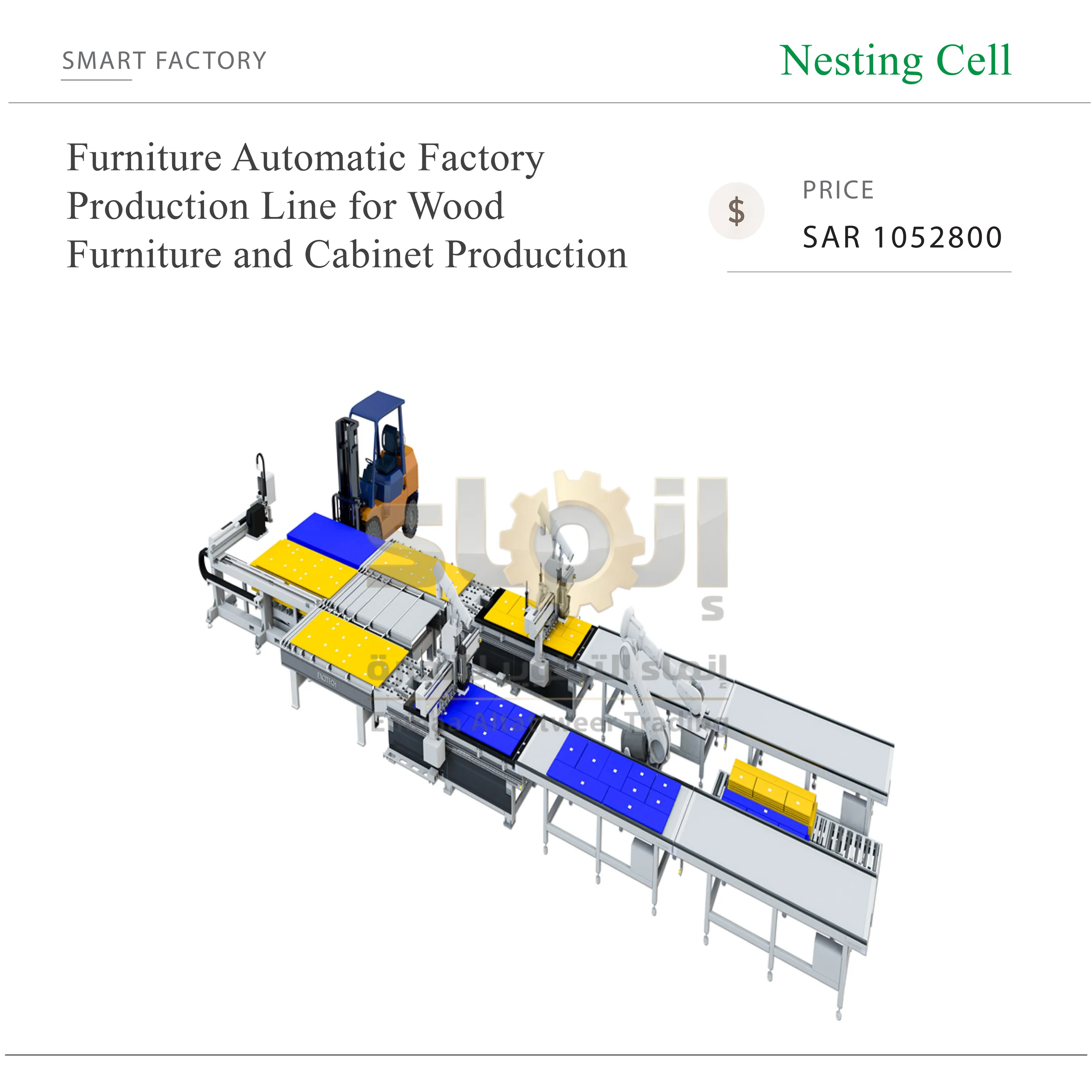

Excitech Smart Factory strives to make your production smarter, faster and more cost-efficient with minimun human labor required. It composed of nesting Cell, Edgebanding Cell and Drilling Cell. Basically, Nesting Cell has E4-auto labeling machine, Machnical robot, Return Conveyors, Cabinet Box and Excitech software.

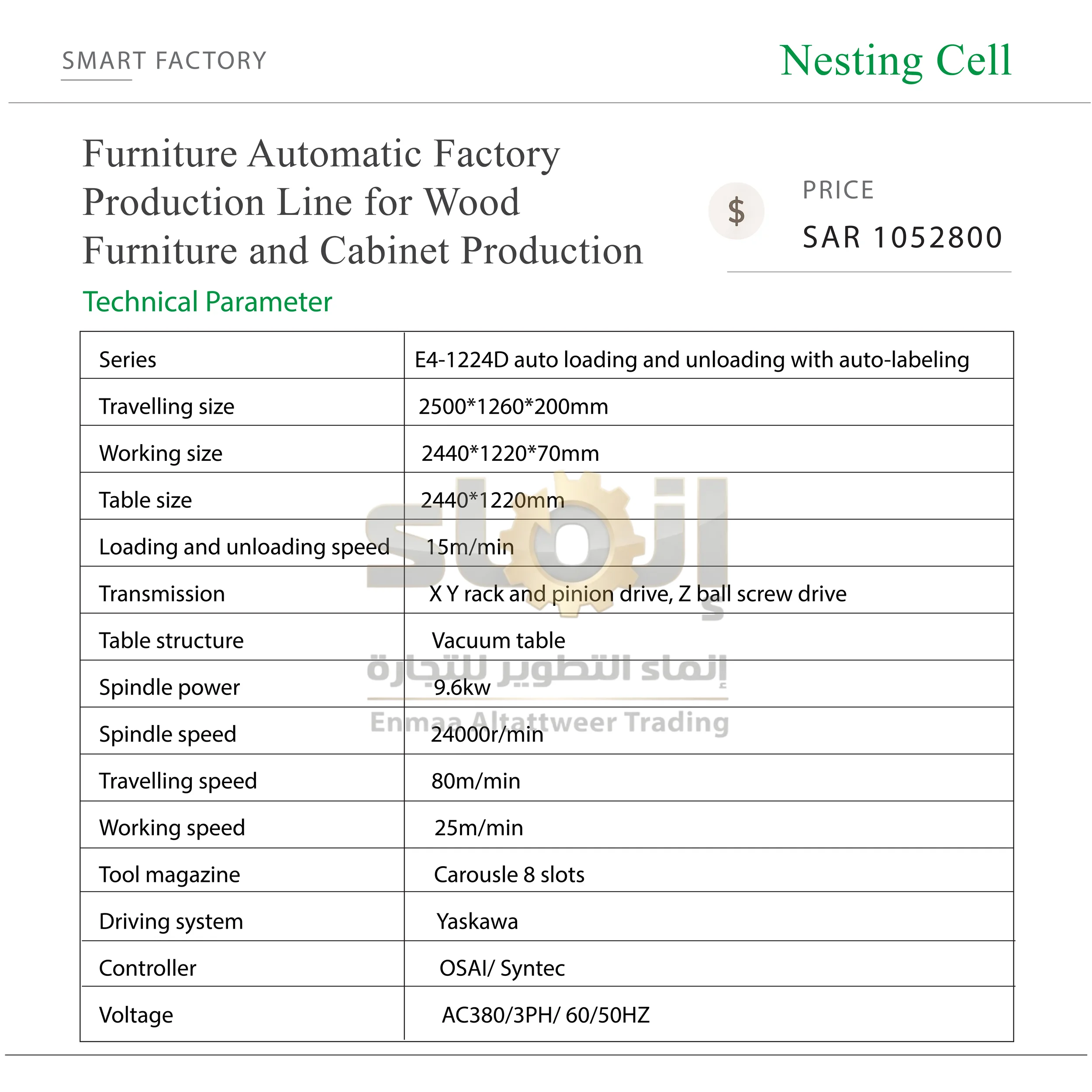

| Series | E4-1224D auto loading and unloading with auto-labeling |
| Travelling size | 2500*1260*200mm |
| Working size | 2440*1220*70mm |
| Table size | 2440*1220mm |
| Loading and unloading speed | 15m/min |
| Transmission | X Y rack and pinion drive, Z ball screw drive |
| Table structure | Vacuum table |
| Spindle power | 9.6kw |
| Spindle speed | 24000r/min |
| Travelling speed | 80m/min |
| Working speed | 25m/min |
| Tool magazine | Carousle 8 slots |
| Driving system | Yaskawa |
| Controller | OSAI/ Syntec |
| Voltage | AC380/3PH/50HZ |
Conveyor Table : 3500*2700*900mm

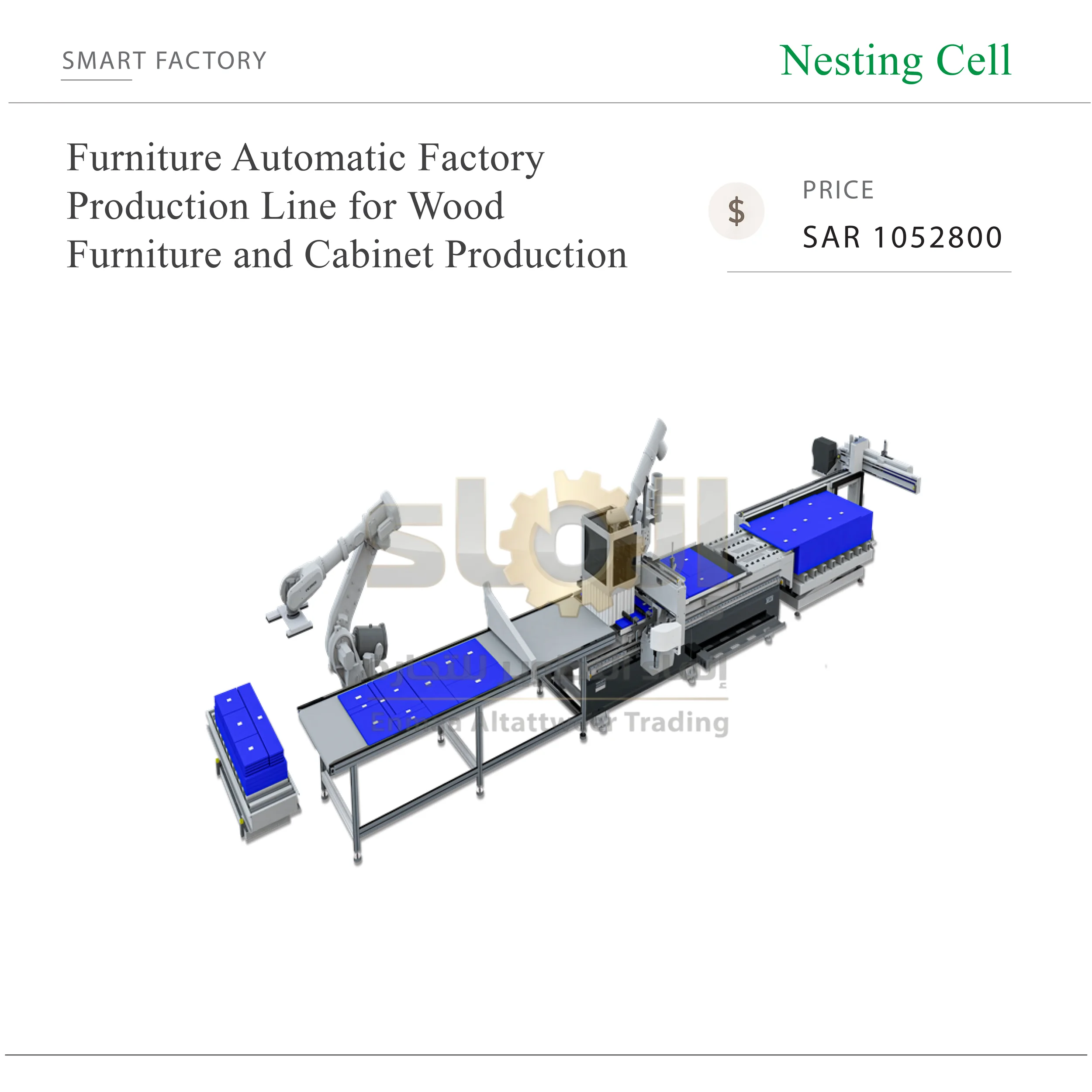

1. Nested-based CNC with Pre-labeling

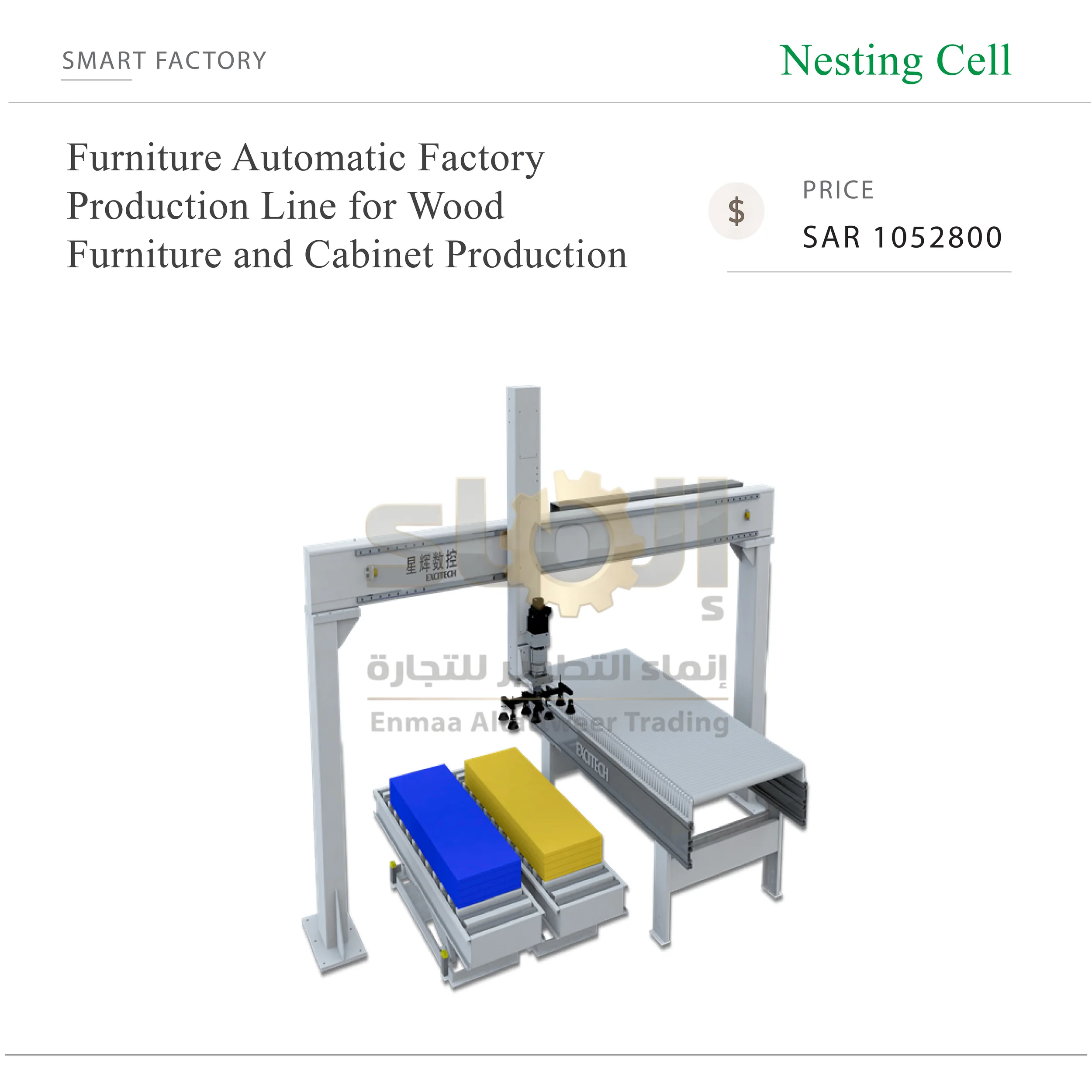

2. Robot
Robot automatically puts the semi-finished product on the conveying roller table for subsequent operation.
Application: widely used for processing Panel Furniture Production Line such as cabinet door, wooden door, solid wood furniture, panel wood furniture, etc.
