The Excitech Woodworking CNC cabinet panel furniture production line integrates advanced automation with minimal human labor, featuring a high-speed robot model SRA166L-01 for unbeatable cycle times and energy savings of 15%. It includes a vacuum table, 9.6kW spindle, and Yaskawa servo system, ensuring precision and efficiency. With CE certification, it complies with EU safety standards, enabling global market access.

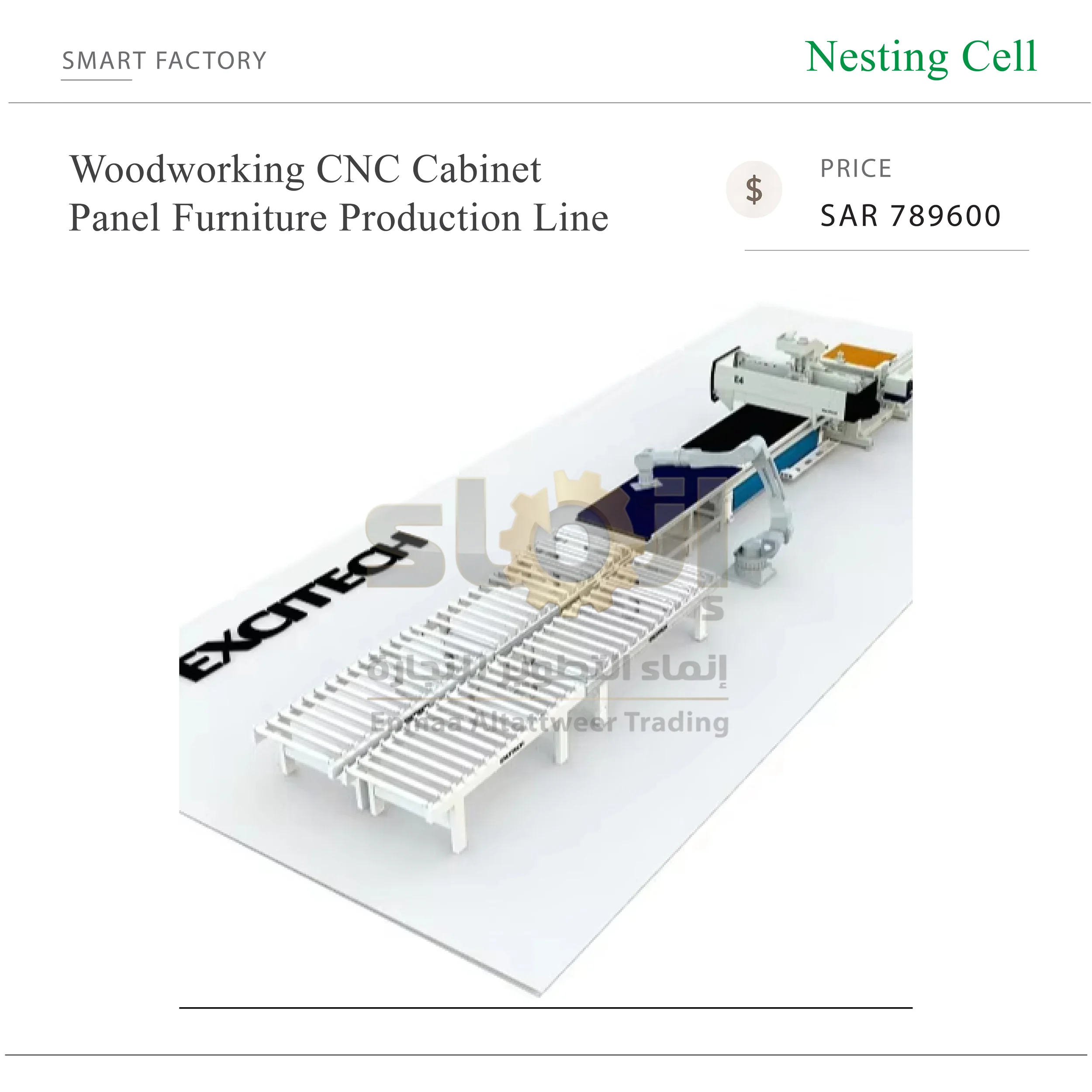

Excitech Smart Factory strives to make your production smarter, faster and more cost-efficient with minimun human labor required. It composed of nesting Cell, Edgebanding Cell and Drilling Cell. Basically, Nesting Cell has E4-auto labeling machine, Machnical robot, Return Conveyors, Cabinet Box and Excitech software.

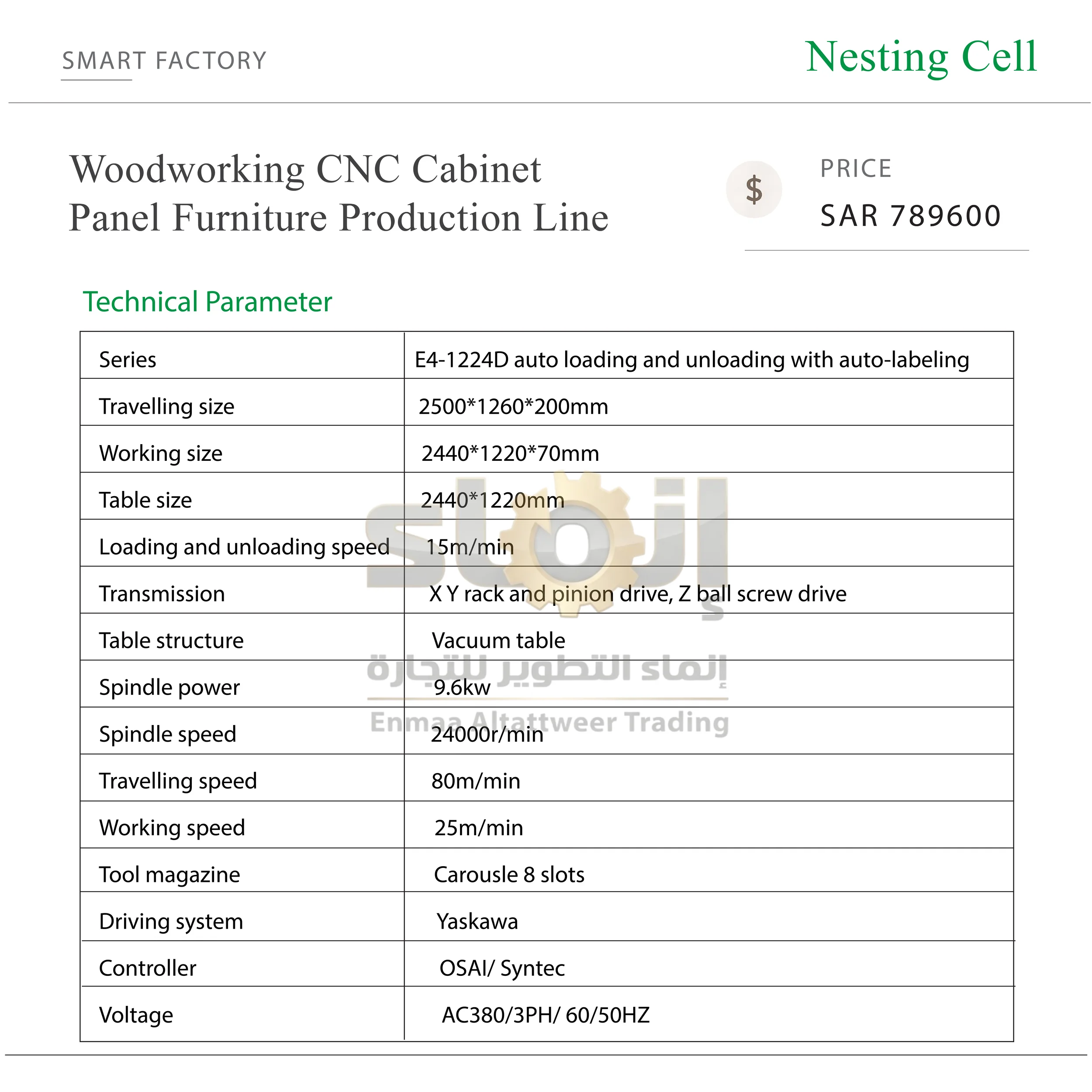

| Series | E4-1224D auto loading and unloading with auto-labeling |
| Travelling size | 2500*1260*200mm |
| Working size | 2440*1220*70mm |
| Table size | 2440*1228mm |
| Loading and unloading speed | 15m/min |
| Transmission | X Y rack and pinion drive, Z ball screw drive |
| Table structure | Vacuum table |
| Spindle power | 9.6kw |
| Spindle speed | 24000r/min |
| Travelling speed | 80m/min |
| Working speed | 25m/min |
| Tool magazine | Carousle 8 slots |
| Driving system | Yaskawa |
| Controller | OSAI/ Syntec |
| Voltage | AC380/3PH/50HZ |

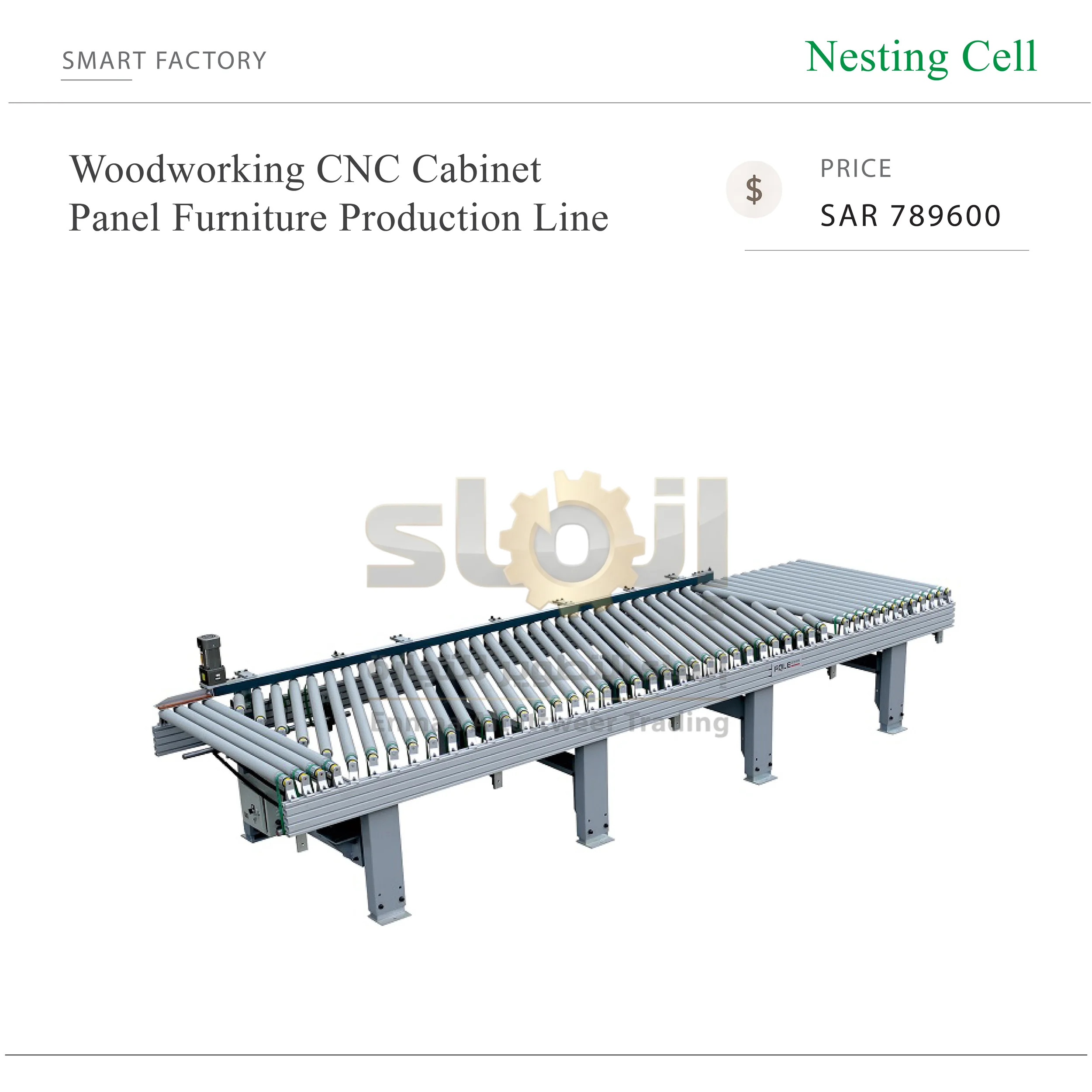

Conveyor table: 3500*2700*900mm

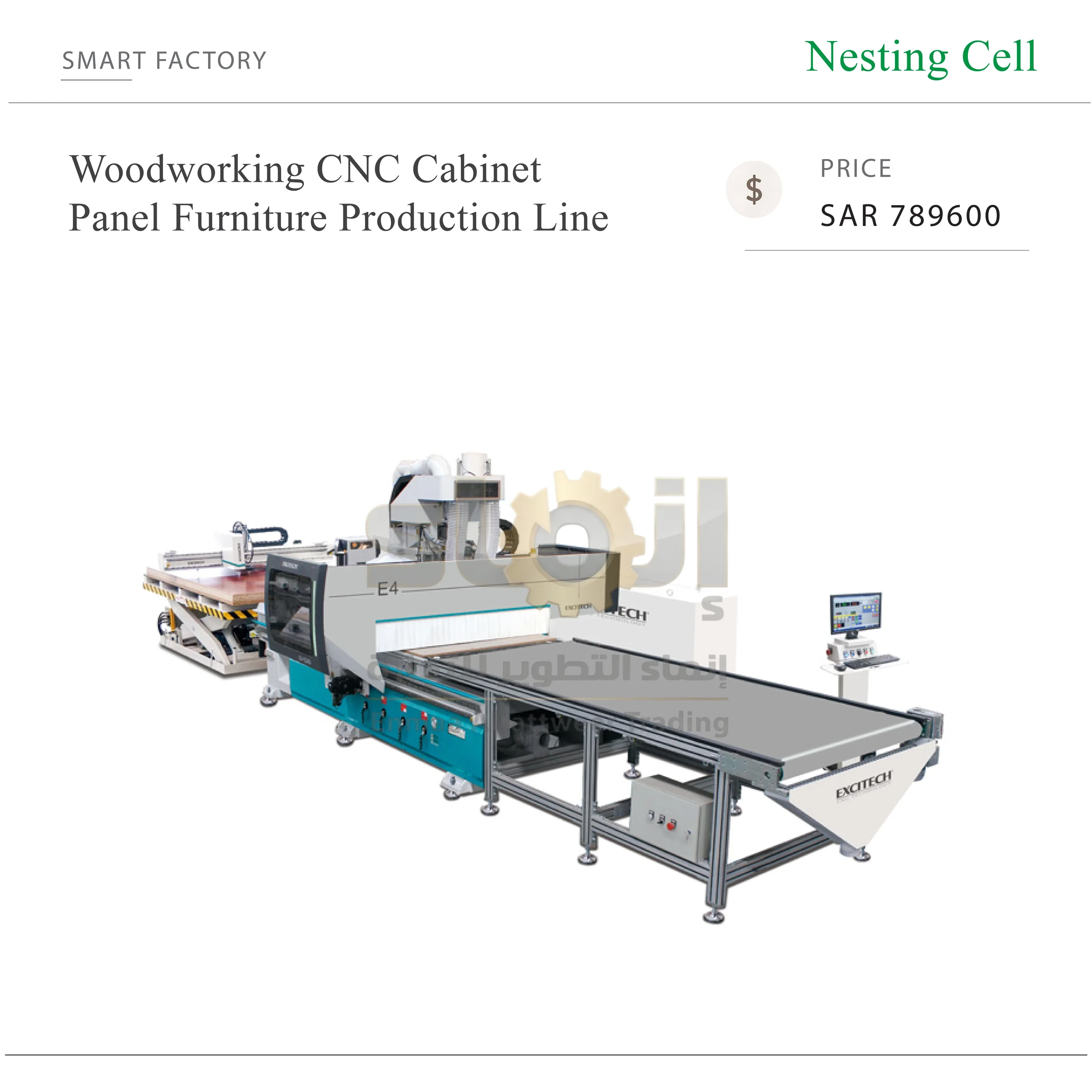

1. Nested-based CNC with Pre-labeling
Pre-Labeling the panel with rapid travel axis before nesting and vertical drilling further eliminates operator intervention during the work process and renders the whole cycle truly push-button-and-go.It is mainly for wood panel drilling and grooving.

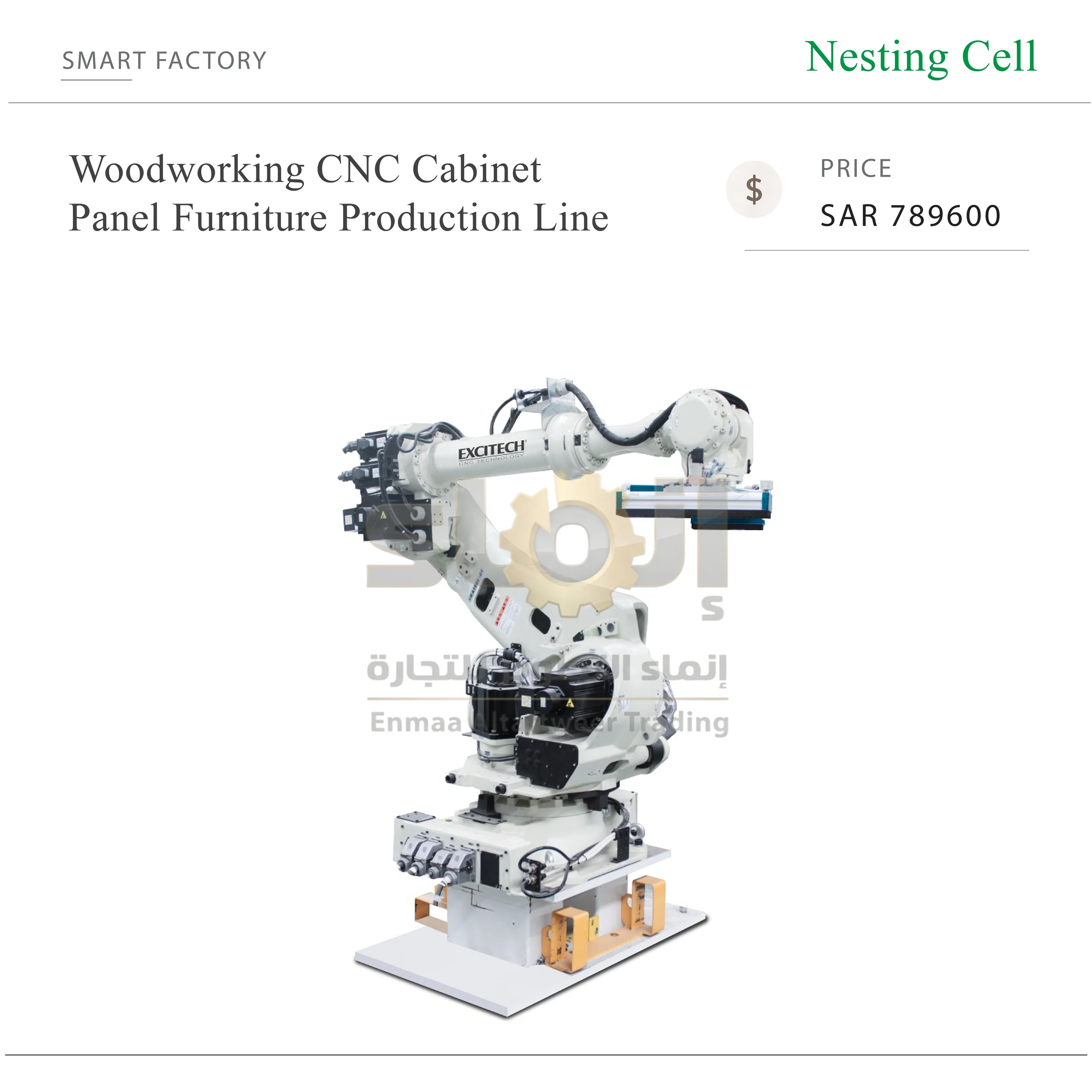

2. Robot
Robot automatically puts the semi-finished product on the conveying roller table for subsequent operation.
Application: widely used for processing Panel Furniture Production Line, such as cabinet door, cupboard, solid wood furniture, panel wood furniture, etc.
