The Excitech Smart Factory production line integrates advanced automation with minimal human labor, featuring a Nesting Cell with auto-labeling, Yaskawa servo systems, and an Italian 9.6kW spindle. It delivers high-speed precision and energy savings through its lightweight robot design (SRA166L-01), reducing power consumption by 15%. Equipped with vacuum table structure, carousel tool magazine, and self-developed CAM software, it supports efficient panel furniture processing. Certifications ensure compliance with international standards, offering market access and reliability for global buyers.

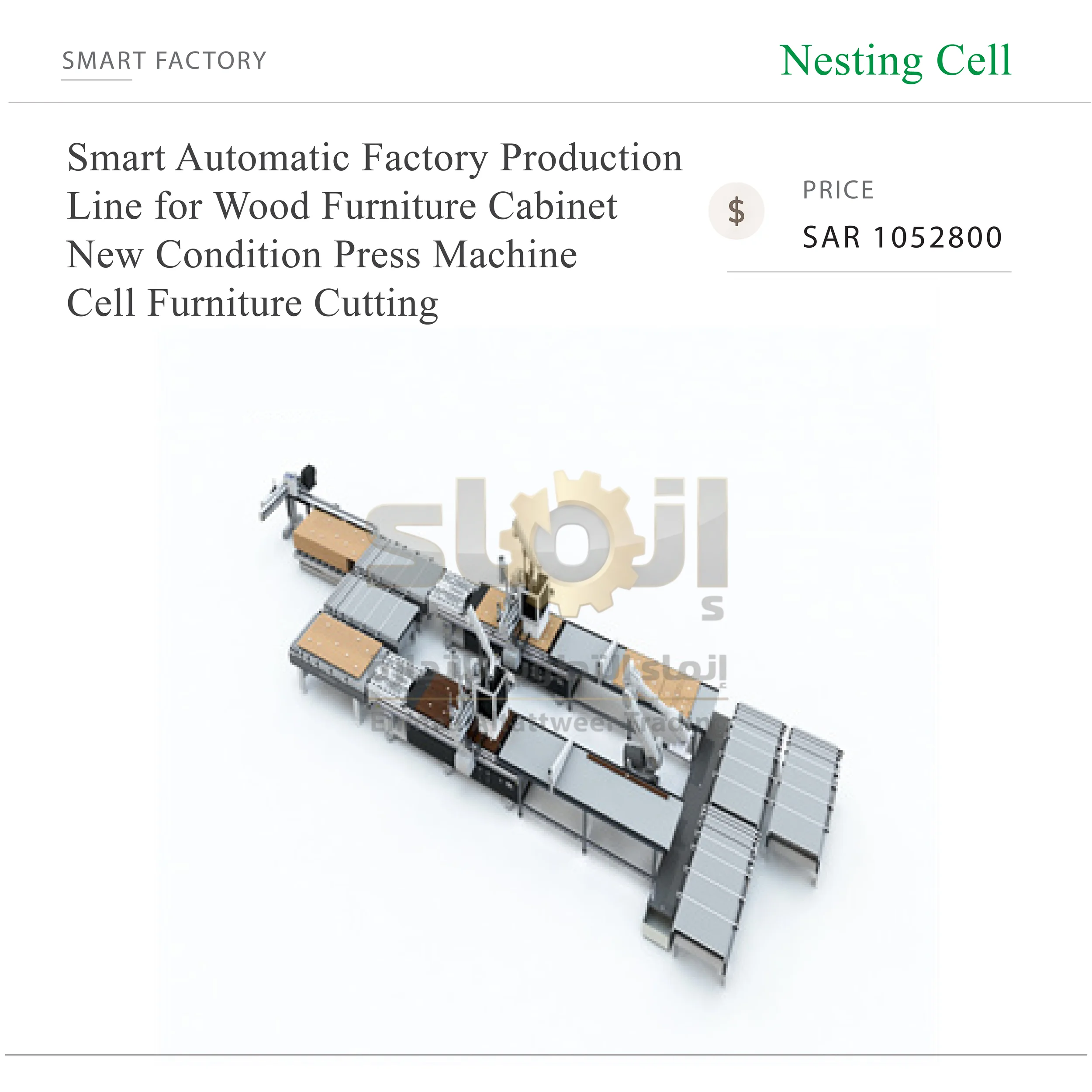

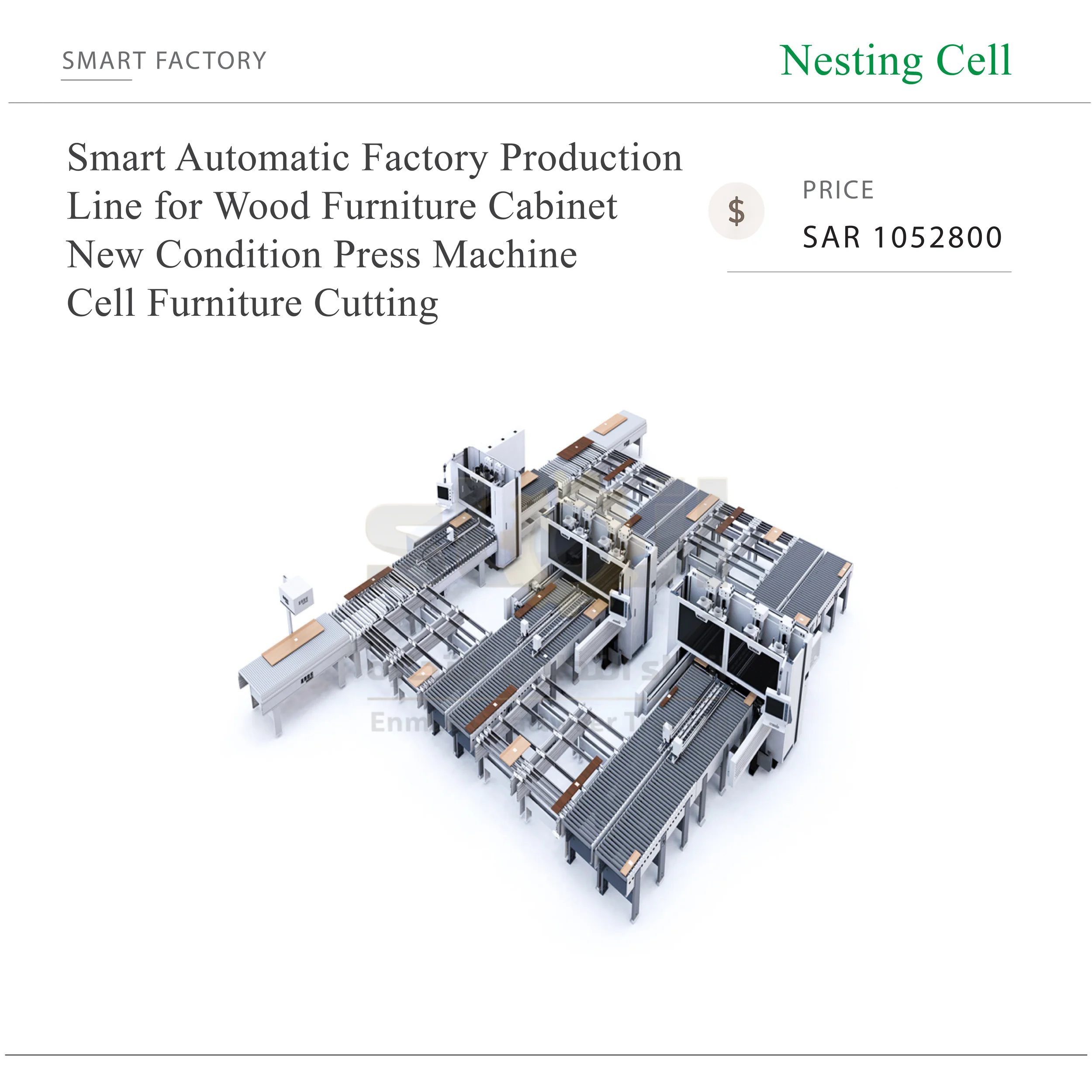

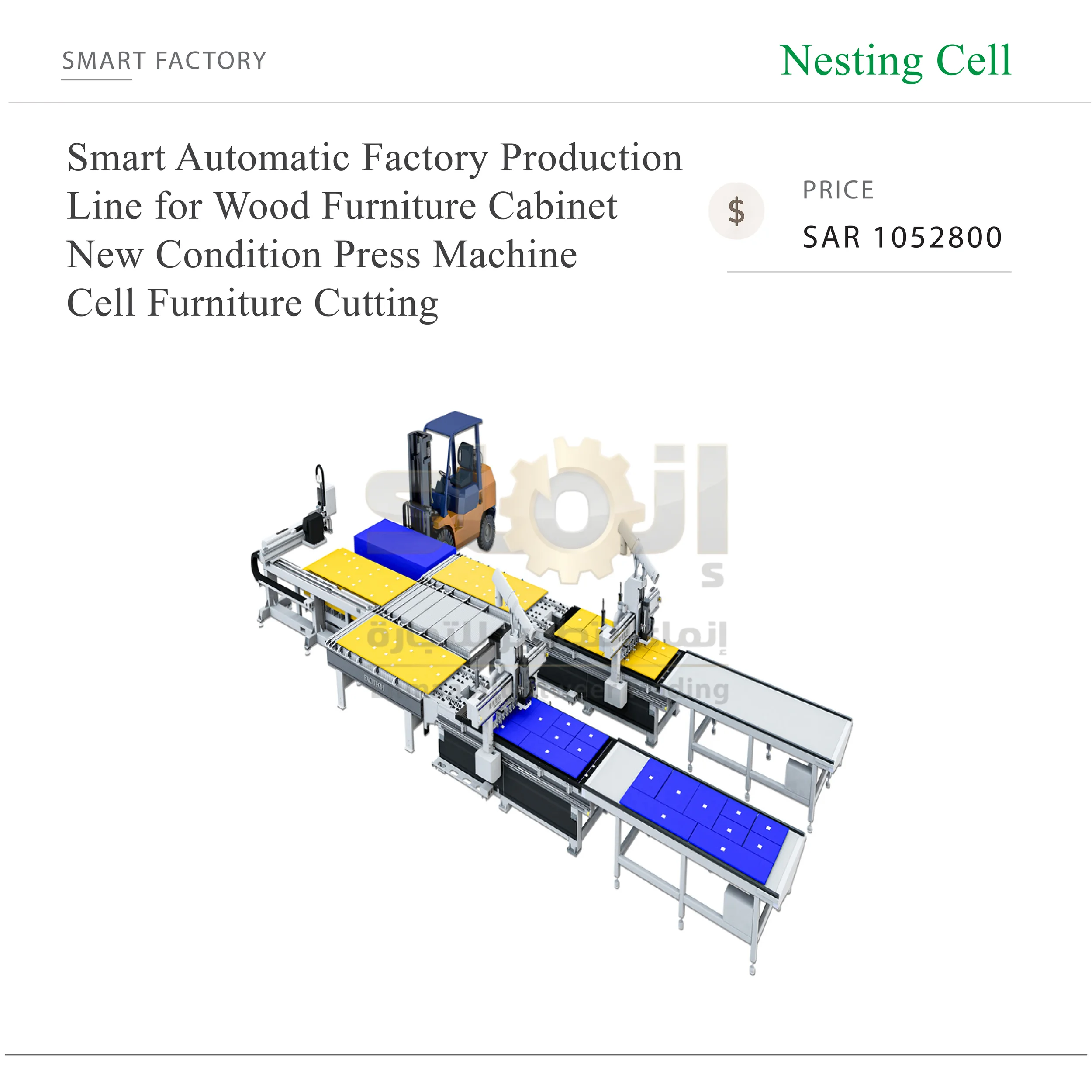

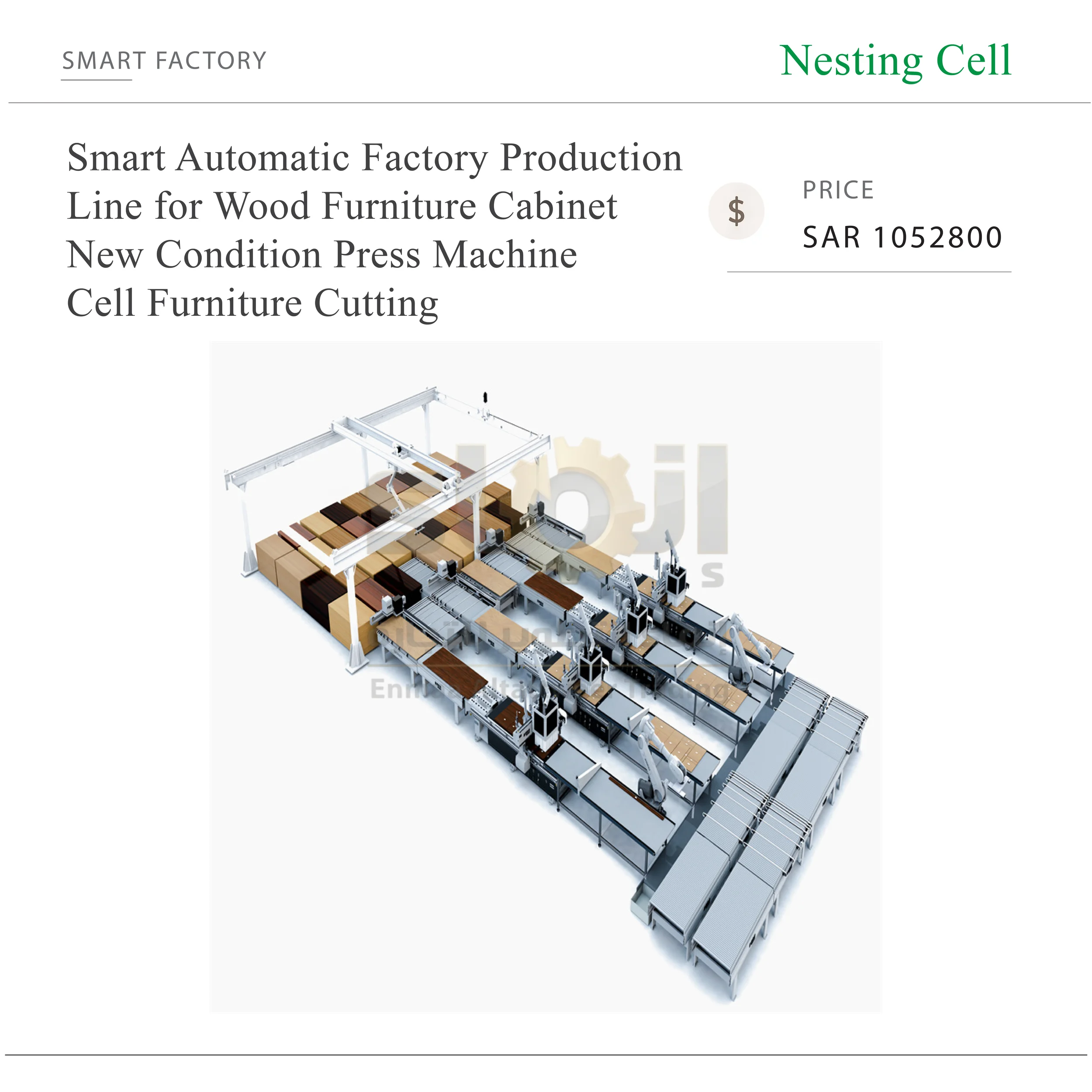

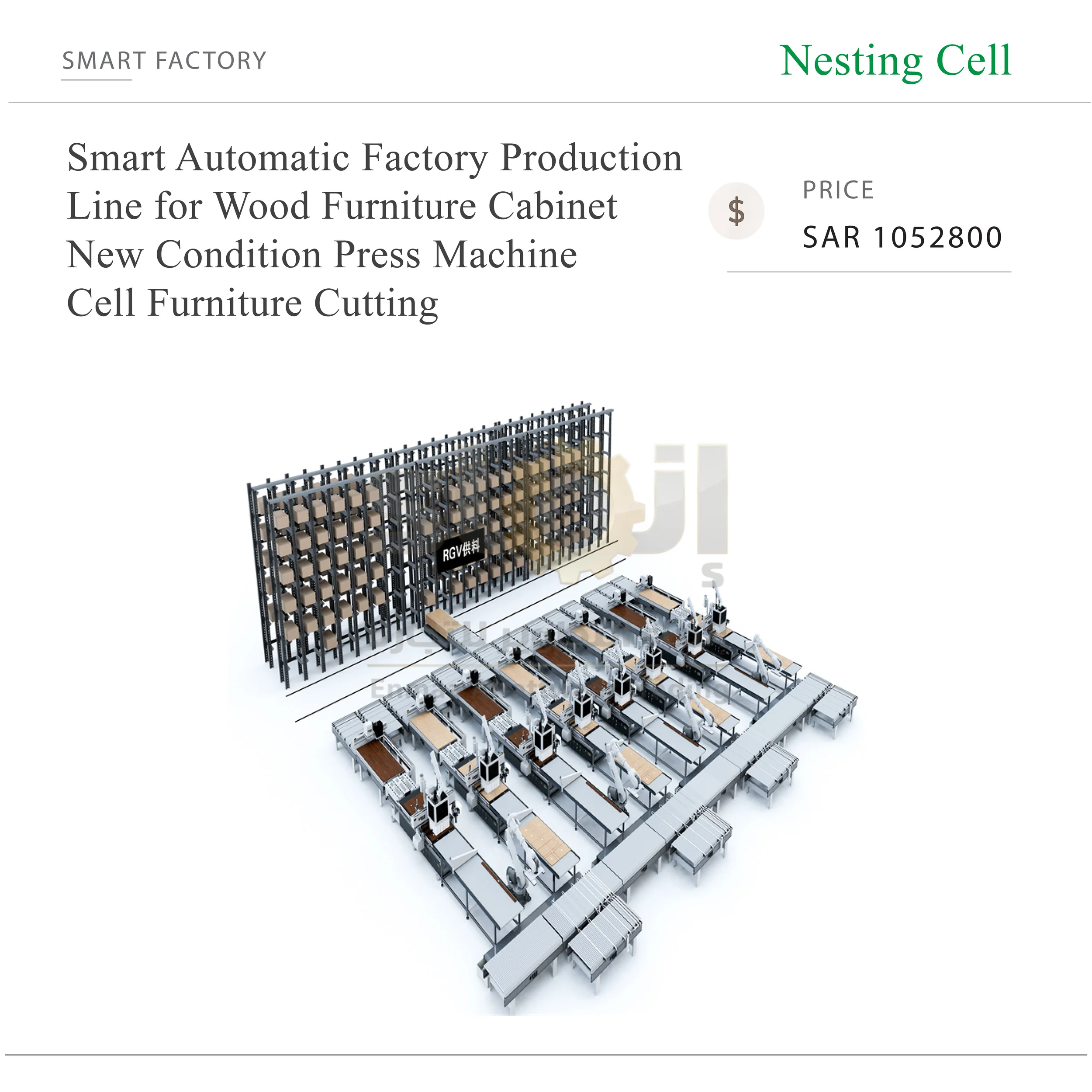

Excitech Smart Factory strives to make your production smarter, faster and more cost-efficient with minimun human labor required. It composed of nesting Cell, Edgebanding Cell and Drilling Cell. Basically, Nesting Cell has E4-auto labeling machine, Machnical robot, Return Conveyors, Cabinet Box and Excitech software.

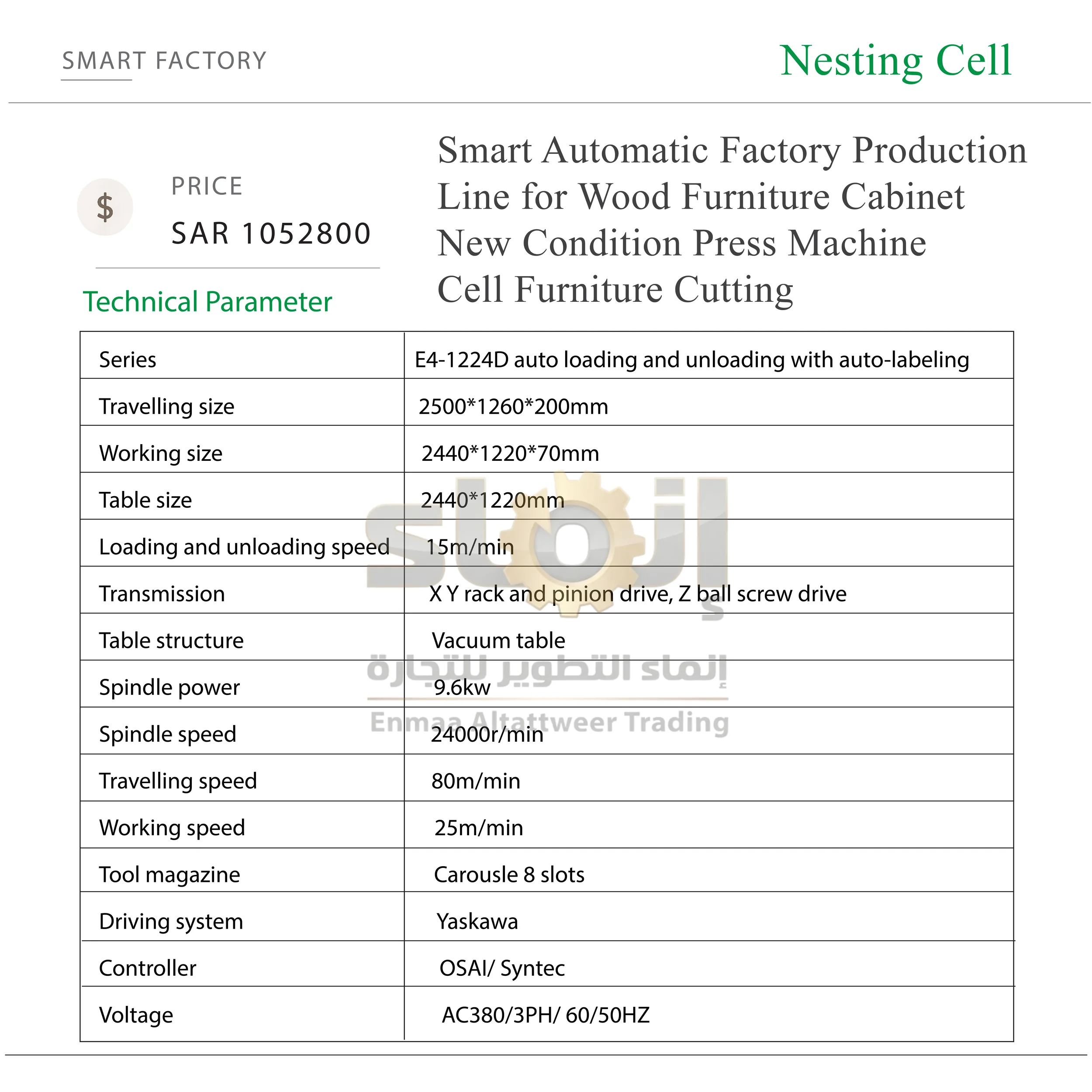

| Series | E4-1224D auto loading and unloading with auto-labeling |
| Travelling size | 2500*1260*200mm |
| Working size | 2440*1220*70mm |
| Table size | 2440*1220mm |
| Loading and unloading speed | 15m/min |
| Transmission | X Y rack and pinion drive, Z ball screw drive |
| Table structure | Vacuum table |
| Spindle power | 9.6kw |
| Spindle speed | 24000r/min |
| Travelling speed | 80m/min |
| Working speed | 25m/min |
| Tool magazine | Carousle 8 slots |
| Driving system | Yaskawa |
| Controller | OSAI/ Syntec |
| Voltage | AC380/3PH/50HZ |
Conveyor Table : 3500*2700*900mm

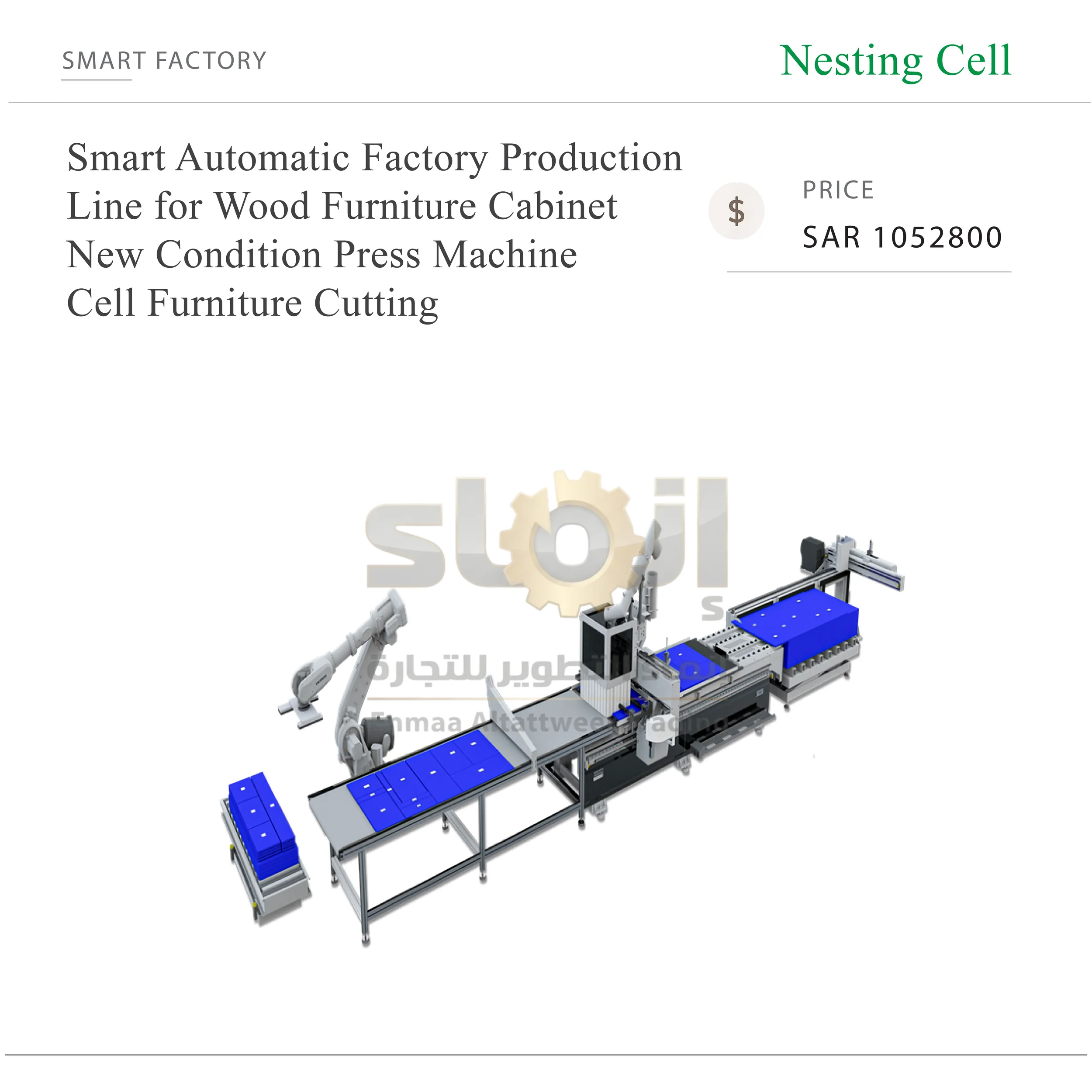

Robot automatically puts the semi-finished product on the conveying roller table for subsequent operation.
Application: widely used for processing Panel Furniture Production Line such as cabinet door, wooden door, solid wood furniture, panel wood furniture, etc.
