Product Description

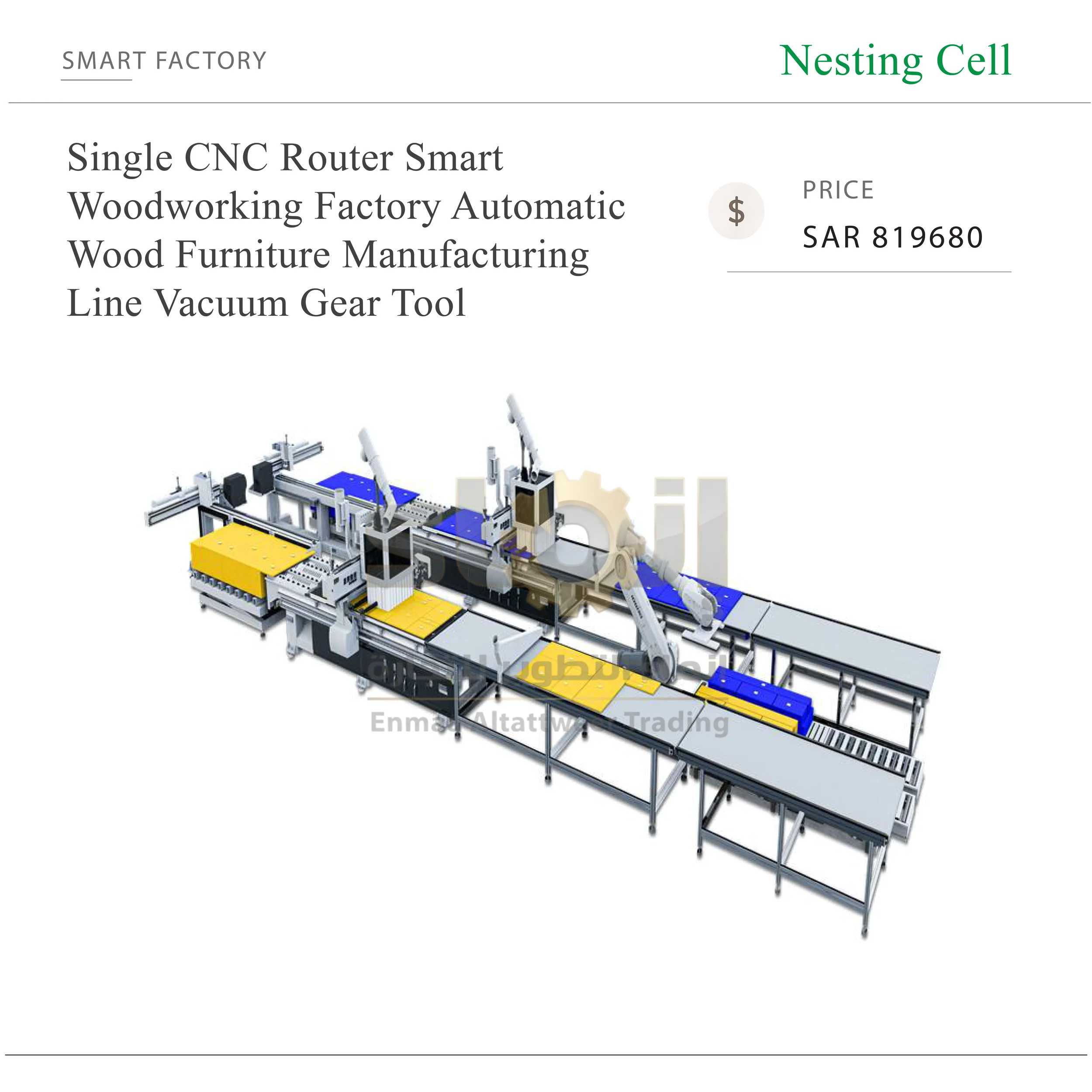

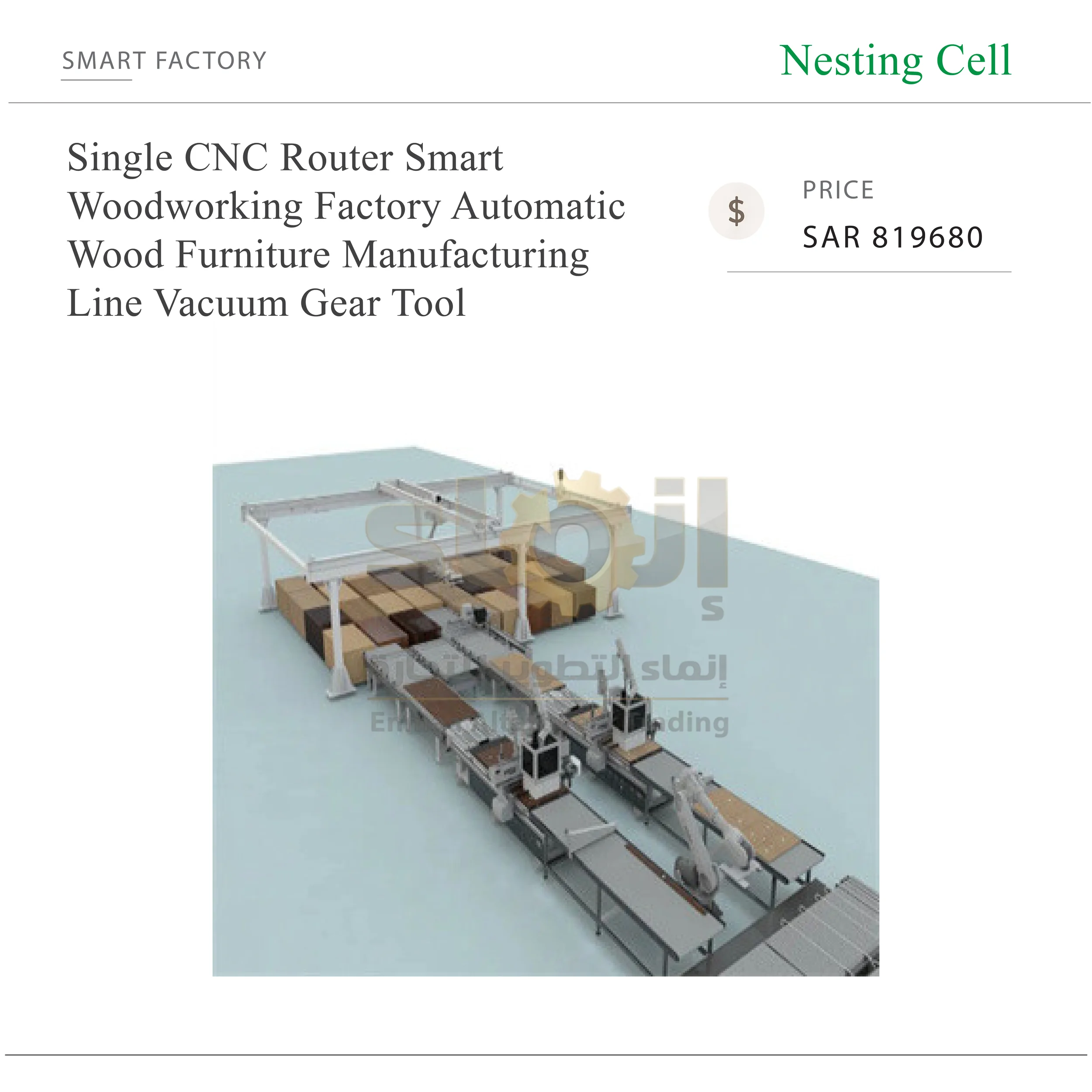

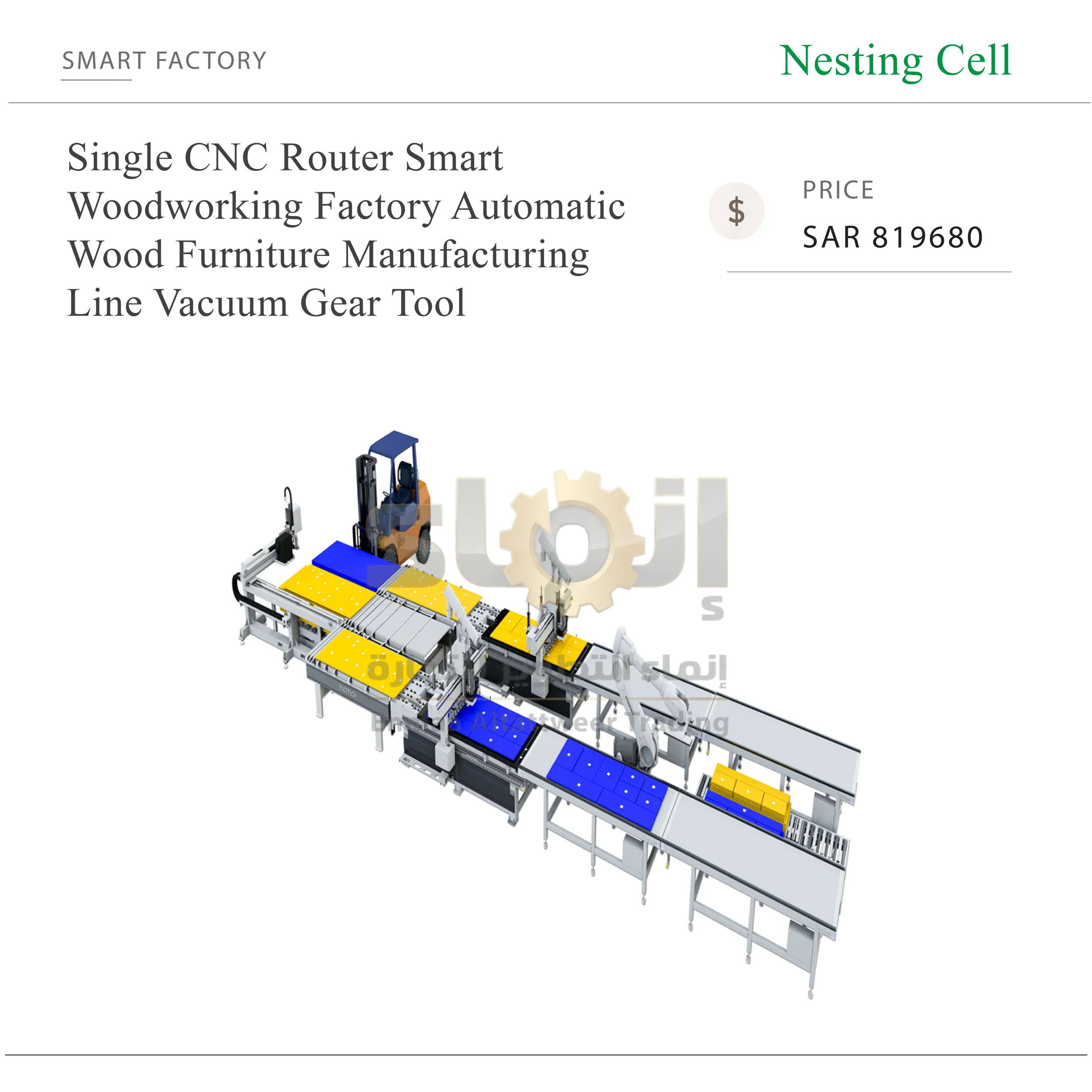

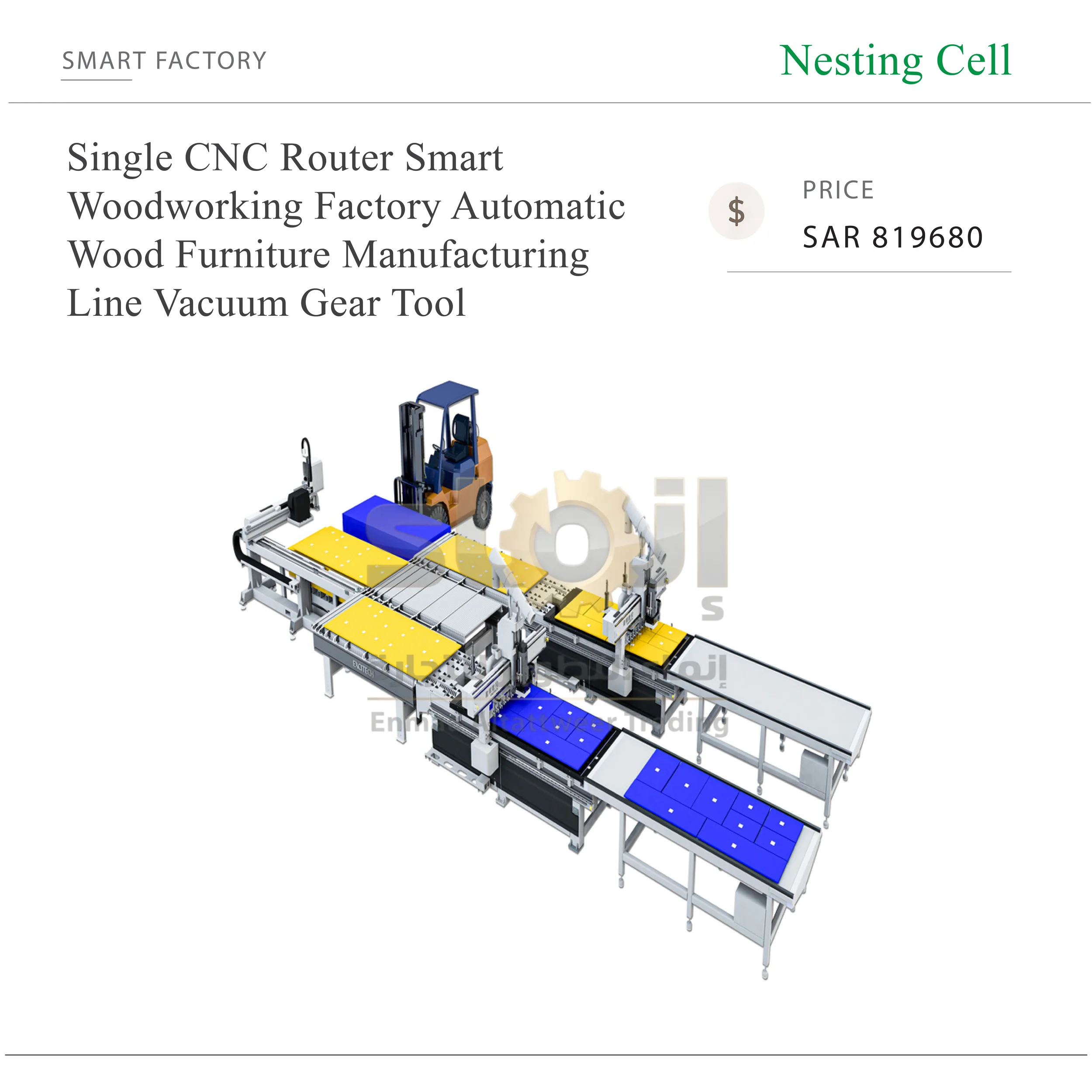

 Excitech Smart Factory strives to make your production smarter, faster and more cost-efficient with minimun human labor required. It composed of nesting Cell, Edgebanding Cell and Drilling Cell. Basically, Nesting Cell has E4-auto labeling machine, Machnical robot, Return Conveyors, Cabinet Box and Excitech software.

Technical Parameter

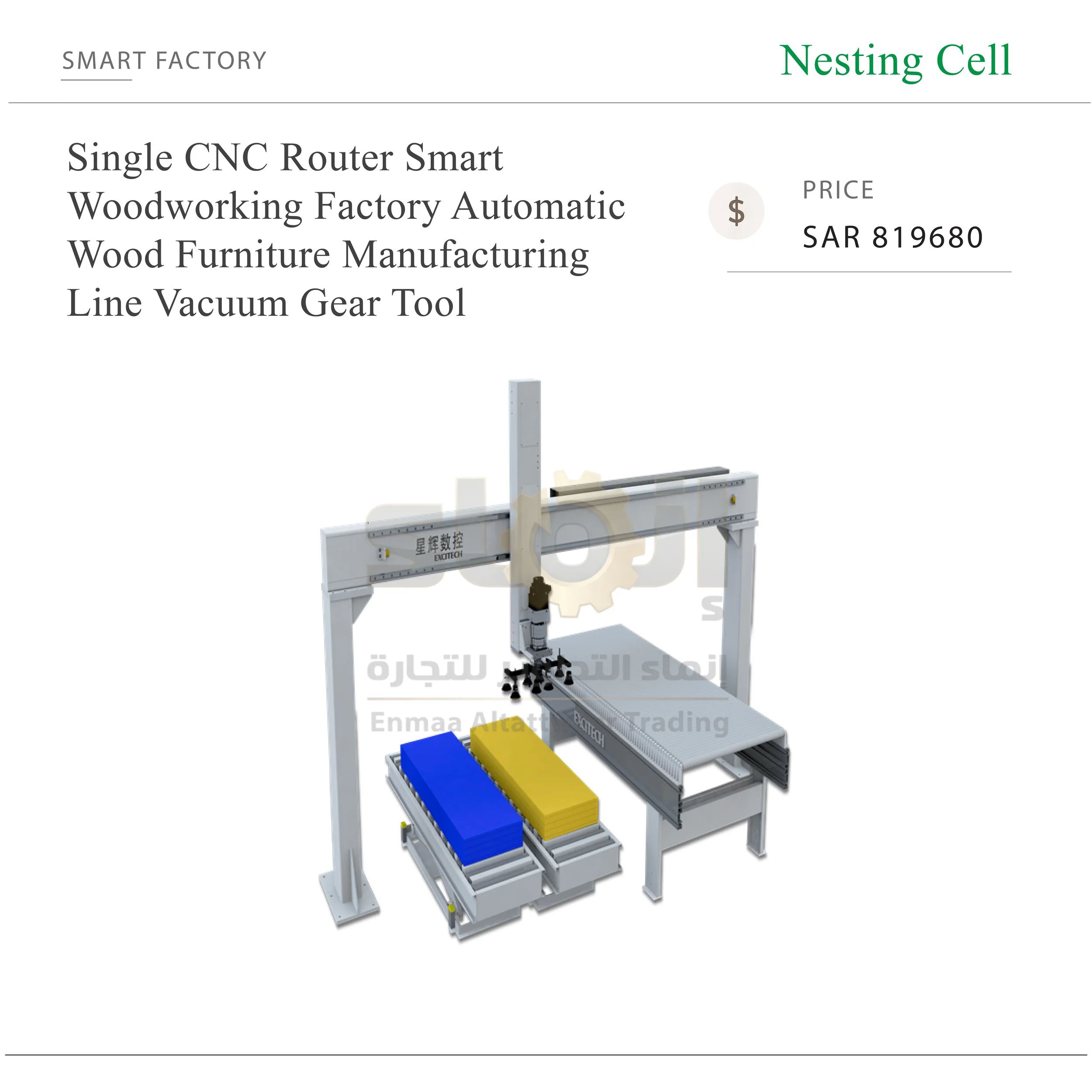

SeriesE4-1224D auto loading and unloading with auto-labeling
Travelling size2500*1260*200mm
Working size2440*1220*70mm
Table size2440*1220mm
Loading and unloading speed15m/min
TransmissionX Y rack and pinion drive, Z ball screw drive
Table structureVacuum table
Spindle power9.6kw
Spindle speed24000r/min
Travelling speed80m/min
Working speed25m/min
Tool magazineCarousle 8 slots
Driving systemYaskawa
ControllerOSAI/ Syntec
VoltageAC380/3PH/50HZ



Robot Model: SRA166L-01
~World Class Speed Robot
Robot motion makes minimum cycle times unbeatable. Light weight and high rigidity design makes high acceleration and minimum vibration. Maximum speed on all axes reduces cycle time. Improved productivity by these design.
~Easy to use
  • Improved motor drive controls for accurate positioning and repeatability.
  • Slim and compact design allows closer installation in less floor space.
  • Improved maintenance item. It can do easy parts replacement and inspection.
~Energy saving
Power consumption reduced 15% from existing model by reducing the robot’s weight by 20% using newest motor drive controls.

Conveyor Table : 3500*2700*900mm

Excitech Single CNC Router Smart Woodworking Factory Automatic Wood Furniture Manufacturing Line Siemens Vacuum Gear Tool

Detail Image



1. Nested-based CNC with Pre-labeling

Excitech Single CNC Router Smart Woodworking Factory Automatic Wood Furniture Manufacturing Line Siemens Vacuum Gear Tool

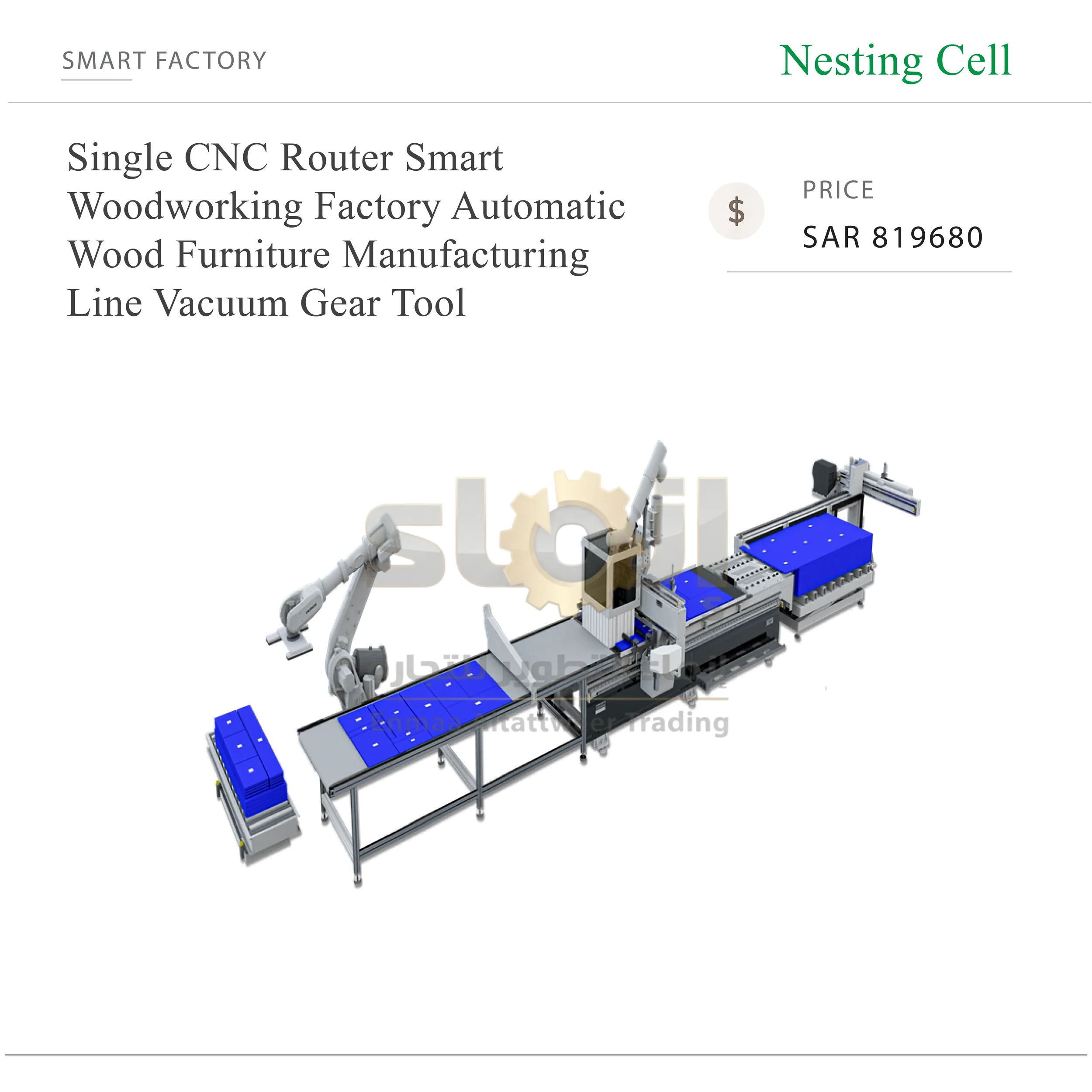

2. Robot

Excitech Single CNC Router Smart Woodworking Factory Automatic Wood Furniture Manufacturing Line Siemens Vacuum Gear Tool

Robot automatically puts the semi-finished product on the conveying roller table for subsequent operation.

Sample



Application: widely used for processing Panel Furniture Production Line such as cabinet door, wooden door, solid wood furniture, panel wood furniture, etc.
