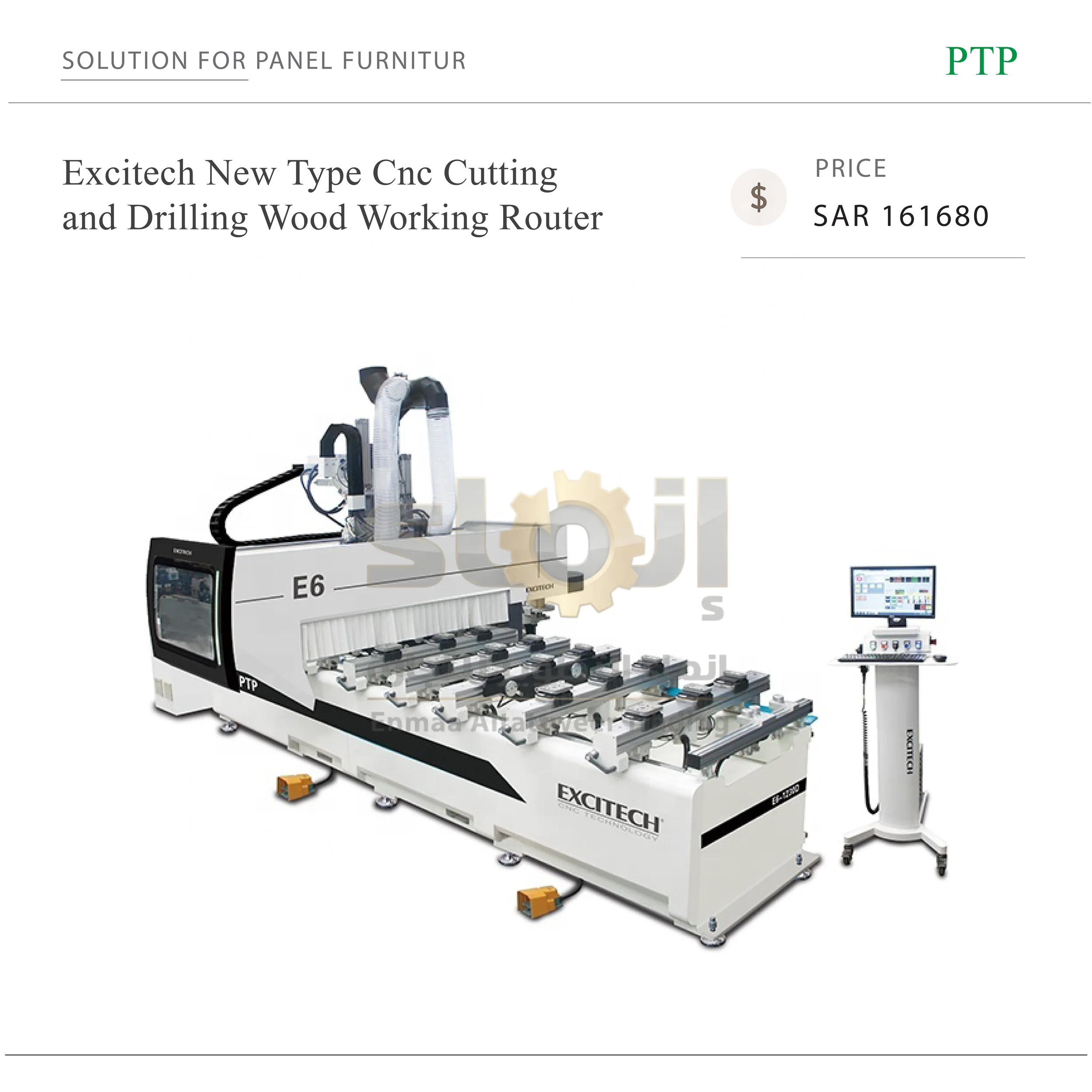

The EXCITECH PTP CNC wood router offers versatile functions including routing, drilling, cutting, and sawing with a high-speed Yaskawa driving system. Equipped with a 5.5KW spindle, OSAI controller, and vacuum table for efficient full-sheet adsorption, it ensures precision and stability for furniture production and non-metal processing. Certified for quality and reliability, it supports global market access.
The machine is designed to meet diverse complicated processing requirements, highly versatile with routing, drilling, cutting, side milling, sawing and other functions. Vacuum table fitted with suction cups. Cropping the full sheet to your ideal size, routing, drilling, sawing, cutting, and milling—multiple functions, all in one. Easy for loading and unloading, spend less time but get more out of it.
Series | E3-0924 | E3-0930 |
Travelling size | 1310*2720*160mm | 1310*3330*160mm |
Working size | 900*2440*80mm | 900*3050*80mm |
Table size | 900*2440mm | 900*3050mm |
Transmission | X Y rack and pinion drive , Z ball screw drive | |
Table structure | Pods and rails | |
Spindle power | 5.5 KW | |
Spindle speed | 18000r/min | |
Travelling speed | 60m/min | |
Working speed | 20m/min | |
Drill bank configuration | 9 vertical+ 6 horizontal+ 1 saw blade | |
Driving system | Yaskawa | |
Controller | OSAI | |
Voltage | AC380/ 3P/ 50HZ | |
1. Chinese spindle with boring unit
The machine adopts Chinese air cooling spindle with Italy imported drills, including 9 vertical drills, 6 horizontal drills and 1 saw blade drill, which can meet more processing requirements of users.
2. Double station operating area

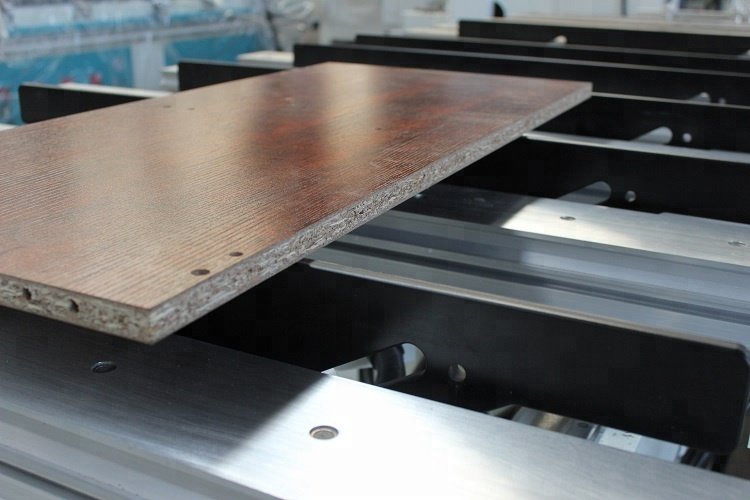

The machine is equipped with a double-station operating area, equipped with 18 pieces of German Schmitz vacuum adsorption blocks and 2 rows of positioning cylinders. It can be used for full-page adsorption and point-to-point adsorption. Easy for loading and unloading, spend less time.
3. Japan Yaskawa servo motor and driver
The machine adopts Japan Yaskawa servo motor and driver, with high precision, high speed performance, strong anti-overload capability and good stability.
Application:
Furniture:ideally suitable for processing cabinet door, wooden door, solid wood furniture, panel wood furniture, windows, tables and chairs, etc.
Other wooden products: stereo box, computer desk, musical instruments, etc.
Well-suited for processing panel, insulating materials, plastic, epoxy resin, carbon mixed compound, etc.
Decoration: acrylic, PVC, density board, artificial stone, organic glass, soft metals like aluminum and copper, etc.
