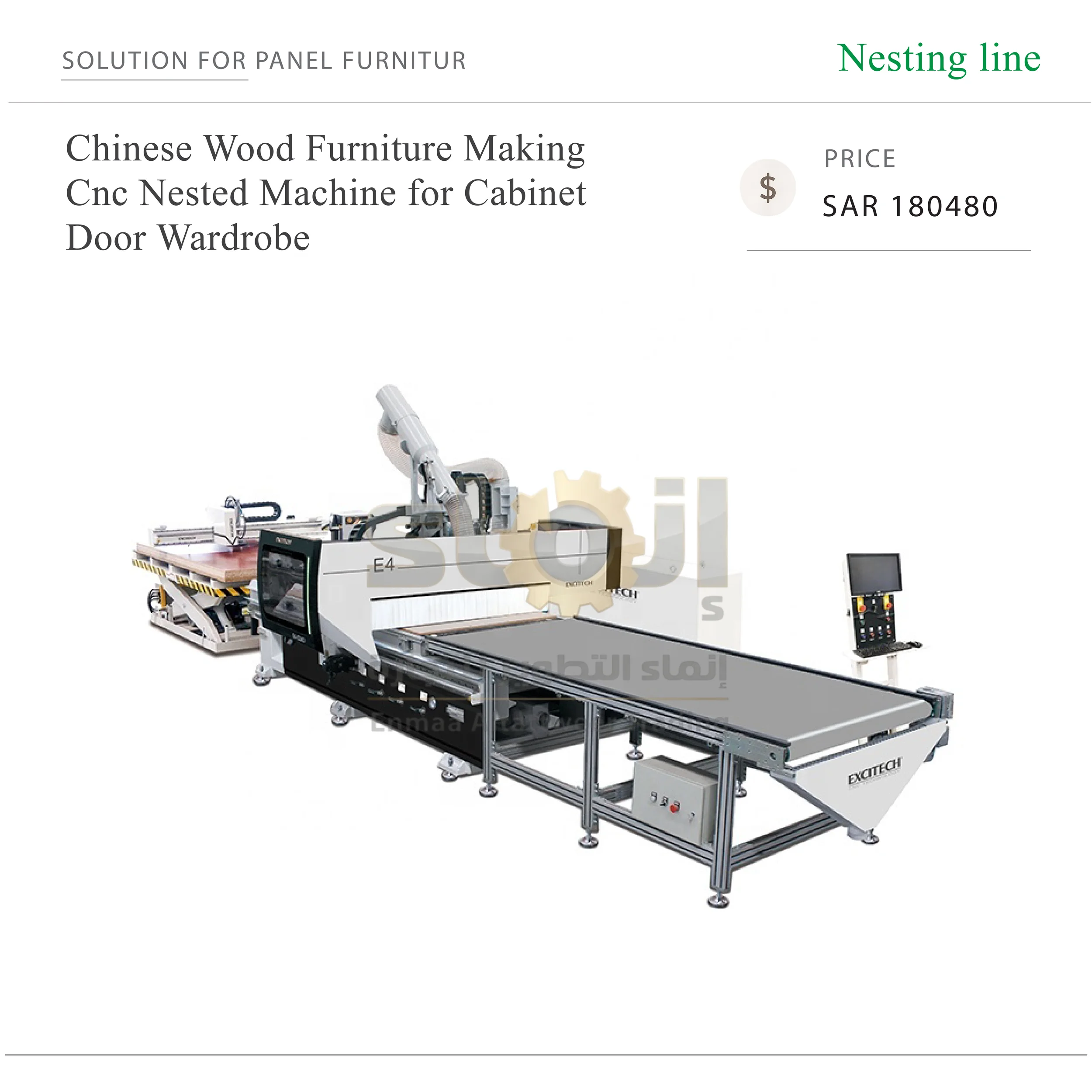

EXCITECH NESTING E4 Nesting With Auto Pre-labeling NESTING

Highly automated nesting solution with automatic loading, unloading, and pre-labeling systems, ensuring maximum productivity and zero downtime. Features world-class components like an Italian HSD spindle, German helical rack drives, and Japanese linear guides. Versatile functionality includes nesting, routing, drilling, and engraving, making it ideal for panel furniture, cabinets, and more. Equipped with a CE certificate, ensuring compliance with EU safety standards and enabling market access.

GET A QUOTE

Product Description

Highly automated nesting solution with automatic loading and unloading system. The complete work cycle of loading, nesting, drilling and unloading is carried out automatically, which results in maximum productivity and zero down time. World’s first class components–Italian high-frequency electro spindle, controller system and drill bank, German helical rack and pinion drives, Japanese self-lubricating and dust-proof square linear guides and high precision planetary gear reducers, etc.Truly versatile–nesting, routering, vertical drilling and engraving all in one.  It is well-suited for panel furniture, office furniture, cabinets production.

Automatic barcode labeling machine with Zebra ZTL410 printer available upon request.



Feature:

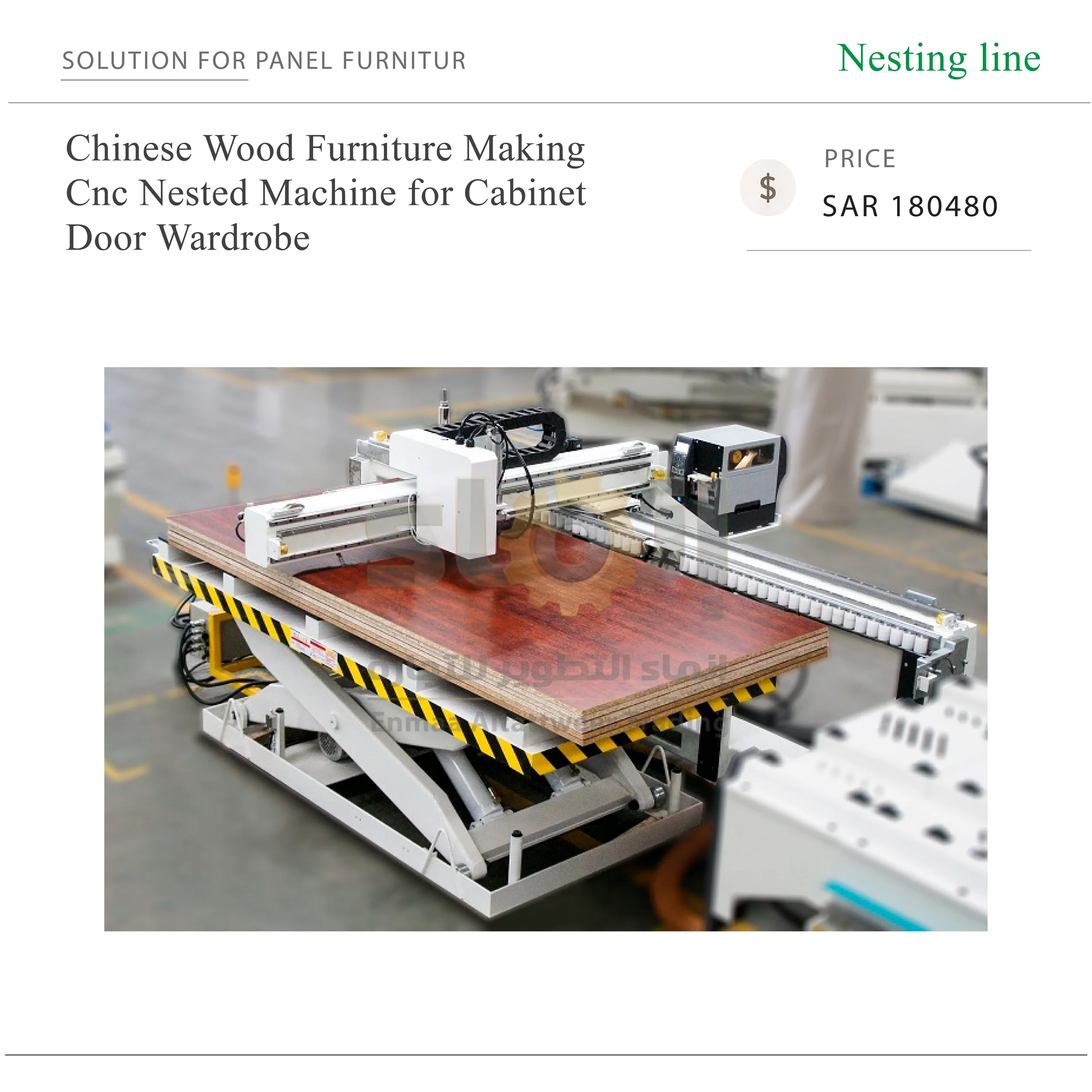

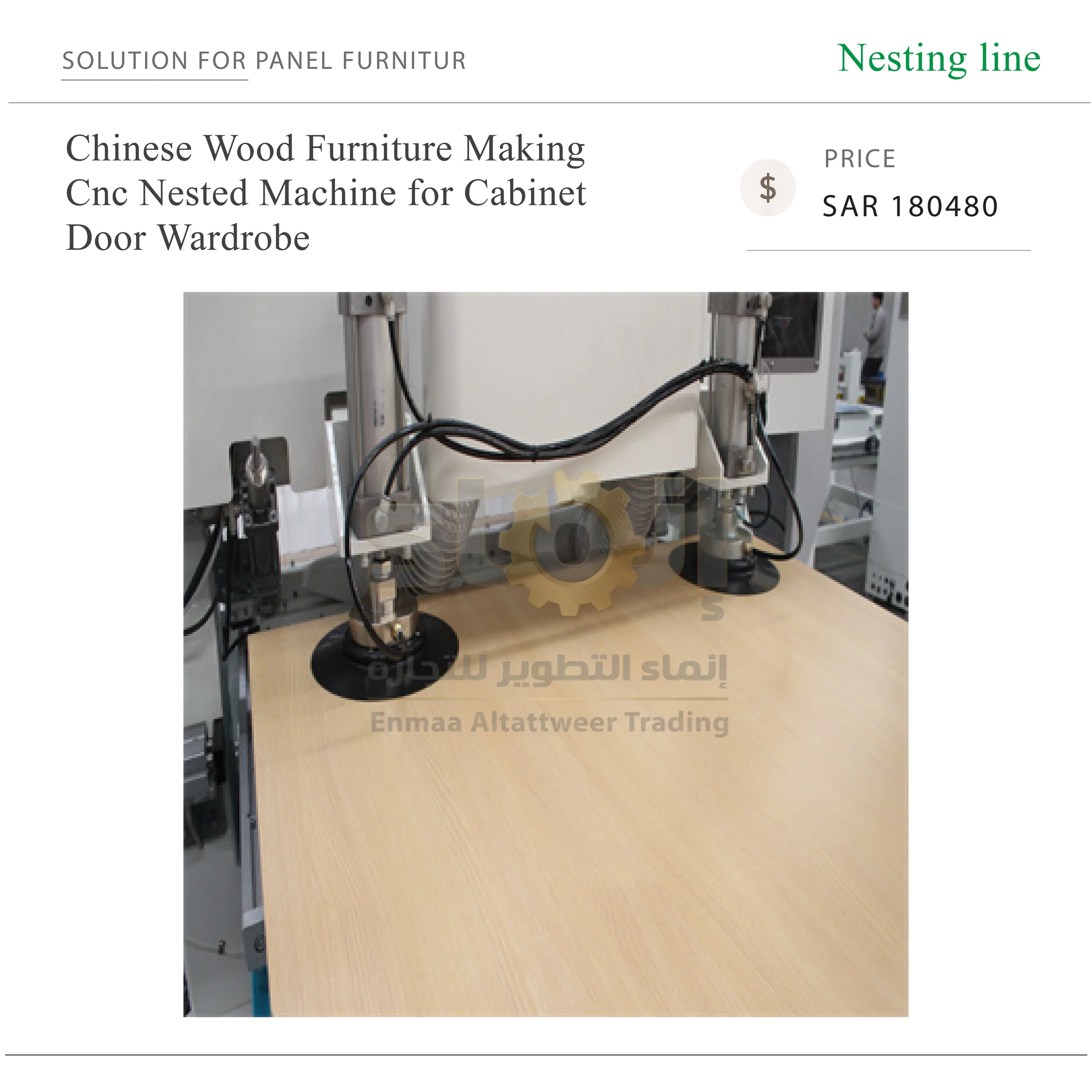

  • Top of its range, this solution has the great advantage of not requiring the constant presence of an operator.The suction cups equipped on the gantry travels to the rear of the machine to pick up the workpiece from the scissor lift, which is then nested and drilled at the flat table.At the completion of the work cycle, the pusher transports the completed workpiece out of the working area allowing simultaneous loading of the next cycle.
  • Features world’s top class components.The enclosure over the gantry with LED light strip for display of the machine statue prevents flying out of materials and greatly enhance safety.
  • Truly versatile -nesting, routering, vertical drilling and engraving all in one. It is well -suitable for panel furniture, office furniture, kitchen, cabinets production.

 E4 Nested Based Production Flow

EXCITECH NESTING E4 Nesting With Auto Pre-labeling NESTING

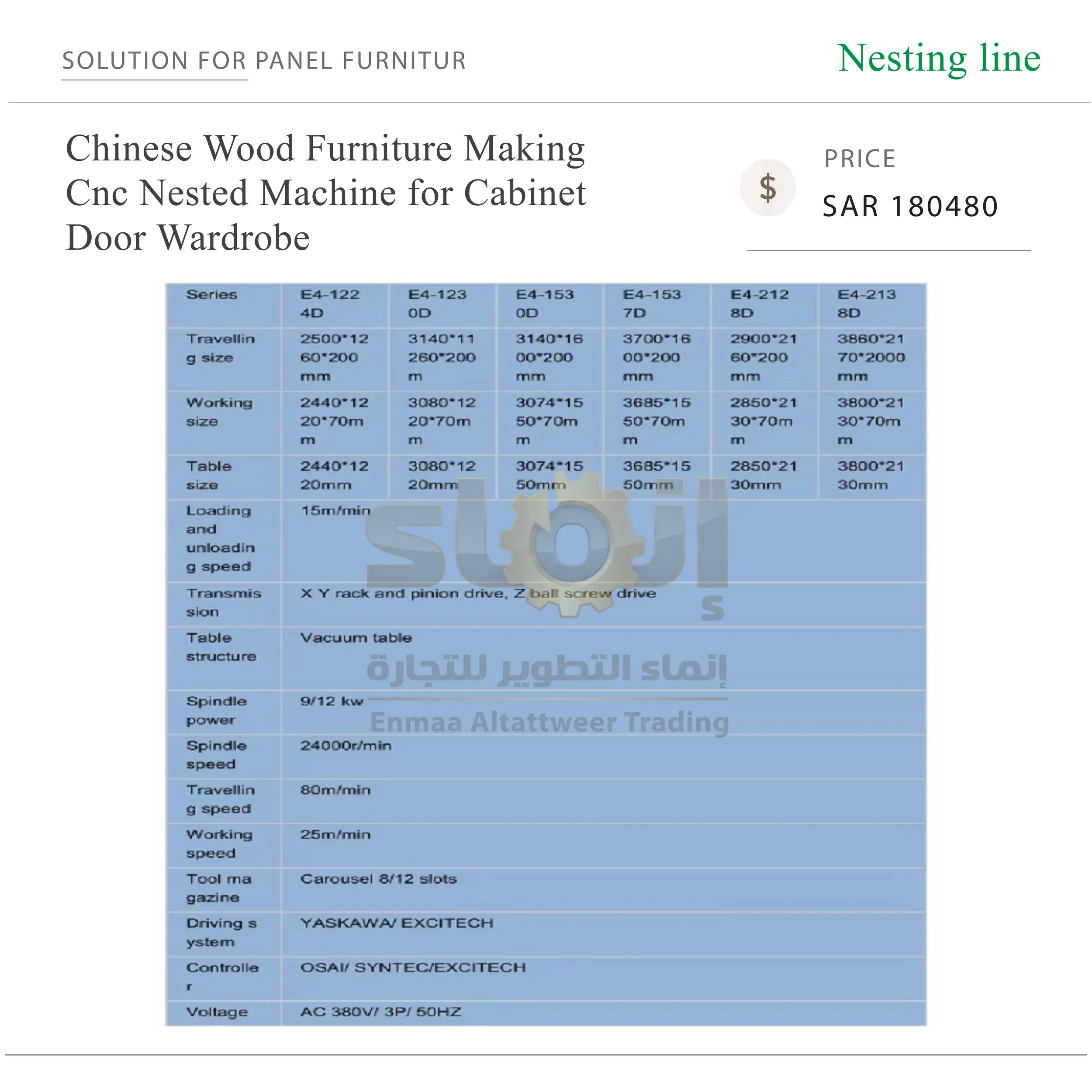

Technical Parameter

 EXCITECH NESTING E4 Nesting With Auto Pre-labeling NESTING



Detailed Images

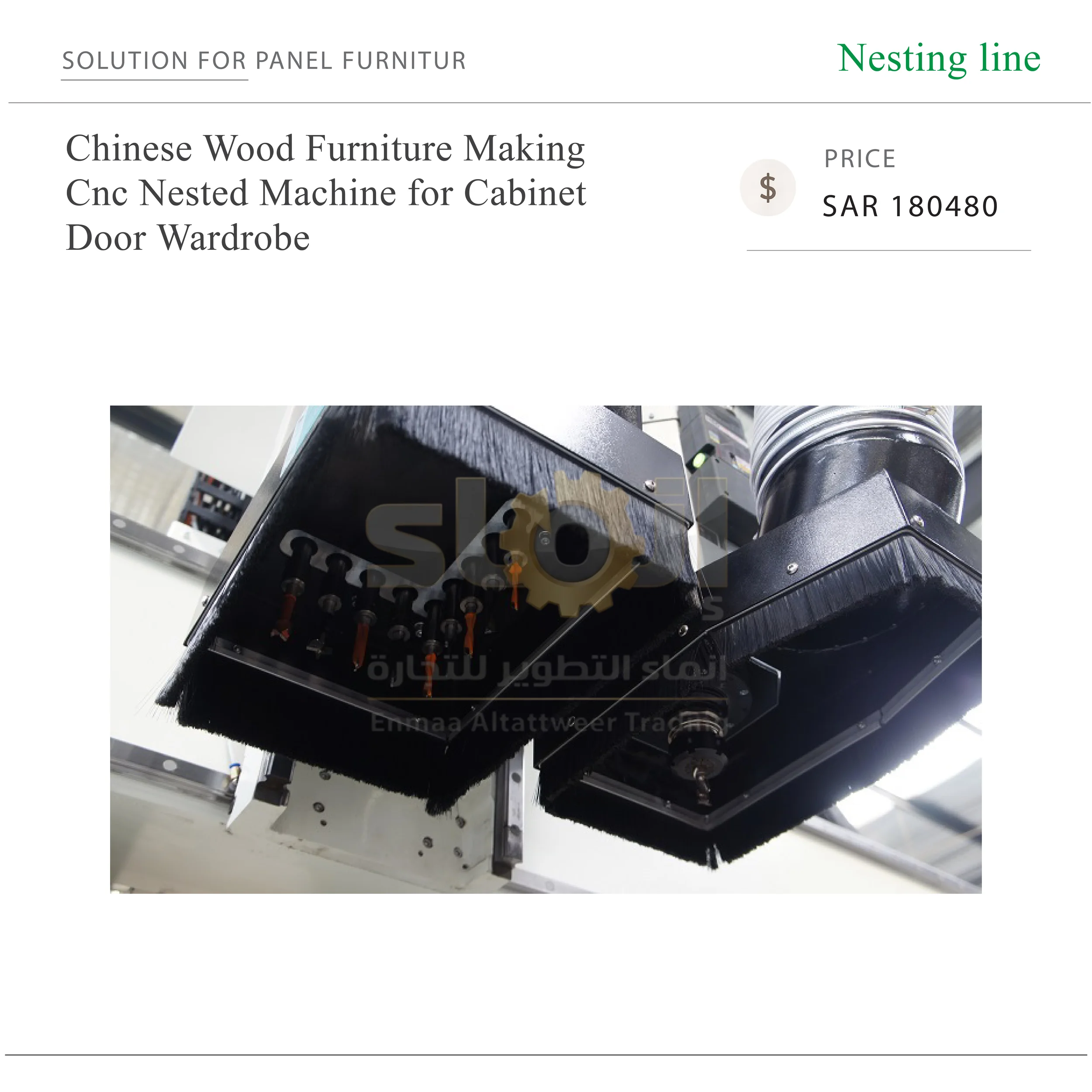

1. HSD spindle with boring unit

EXCITECH NESTING E4 Nesting With Auto Pre-labeling NESTING

HSD Spindle: 9.6kw, higher power available upon request.

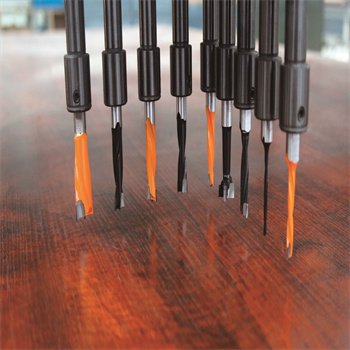

Italian drill bank: 5+4 drills

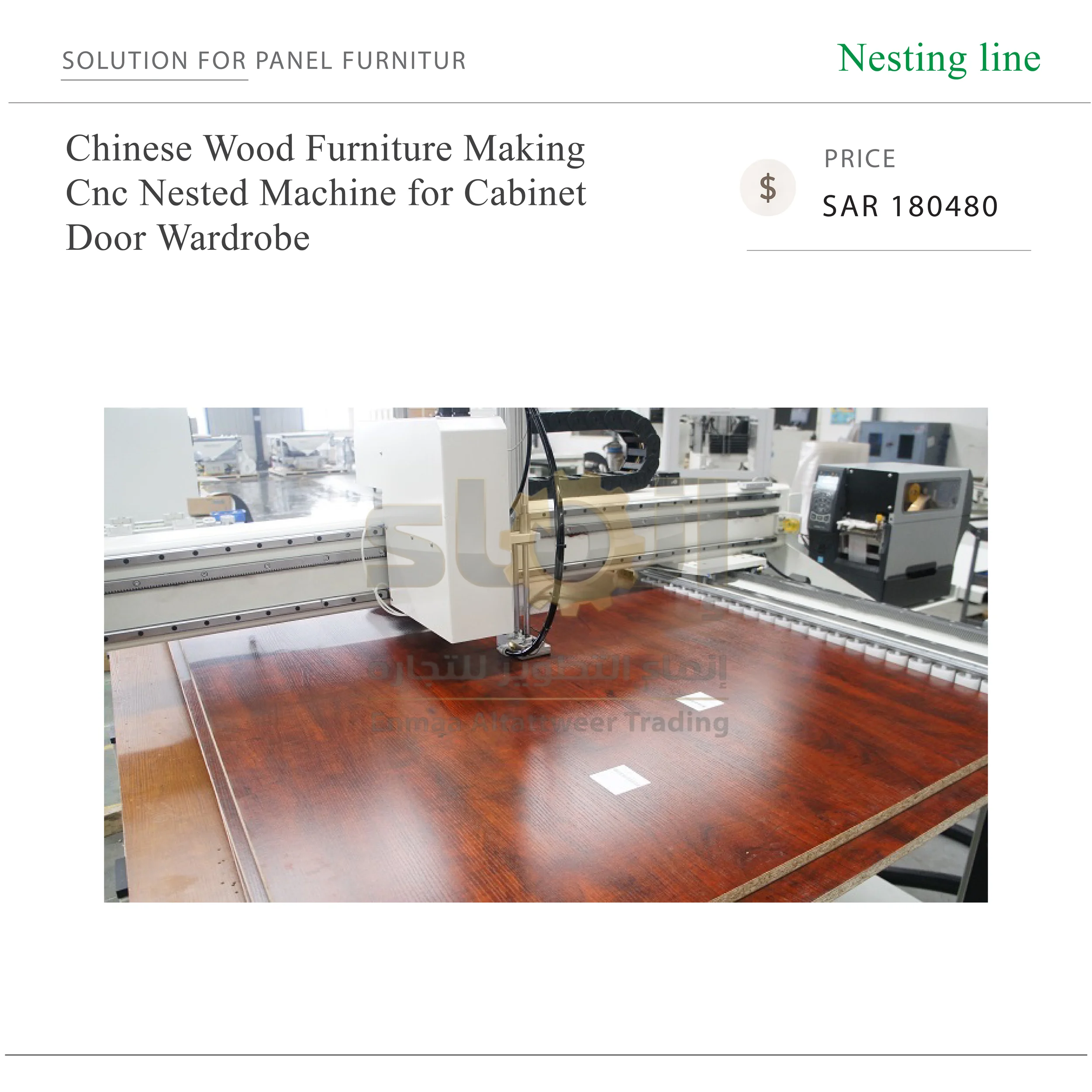

2.Automatic barcode labeling machine

EXCITECH NESTING E4 Nesting With Auto Pre-labeling NESTING

Pre-label the panel with rapid travel axis before nesting and vertical drilling further eliminates operator intervention during the work process and renders the whole cycle truly push -button – and go.



Sample

Application:

Furniture:ideally suitable for processing cabinet door, wooden door, solid wood furniture, panel wood furniture, windows, tables and chairs, etc.
Other wooden products: stereo box, computer desk, musical instruments, etc.
Well-suited for processing panel, insulating materials, plastic, epoxy resin, carbon mixed compound, etc.
Decoration: acrylic, PVC, density board, artificial stone, organic glass, soft metals like aluminum and copper, etc.
