The structure of the machine is exquisite, achieving a win-win of speed and precision. Standard double spindle in the machine, can be used for cutting and engraving, and it can also clamp different tools for different function. With the push device, the wood panel can be unloadingn from the processing table automatically, convenient for the operator to take the panel. At the same time, double working station processing without interruption, can save time for completion and greatly improve production efficiencysaving processing time and improving processing efficiency greatly. Meanwhile, the machine also can be equipped with auto feeding platform.The machine is equipped with vertical boring unit for vertical punching in the panel. It can be docked with EXCITECH cabinet software, optimized materials, can be flexible and cost-effective.
Series | E2-9 Double Working Zones |
Traveling Size | 2500*1260×200mm |
Working Size | 2440*1220*50mm |
Unloading Speed | 15m/min |
Transmission | X Y axis rack and pinion drive, Z axis TBI screw drive |
Rail guide | Japan THK linear rail guide |
Spindle | HSD 6.0KW/ EXCITECH 5.5KW |
Spindle Speed | 0-18000rpm/min |
Spindle cooling | Air cooling |
Inverter | Delta inverter |
Drive motor | Japan Yaskawa servo motor and driver |
Traveling Speed | 40m/min |
Working speed | 18m/min |
Voltage | 50/60V/220V |

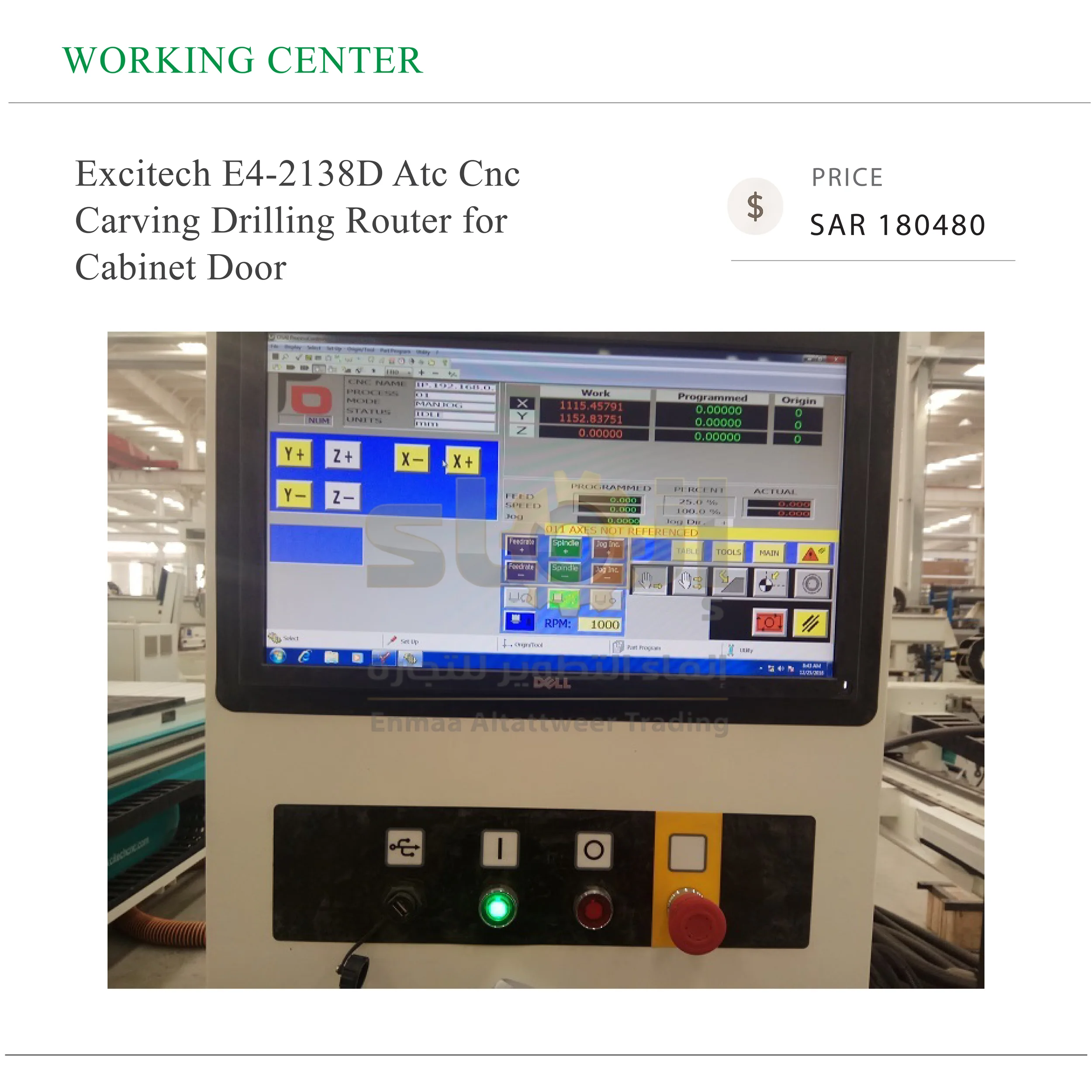

Controller | Syntec control system |
Command | G Code |

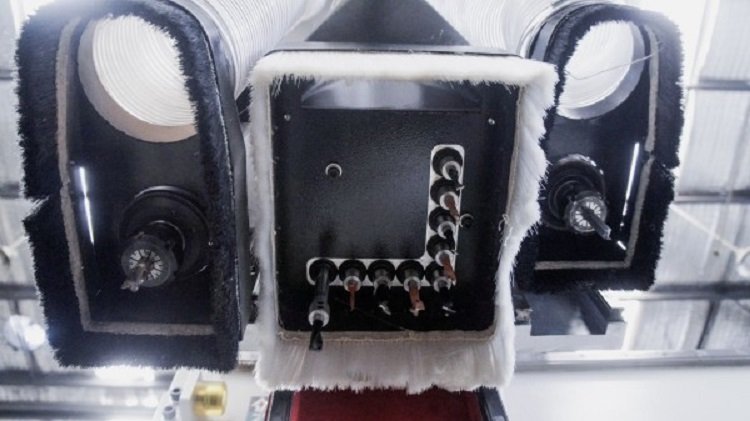

1. Double spindle with boring unit
Standard double spindle in the machine, can be used for cutting and engraving, and it can also clamp different tools for different function.
The machine is equipped with vertical boring unit for vertical punching in the panel.

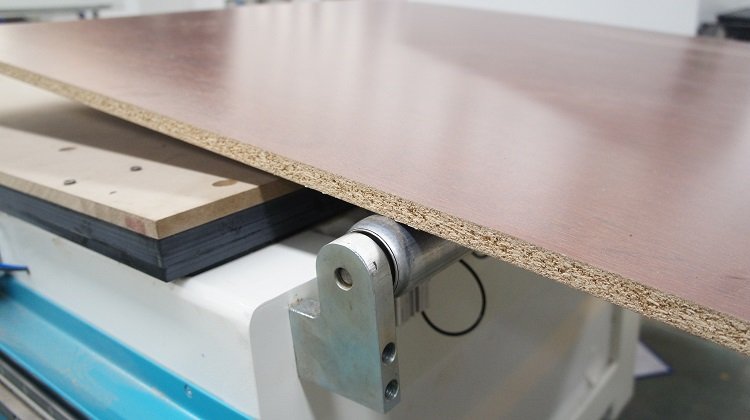

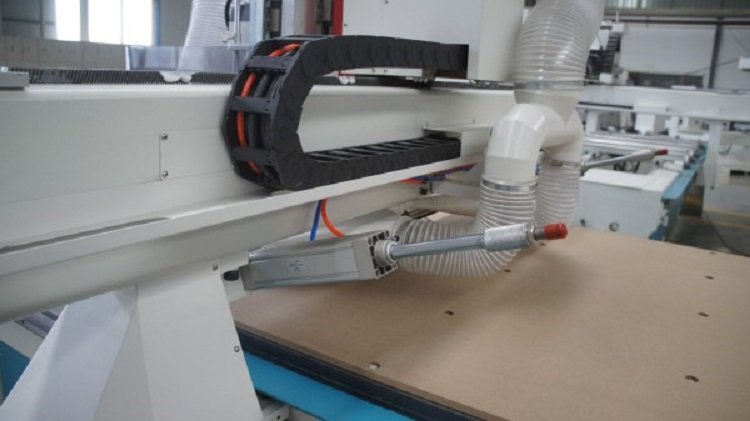

2. Push device
With the push device, the wood panel can be unloadingn from the processing table automatically, convenient for the operator to take the panel, saving processing time and improving processing efficiency greatly.
3. Feeding roller
Add roller to the front and back of the bed for easy loading.

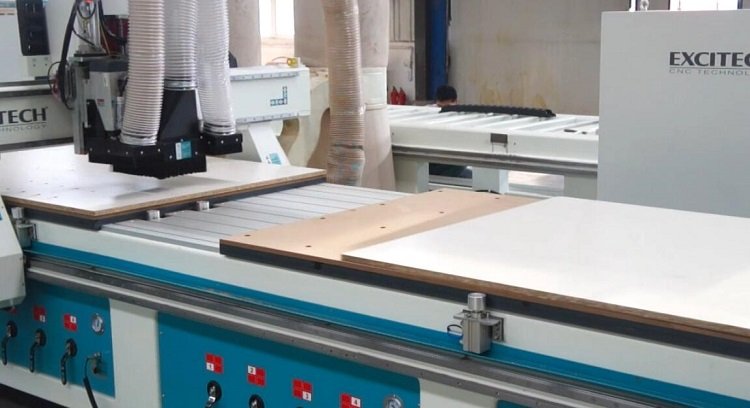

4. Double working station
Double working station processing without interruption, can save time for completion and greatly improve production efficiency.
5. Japan Yaskawa servo motor and driver
The machine adopt Japan Yaskawa servo motor and driver, with high precision, high speed performance, strong anti-overload capability and good stability.
Application:

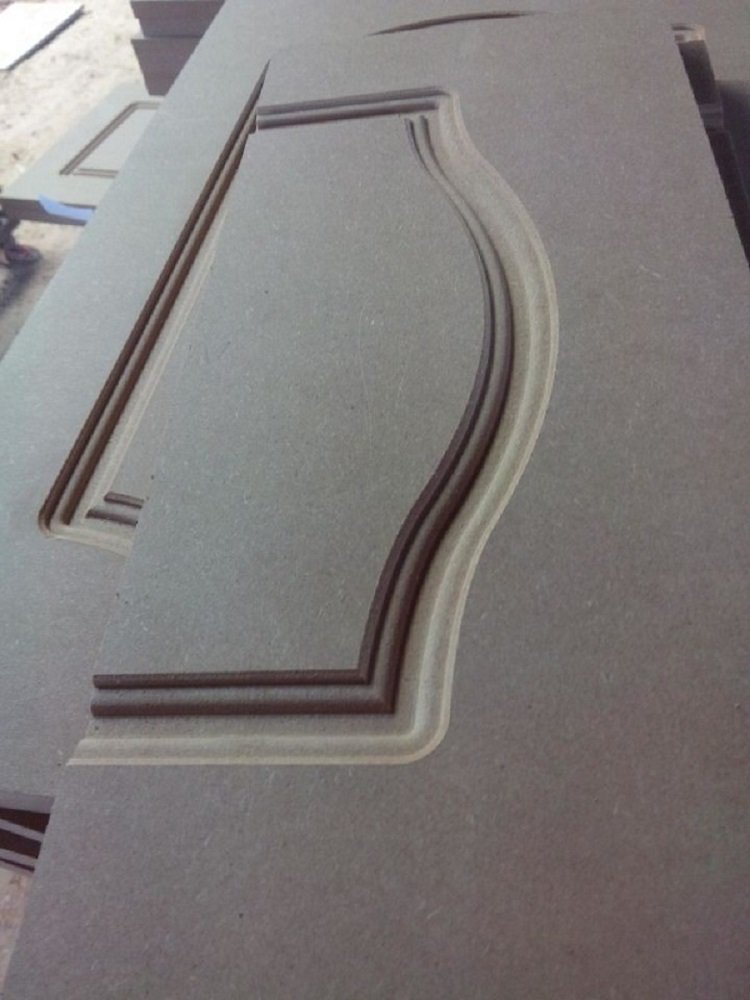

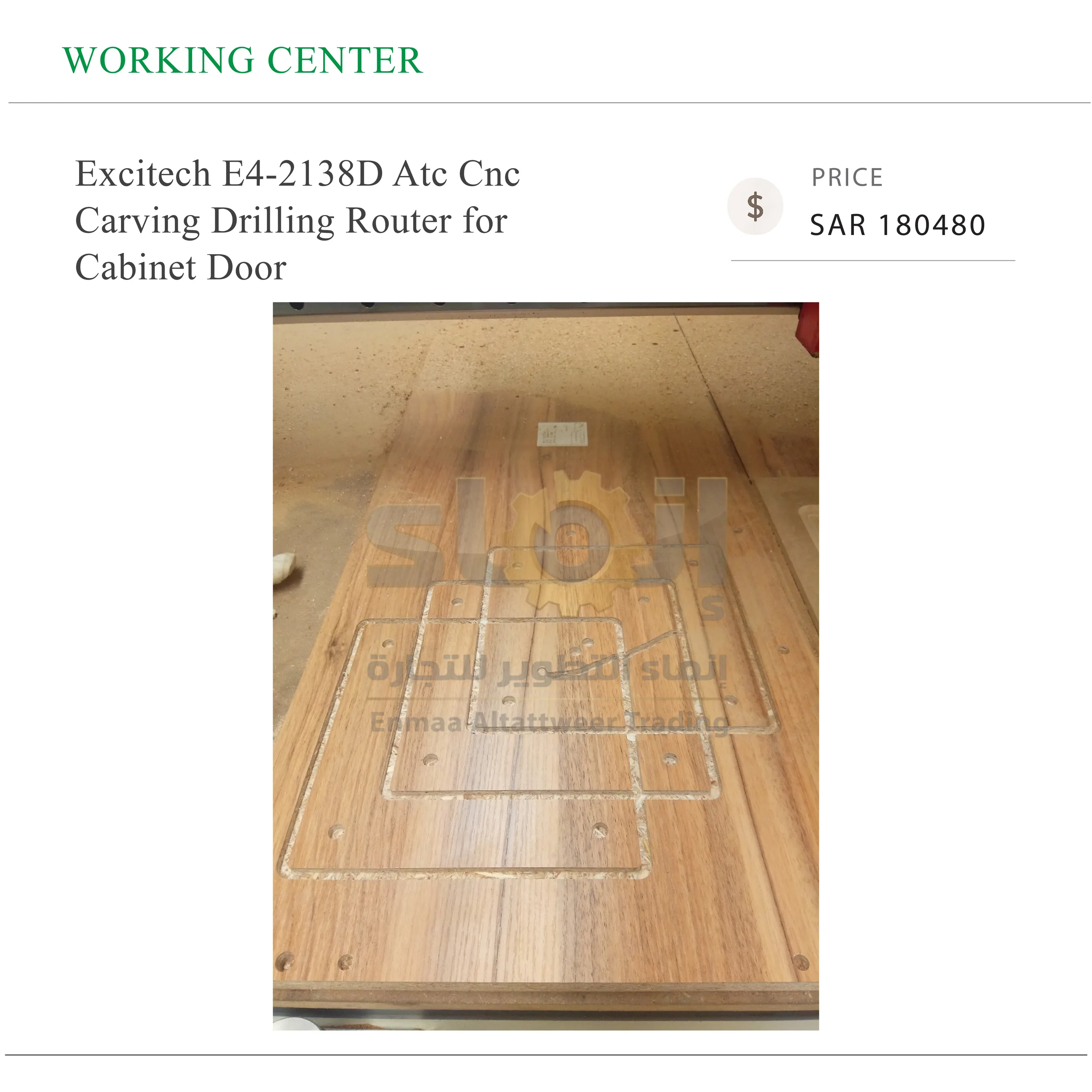

Furniture: widely used for processing cabinet door, wooden door, solid wood furniture, panel wood furniture, windows, tables and chairs, etc.
Other wooden products: stereo box, computer desk, musical instruments, etc. It also can process acrylic, PVC, EPS, density board, organic glass, soft metals like aluminum and copper, etc.
