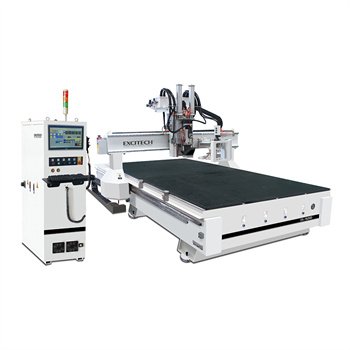

The EXCITECH E5-2030D CNC Router is a high-precision, automatic woodworking machine with a 3-axis design, 0.1mm positioning accuracy, and repeatability of 0.05mm. It features a powerful 9-12kw spindle motor, Japan Yaskawa servo motors, and a T-slot vacuum table, ensuring superior performance for manufacturing plants and construction industries. Equipped with Syntec OSAI control systems and an 8-slot carousel tool magazine, it supports complex operations efficiently. The machine’s robust structure and precise engineering meet demanding industrial standards, offering reliability and longevity.
item | value |
Condition | New |
Range of Spindle Speed(r.p.m) | 6000rpm – 24000rpm |
Positioning Accuracy (mm) | 0.1mm |
Number of Axes | 3 |
No. of Spindles | Single |
Working Table Size(mm) | 3080*1560mm |
Machine Type | CNC Router |
Travel (X Axis)(mm) | 2100mm |
Travel (Y Axis)(mm) | 3050mm |
Repeatability (X/Y/Z) (mm) | 0.05mm |
Spindle Motor Power(kW) | 9/12 |
CNC or Not | CNC |
Syntec | |
Place of Origin | China |
Shandong | |
Brand Name | EXCITECH |
Voltage | 380V/3PH/50HZ |
Power (kW) | 25 |
Weight (KG) | 5000 |
Warranty | 1 Year |
Key Selling Points | Automatic |
Applicable Industries | Building Material Shops, Manufacturing Plant, Construction works , Energy & Mining, Other |
Machinery Test Report | Provided |
Video outgoing-inspection | Provided |
Warranty of core components | 1 Year |
Core Components | Motor, Pump, Gearbox |
Product name | EXCITECH Heavy duty Working Center wood cnc router E5-1530D machine |
Working size | 3080*2000*200mm |
Transmission | X Y axis rack and pinion transmission, Z axis ball screw transmission |
Spindle power | 9kw/12kw |

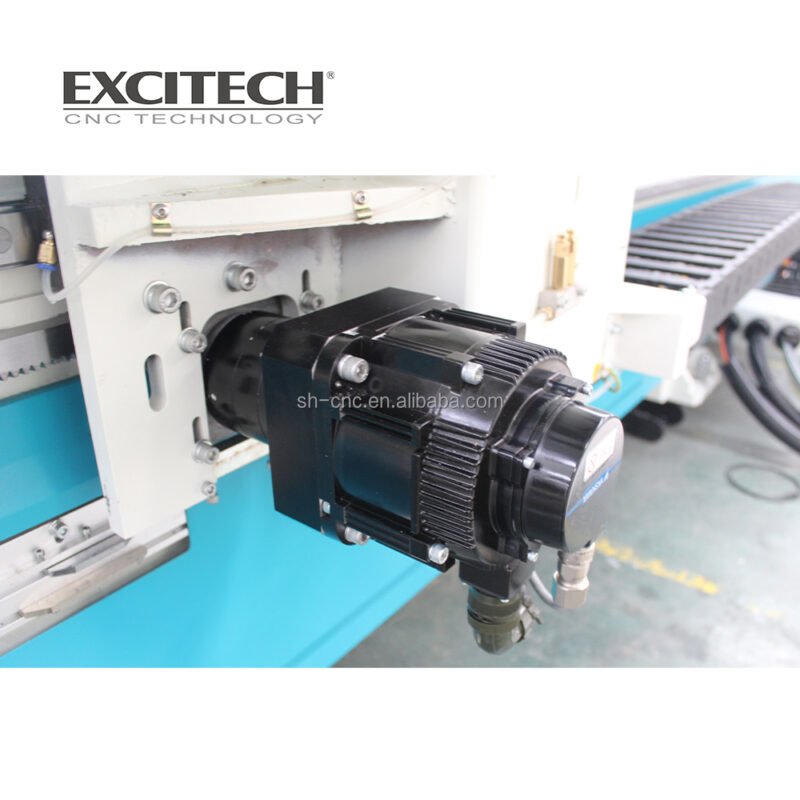

Motor and driver | Japan Yaskawa Servo Motor and driver |
Travelling size | 3100*1570*330mm |
Tool magazine | Carousel 8 slots |

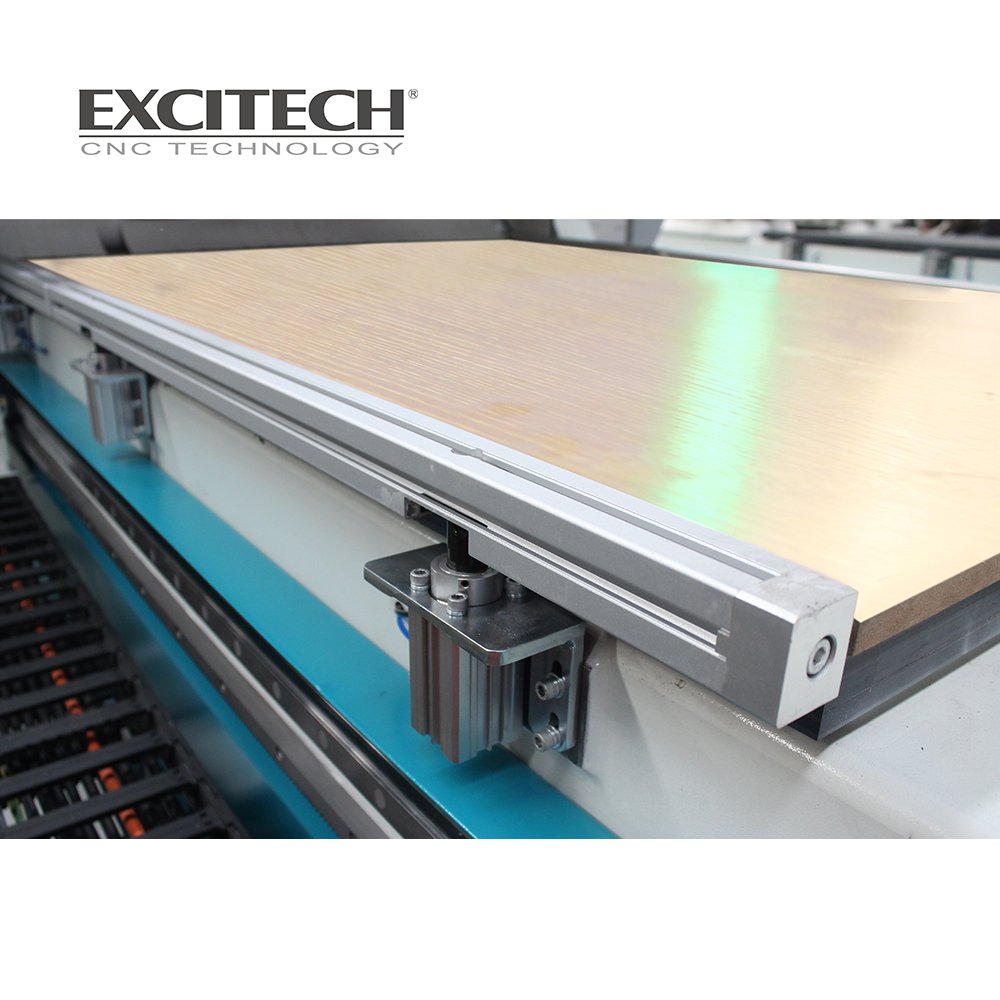

Table structure | T- slot Vacuum table |
Controller | Syntec / OSAI control system |
