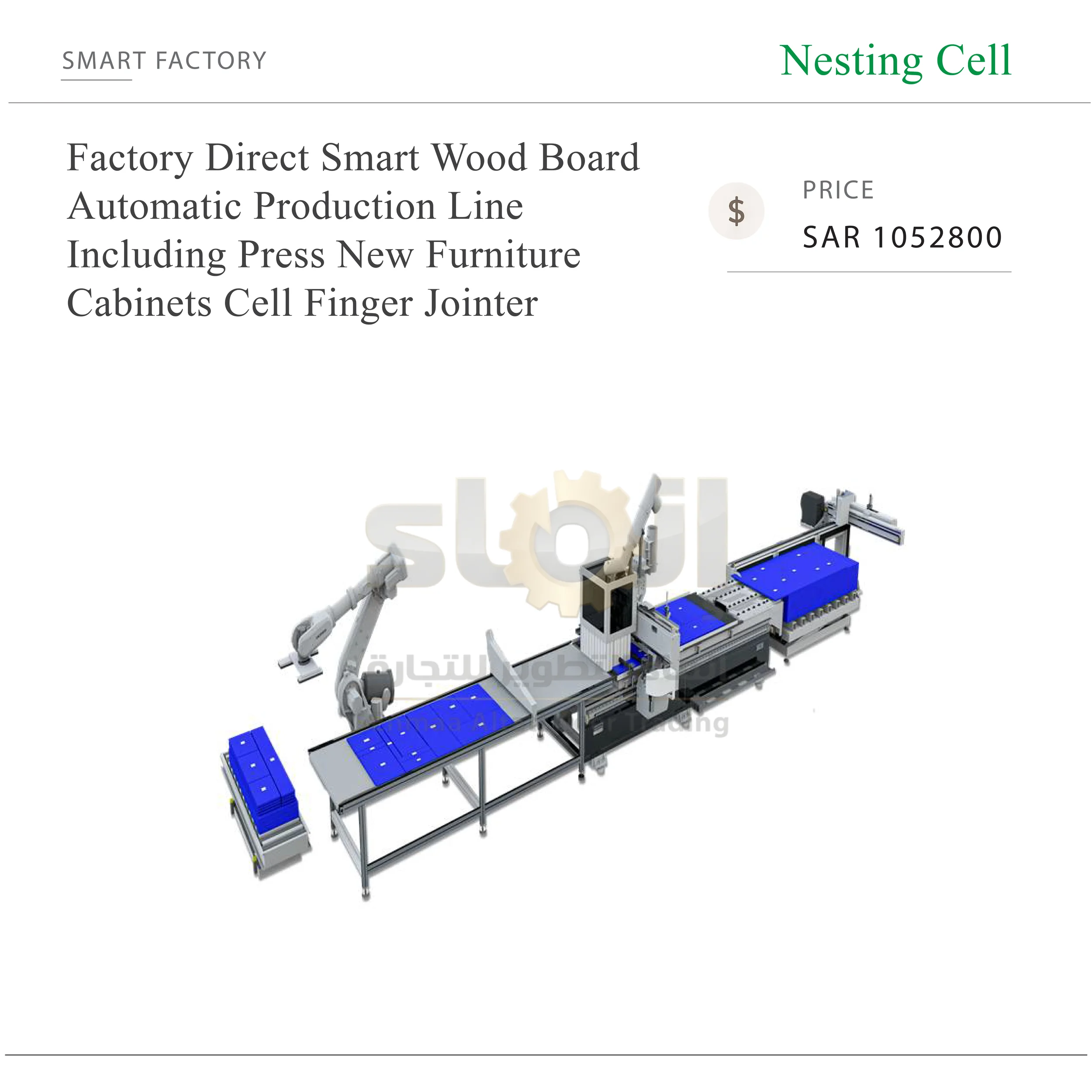

Excitech Factory Direct Smart Wood Board Automatic Production Line Including Press New Furniture Cabinets Cell Finger Jointer
Excitech Factory Direct Smart Wood Board Automatic Production Line Including Press New Furniture Cabinets Cell Finger Jointer - Image 2
Excitech Factory Direct Smart Wood Board Automatic Production Line Including Press New Furniture Cabinets Cell Finger Jointer - Image 3

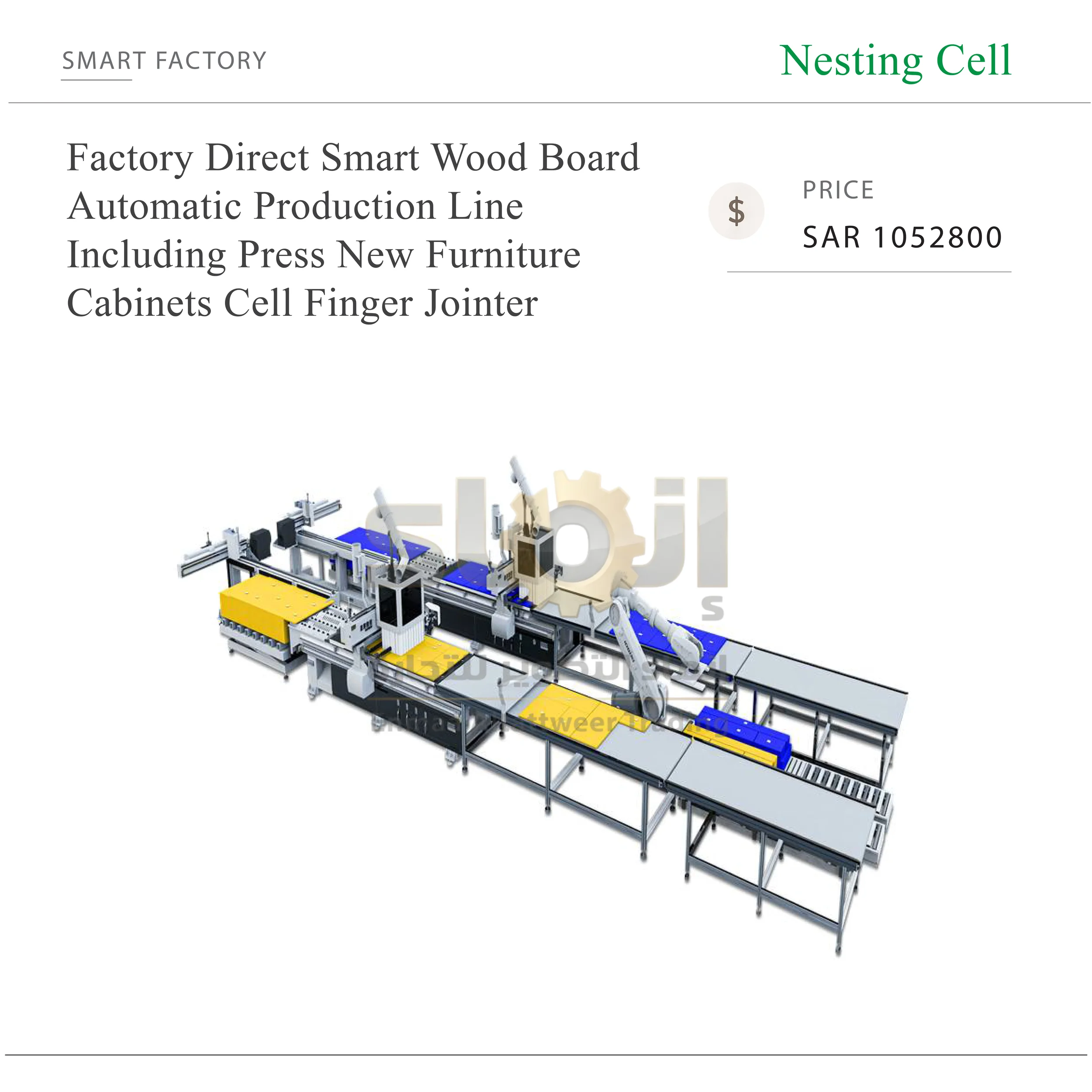

Excitech Factory Direct Smart Wood Board Automatic Production Line Including Press New Furniture Cabinets Cell Finger Jointer - Image 4

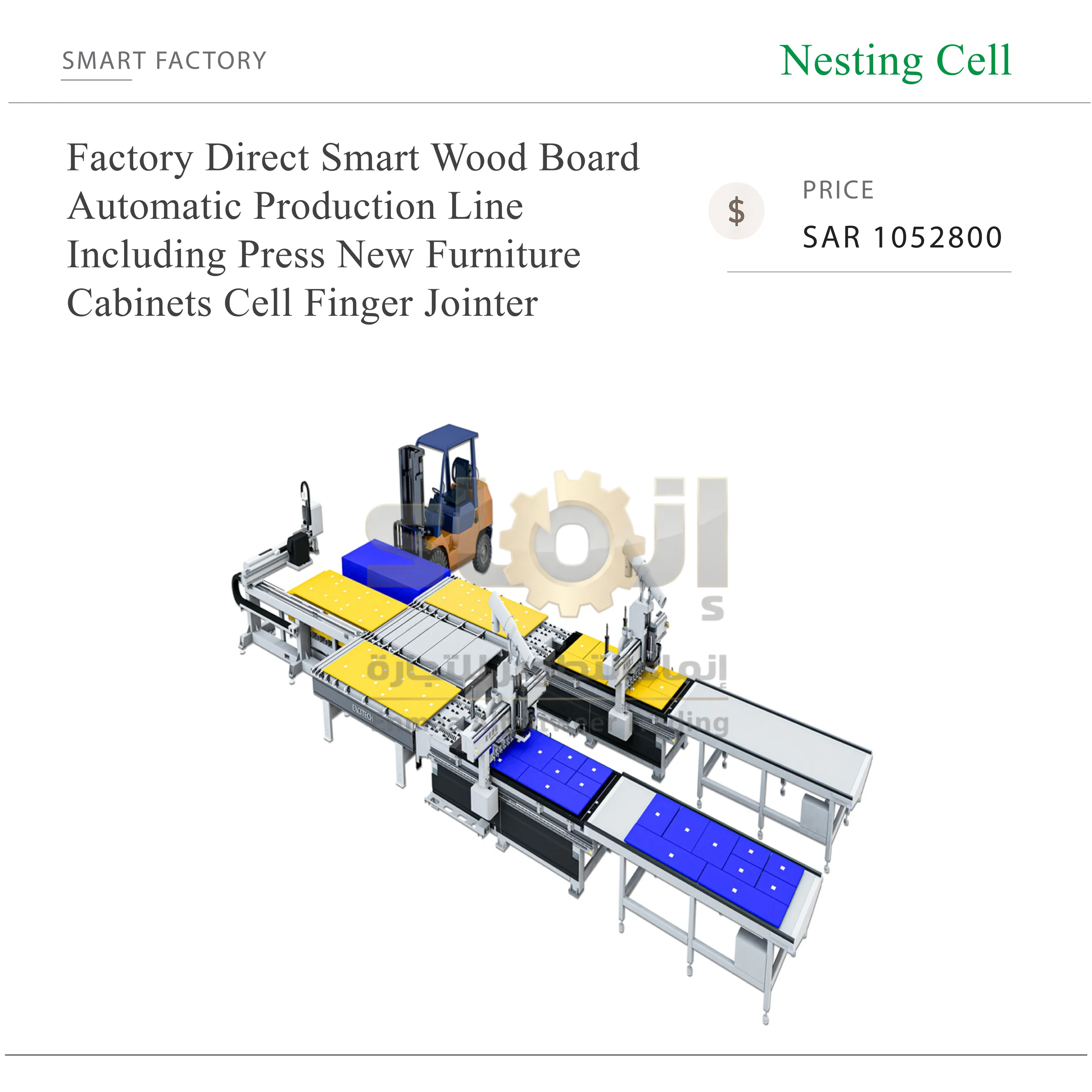

Excitech Factory Direct Smart Wood Board Automatic Production Line Including Press New Furniture Cabinets Cell Finger Jointer - Image 5
Excitech Factory Direct Smart Wood Board Automatic Production Line Including Press New Furniture Cabinets Cell Finger Jointer - Image 6

Excitech Factory Direct Smart Wood Board Automatic Production Line Including Press New Furniture Cabinets Cell Finger Jointer

Excitech Smart Factory offers a fully automatic wood board production line, integrating advanced technologies like auto-labeling, robotic handling, and precise CNC machining. The system features an E4-1224D nesting cell with a vacuum table, 9.6kW Italian spindle, and YASKAWA servo system, ensuring high-speed operations (80m min traveling speed) and energy efficiency. Certified to international standards, it supports large-scale intelligent factory planning for panel furniture production

GET A QUOTE
Product Description

 Excitech Smart Factory strives to make your production smarter, faster and more cost-efficient with minimun human labor required. It composed of nesting Cell, Edgebanding Cell and Drilling Cell. Basically, Nesting Cell has E4-auto labeling machine, Machnical robot, Return Conveyors, Cabinet Box and Excitech software.

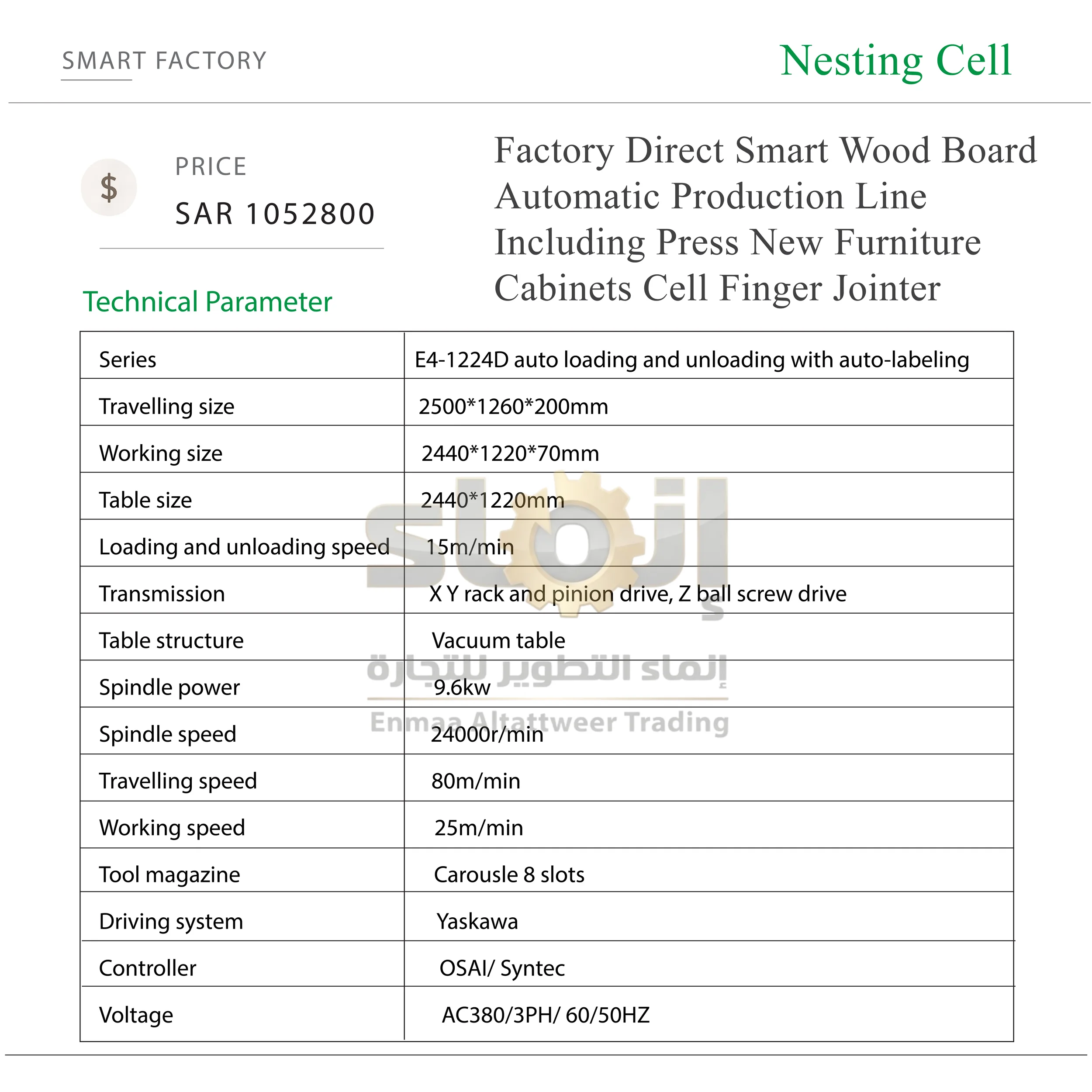

Technical Parameter
SeriesE4-1224D auto loading and unloading with auto-labeling
Travelling size2500*1260*200mm
Working size2440*1220*70mm
Table size2440*1220mm
Loading and unloading speed15m/min
TransmissionX Y rack and pinion drive, Z ball screw drive
Table structureVacuum table
Spindle power9.6kw
Spindle speed24000r/min
Travelling speed80m/min
Working speed25m/min
Tool magazineCarousle 8 slots
Driving systemYaskawa
ControllerOSAI/ Syntec
VoltageAC380/3PH/50HZ



Robot Model: SRA166L-01
~World Class Speed Robot
Robot motion makes minimum cycle times unbeatable. Light weight and high rigidity design makes high acceleration and minimum vibration. Maximum speed on all axes reduces cycle time. Improved productivity by these design.
~Easy to use
  • Improved motor drive controls for accurate positioning and repeatability.
  • Slim and compact design allows closer installation in less floor space.
  • Improved maintenance item. It can do easy parts replacement and inspection.
~Energy saving
Power consumption reduced 15% from existing model by reducing the robot’s weight by 20% using newest motor drive controls.

Conveyor Table : 3500*2700*900mm

Excitech Factory Direct Smart Wood Board Automatic Production Line Including Press New Furniture Cabinets Cell Finger Jointer

Detail Image



1. Nested-based CNC with Pre-labeling

Excitech Factory Direct Smart Wood Board Automatic Production Line Including Press New Furniture Cabinets Cell Finger Jointer

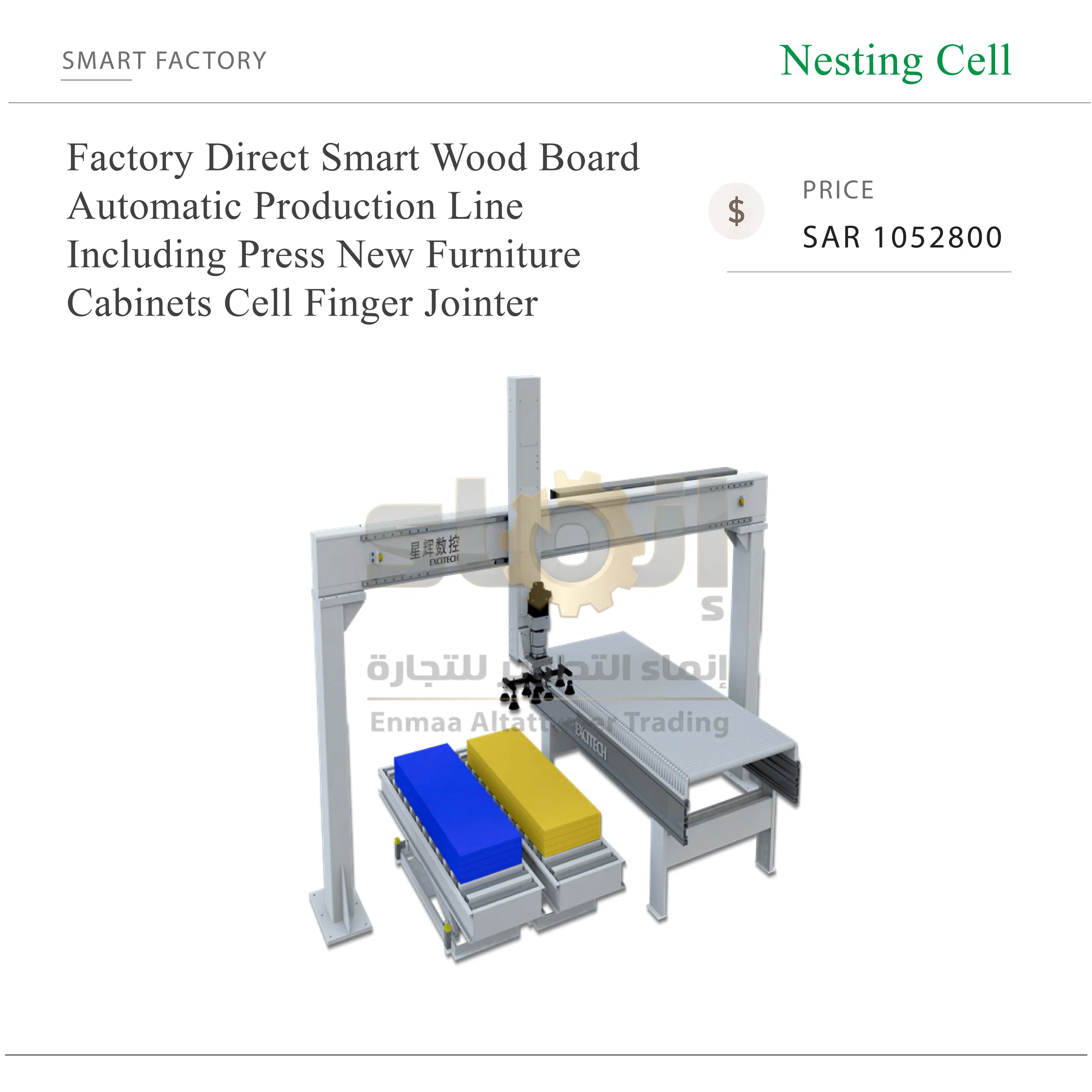

2. Robot

Excitech Factory Direct Smart Wood Board Automatic Production Line Including Press New Furniture Cabinets Cell Finger Jointer

Robot automatically puts the semi-finished product on the conveying roller table for subsequent operation.

Sample



Application: widely used for processing Panel Furniture Production Line such as cabinet door, wooden door, solid wood furniture, panel wood furniture, etc.
