The EXCITECH Edgebander EV583 features pre-milling, gluing, trimming, and corner rounding for automated, high-precision edge banding. Equipped with international brand components like TAIWAN DELTA PLC and inverter, it ensures durability and performance. CE certified, ensuring compliance with EU safety standards and providing market access. Ideal for panel furniture manufacturers using particleboard, MDF, PVC, and melamine.
Edge banding work is an important process in the manufacture of panel furniture. The quality of the edge banding directly affects the quality, price and grade of the product. By edge banding, it can improve the appearance quality of the furniture, avoid the corners damage and the veneer layer pick up or peel off, and at the same time, it can play the role of waterproofing, close the release of harmful gases and reduce deformation during the transportation and useing process. The raw materials used by the panel furniture manufacturers are mainly for particleboard, MDF and other wood-based panels, the selected edge strips are mainly PVC, polyester, melamine and wood strips. The structure of the edge banding machine mainly includes the fuselage, various processing components and control systems. It is mainly used for edge sealing of panel furniture. It is characterized by automation, high efficiency, high precision and aesthetics. It has been widely used in panel furniture manufacturers.
EV583 edge banding is mainly for pre milling,gluing,end trimming,rough trimming, fine trimming, corner trimming,scraping and buffing.
| Description | EV583 | ||
| Working piece length | Min.150mm | Input voltage | 50/60v |
| Working piece width | Min.60mm | Input frequency | 50HZ |
| Panel thickness | 10~60mm | Output frequency | 200HZ |
| Edge width | 12~65mm | Power | 16.6kw |
| Edge thickness | 0.4~3mm | Air pressure | 0.6pa |
| Feed speed | 18~22m/min | Machine size | 6890*990*1670mm |
| Min. workpiece size | 300*60mm /150*150mm(L*W) | ||
| Part’s name | Brand |
| Inverter | Delta( TAIWAN) |
| PLC | Delta( TAIWAN) |
| Human-machine interface | Delta( TAIWAN) |
| Temperature control module | AUTONICS (KOREA) |
| Air switch | DELIXI |
| AC contactor | SHIHLIN (TAIWAN) |
| Intermediate relay | Weidmuller (Germany) |
| Travel switch | America HONEYWELL |
| Switch button | German SIMENS |
| High-speed motor for end trimming | CHANGLONG( custom) |
| Pneumatic components | TAIWAN AirTAC |

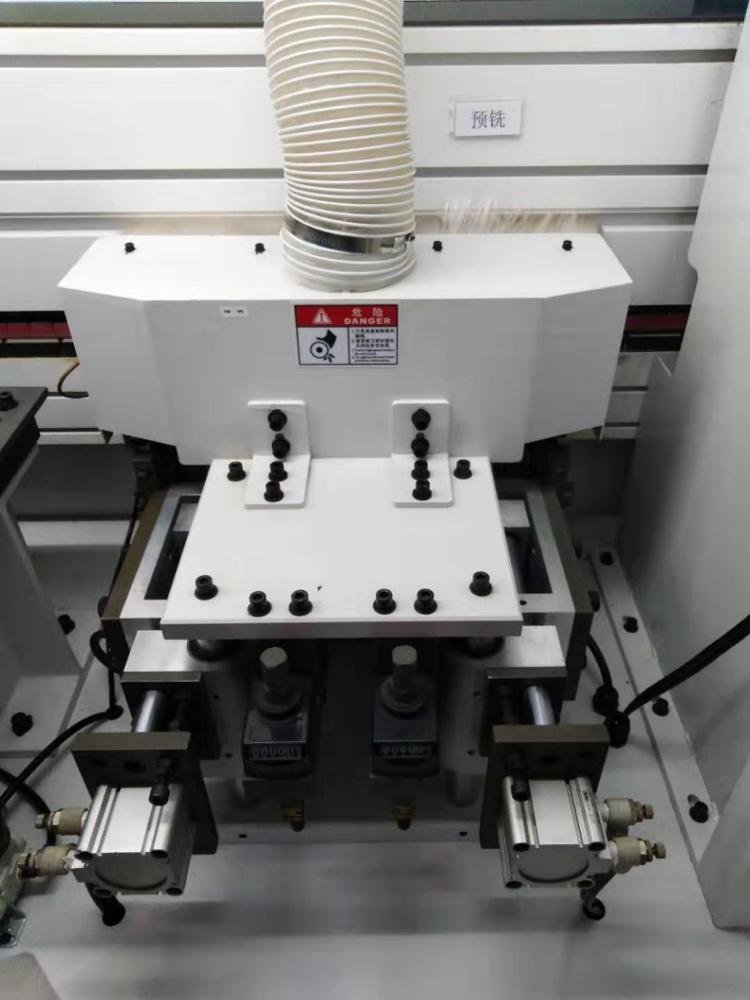

1. Pre-milling unit
It is equipped with diamond tools for better cut and longer use. This device removes the burr or uneveness on the edge of the workpiece, leaving a smooth surface for the edgebanding. It can profile units available upon request.

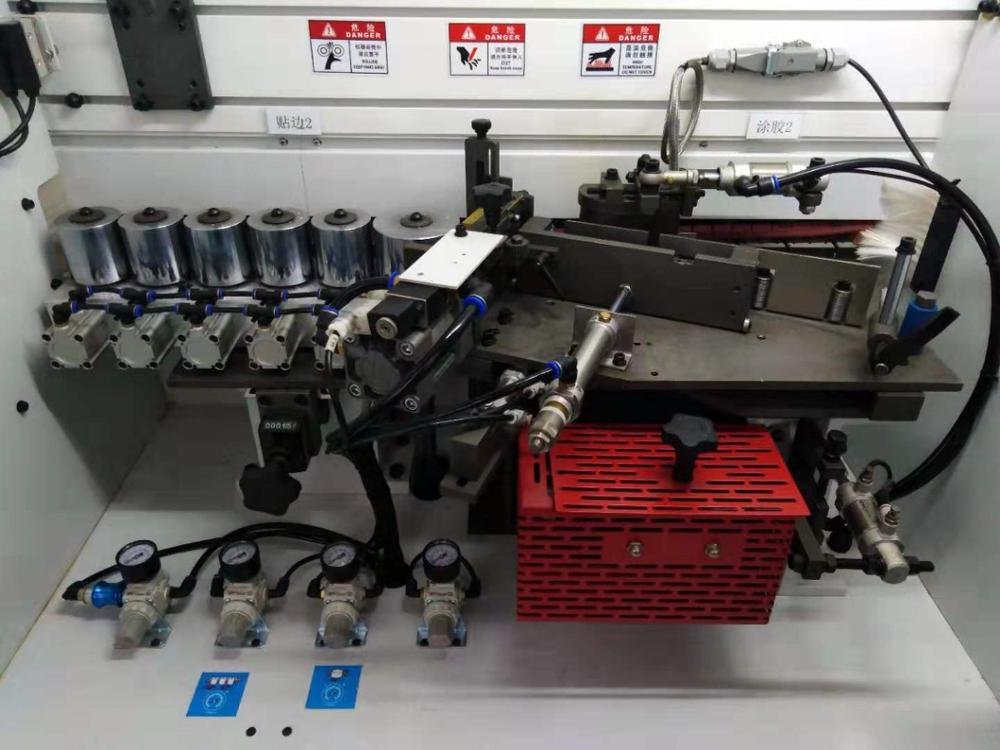

2. Gluing
Intelligent temperature control, automatic stop heating when unmanned operation, safe and stable, speed up, high-precision rubberizing wheel to ensure perfect and uniform coating on various materials.

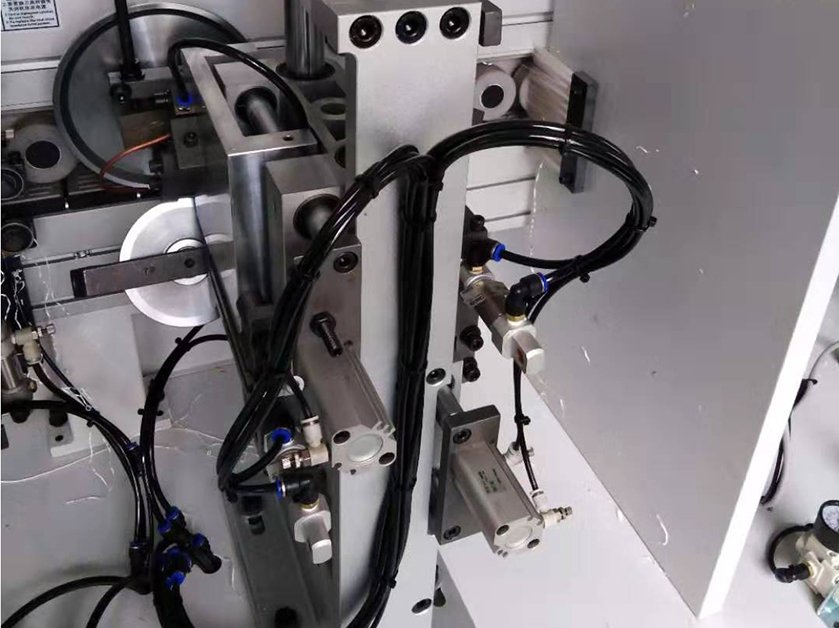

3. Corner Trimming
It is equipped with 4 motors and works well with various edge thickness and invariably result in perfect round corner.
4. R scraping
No power scraping mechanism, for PVC/ABS edge banding within 3mm, R scraping edge is to remove the edge of the finishing unit in the processing edge band, so that the edge of the edge band More full and straight.

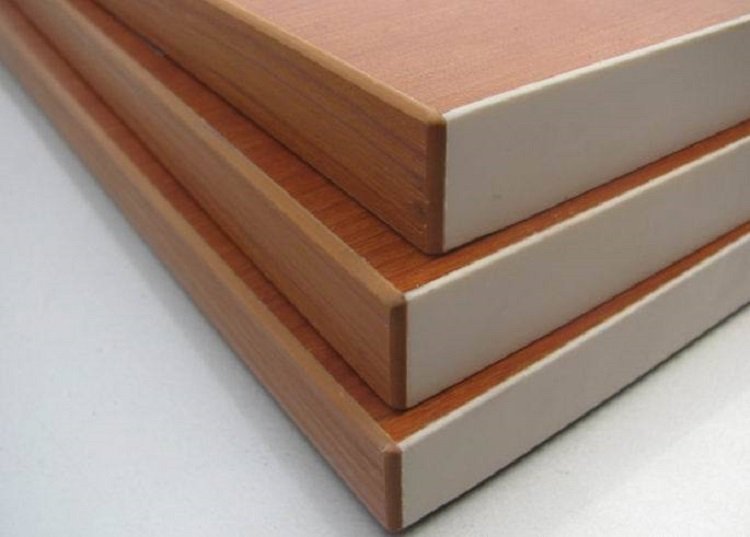

Application:
The raw materials used by the panel furniture manufacturers are mainly for particleboard, MDF and other wood-based panels, the selected edge strips are mainly PVC, polyester, melamine and wood strips.
