The EXCITECH E2-2030C CNC Woodworking Machine features a precision-engineered design with a positioning accuracy of 0.03mm and repeatability of 0.03mm, ensuring high-precision operations. Equipped with a 9.6kw HSD spindle, Japan Yaskawa motors, and a Syntec OSAI controller, it delivers reliable performance for industries like furniture making and construction. The machine includes a T-slot and vacuum table, Japan THK rail guides, and supports X Y Z axis transmission for versatile applications.
item | value |
Condition | New |
Positioning Accuracy (mm) | 0.03mm |
Number of Axes | 2 |
No. of Spindles | Single |
Working Table Size(mm) | 1300×2500 |
Machine Type | CNC Router |
Travel (X Axis)(mm) | 1200mm |
Travel (Y Axis)(mm) | 1100mm |
Repeatability (X/Y/Z) (mm) | 0.03mm |
CNC or Not | CNC |
Place of Origin | China |
Shandong | |
Brand Name | EXCITECH |
Voltage | AC 380/3P/50HZ |
Dimension(L*W*H) | 3.9*2.9*1.7M |
Weight (KG) | 2000 |
Warranty | 12 months |
Key Selling Points | Easy to Operate |
Applicable Industries | Building Material Shops, Manufacturing Plant, Construction works , Energy & Mining, Other, woodworking, wood machine, furniture making, wood cabinet |
Machinery Test Report | Provided |
Video outgoing-inspection | Provided |
Warranty of core components | 1 Year |
Core Components | Bearing, Pump, PLC, Other, Gearbox |

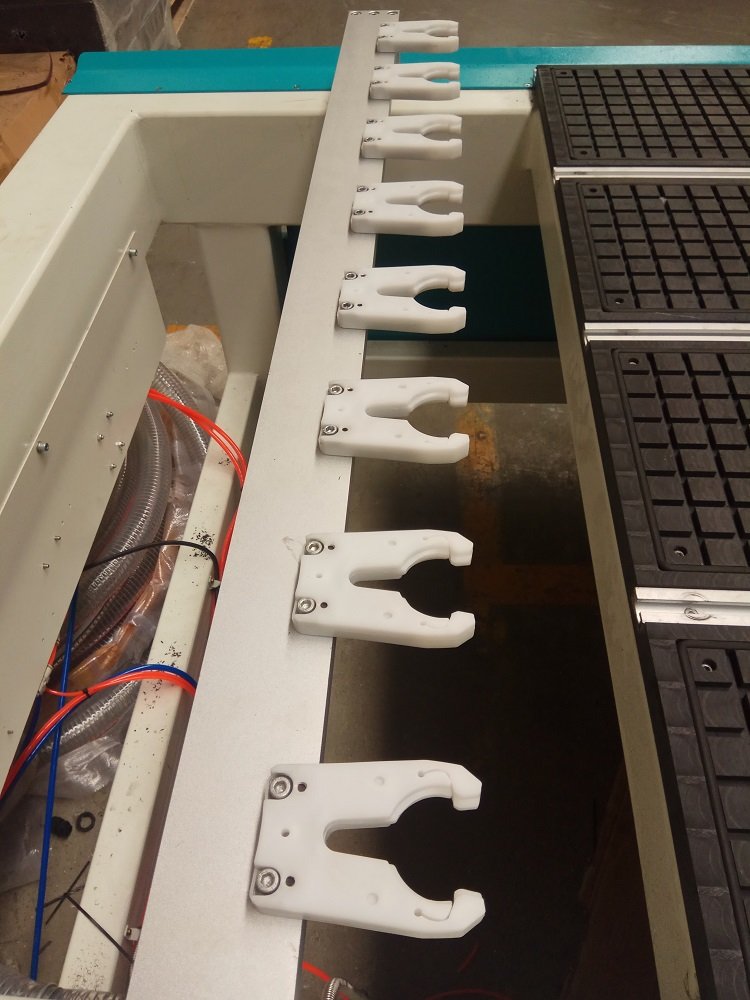

Product name | EXCITECH E2-2030C CNC woodworking Machine linear 8 Tools ATC Router |
Working size | 20503080*180mm |
Transmission | X Y axis rack and pinion transmission, Z axis ball screw transmission |

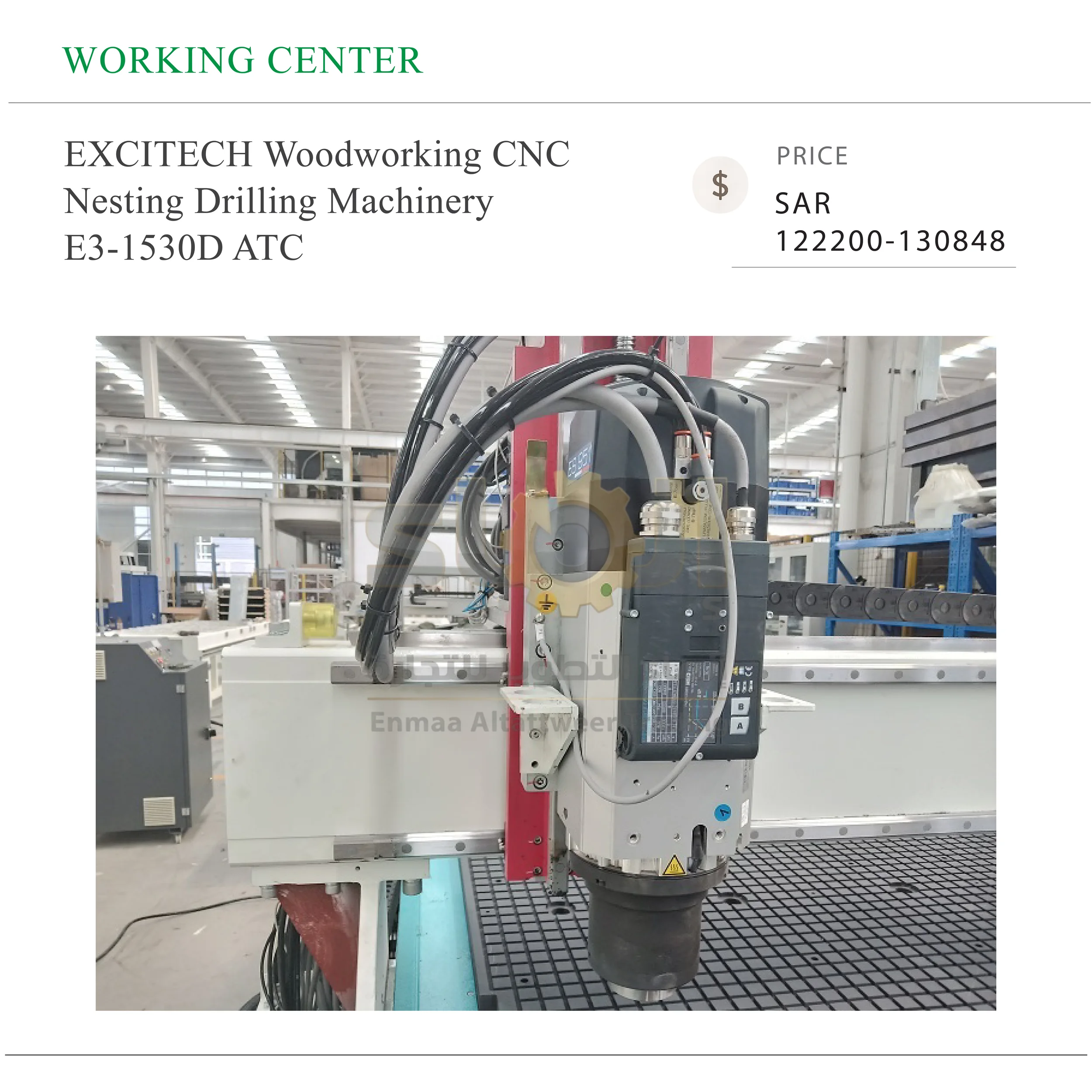

Spindle power | 9.6kw HSD |
Motor and driver | Japan Yaskawa |

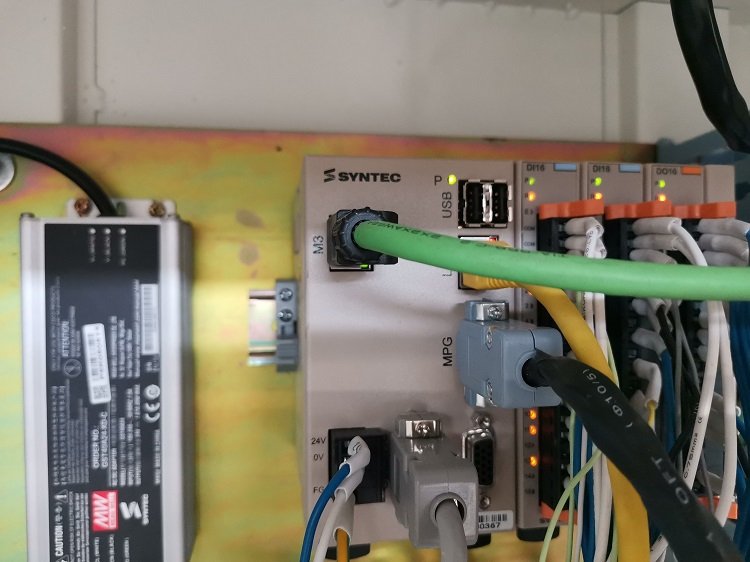

Controller | Syntec/ OSAI |
Spindle speed | 24000r/min |
Table structure | T-slot and Vacuum table |
Rail guide | Japan THK rail guide |
Working speed | 18m/min |
