Excitech Door Wardrobe Office Panel Furniture Production Line delivers smart, efficient, and cost-effective manufacturing with minimal human labor. It integrates advanced features like auto-labeling, a high-speed robot (SRA166L-01), and precise Yaskawa servo systems for unmatched productivity. With a robust 9.6kW spindle, 24,000rpm speed, and vacuum table structure, it ensures precision in wood panel drilling and grooving. The production line supports long service life and includes a 1-year warranty along with global technical support and training.

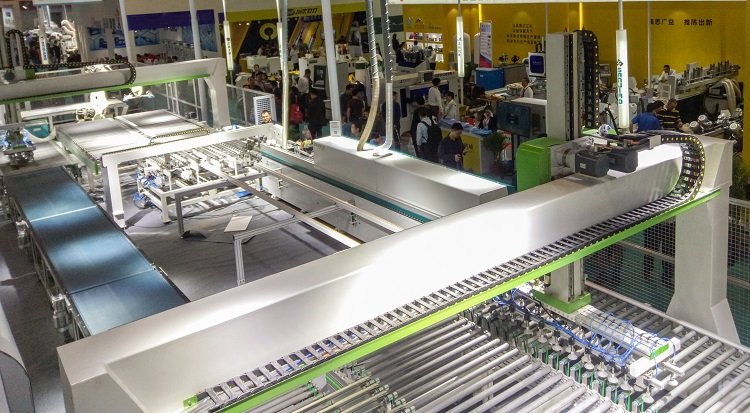

Excitech Smart Factory strives to make your production smarter, faster and more cost-efficient with minimun human labor required. It composed of nesting Cell, Edgebanding Cell and Drilling Cell. Basically, Nesting Cell has E4-auto labeling machine, Machnical robot, Return Conveyors, Cabinet Box and Excitech software.
| Series | E4-1224D auto loading and unloading with auto-labeling |
| Travelling size | 2500*1260*200mm |
| Working size | 2440*1220*70mm |
| Table size | 2440*1220mm |
| Loading and unloading speed | 15m/min |
| Transmission | X Y rack and pinion drive, Z ball screw drive |
| Table structure | Vacuum table |
| Spindle power | 9.6kw |
| Spindle speed | 24000r/min |
| Travelling speed | 80m/min |
| Working speed | 25m/min |
| Tool magazine | Carousle 8 slots |
| Driving system | Yaskawa |
| Controller | OSAI/ Syntec |
| Voltage | AC380/3PH/50HZ |
Conveyor table: 3500*2700*900mm

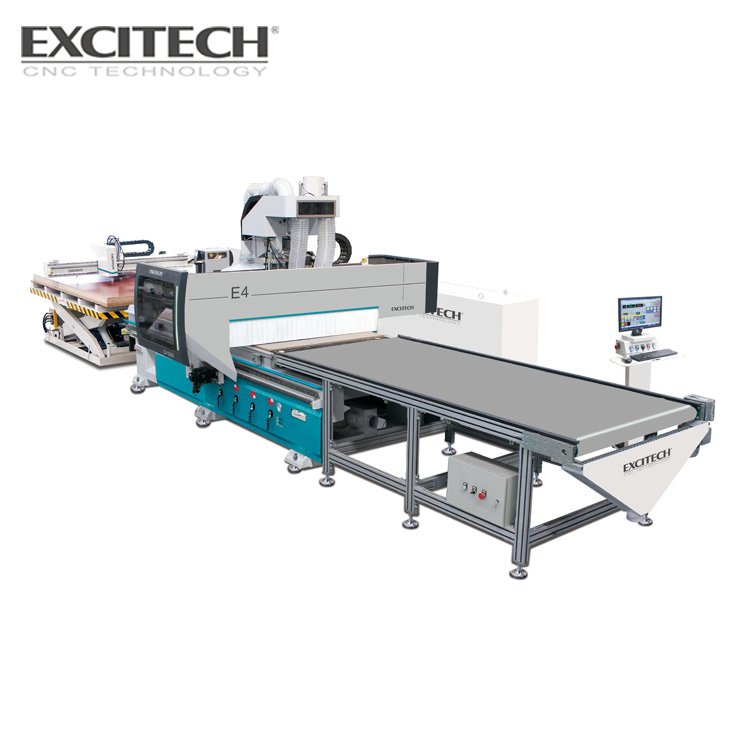

1. Nested-based CNC with Pre-labeling
Pre-Labeling the panel with rapid travel axis before nesting and vertical drilling further eliminates operator intervention during the work process and renders the whole cycle truly push-button-and-go.It is mainly for wood panel drilling and grooving.

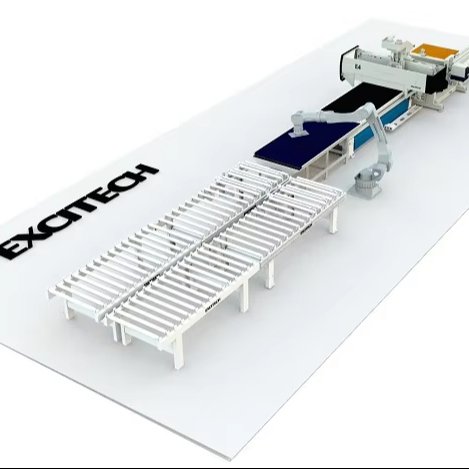

2. Robot
Robot automatically puts the semi-finished product on the conveying roller table for subsequent operation.
Application: widely used for processing Panel Furniture Production Line, such as cabinet door, cupboard, solid wood furniture, panel wood furniture, etc.
