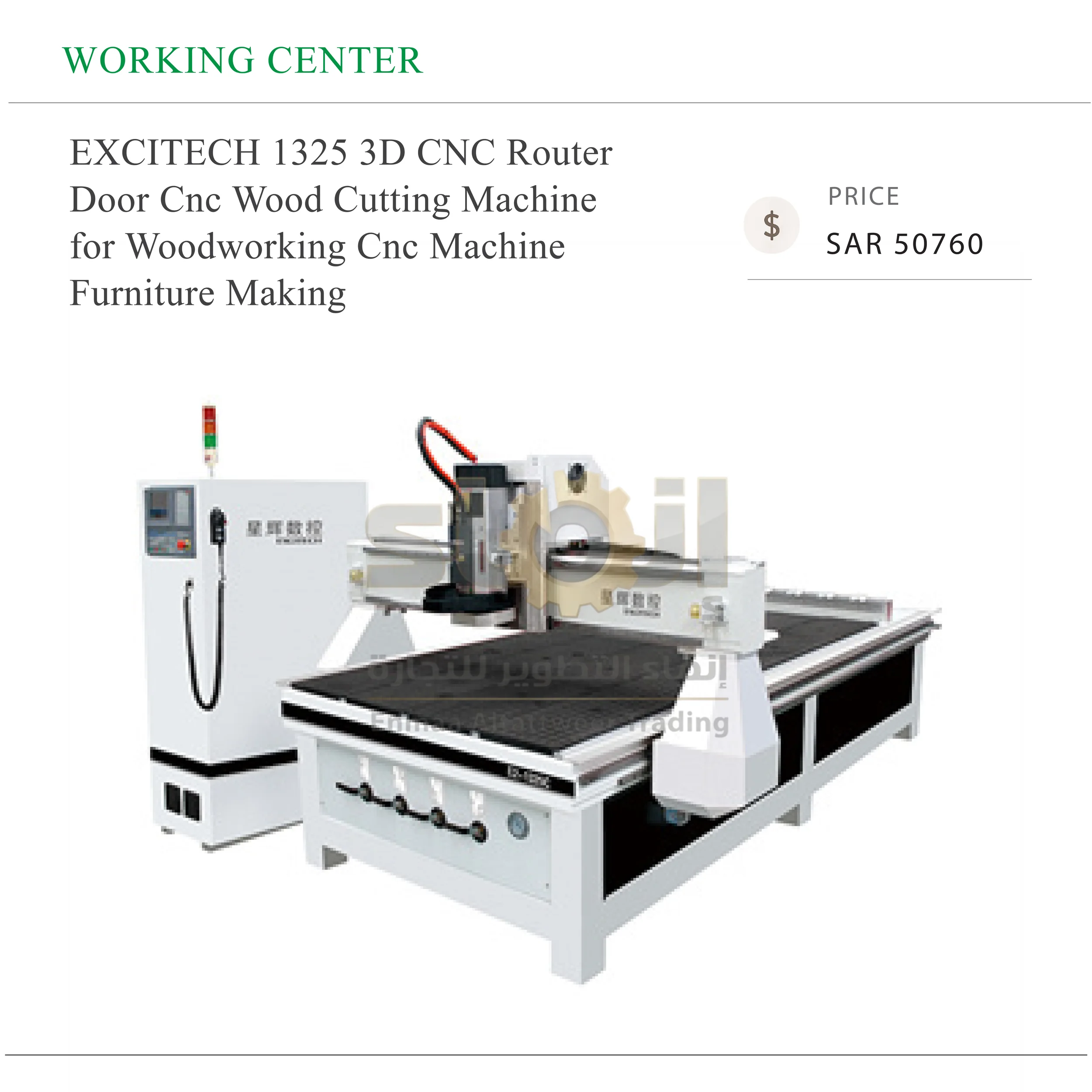

The Excitech 4*8ft CNC Router features a 12-slot linear tool changer, automatic operation, and a 9kw air-cooling spindle for efficient woodworking. Equipped with INOVANCE drivers, PMI linear guides, and an NC Studio controller, it ensures precision and reliability. Includes a 1-year warranty for core components and supports a vacuum table with a 4kw Becker pump for enhanced performance.
Reinforced ATC CNC working center, with strong body structure, high working efficiency and high speed.
Fine carving without sawtooth ripple, smooth bottom plane, clear outline.
| Series | E2-1325C-E |
| Travelling size | 2500*1260*200mm |
| Working size | 2480*1230*180mm |
| Table size | 2500*1230mm |

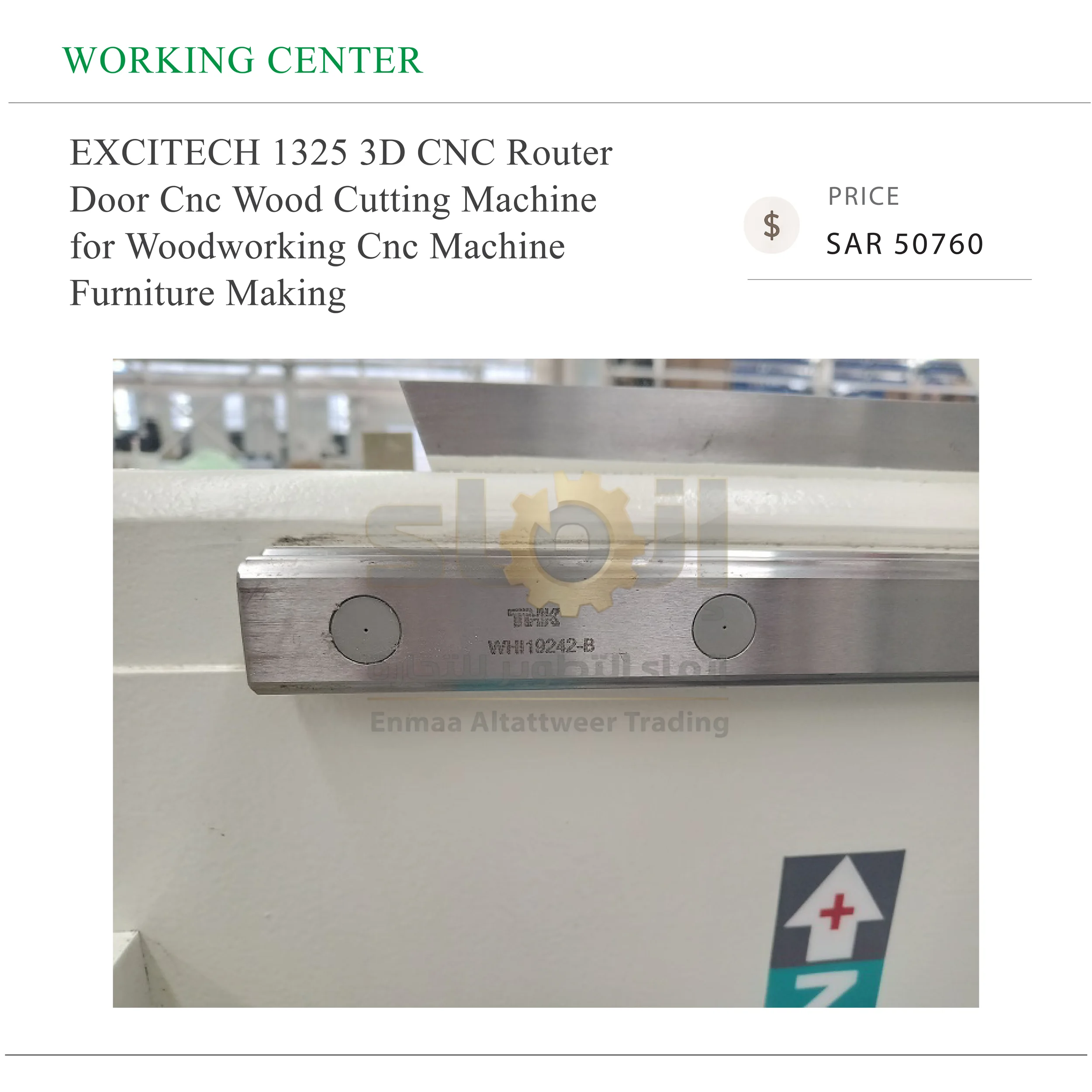

| Transmission | X/Y rack and pinion drive, Z ball screw drive PMI linear guide |
| Table | Vacuum table |
| Spindle | 9kw air cooling spindle |
| Travelling speed | 40m/min |
| Working speed | 18m/min |
| Tool magazine | 12 slots linear tool changers under gantry |
| Controller | NC Studio controller |
| Driving system | INOVANCE drivers |
| Pump | 1 set 4kw Becker pump |
| Voltage | 3P 50/60V 50HZ |

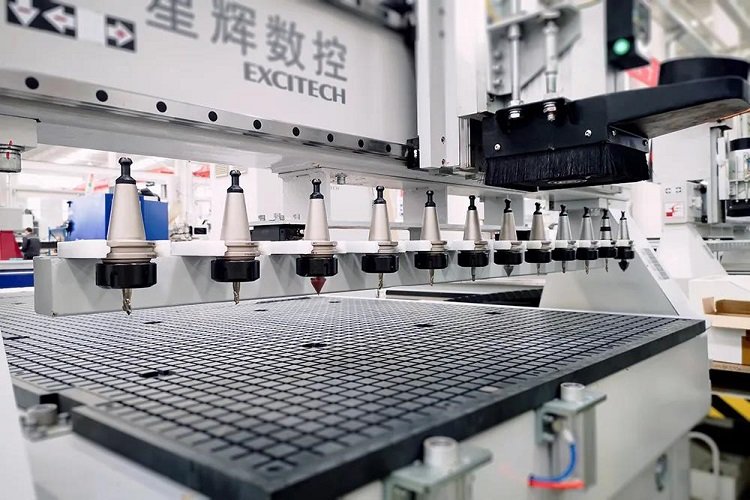

1. Linear tool magazine
Linear tool changers with 12 slots under gantry,moving along with spindle head , efficiently save tool change time
2. INOVANCE drivers
Reliable inverter and smart panel setting
Stable INOVANCE drivers
3. Becker vacuum pump
Germany brand Becker pump, energy saving , long life span ,strong and steady suction with 140m³/h 4KW
4. Air cooling spindle
Powerful and reliable 9KW air cooling spindle
Application:

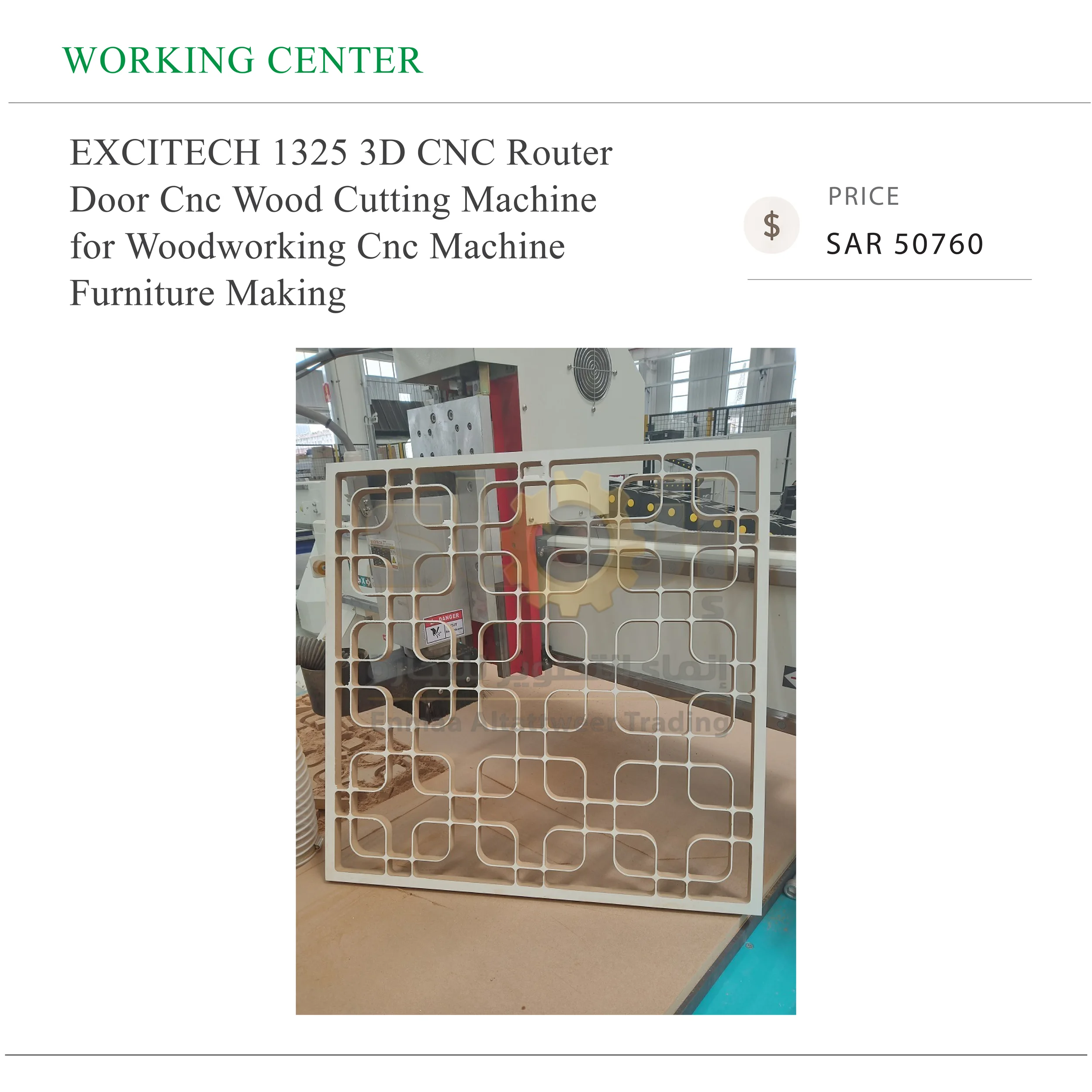

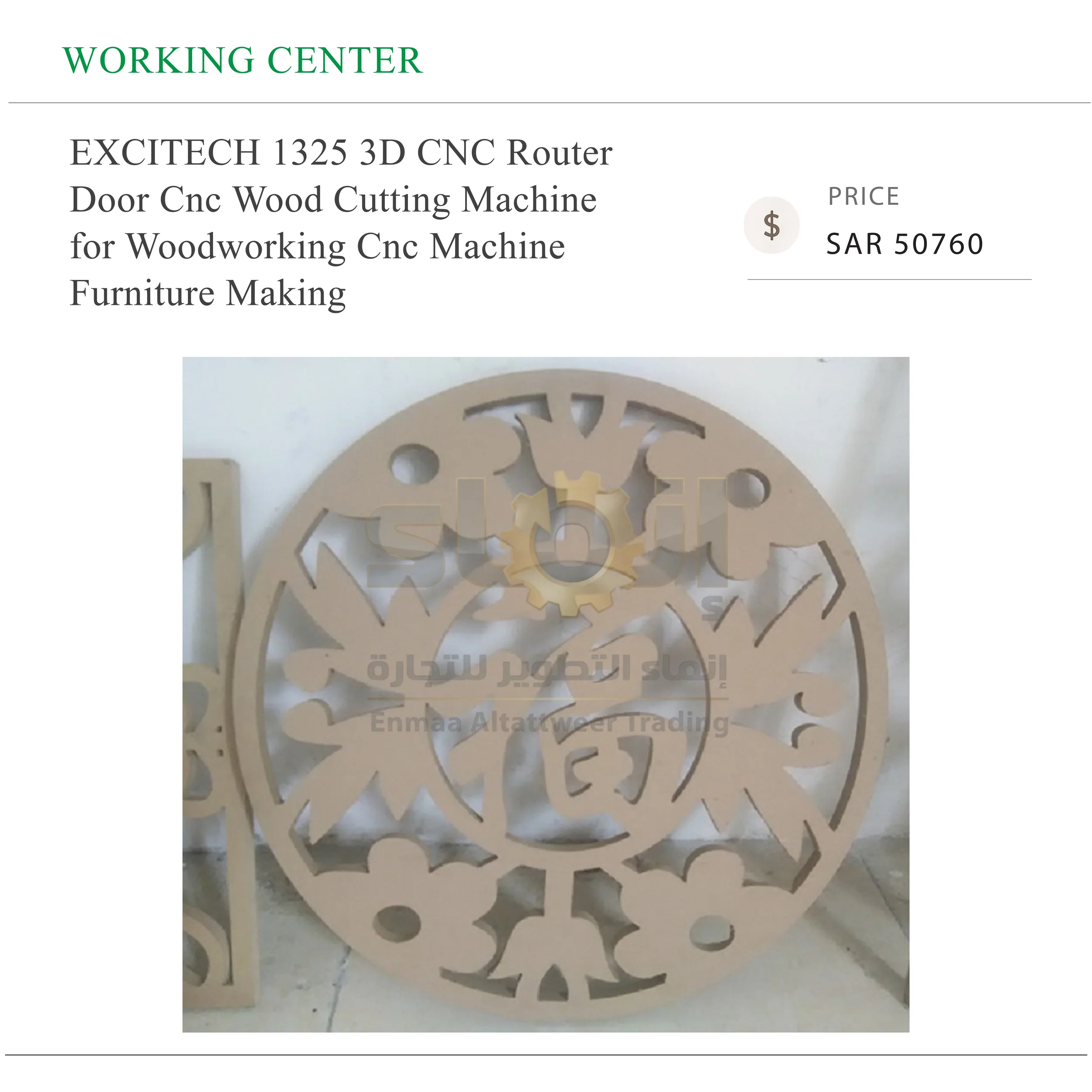

Panel furniture, custom cabinet, molded door, solid wood door,decoration industry, screen, wave board and advertising board, etc.
