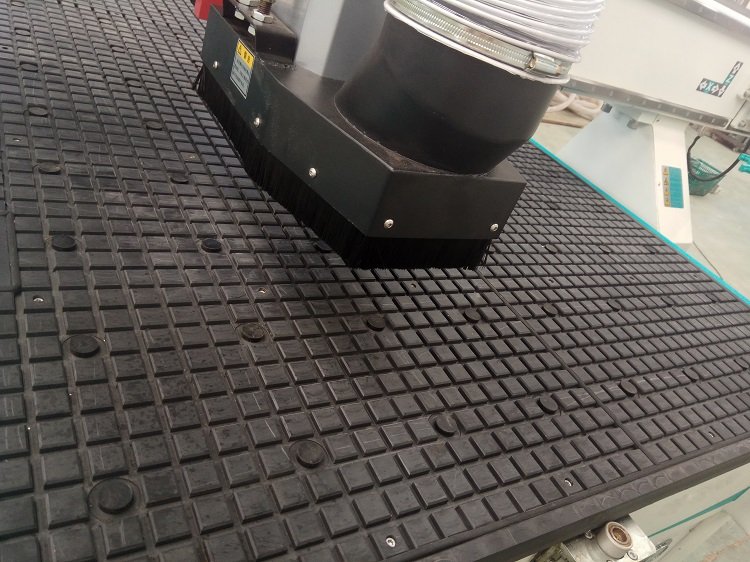

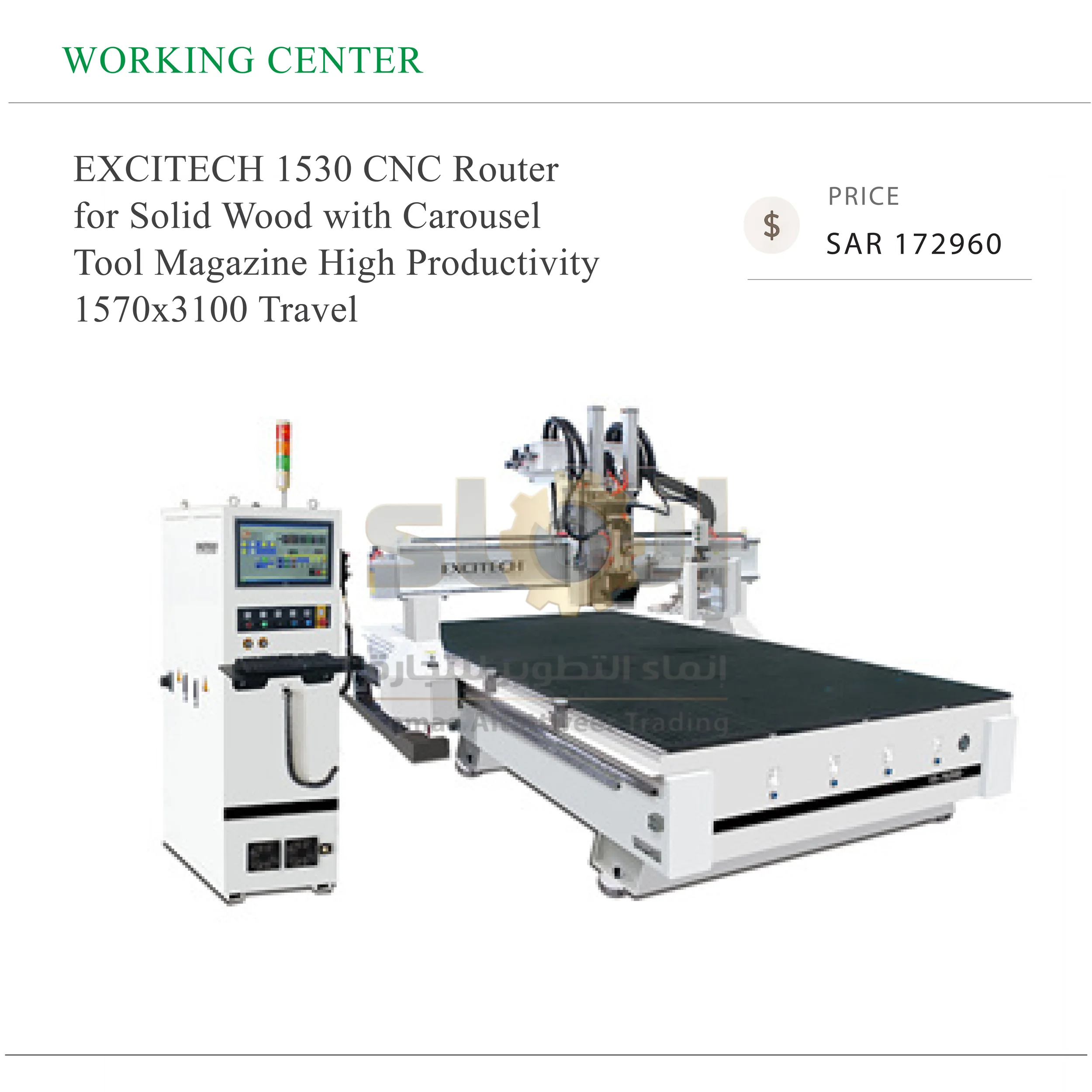

The machine with carousel tool magazine, suitable for composite wood products processing, wide function such as boring, drilling, cutting, side milling, and edge cutting,etc. It is a standard processing center with high cost performance. The table top adopts T-slot and vacuum table combination, can strongly adsorb different areas of materials, also can fix different shpes of materials, flexible and convenient. At the same time, the machine is also equipped with vertical drilling bank, which can meet more need of the customers.
| E3-1325D | E3-1530D | E3-2030D | E3-2040D | |
Travelling size | 2500*1260*200mm | 3100*1570*200mm | 3100*2060*200mm | 4030*2060*200mm |
Working size | 2480*1230*180mm | 3080*1560*180mm | 3080*2050*180mm | 4000*2050*180mm |
Table size | 2500*1230mm | 3100*1560mm | 3100*2050mm | 4030*2050mm |
Transmission | X/ Y rack and pinion drive, Z ball screw drive | |||
Table structure | T-slot and vacuum table | |||
Spindle power | 9.6kw | |||
Spindle speed | 24000r/min | |||
Travelling speed | 45m/min | |||
Working speed | 20m/min | |||
Tool magazine | Carousel 8/12/16 slots | |||
Driving system | Yaskawa | |||
Voltage | AC380/ 3PH/ 50HZ | |||
Controller | OSAI/Syntec | |||

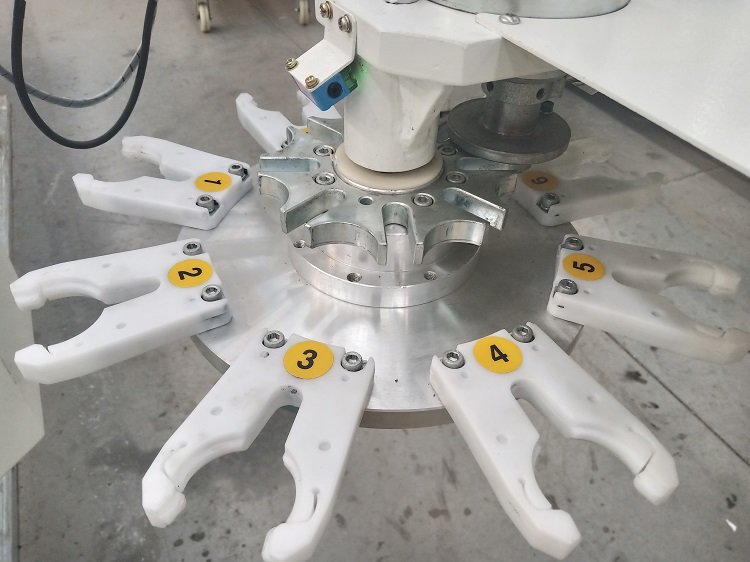

1. Carousel tool magazine
The machine adpots carousel tool magazine, standard equipped with 8 tools, and the number of tool magazines can be selected according to the needs, which can effectively reduce the tool change time and improve work efficiency.
2. Syntec Control system
The machine adopts Syntec control system with easy operation , which specially used in woodworking machining centers

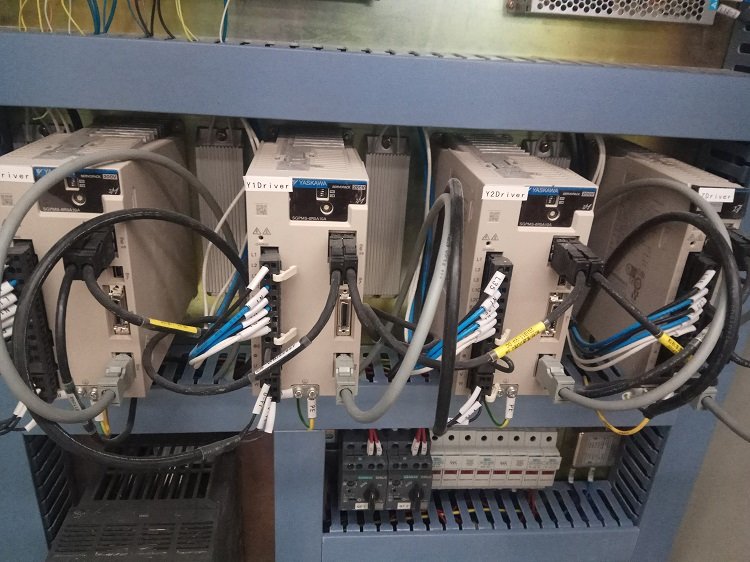

3. Japan Yaskawa servo motor and driver
The machine adopts Japan Yaskawa servo motor and driver, with high precision, high speed performance, strong anti-overload capability and good stability.
Application:

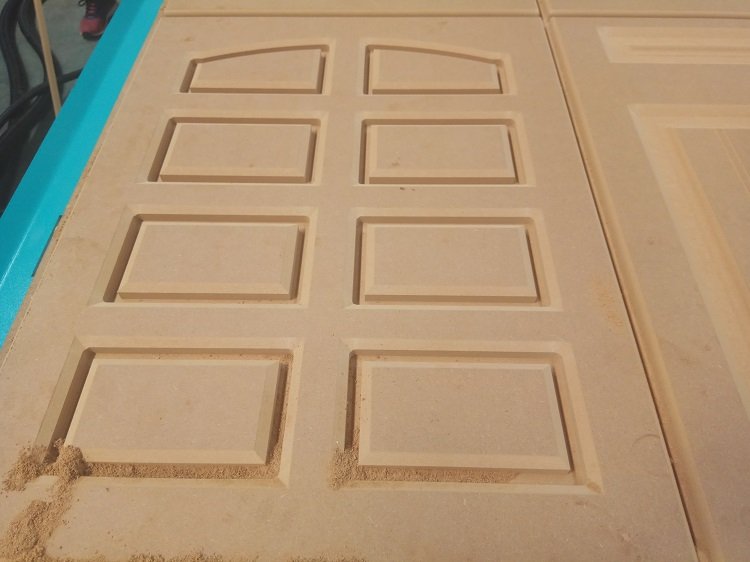

Furniture: widely used for processing cabinet door, wooden door, solid wood furniture, panel wood furniture, windows, tables and chairs, etc.
Other wooden products: stereo box, computer desk, musical instruments, etc. It also can process acrylic, PVC, EPS, density board, organic glass, soft metals like aluminum and copper, etc.
