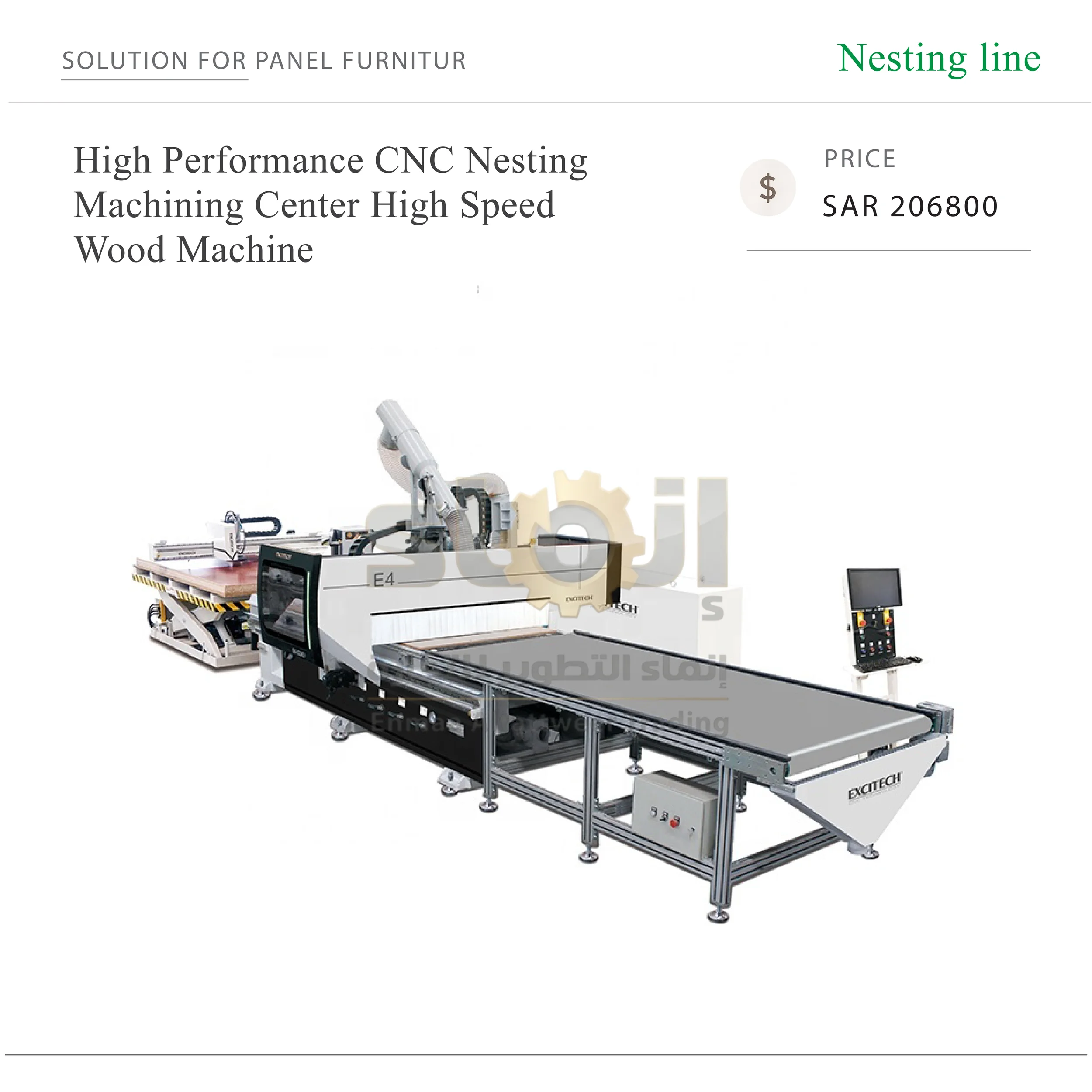

EK-D CNC Nesting Machining Centres for Wood Furniture Closet Making

Highly automated nesting solution with automatic loading and unloading system. The complete work cycle of loading, nesting, drilling and unloading is carried out automatically, which results in maximum productivity and zero down time. Truly versatile–nesting, routering, vertical drilling and engraving all in one.  It is well-suited for panel furniture, office furniture, cabinets production.

Feature:

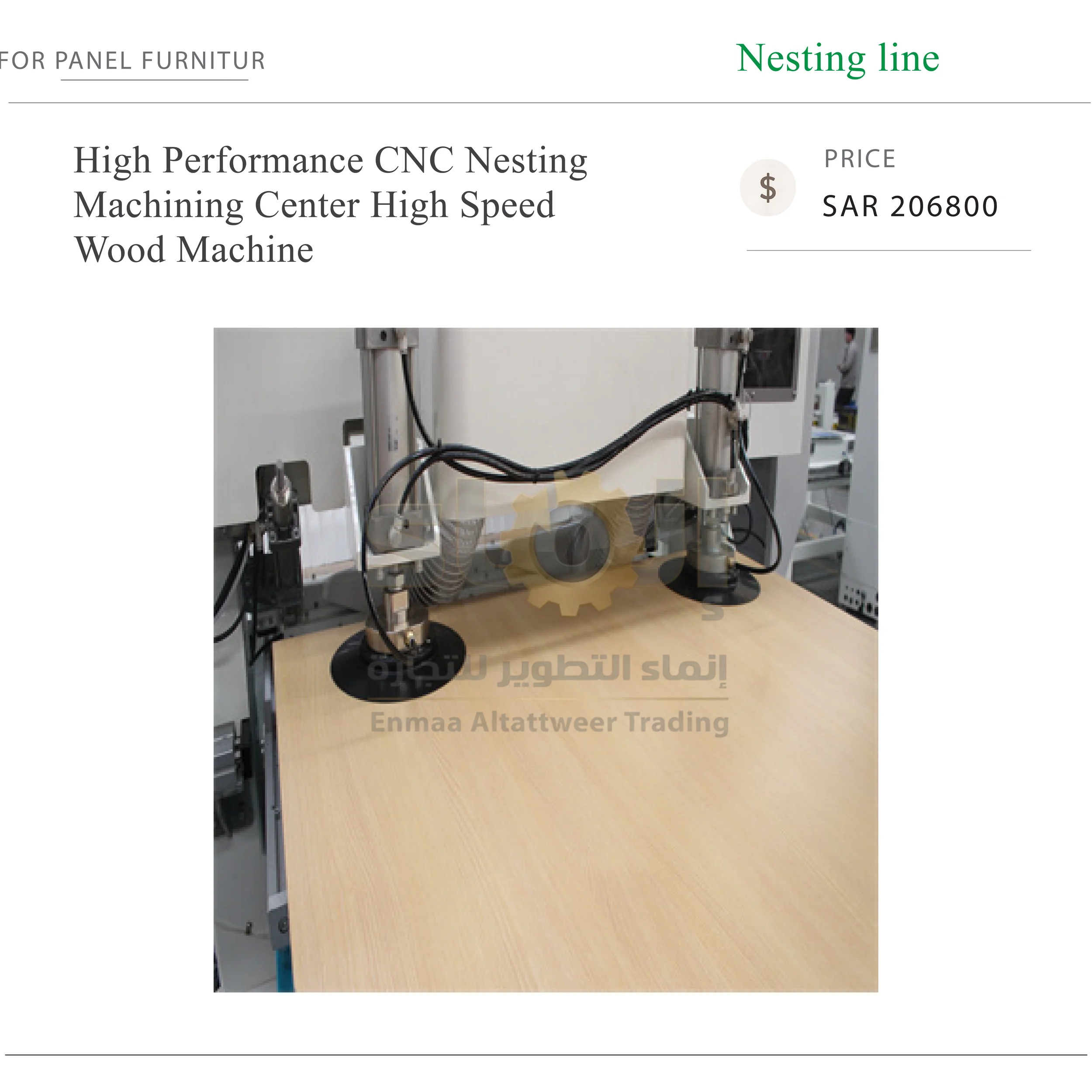

• Top of its range, this solution has the great advantage of not requiring the constant presence of an operator.The suction cups equipped on the gantry travels to the rear of the machine to pick up the workpiece from the scissor lift, which is then nested and drilled at the flat table.At the completion of the work cycle, the pusher transports the completed workpiece out of the working area allowing simultaneous loading of the next cycle.
• Linear tool magazine travels with the bridge, tool changing is faster and easier.
• Suitable for cabinet, flat door, molded door etc

 E4 Nested Based Production Flow

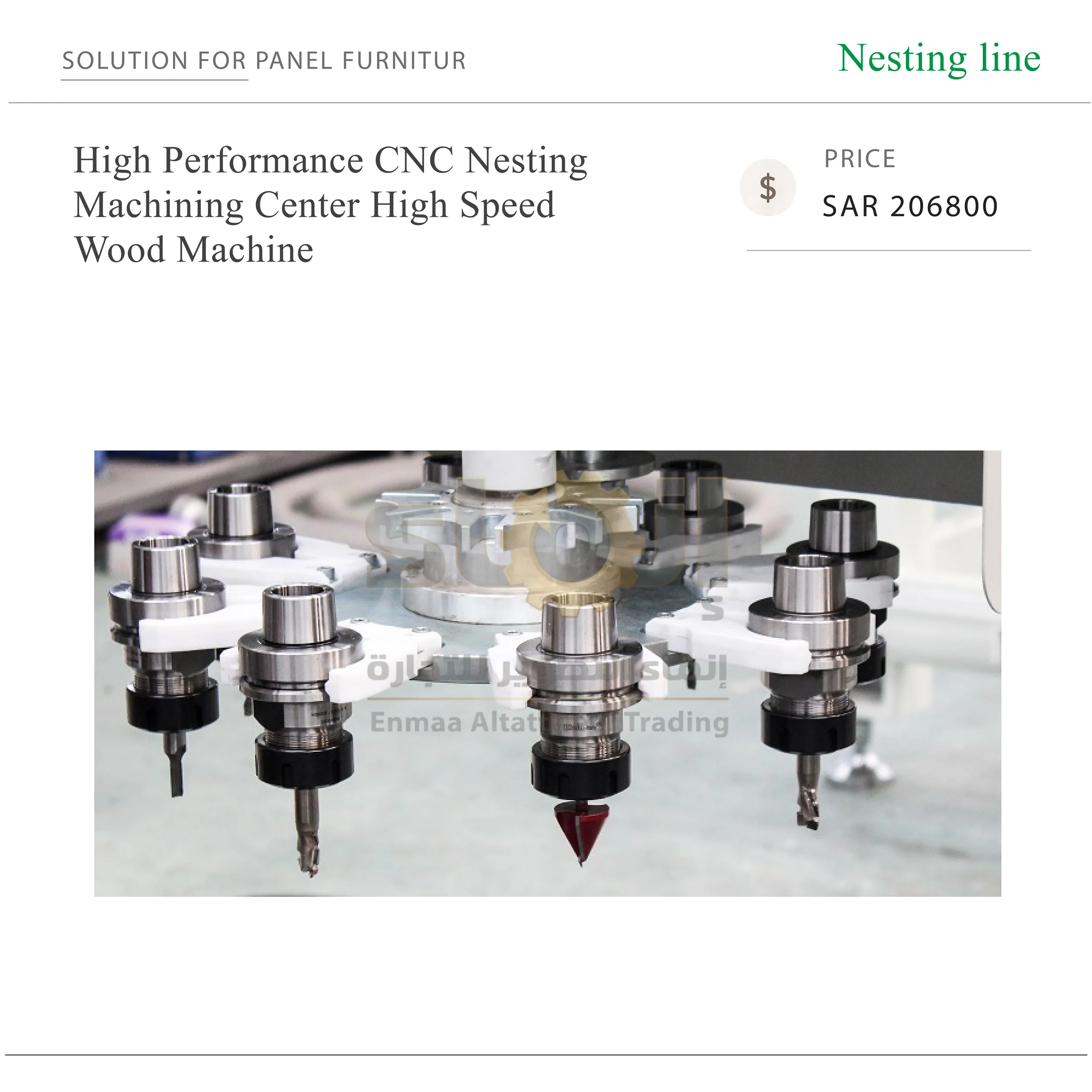

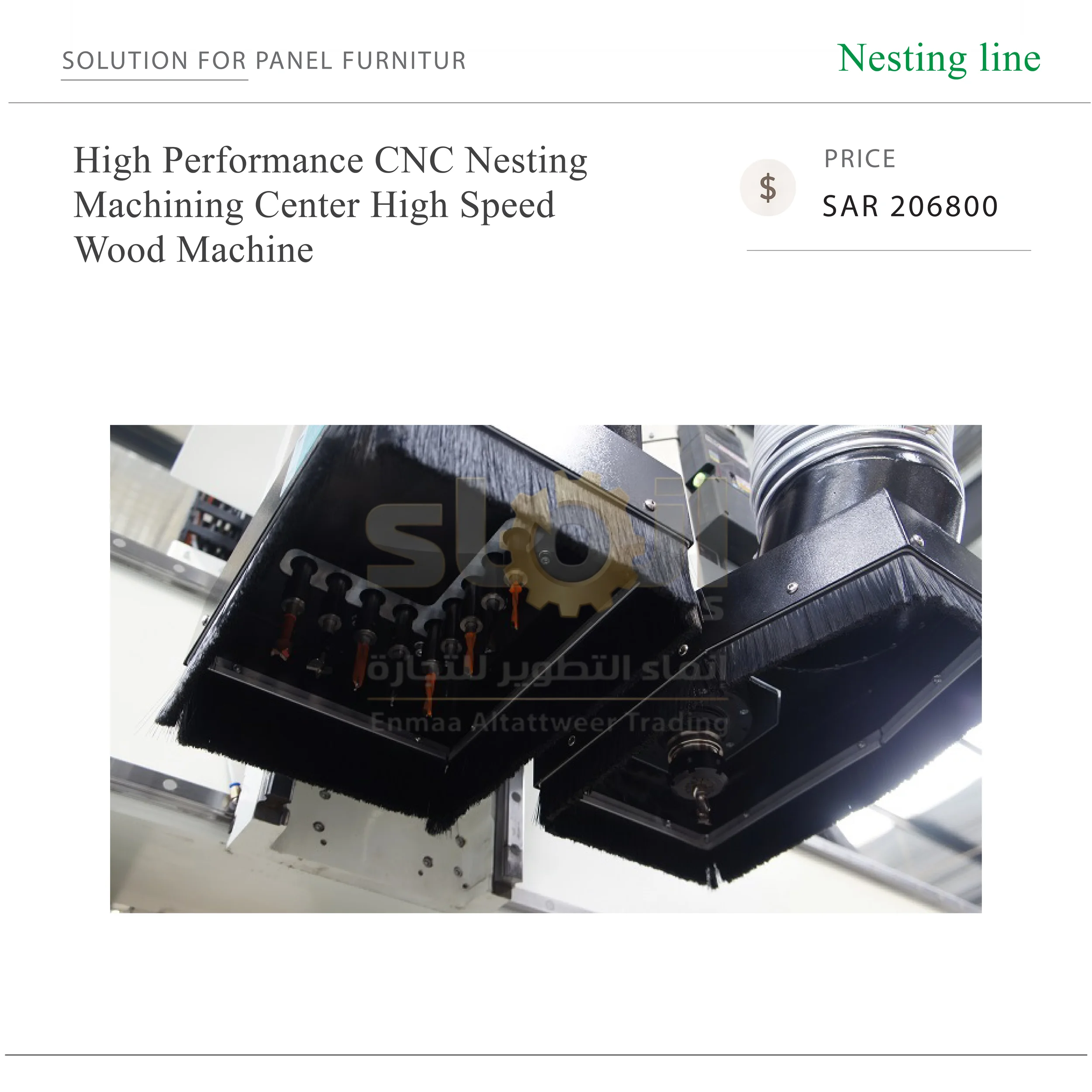

1. Linear Tool changer

12 slots linear tool magazine travels with the bridge, tool chaning is faster and easier

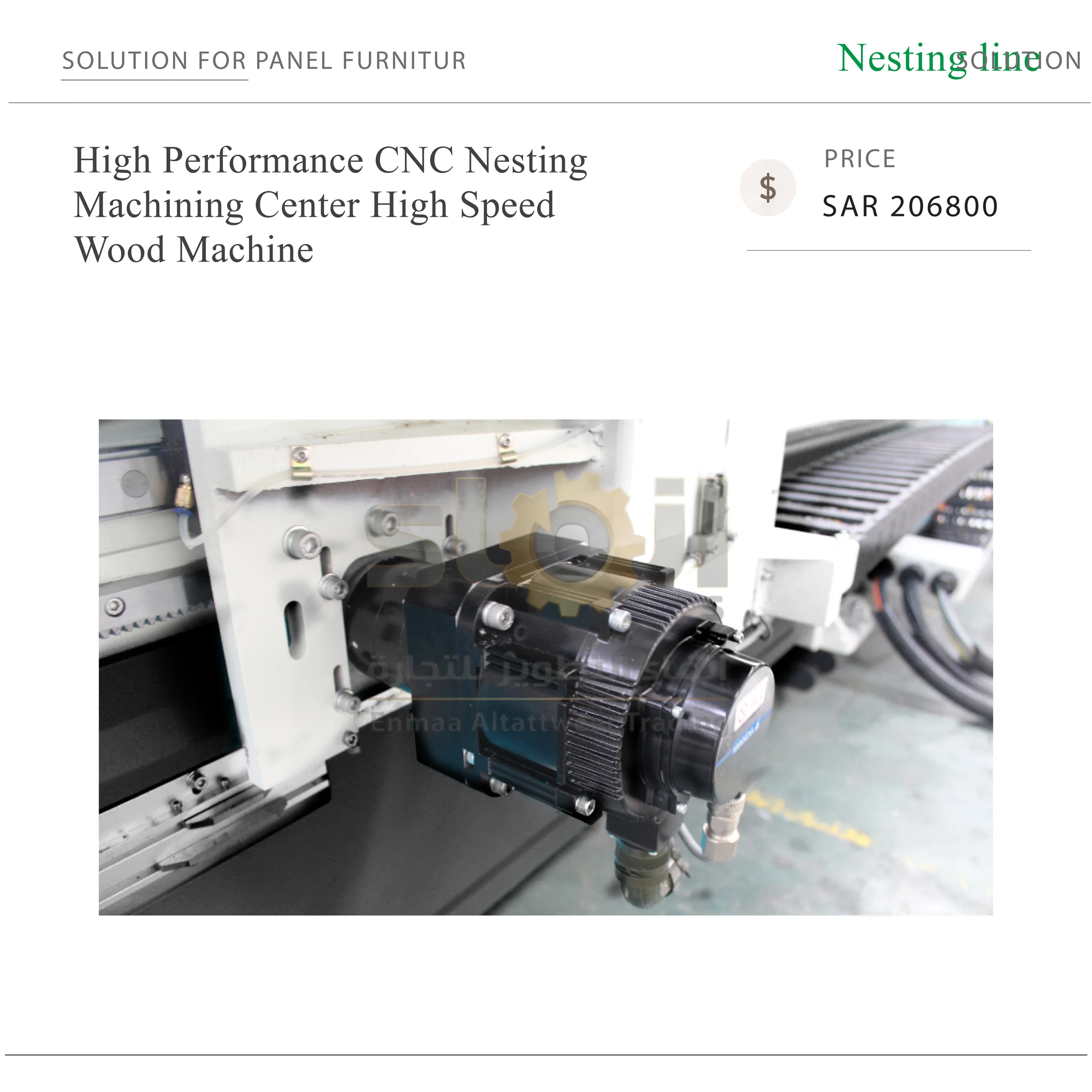

2. High power spindle

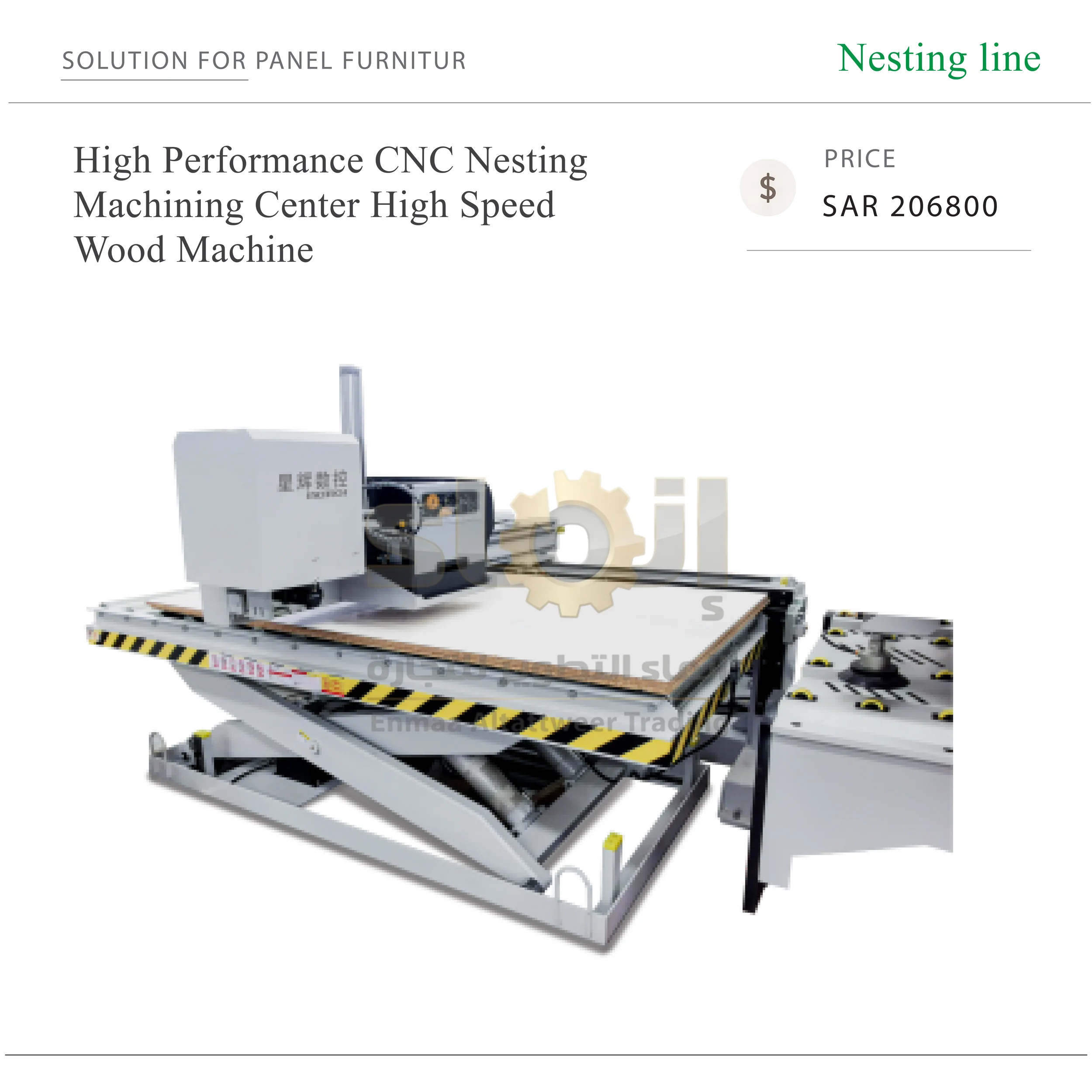

3.Auto loading and unloading system

Application:

Furniture:ideally suitable for processing cabinet door, wooden door, solid wood furniture, panel wood furniture, windows, tables and chairs, etc.
Other wooden products: stereo box, computer desk, musical instruments, etc.
Well-suited for processing panel, insulating materials, plastic, epoxy resin, carbon mixed compound, etc.
Decoration: acrylic, PVC, density board, artificial stone, organic glass, soft metals like aluminum and copper, etc.
