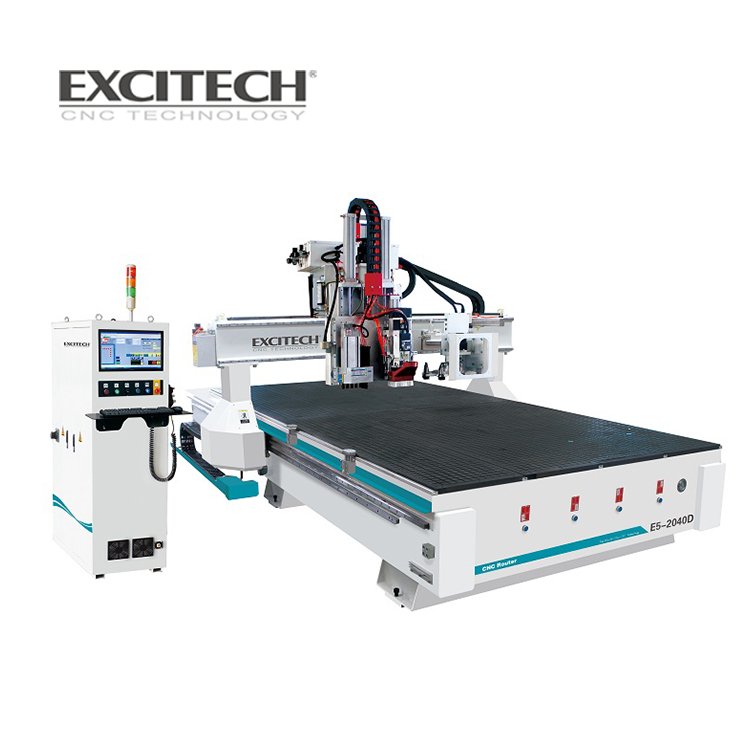

The EXCITECH CNC Woodworking Nesting Machine E5-2040 ATC is a heavy-duty industrial machine, ideal for routing, drilling, cutting, and more. It features an 8-slot carousel tool magazine for efficient tool changes, a T-slot and vacuum table for flexible material handling, and Japan Yaskawa servo motors for high precision and stability. Suitable for furniture manufacturing and other wooden products, this machine offers a working size of 3940*2032*200mm, ensuring versatility and productivity.
The heavy duty machine with 8-slot carousel tool magazine, suitable for gravity cutting, with wide function such as routing, drilling, cutting, side milling, edge chamfering, etc. Boring aggregate can be optional. Vacuum table with great absorption strength – adsorb different areas of materials, also can use fixtures to hold various shaped materials with fixture, which is flexible and convenient. At the same time, the drilling bank is optional according to the customer’s needs.

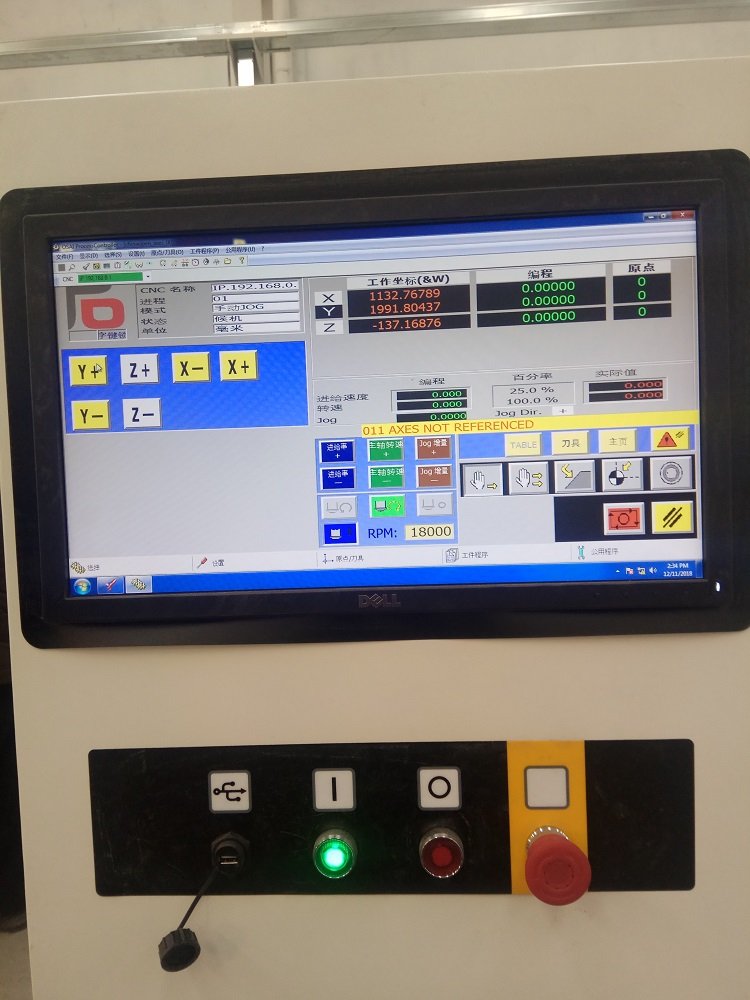

Series | E5-1224D | E5-1530D | E5-2030D | E5-2040D |
Travelling size | 2500*1260*330mm | 3100*1570*330mm | 3350*2100*330mm | 4350*2100*330mm |
Working size | 2480*1230*200mm | 3080*1560*200mm | 3050*2032*200mm | 3940*2032*200mm |
Table size | 2500*1240mm | 3100*1570mm | 3100*2100mm | 4020*2100mm |
Transmission | X/ Y rack and pinion drive, Z ball screw drive | |||
Table structure | T-slot and vacuum table | |||
Spindle power | 9.6/12kw | |||
Spindle speed | 24000r/min | |||
Travelling speed | 80m/min | |||
Working speed | 20m/min | |||
Tool magazine | Carousel 8/12/16 slots | |||
Driving system | Yaskawa | |||
Voltage | AC380/ 3PH/ 50HZ | |||
Controller | OSAI/Syntec | |||
Drill Bank Configuration | 5+4 vertical drilling | |||
Optional | 9 vertical + 6 horizontal drilling+1 saw | |||
1. Carousel tool magazine
The machine adopts carousel tool magazine, standard equipped with 8 tools, and the number of tool magazines can be selected according to the needs, which can effectively reduce the tool change time and improve work efficiency.
2. T-slot and vacuum table
The table top adopts T-slot and vacuum table combination, can strongly adsorb different areas of materials, also can fix different shapes of materials, flexible and convenient.
3.Boring unit
The machine can be equipped with 5+4 vertical drilling bank or 9 vertical + 6 horizontal drilling+ 1 saw blade according to the customer’s need.

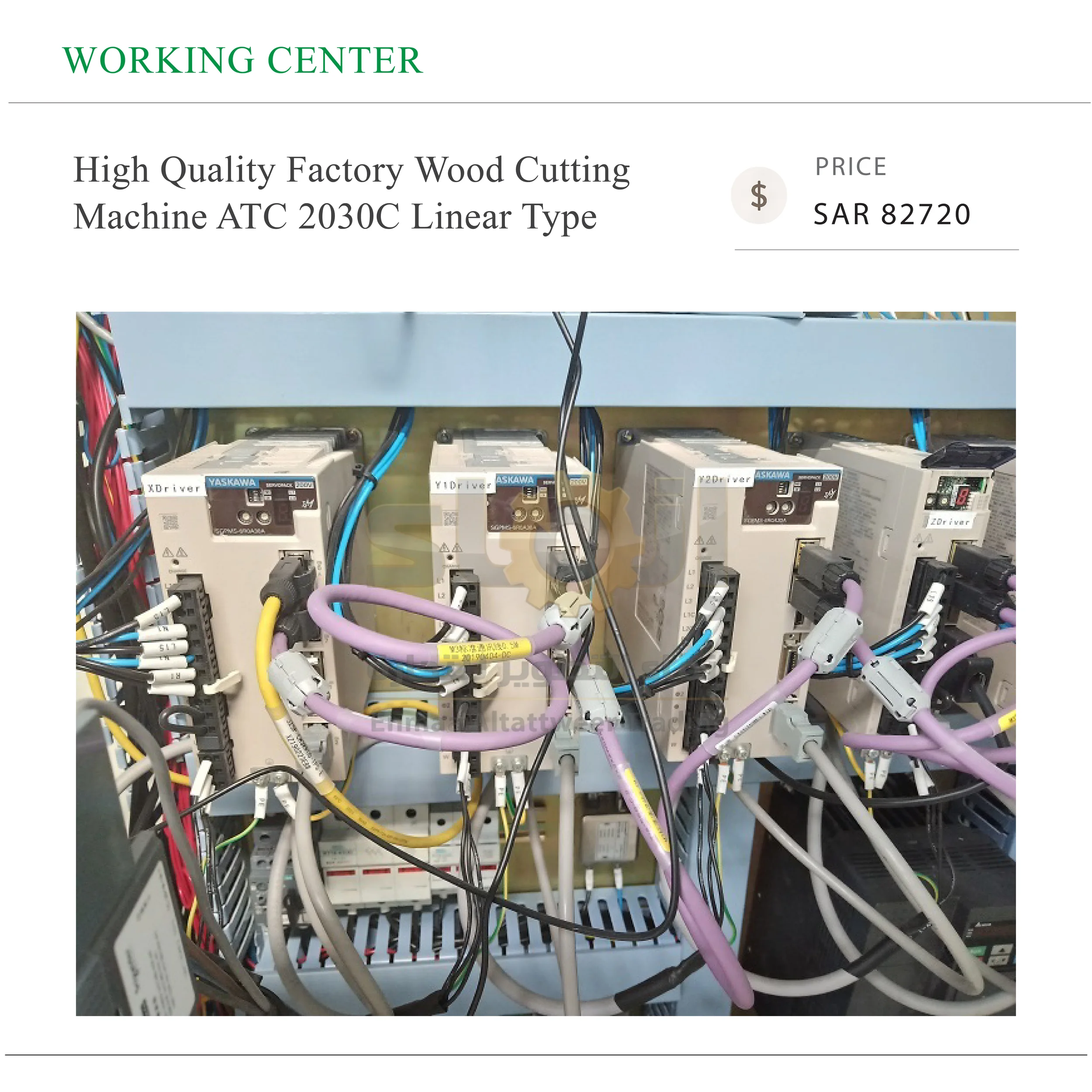

4. Japan Yaskawa servo motor and driver
The machine adopts Japan Yaskawa servo motor and driver, with high precision, high speed performance, strong anti-overload capability and good stability.
Application:

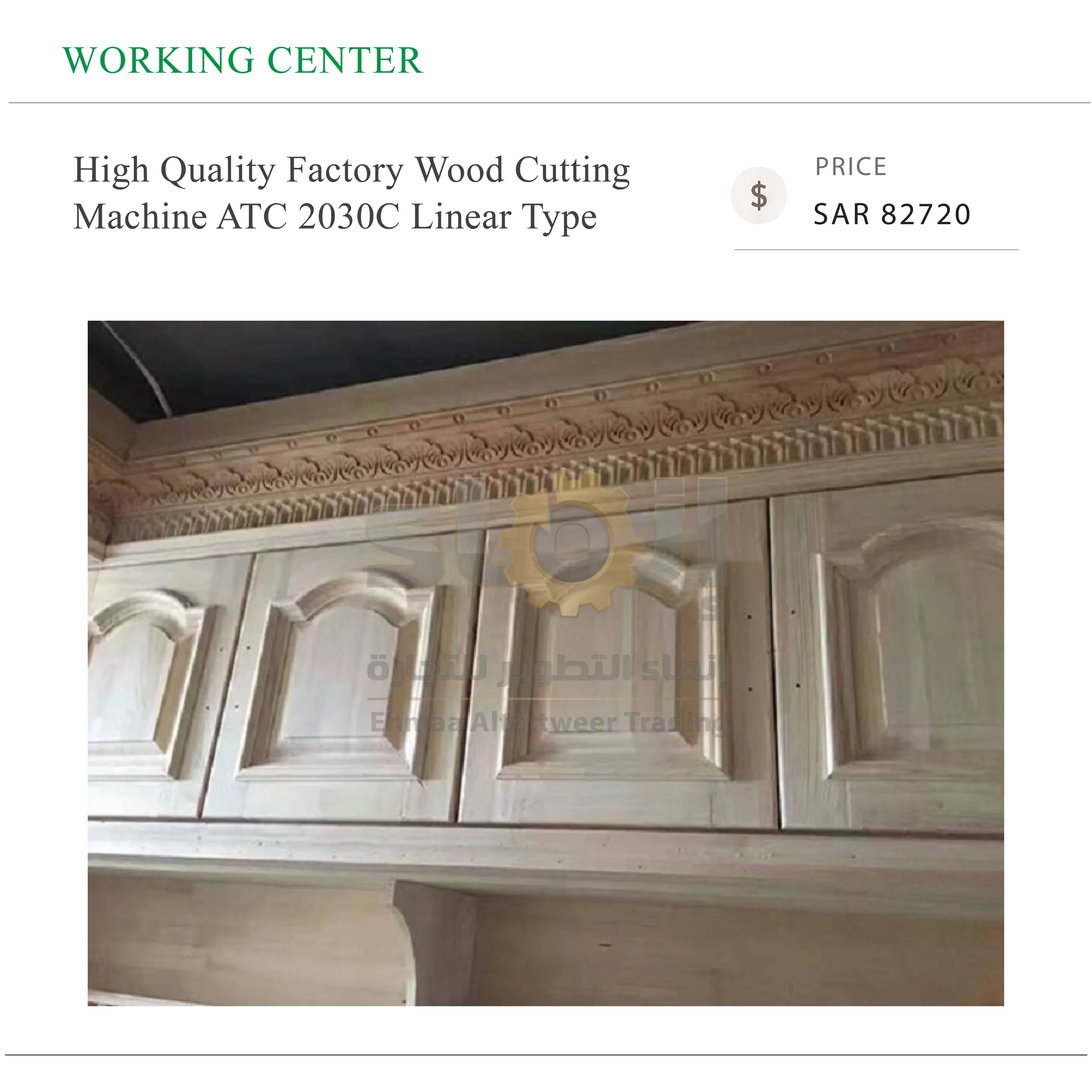

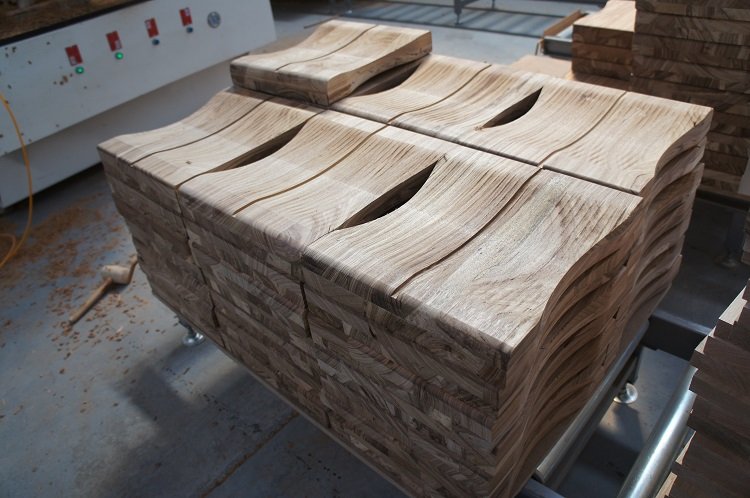

Furniture: widely used for processing cabinet door, wooden door, solid wood furniture, panel wood furniture, windows, tables and chairs, etc.
Other wooden products: stereo box, computer desk, musical instruments, etc.
