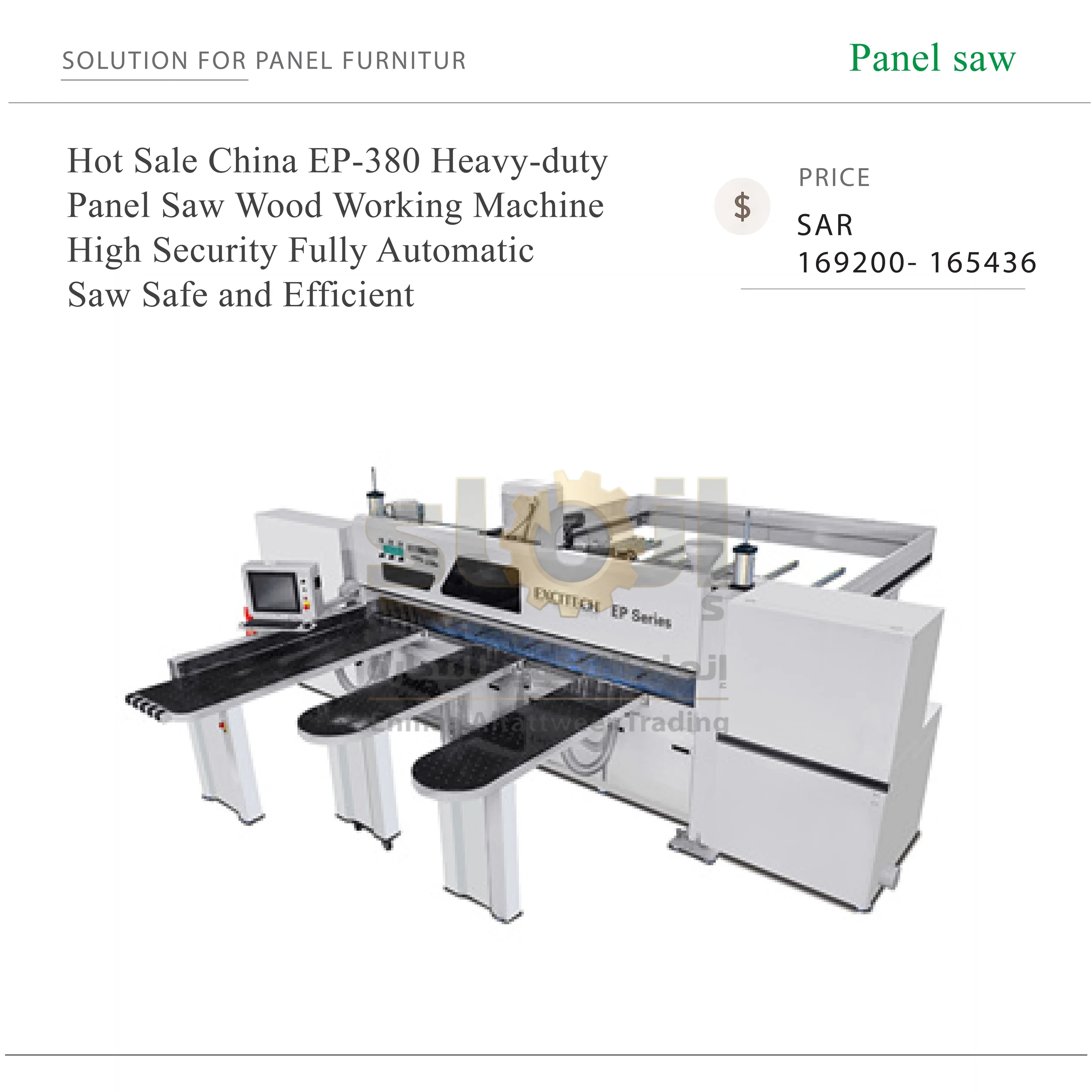

CNC Wood Panel Sawing Machinery for Efficient Furniture Factory Production

The EXCITECH CNC Wood Panel Saw features precision helical rack and pinion drives for smooth, quiet operation at high speeds, ensuring excellent cutting accuracy. Its automatic size adjustment reduces cycle times dramatically, while the main saw motor and scoring saw deliver clean, precise cuts. Equipped with a heavy-duty frame, movable air table, and adjustable clamps, it ensures stable, chip-free performance. The machine is ideal for cutting density boards, PVC panels, solid wood, and more. With a 1-year warranty and global support, this product guarantees reliability and efficiency. CE certification ensures compliance with EU safety standards, enhancing market access.

GET A QUOTE

Product Description

The machine is mainly used for all kinds of density boards, shaving boards, wood-based panels, ABS panels, PVC panels, organic glass plates and solid wood cutting.
Feature:

  • Precision helical rack and pinion drives ensure smooth and dynamic running even at the highest speed, at the same time reducing noise to the miniumum.
  • Main saw motor is linked to the saws by V-ribbed belt that results in the clean precision cut.
  • Cutting is automatically adjusted to the size of the panels according to the value set-dramatically reduces the cycle time.
  • Saw blades are easy to be loaded and unloaded in an efficient manner.
  • The main saw and the scoring saw with electronic lift feed on the linear guide that obtains lasting straight- line precision and rigidity and guarantees excellent cutting finish.

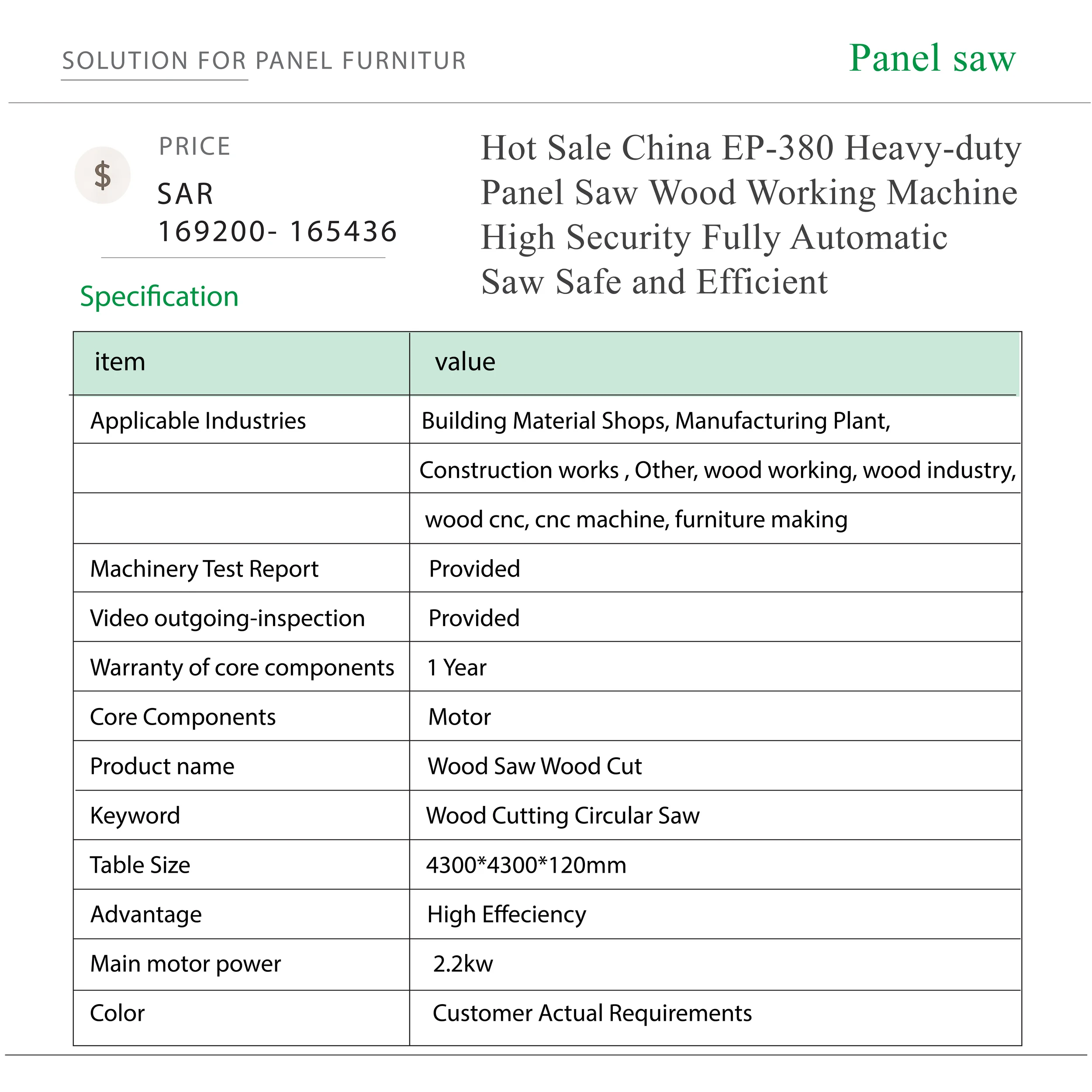

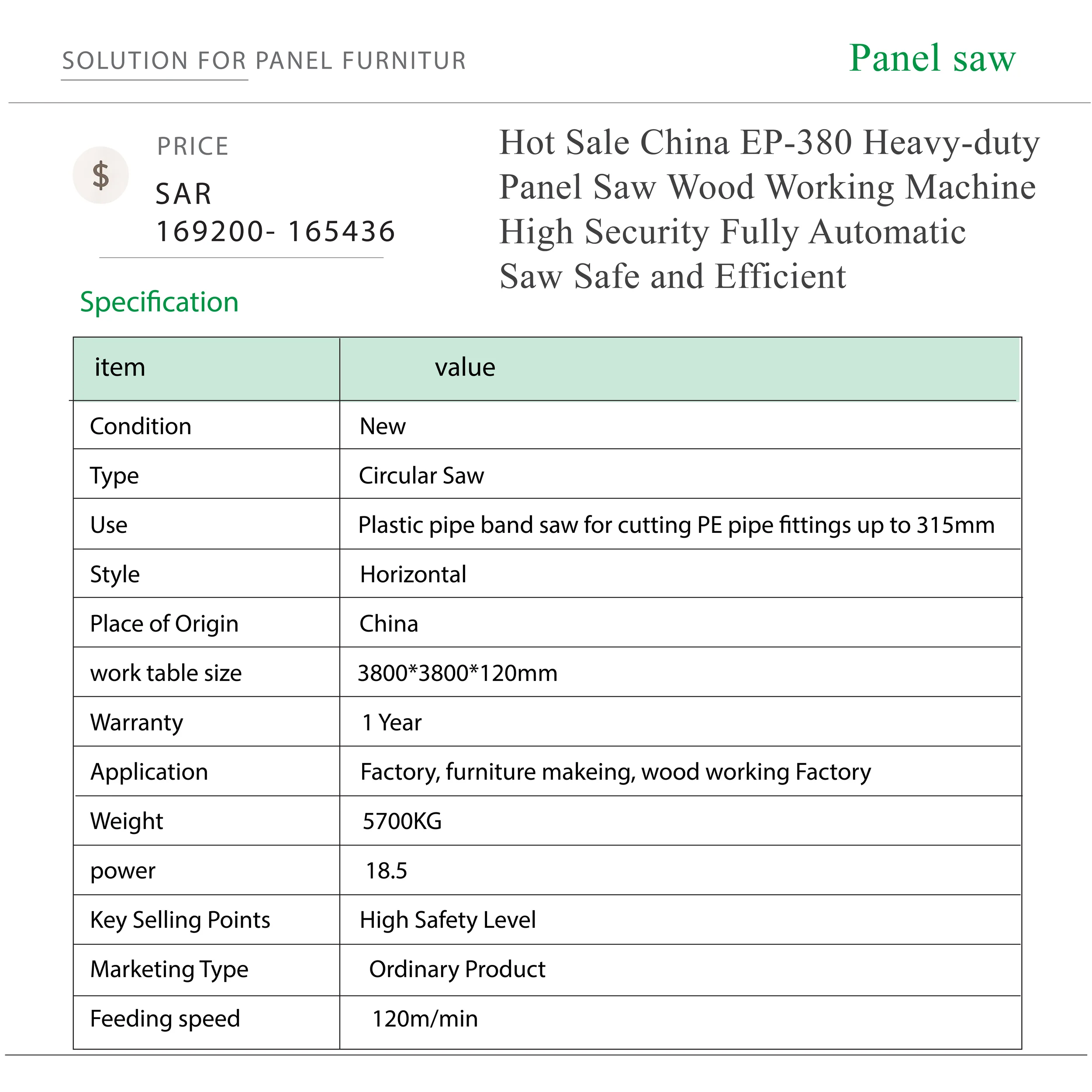

Technical Parameter





  SeriesEP280EP330EP380EP330( Rear Feeding)
Cutting Dimension2800*2800*120 mm3300*3300*120mm3800*3800*120mm3300*3300*120mm
Saw Carriage Speed5-120m/min



Main Saw motor18.5 kw18.5 kw
Scoring Saw motor2.2kw
 Main Saw Dimension450*4.8*60mm450*4.8*60mm
Scoring Saw Dimension180*45*4.7-5.5mm
Air consumption150L/min
Loading speed 13m/min
Max Stack Height 1000 mm



Detailed Images

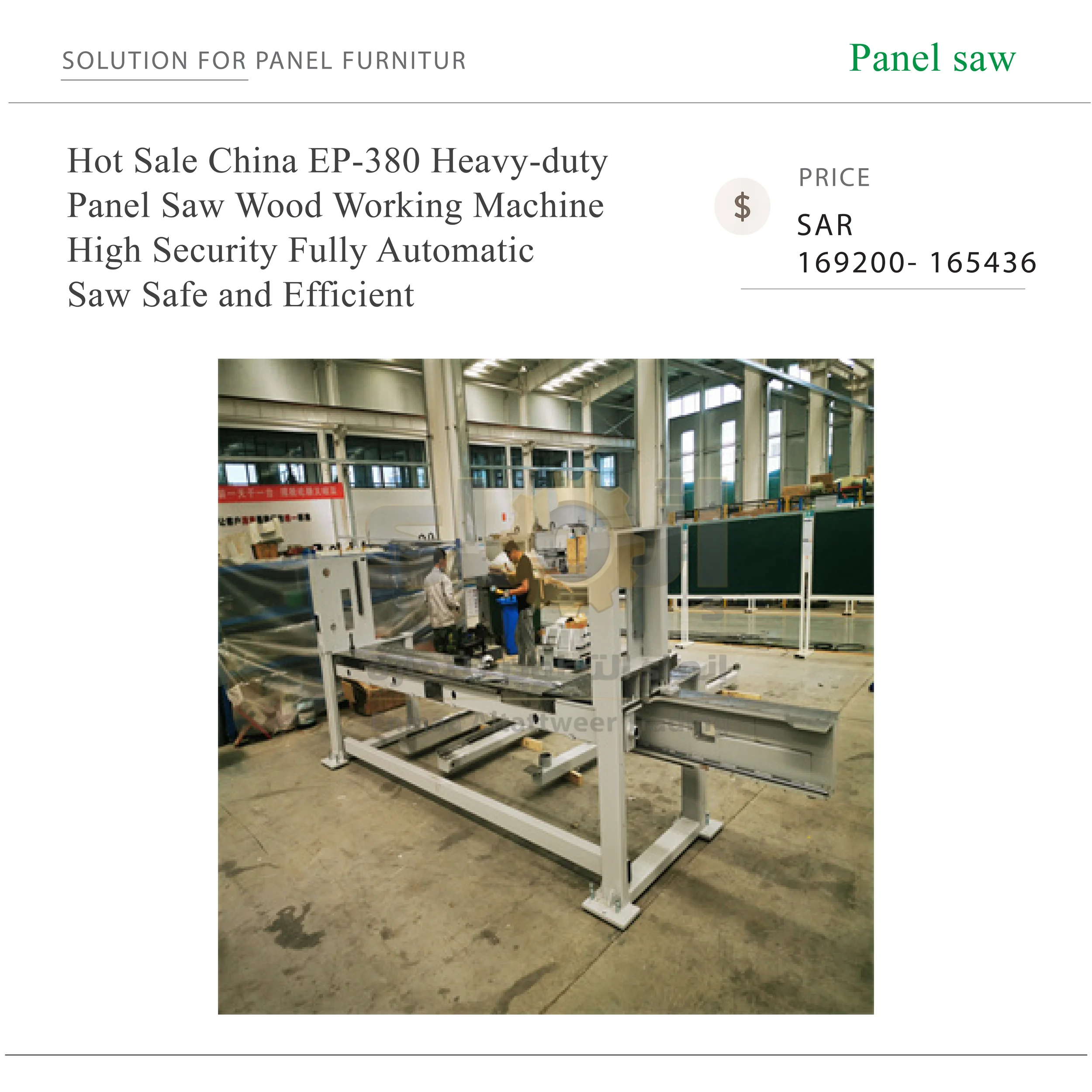

1. Heavy Frame

CNC Wood Panel Sawing Machinery for Efficient Furniture Factory Production

Heavy-duty frame ensures stable movement of the saw frame for precise sawing quality.





2. Movable air table

CNC Wood Panel Sawing Machinery for Efficient Furniture Factory Production



Air table reduces the friction to the minumun to prevent chipping and wearing of the materials.



3. The clamps

CNC Wood Panel Sawing Machinery for Efficient Furniture Factory Production

The clamps wrapped with rubber hold the material firmly and gently. Contact pressure adjustable to accommodate different material and deliver invariably perfect cut quality.





4. Saw carriage

CNC Wood Panel Sawing Machinery for Efficient Furniture Factory Production



The precise and powerful movement of the servo motor driven saw carriage, along with 18.5kw mian saw motor guarantee a clean finish even when cutting multiple panels.

Sample

Application:

Mainly used for all kinds of density boards, shaving boards, wood-based panels, ABS panels, PVC panels, organic glass plates and solid wood cutting.
