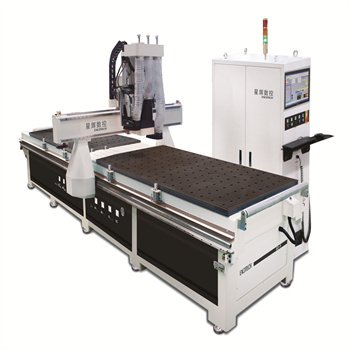

This CNC Nesting Machine is designed for precision wood board cutting with a positioning accuracy of 0.1mm and repeatability of 0.05mm. It features a 3-axis system, double spindles, and a vacuum table powered by Japan Yaskawa servo motors and drivers. Equipped with a Syntec control system and 5+4 boring units, it supports cutting, engraving, carving, and milling functions. The machine uses high-quality components like Japan THK rail guides, ensuring reliable performance. With a 12-month warranty and CE certification, it complies with EU safety standards, providing market access assurance for global buyers.
item | value |
Condition | New |
Positioning Accuracy (mm) | 0.1mm |
Number of Axes | 3 |
No. of Spindles | Double |
Working Table Size(mm) | 2440*1220mm |
Machine Type | CNC Router |
Travel (X Axis)(mm) | 2500mm |
Travel (Y Axis)(mm) | 1260mm |
Repeatability (X/Y/Z) (mm) | 0.05mm |
CNC or Not | CNC |
Place of Origin | China |
Shandong | |
Weight (KG) | 2800 |
Warranty | 12 months |
Key Selling Points | Automatic |
Applicable Industries | Building Material Shops, Manufacturing Plant, Construction works , Energy & Mining, Other, Advertising Company |
Machinery Test Report | Provided |
Video outgoing-inspection | Provided |
Warranty of core components | 1 Year |
Core Components | Bearing, Pump, Gear, PLC, Other, Pressure vessel, Engine |
Product name | Hot type cnc nesting machine, door cnc woodworking router machine |
Working size | 2440*1220*50mm |

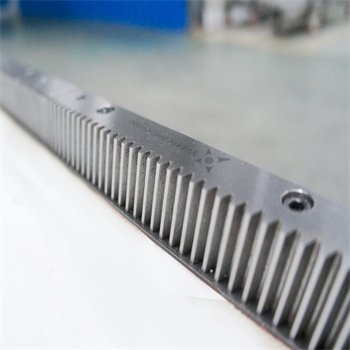

Transmission | X Y axis rack and pinion drive, Z axis ball screw drive |
Spindle power | 6.0KW/ 5.5KW |

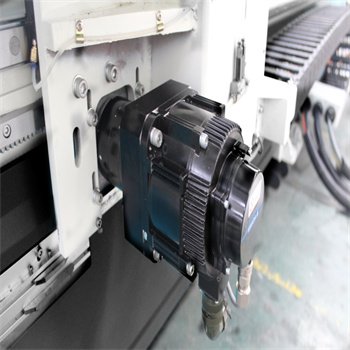

Motor and driver | Japan Yaskawa Sevor Motor and driver |
Control system | Syntec control system |
Boring unit | 5+4 boring units |
Table structure | Vacuum table |
Rail guide | Japan THK rail guide |
Function | Cutting Engraving Carving Milling |
