High-efficiency automatic wood nesting machine with a robot for furniture board processing. Features include E4 nesting machine, Japan SRA166L robot, return conveyor, and optional designing software. Achieves automation, reduces labor costs, and increases production capacity. The CE-certified equipment ensures compliance with EU safety standards, providing market access.
Professionally promote the informationization, intelligence and unmanned construction of the furniture industry. The combination is flexible, the process is changeable, and an automated production mode that meets the needs of the customer’s entire plant is created. Combine CNC nesting machine with return conveyor to improve the automation level of the factory, get rid of the dependence on workers, and effectively improve management efficiency and production efficiency.

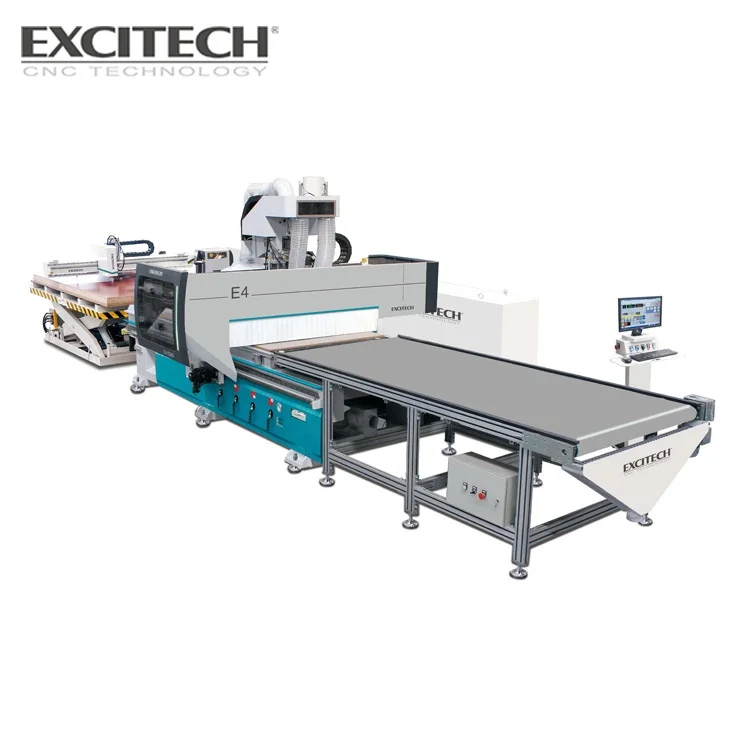

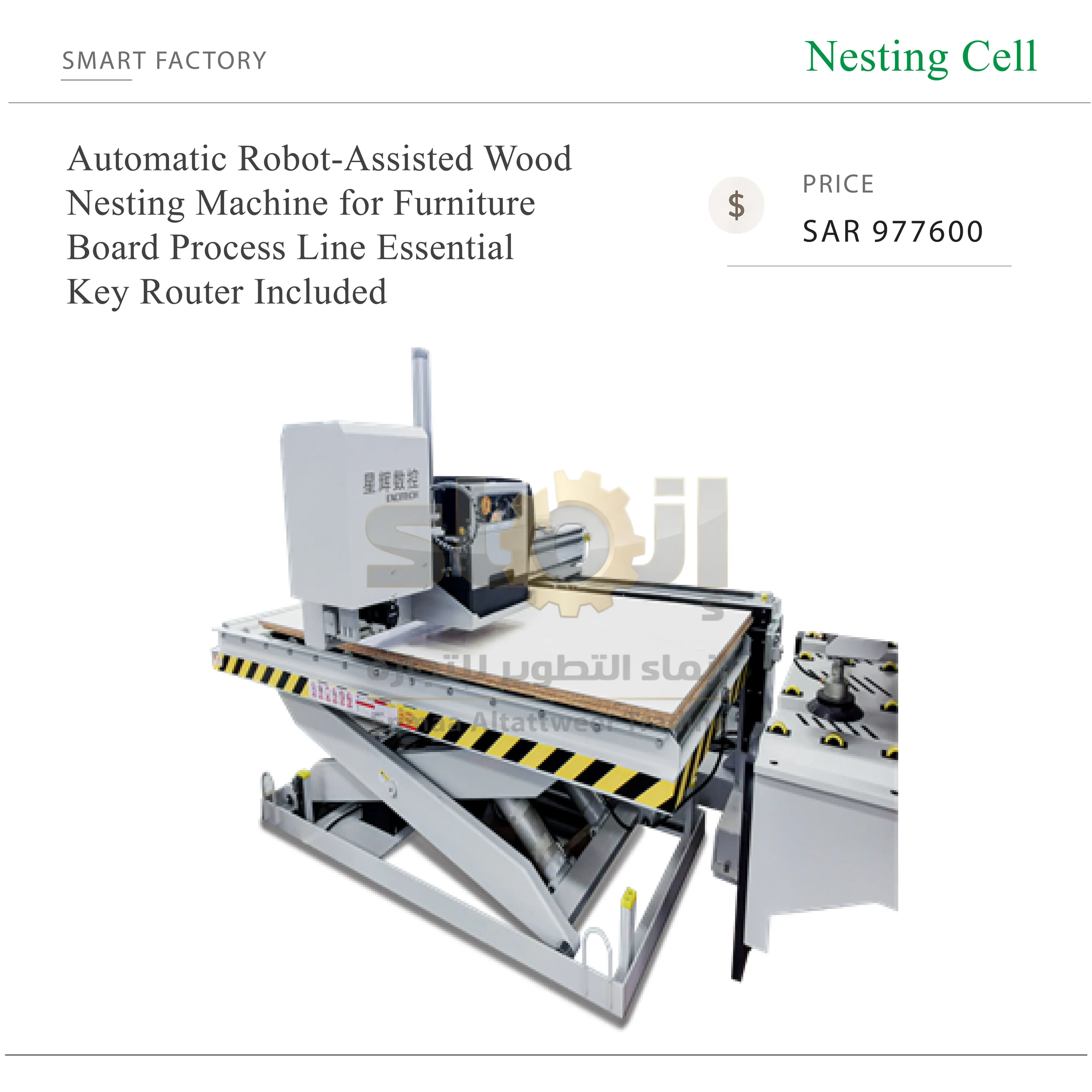

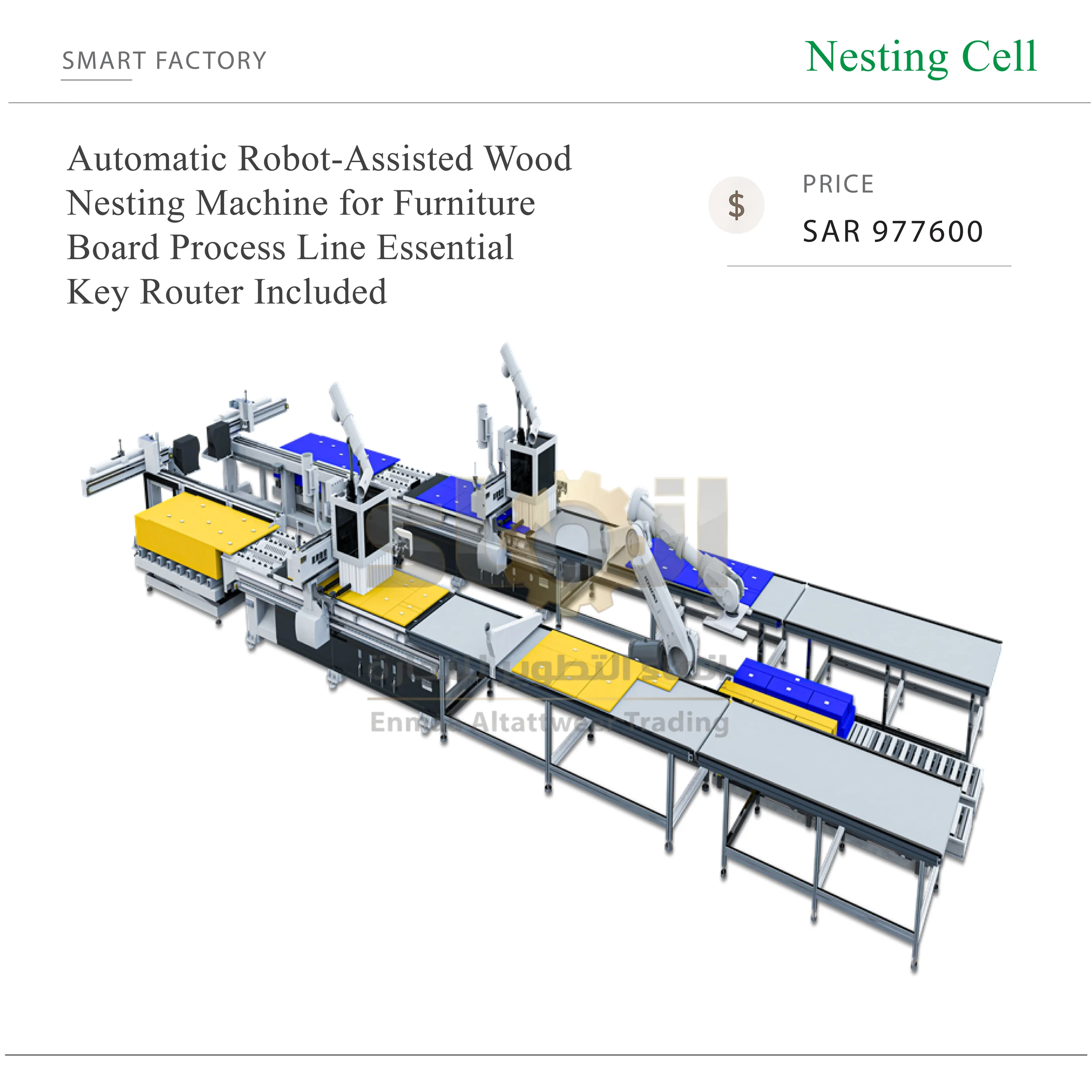

The nesting cell include E4 nesting machine, robot, return conveyor, cabinet box and the designing software. E4 nesting machine finish the work of automatic cutting, drilling and labeling, then robot automatically pick the panel, save the human labor and improve the working efficiency. The panel is transmitted through return conveyors, which is convenient for the follow-up work. The designing software is optional according to the customer’s requirement.
Utilize the advantages of combining software and automation equipment, it can form mass production, thereby achieving automation production, reduce labor costs and increase production capacity.

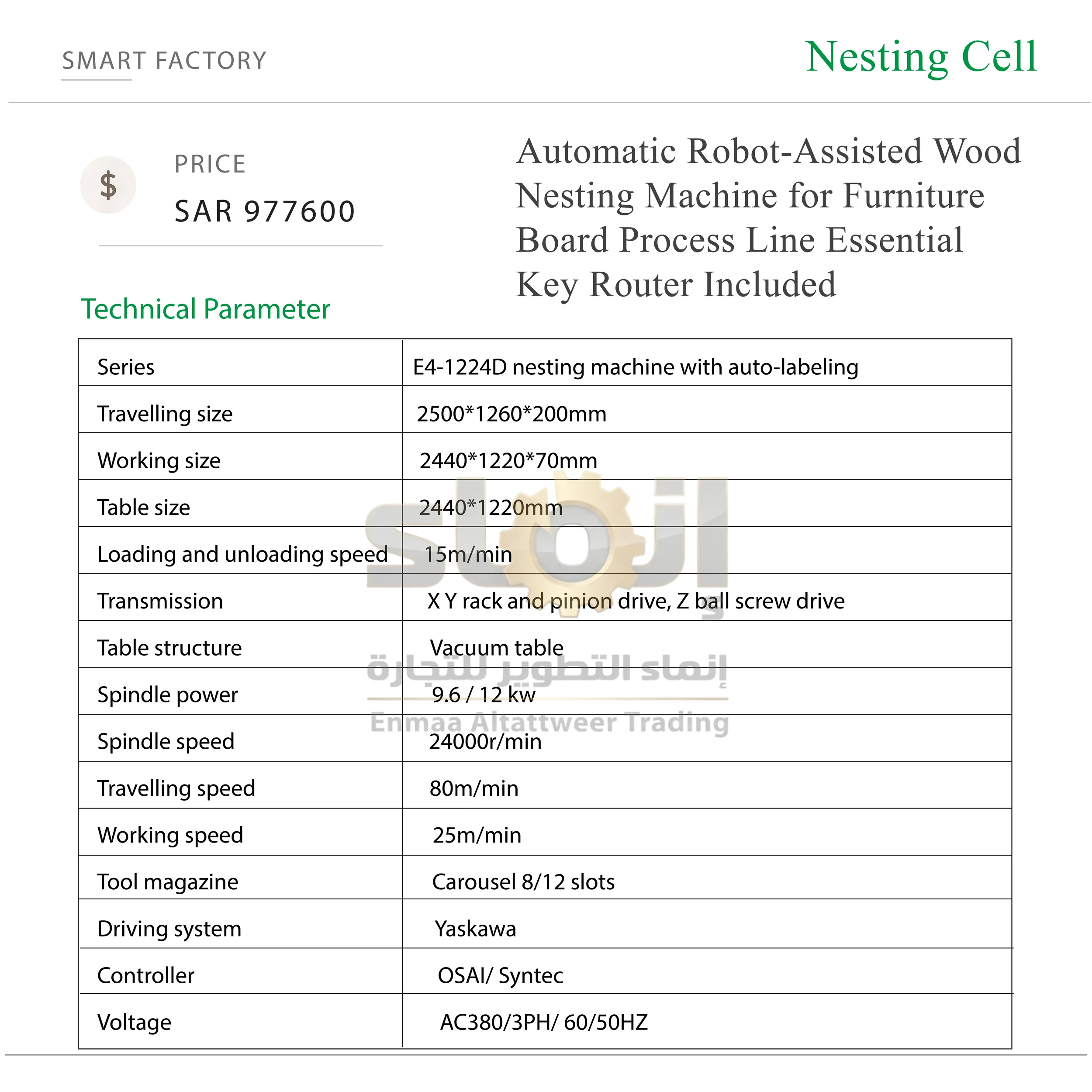

| Series | E4-1224D nesting machine with auto-labeling |
| Travelling size | 2500*1260*200mm |
| Working size | 2440*1220*70mm |
| Table size | 2440*1220mm |
| Loading and unloading speed | 15m/min |
| Transmission | X Y rack and pinion drive, Z ball screw drive |

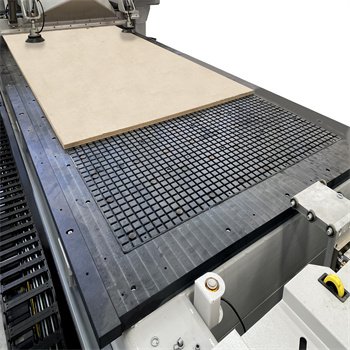

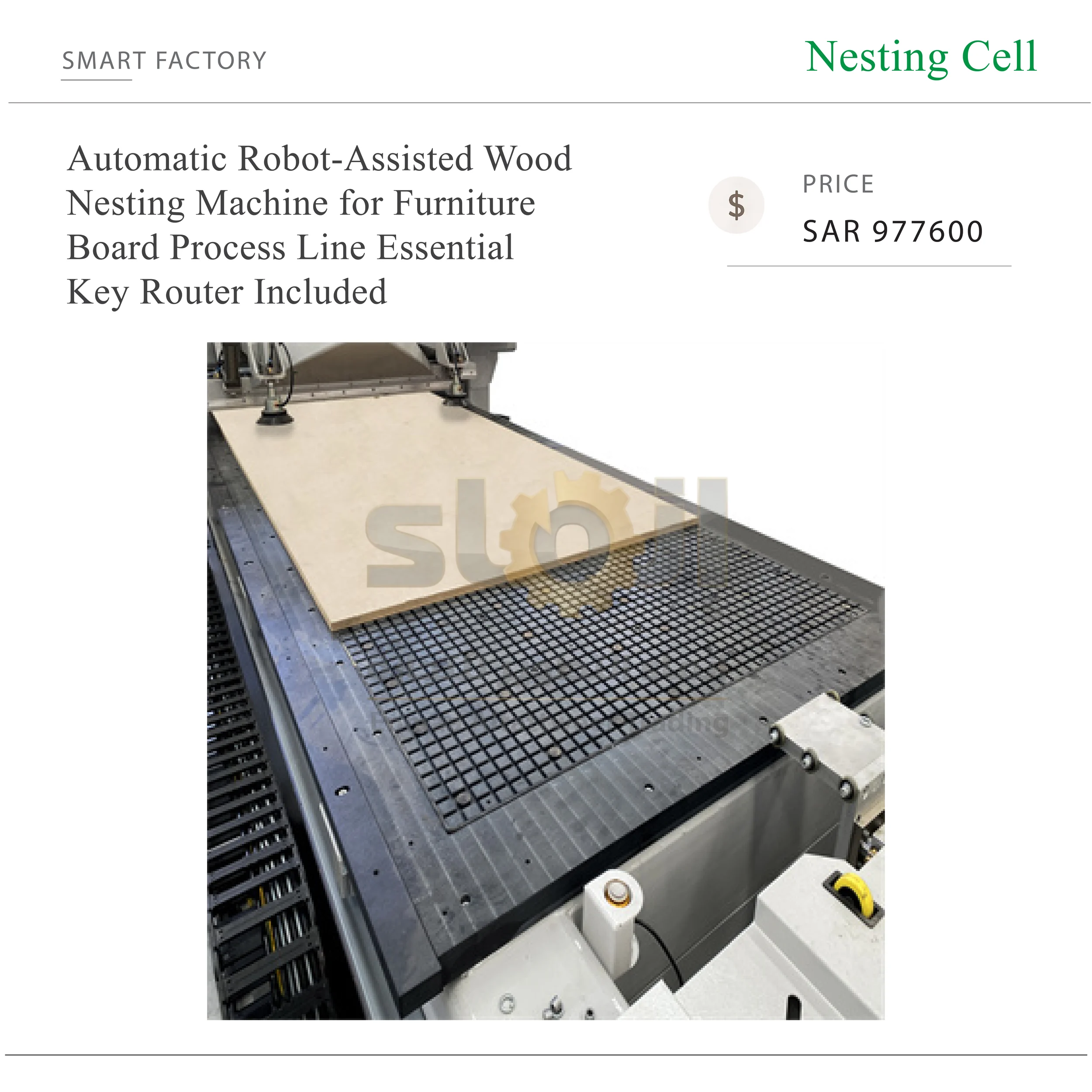

| Table structure | Vacuum table |
| Spindle power | 9.6 / 12 kw |
| Spindle speed | 24000r/min |
| Travelling speed | 80m/min |
| Working speed | 25m/min |
| Tool magazine | Carousel 8/12 slots |
| Driving system | Yaskawa |
| Controller | OSAI/ Syntec |
| Voltage | AC380/3PH/50HZ |
Nested-based CNC with Pre-labeling

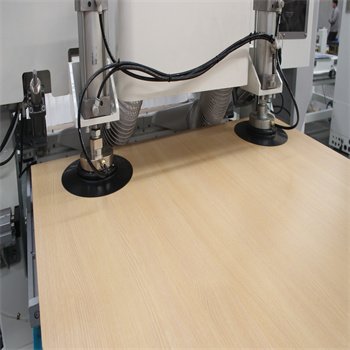

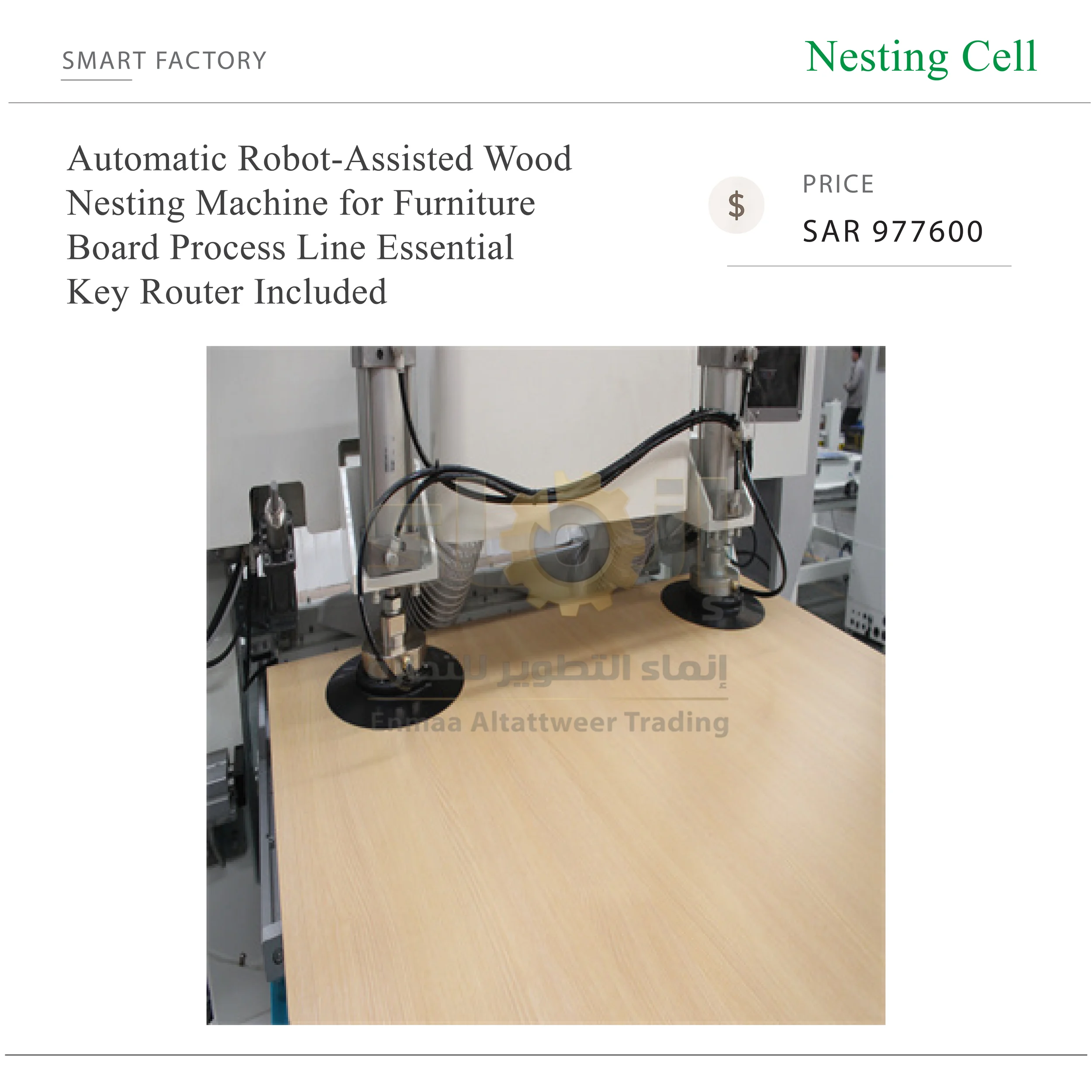

Pre-Labeling the panel with rapid travel axis before nesting and vertical drilling further eliminates operator intervention during the work process and renders the whole cycle truly push-button-and-go.It is mainly for wood panel drilling and grooving.

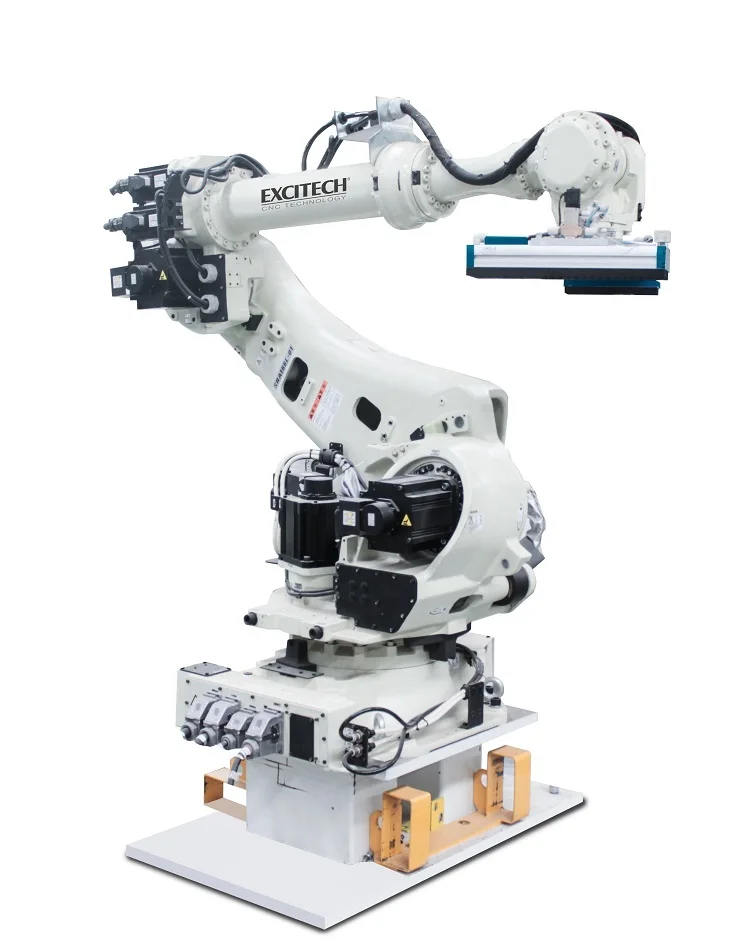

Japan SRA166L Robot
World Class Speed Robot
Robot motion makes minimum cycle times unbeatable. Light weight and high rigidity design makes high acceleration and minimum vibration.
Maximum speed on all axes reduces cycle time.
Improved productivity by these design.
Robot motion makes minimum cycle times unbeatable. Light weight and high rigidity designmakes high acceleration and minimum vibration. Maximum speed on all axes reduces cycle time. Improved productivity by these design.

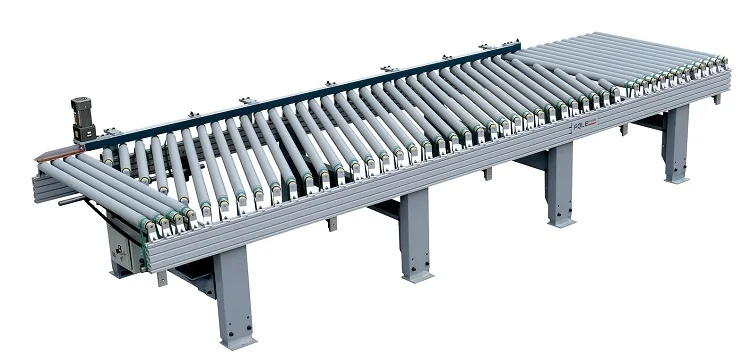

Return Conveyor
The panel is transmitted through return conveyor, which is convenient for the follow-up work.
Conveyor table

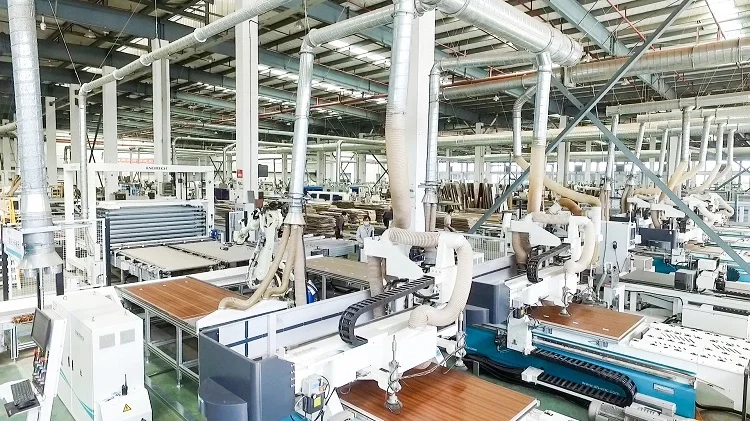

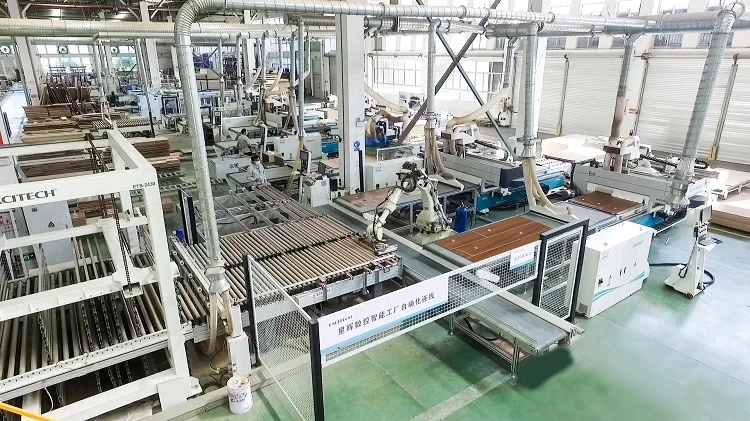

Nesting cell workshop
