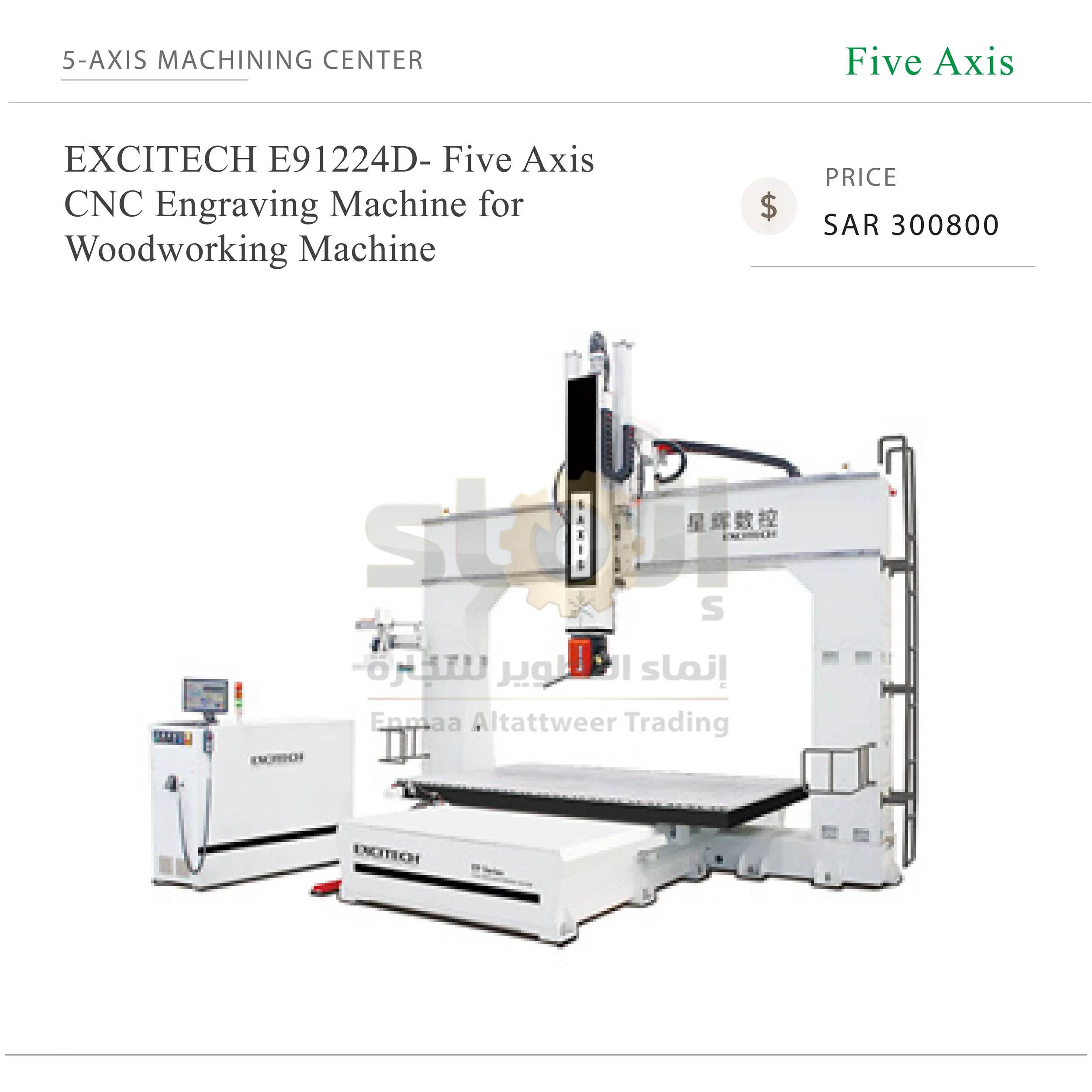

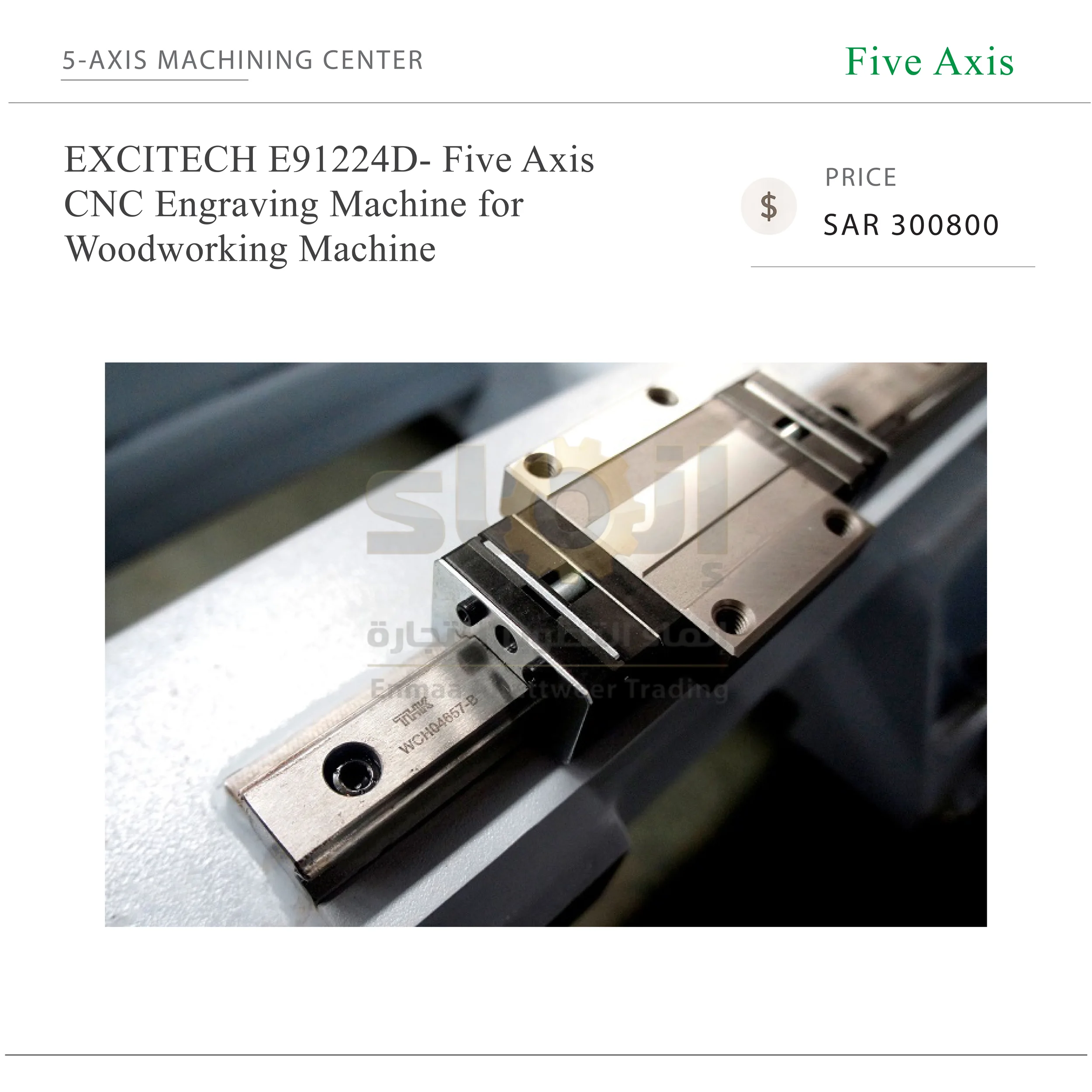

E9 machine is a five-axis processing center with OSAI controller—designed for the most demanding processing requirements, maximum precision, faster production. All parts of the machine are made of world top components, such as Italian imported OSAI control system, Yaskawa servo motor and Japan THK linear guide. Easy profiling on large work piece, well suited for 3D curved surface processing. Working speed, travelling speed and cutting speed can all be controlled separately, dramatically improve productivity.
Twin table optional: Twin table design doubles the productive efficiency by allowing loading and unloading operations on one station without interrupting the work cycle.

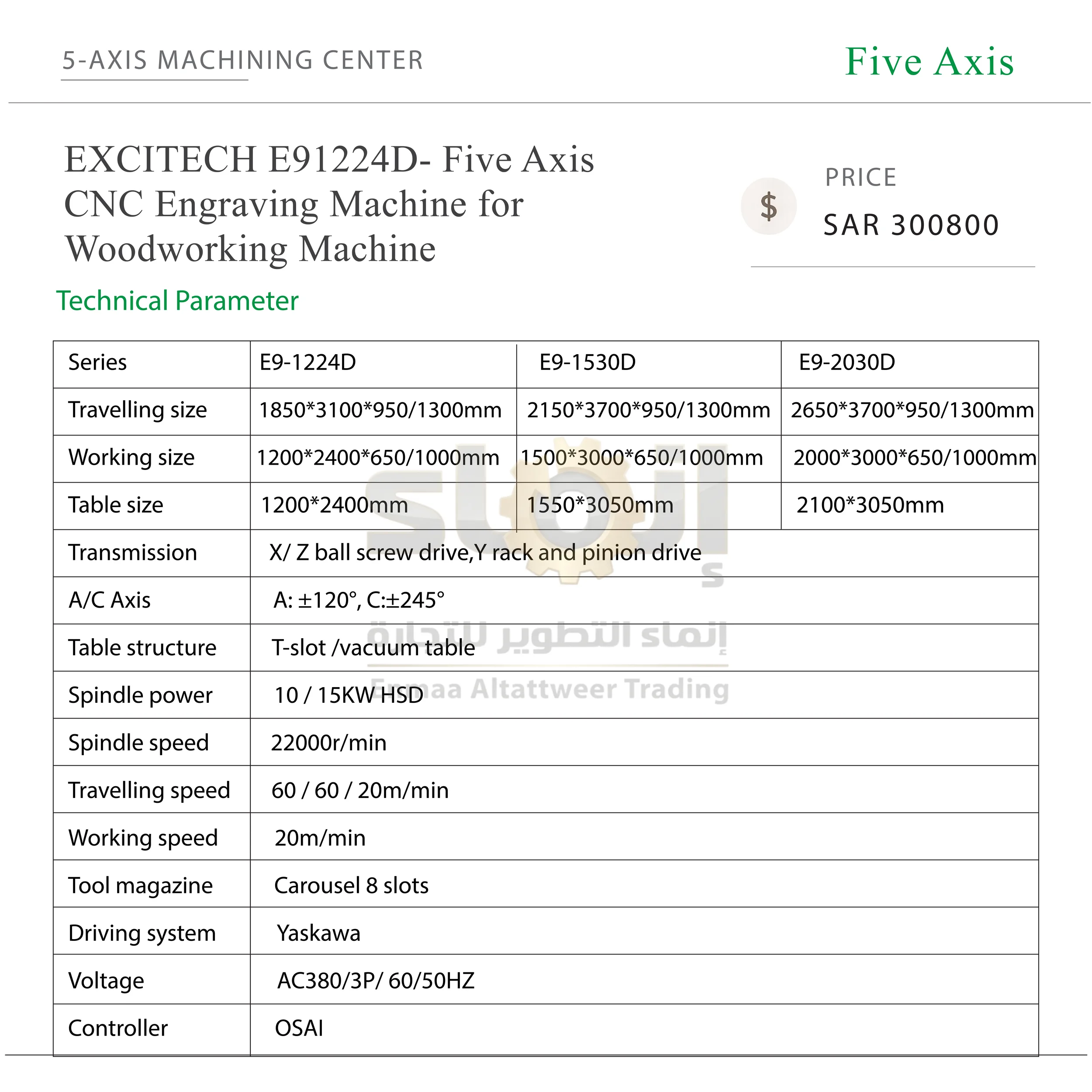

Series | E9-1224D | E9-1530D | E9-2030D |
Travelling size | 1850*3100*950/1300mm | 2150*3700*950/1300mm | 2650*3700*950/1300mm |
Working size | 1200*2400*650/1000mm | 1500*3000*650/1000mm | 2000*3000*650/1000mm |
Table size | 1200*2400mm | 1550*3050mm | 2100*3050mm |
Transmission | X/ Z ball screw drive,Y rack and pinion drive | ||
A/C Axis | A: ±120°, C:±245° | ||
Table structure | T-slot /vacuum table | ||
Spindle power | 10 / 15KW HSD | ||
Spindle speed | 22000r/min | ||
Travelling speed | 60 / 60 / 20m/min | ||
Working speed | 20m/min | ||
Tool magazine | Carousel 8 slots | ||
Driving system | Yaskawa | ||
Voltage | AC380/3P/50HZ | ||
Controller | OSAI | ||

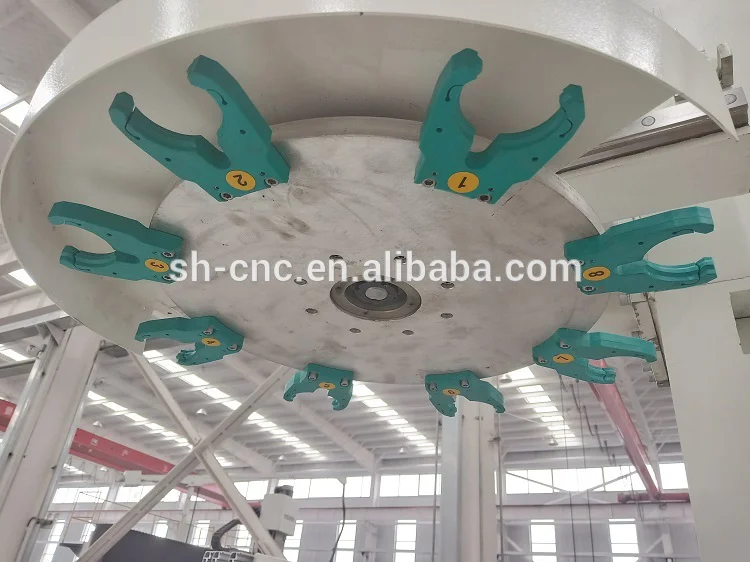

1. Tool changer

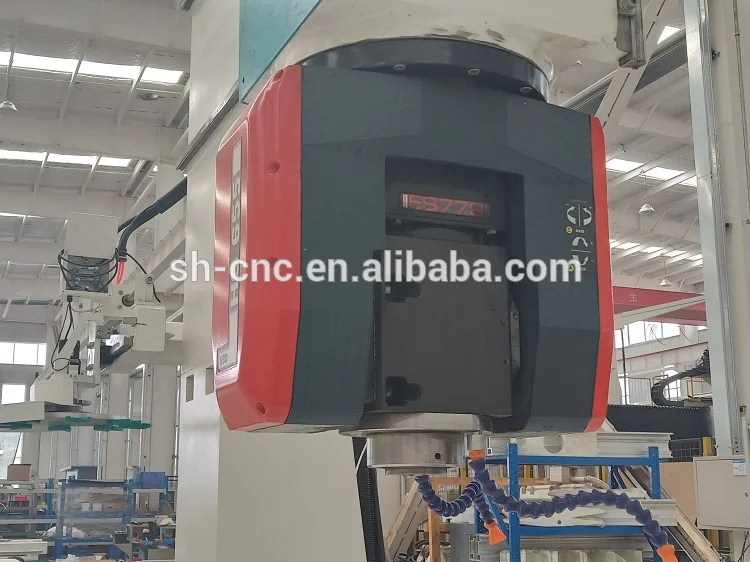

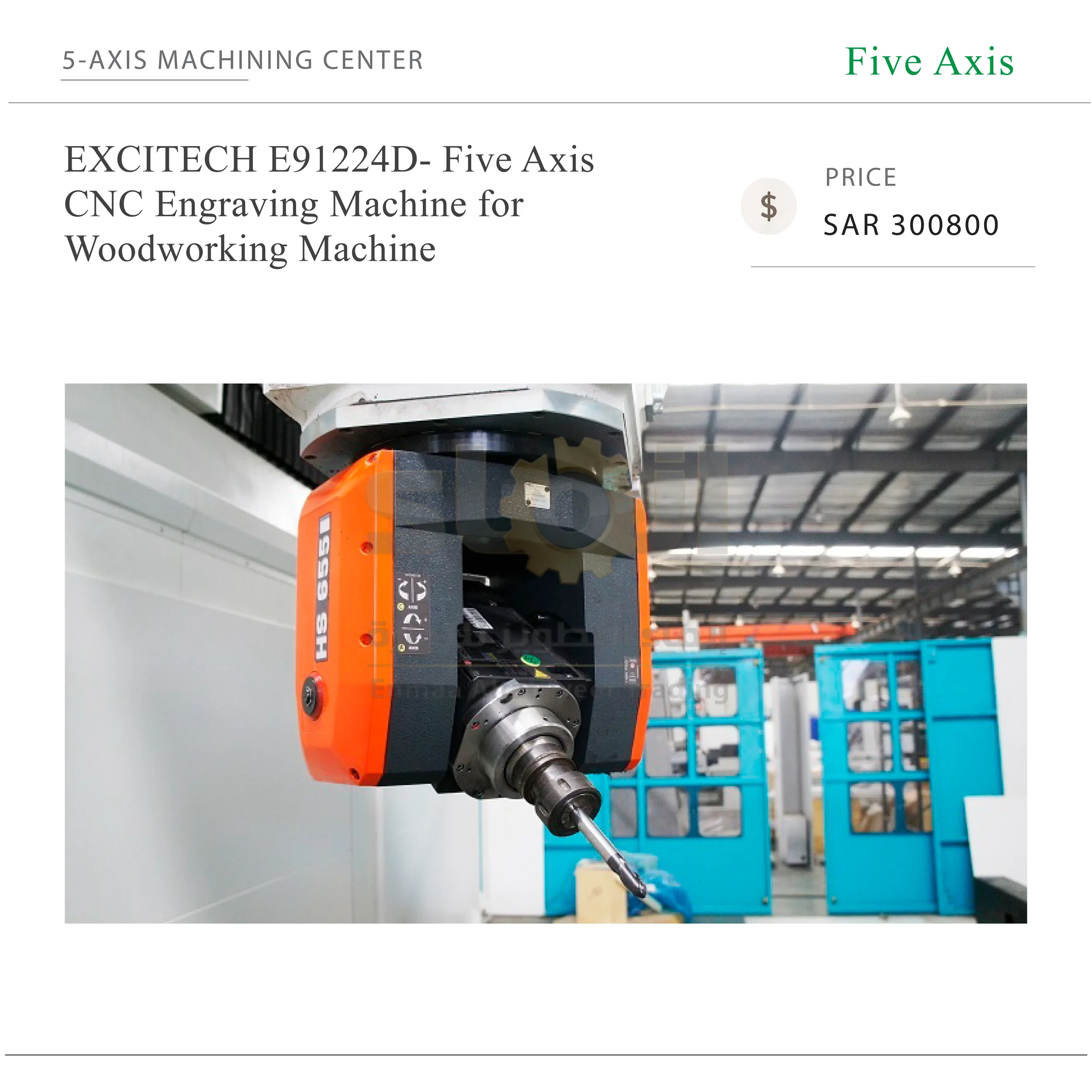

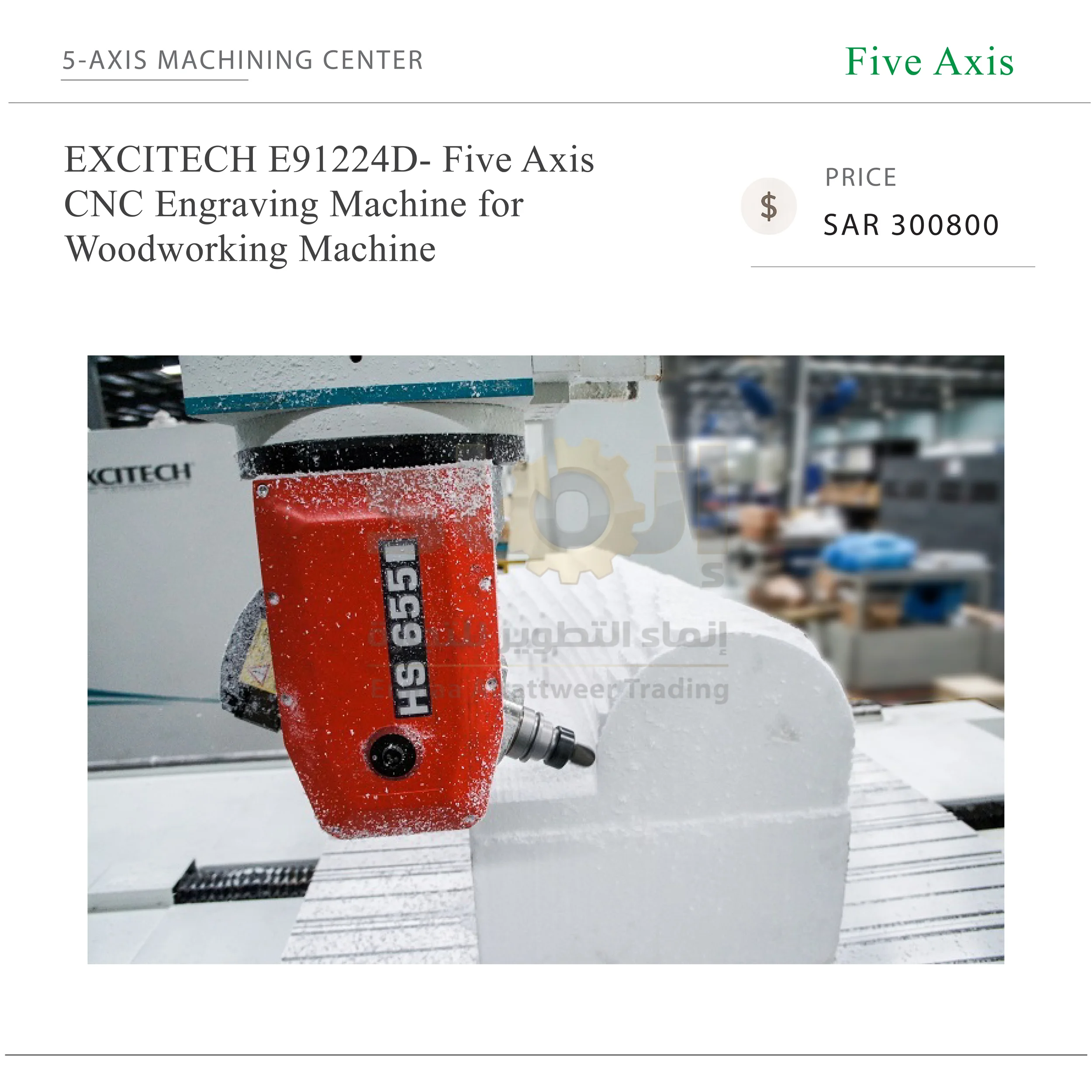

2. HSD spindle

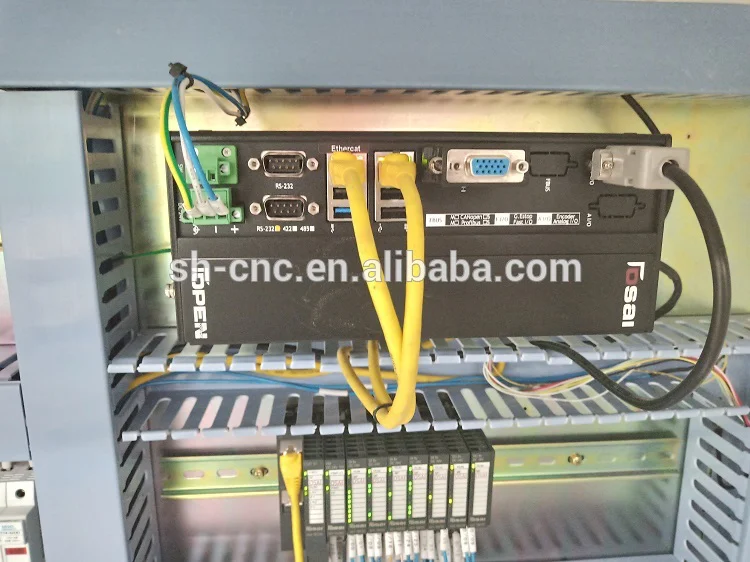

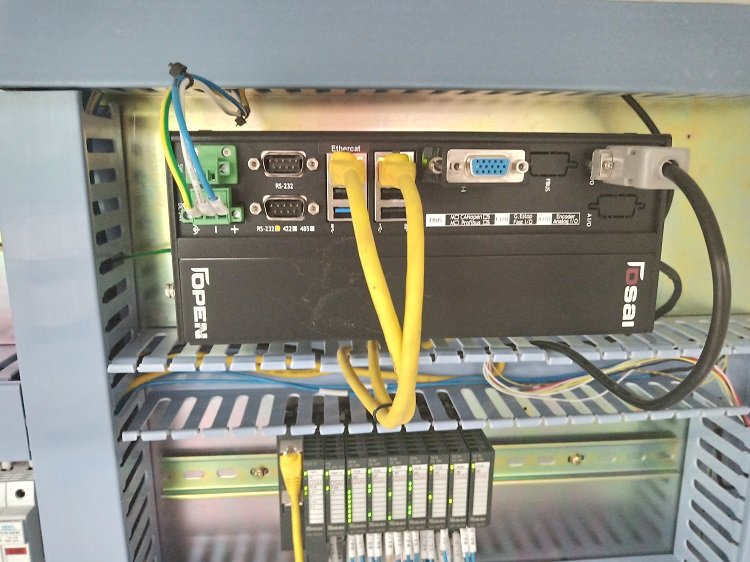

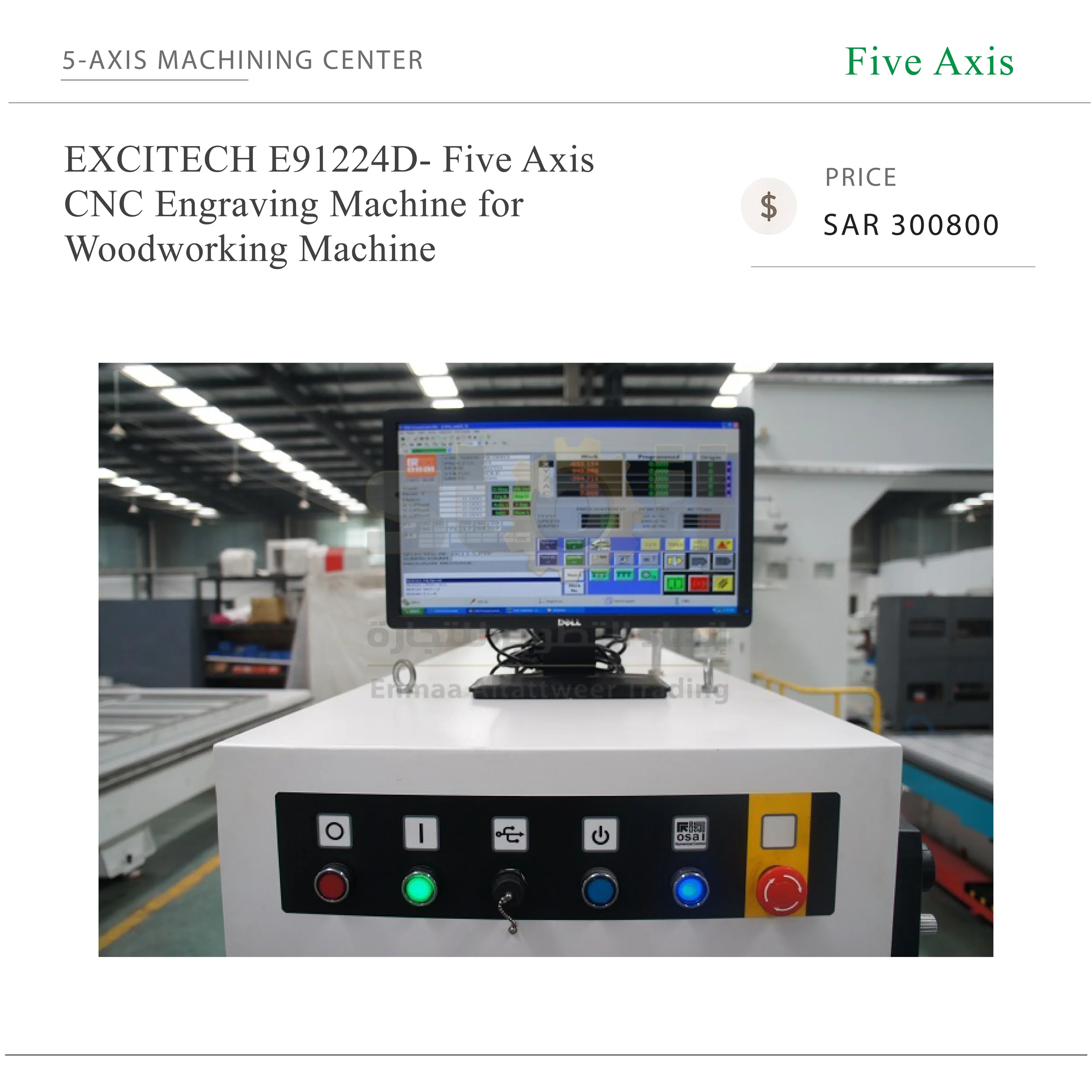

3. Italy OSAI control system

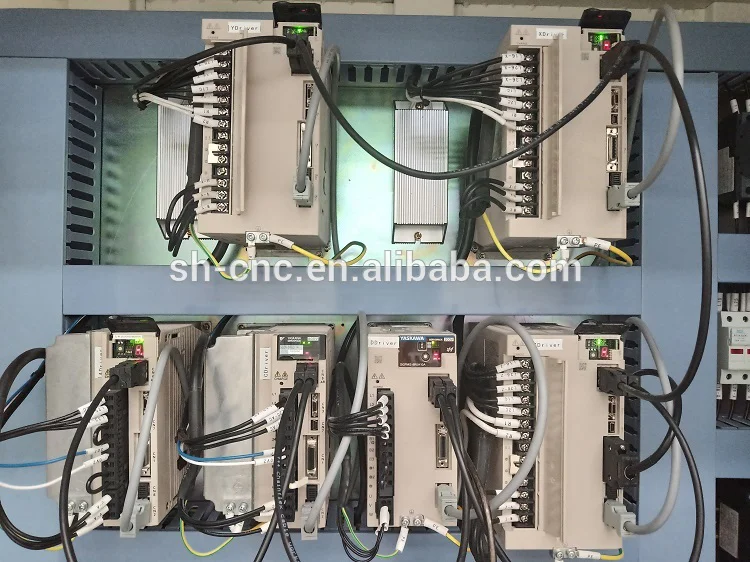

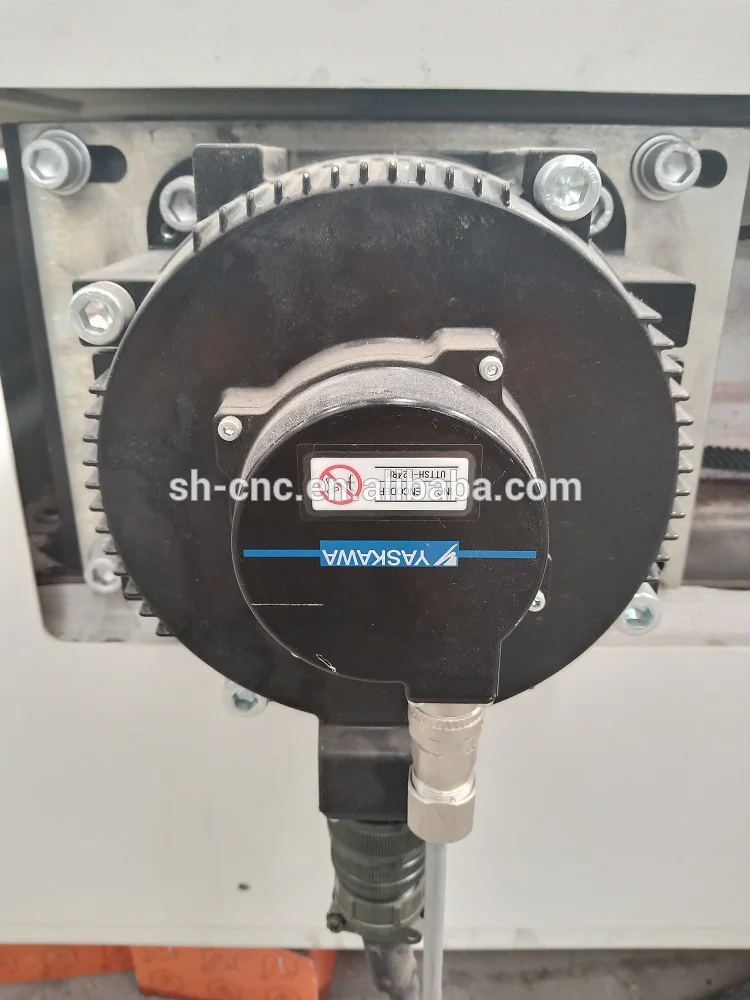

4. Japan Yaskawa servo motor and driver

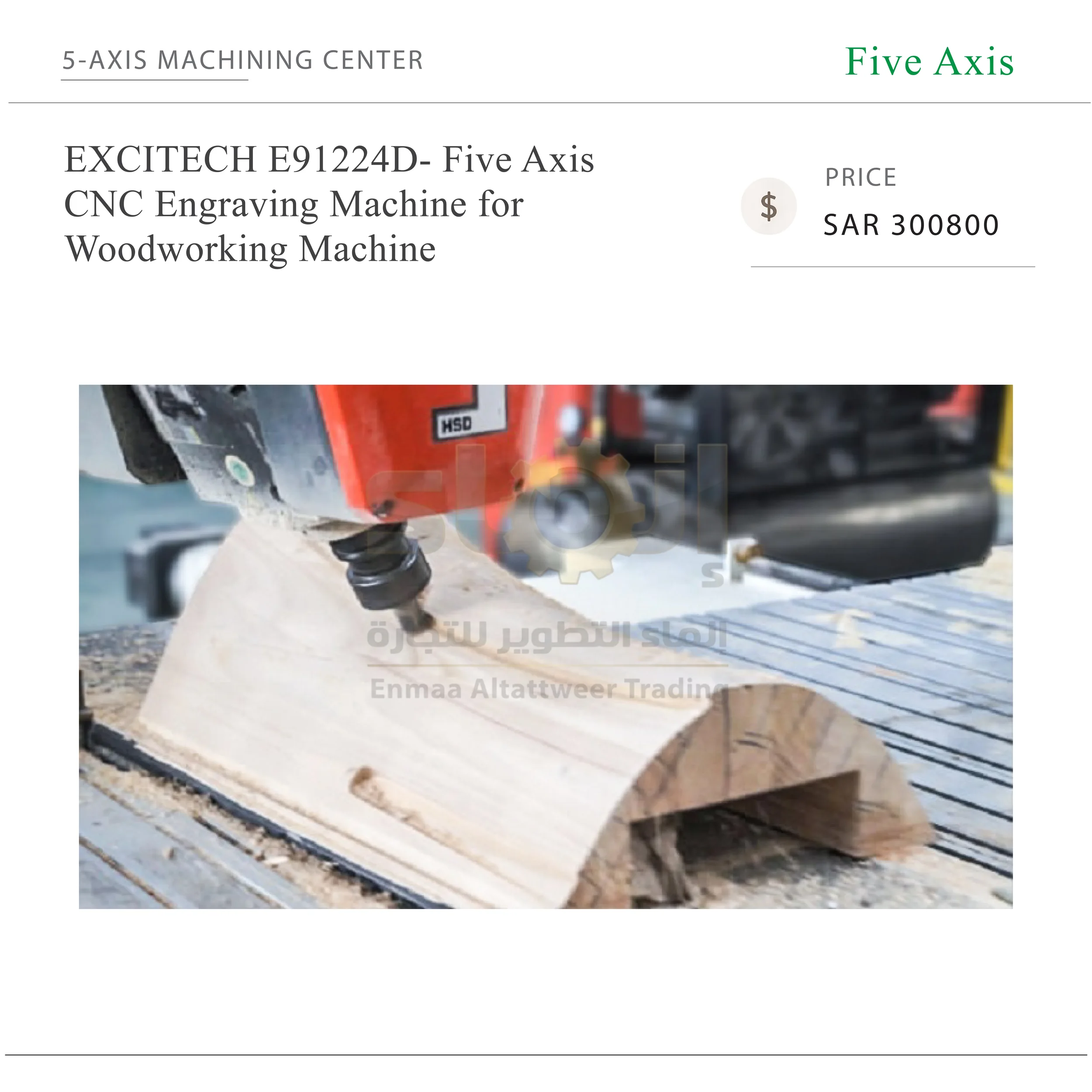

Application:
Suitable for surface processing and hollowing processing of casting wood mold, FRP wood mold, automobile foam mold, ship wood mold, aviation wood mold, paraffin mold, aluminum mold, metal mold, double curved flow mold GRG mold, etc.
