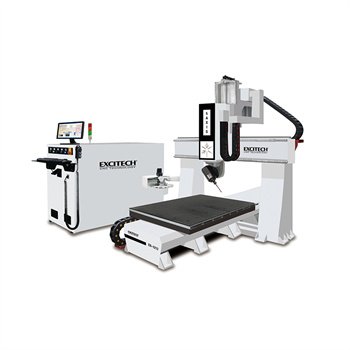

The E8 five-axis CNC milling center machine, equipped with an Italian OSAI control system, Japanese Yaskawa servo motor, and Hiteco 8.5KW spindle, delivers maximum precision and faster production for demanding 3D curved surface processing. It supports separate speed controls for traveling, working, and cutting, enhancing productivity significantly.

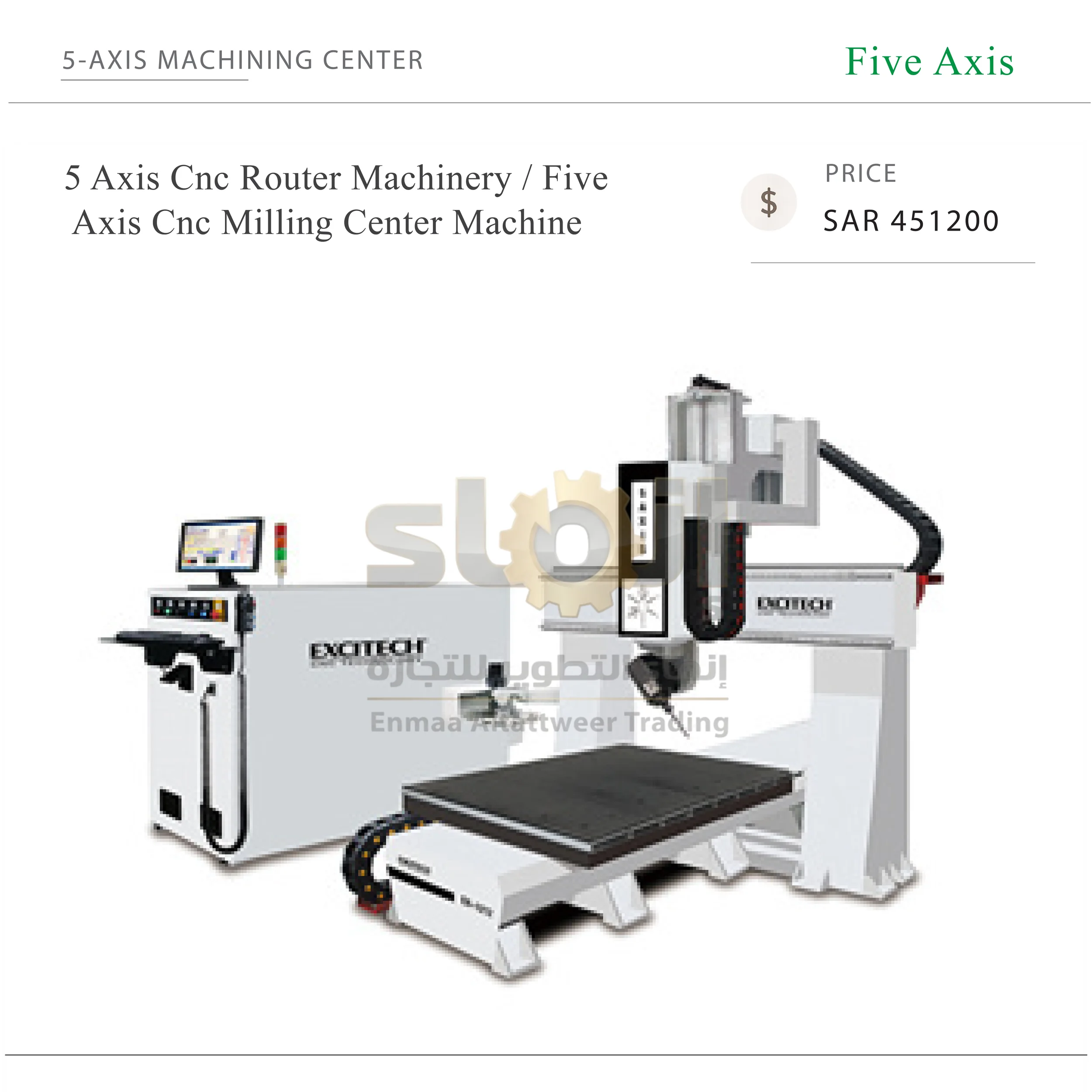

E8 machine is an entry-level five-axis processing center with OSAI controller—designed for the most demanding processing requirements, maximum precision, faster production. All parts of the machine are made of world top components, such as Italian imported OSAI control system, Yaskawa servo motor and Japan THK linear guide. Easy profiling on large work piece, well suited for 3D curved surface processing. Working speed, travelling speed and cutting speed can all be controlled separately, dramatically improve productivity.

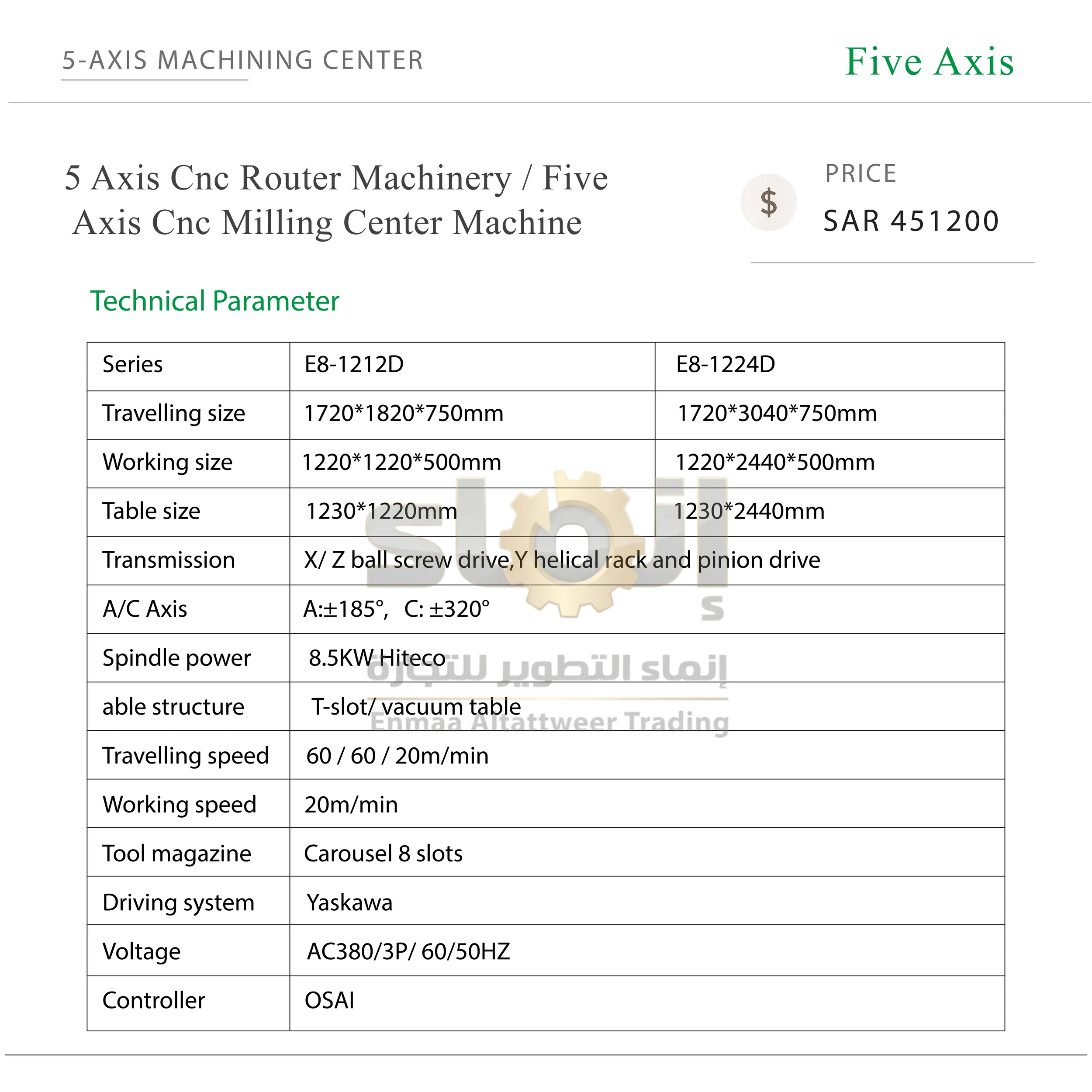

| Series | E8-1212D | E8-1224D |
| Travelling size | 1720*1820*750mm | 1720*3040*750mm |
| Working size | 1220*1220*500mm | 1220*2440*500mm |
| Table size | 1230*1220mm | 1230*2440mm |
| A/C Axis | A:±185°, C: ±320° | |
| Transmission | X/ Z ball screw drive,Y helical rack and pinion drive | |
| Table structure | T-slot/ vacuum table | |
| Spindle power | 8.5KW Hiteco | |
| Travelling speed | 60 / 60 / 20m/min | |
| Working speed | 20m/min | |
| Tool magazine | Carousel 8 slots | |
| Driving system | Yaskawa | |
| Controller | OSAI | |
| Voltage | AC380/3P/50HZ | |

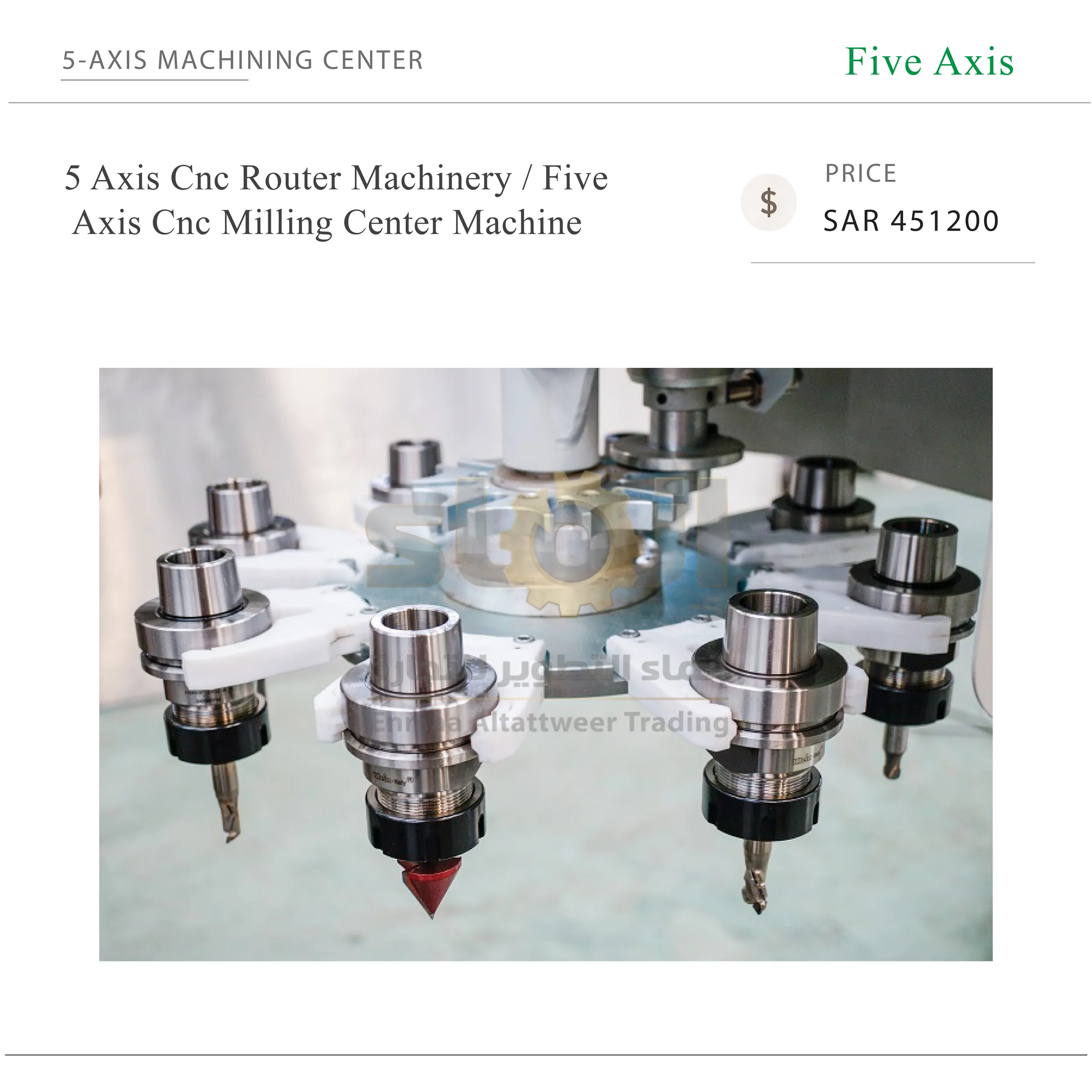

1. Tool changer
The machine adopts carousel tool magazine, standard equipped with 8 tools, and the number of tool magazines can be selected according to the needs, which can effectively reduce the tool change time and improve work efficiency.

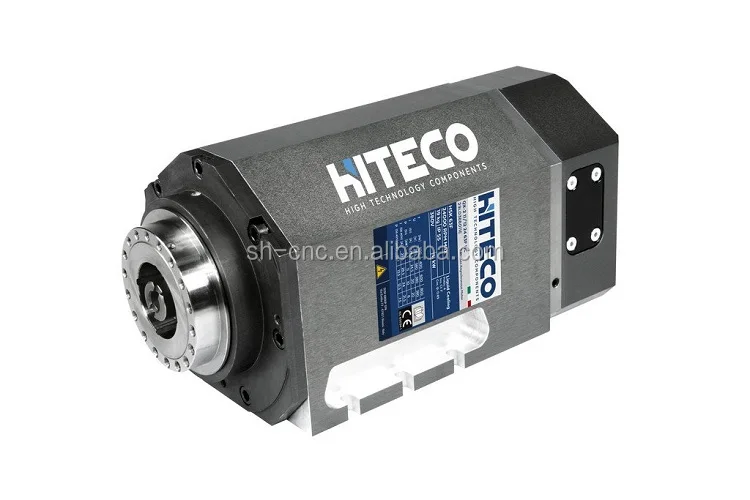

2. Hiteco spindle
Adopting Italian Hiteco high-speed electric spindle, high spindle speed and optimized processing efficiency.

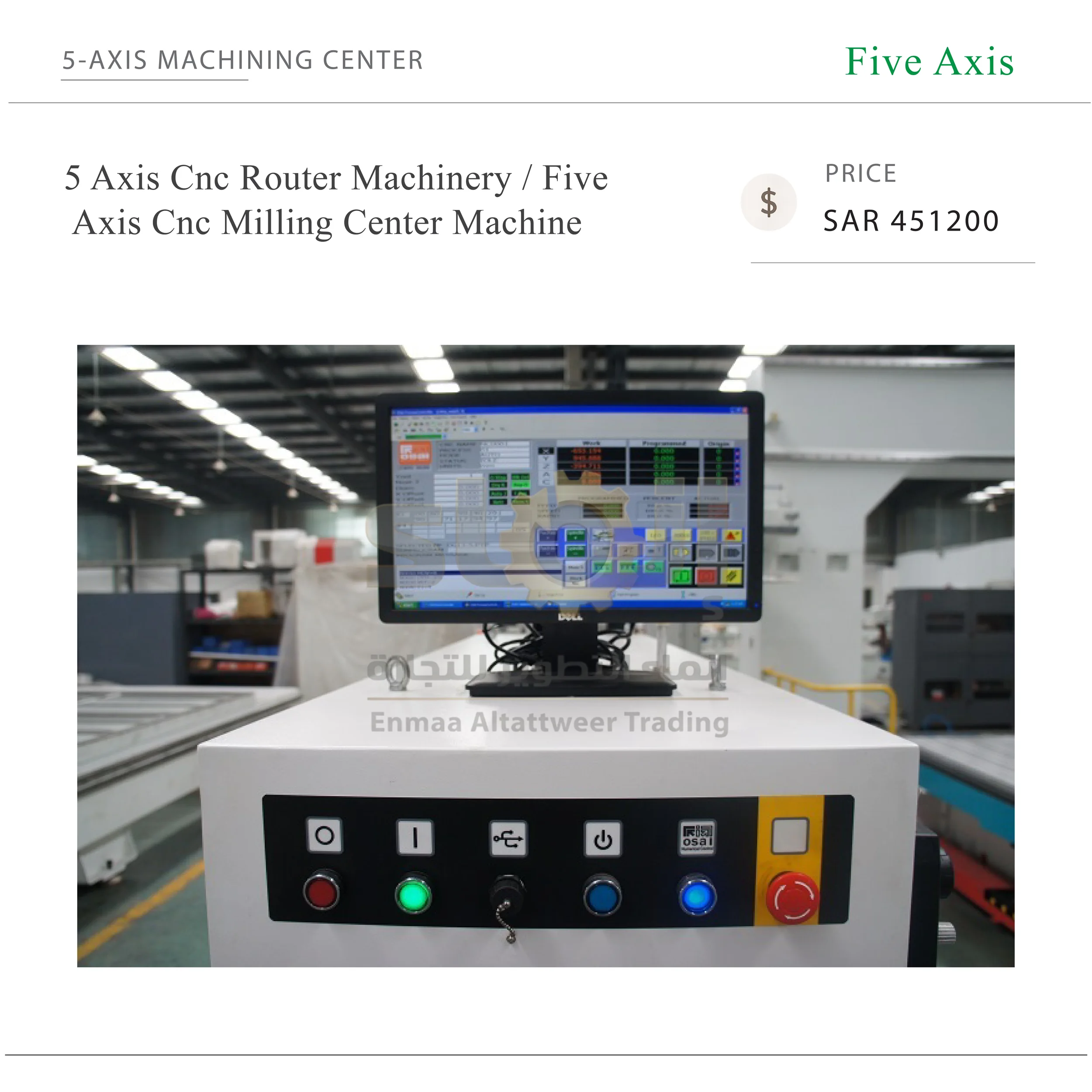

3. Italy OSAI control system
The machine adopts the famous Italian OSAI control system and control system is independent of the chassis, which greatly increases the operational safety, and can be moved lightly and save space.

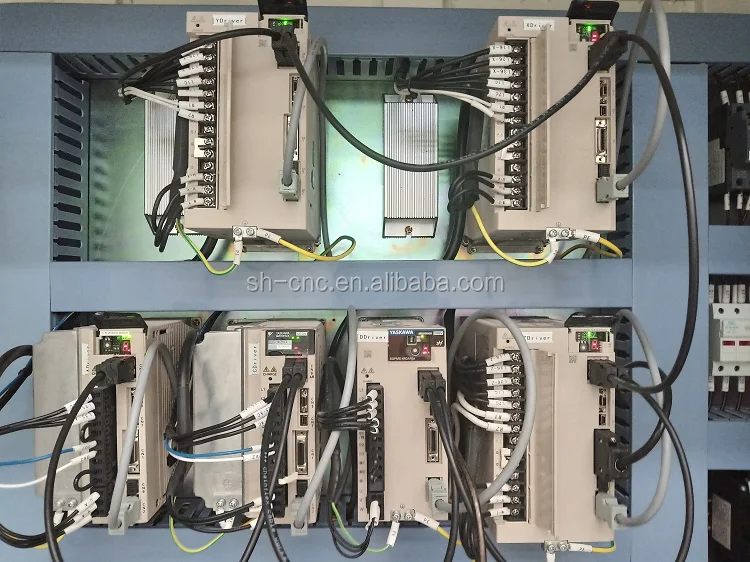

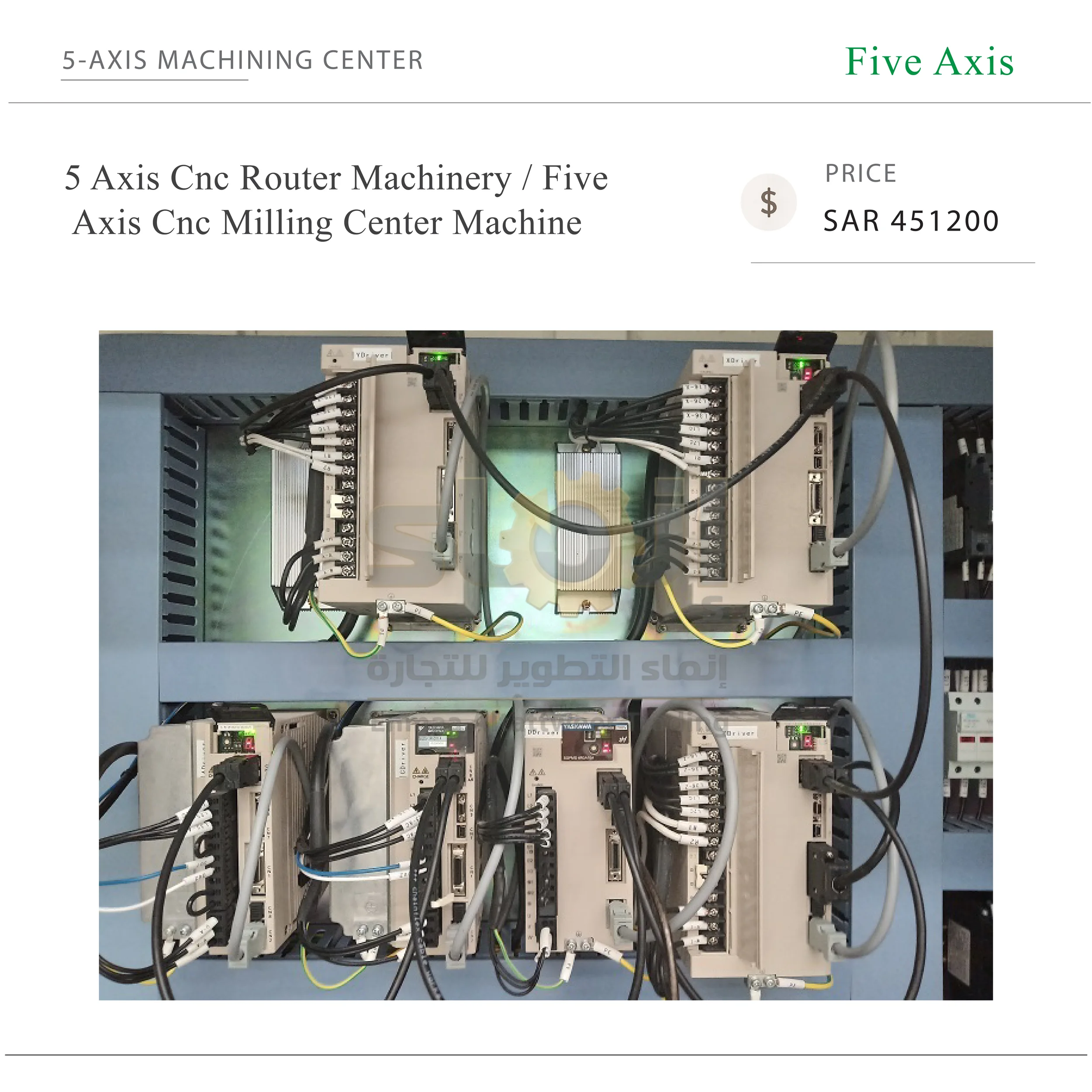

4. Japan Yaskawa servo motor and driver
The machine adopt Japan Yaskawa servo motor and driver, with high precision, high speed performance, strong anti-overload capability and good stability.

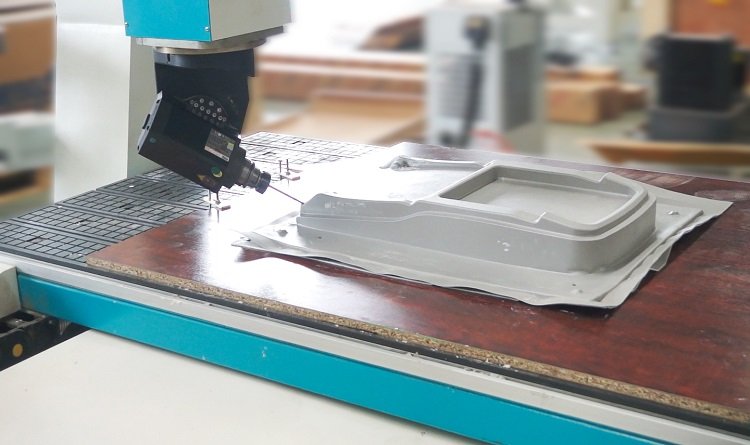

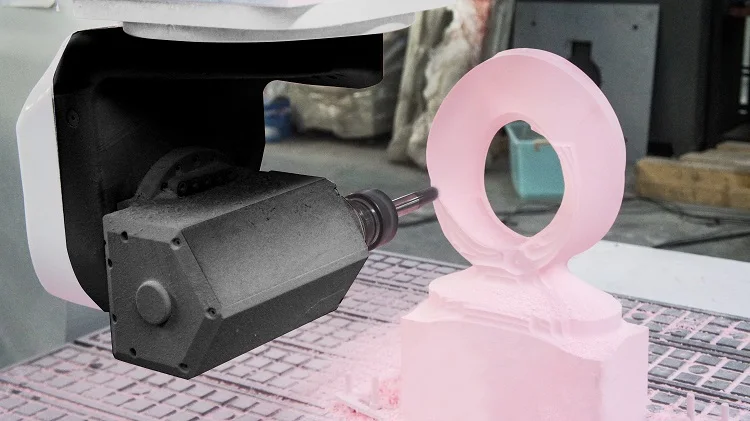

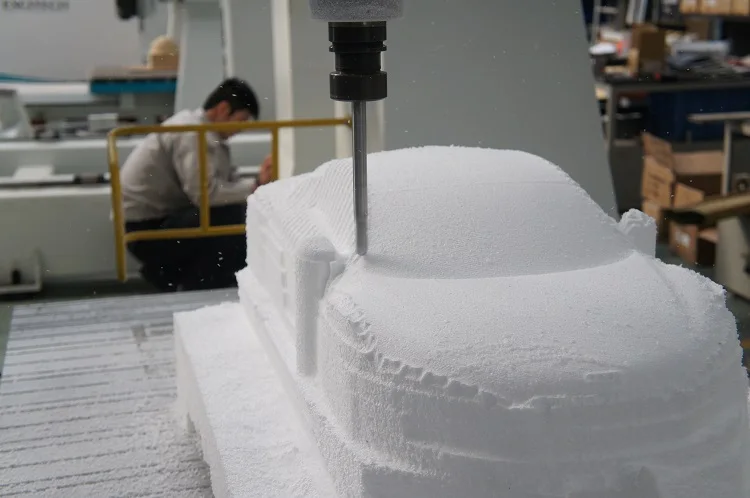

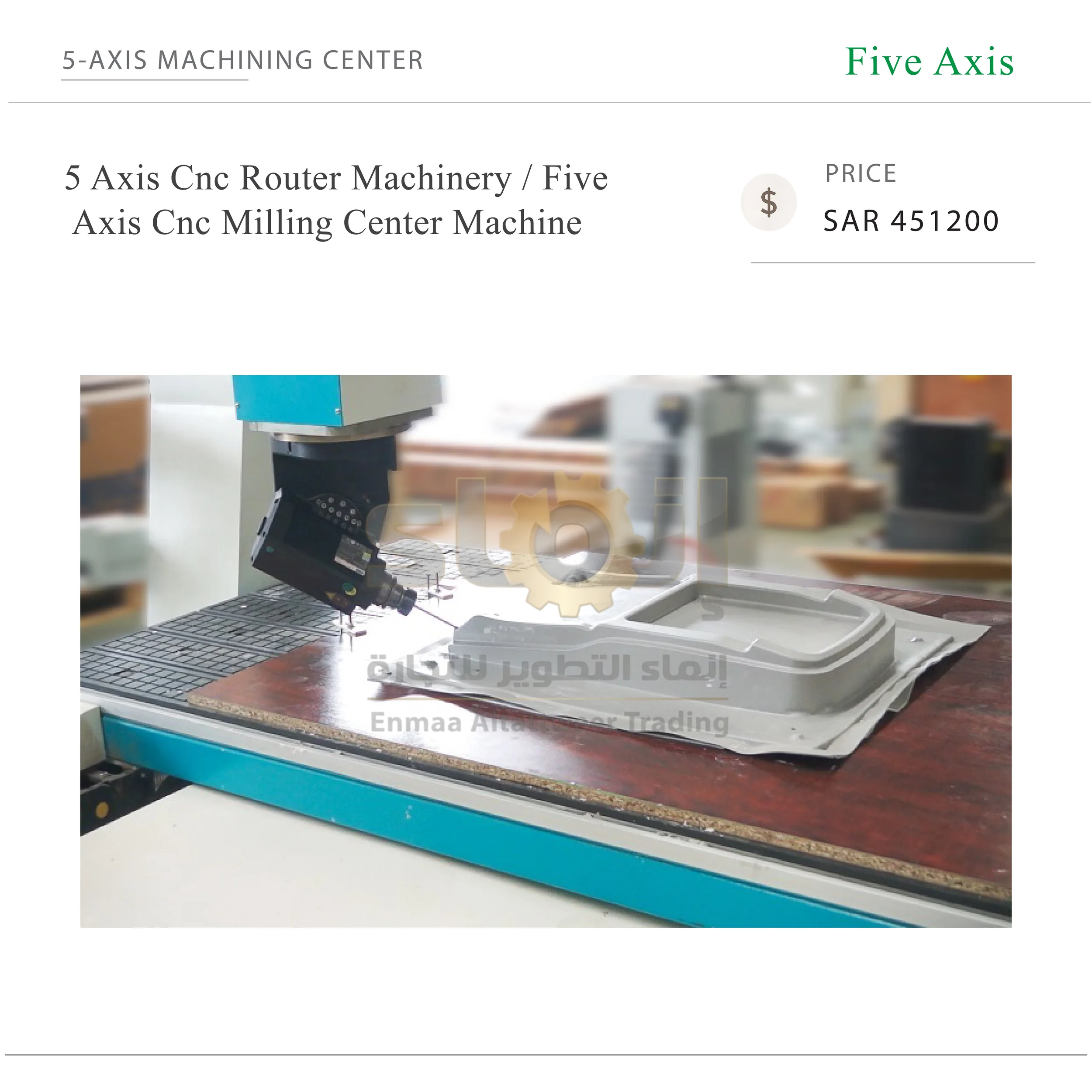

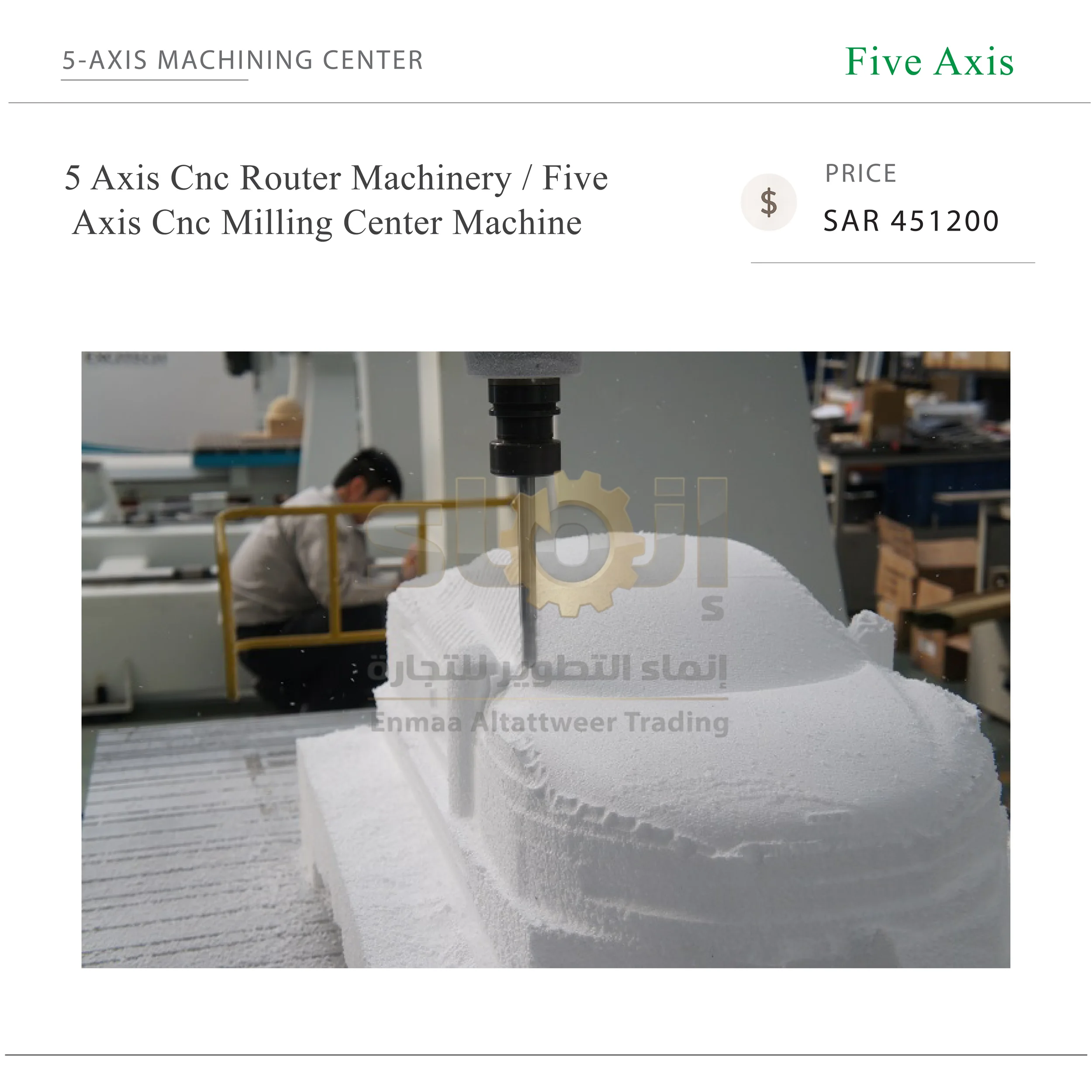

Application:
Suitable for surface processing and hollowing processing of casting wood mold, FRP wood mold, automobile foam mold, ship wood mold, aviation wood mold, paraffin mold, aluminum mold, metal mold, double curved flow mold GRG mold, etc.
