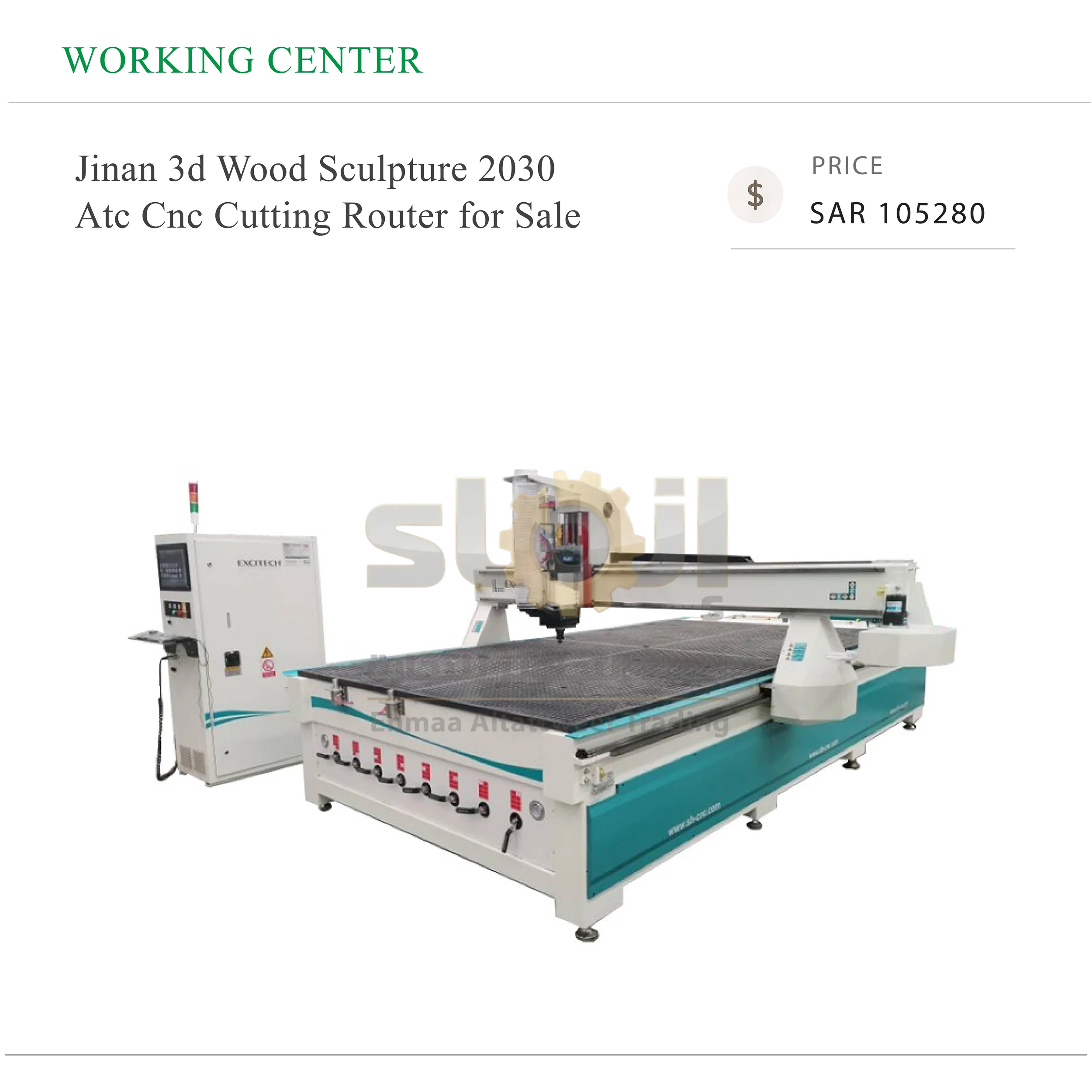

This 3D CNC Wood Carving Machine features a carousel tool magazine with 8 slots, enabling efficient tool changes and high productivity. Equipped with a T-slot and vacuum table, it ensures strong material adsorption and flexible fixing for various shapes. Powered by a 9.6kw spindle and Japan Yaskawa servo motor, it delivers precision and stability. Suitable for furniture, wood products, and non-metal processing, it supports diverse industrial applications.
The machine with carousel tool magazine, suitable for composite wood products processing, wide function such as boring, drilling, cutting, side milling, and edge cutting,etc. It is a standard processing center with high cost performance. The table top adopt T-slot and vacuum table combination, can strongly adsorb different areas of materials, also can fix different shpes of materials, flexible and convenient. At the same time, the drilling bank is optional according to the customer’s needs.

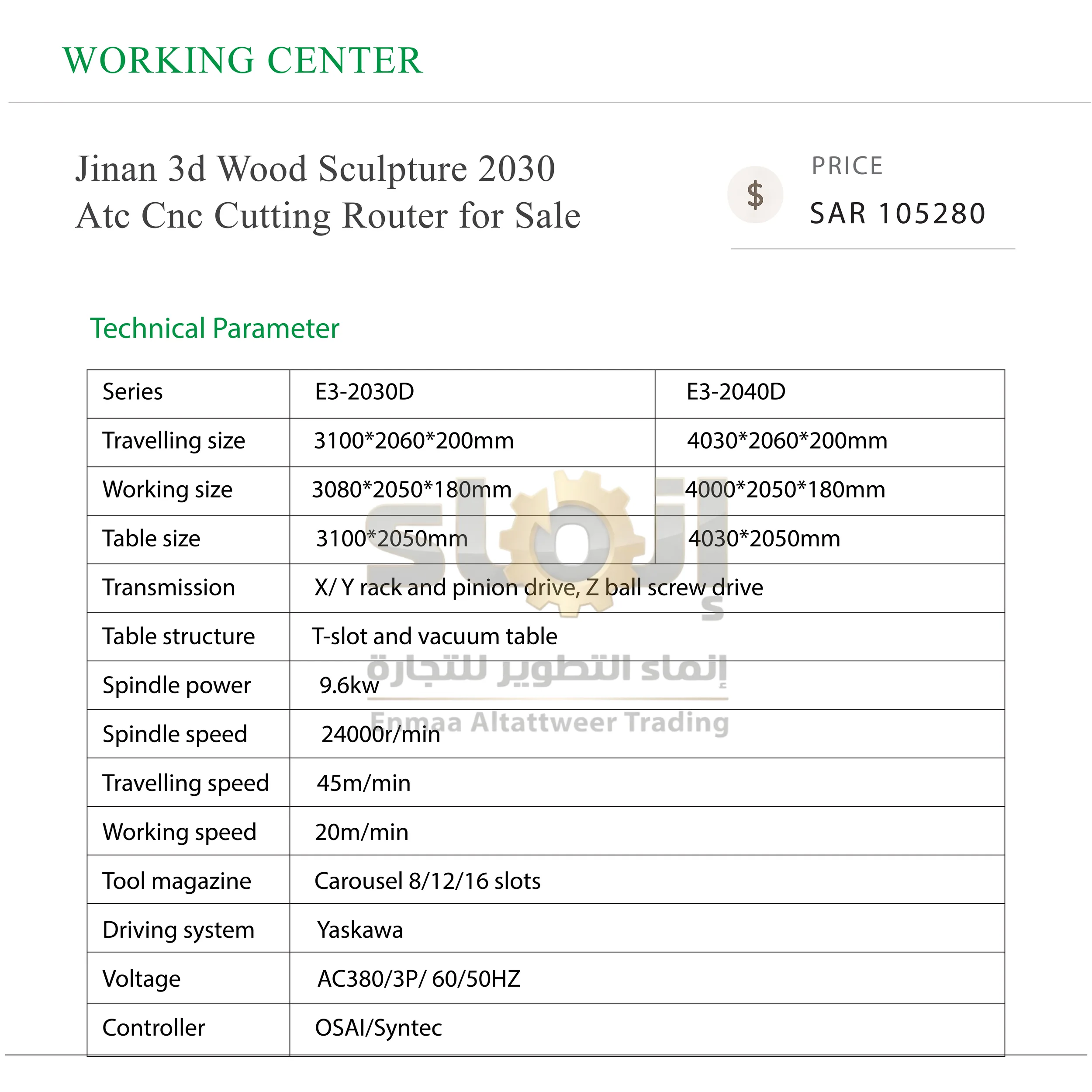

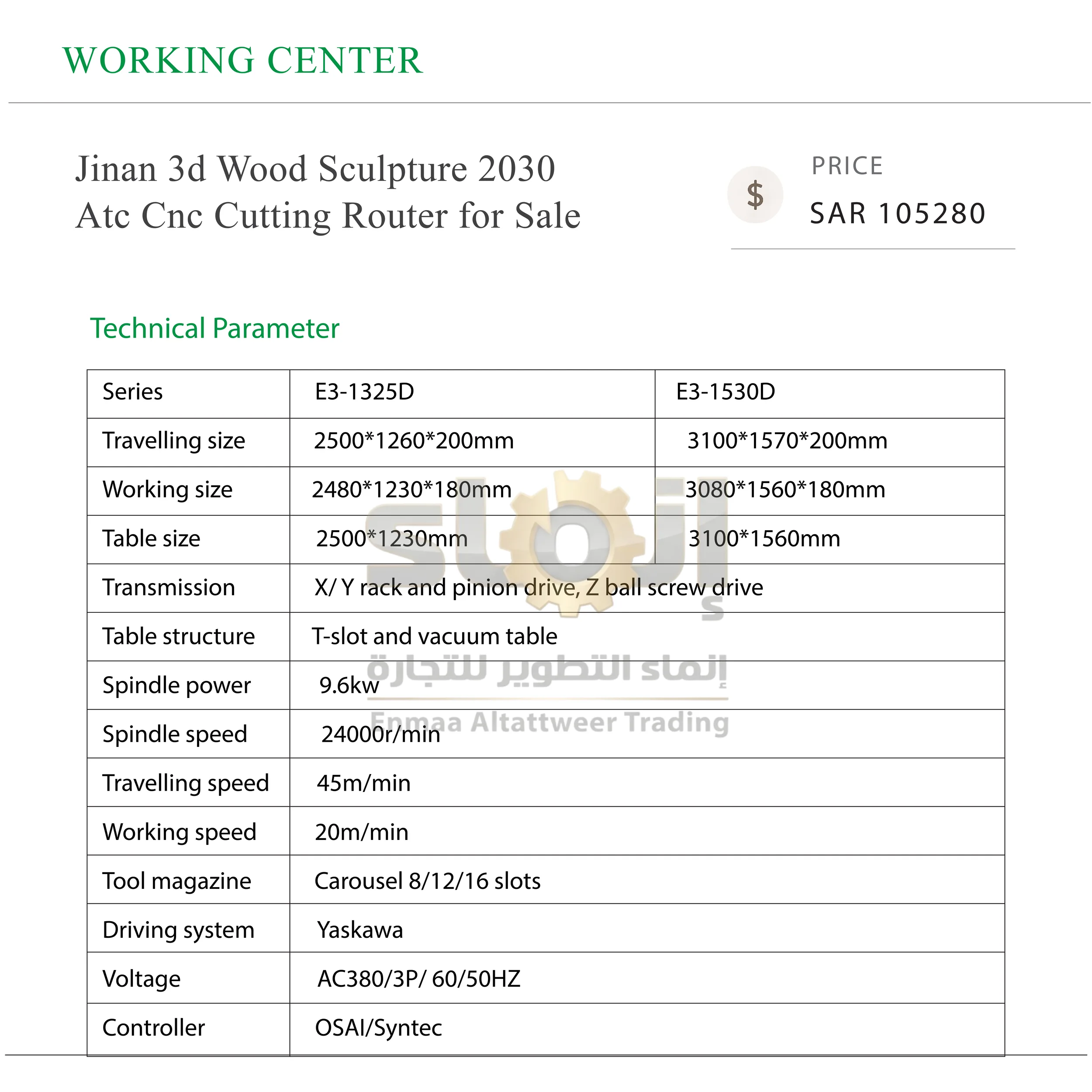

Series | E3-1325D | E3-1530D | E3-2030D | E3-2040D |
Travelling size | 2500*1260*200mm | 3100*1570*200mm | 3100*2060*200mm | 4030*2060*200mm |
Working size | 2480*1230*180mm | 3080*1560*180mm | 3080*2050*180mm | 4000*2050*180mm |
Table size | 2500*1230mm | 3100*1560mm | 3100*2050mm | 4030*2050mm |
Transmission | X/ Y rack and pinion drive, Z ball screw drive | |||
Table structure | T-slot and vacuum table | |||

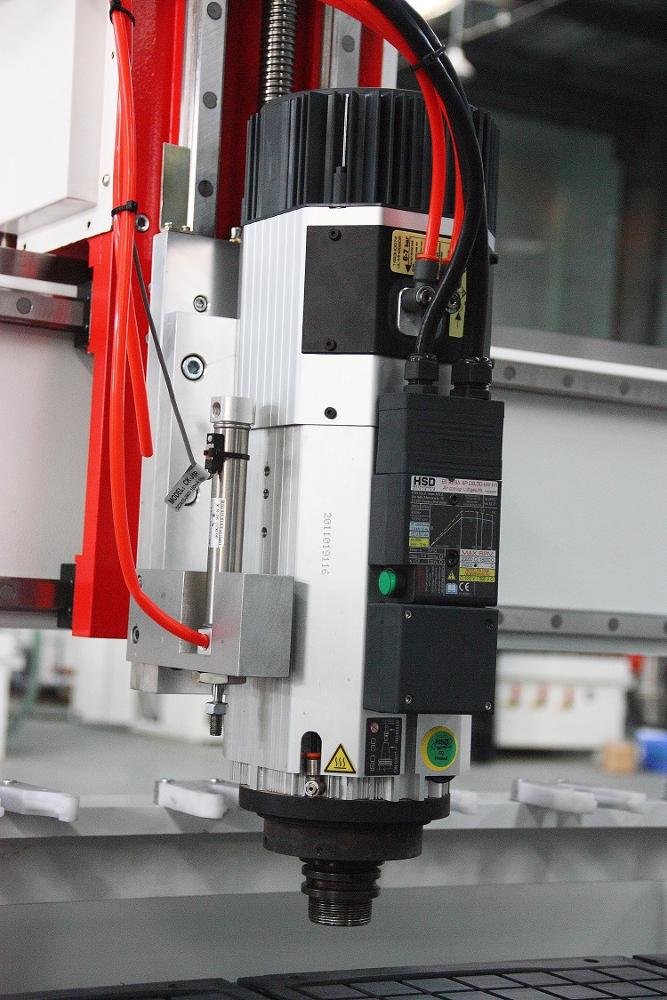

Spindle power | 9.6kw | |||
Spindle speed | 24000r/min | |||
Travelling speed | 45m/min | |||
Working speed | 20m/min | |||
Tool magazine | Carousel 8/12/16 slots | |||
Driving system | Yaskawa | |||
Voltage | AC380/ 3PH/ 50HZ | |||

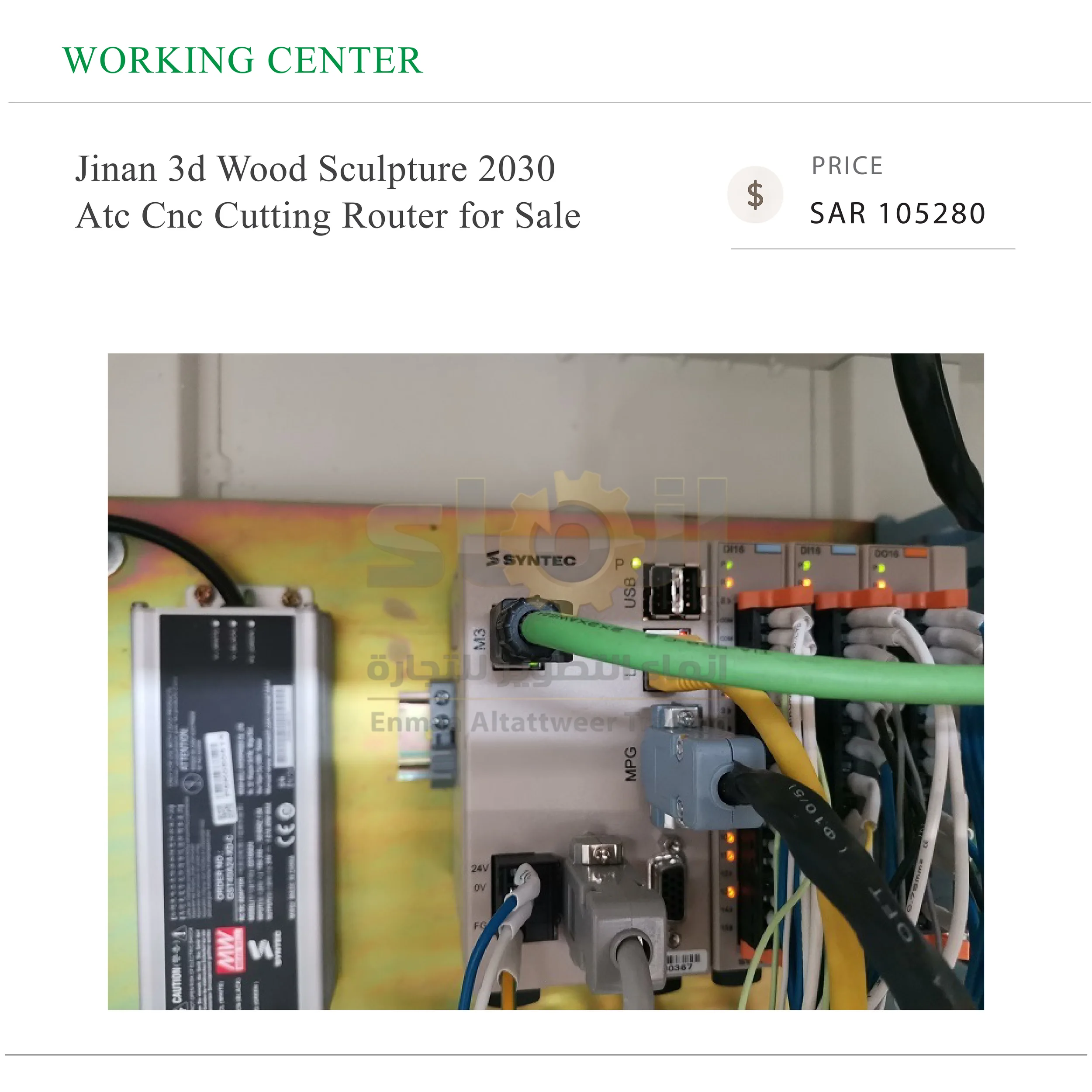

Controller | OSAI/Syntec | |||

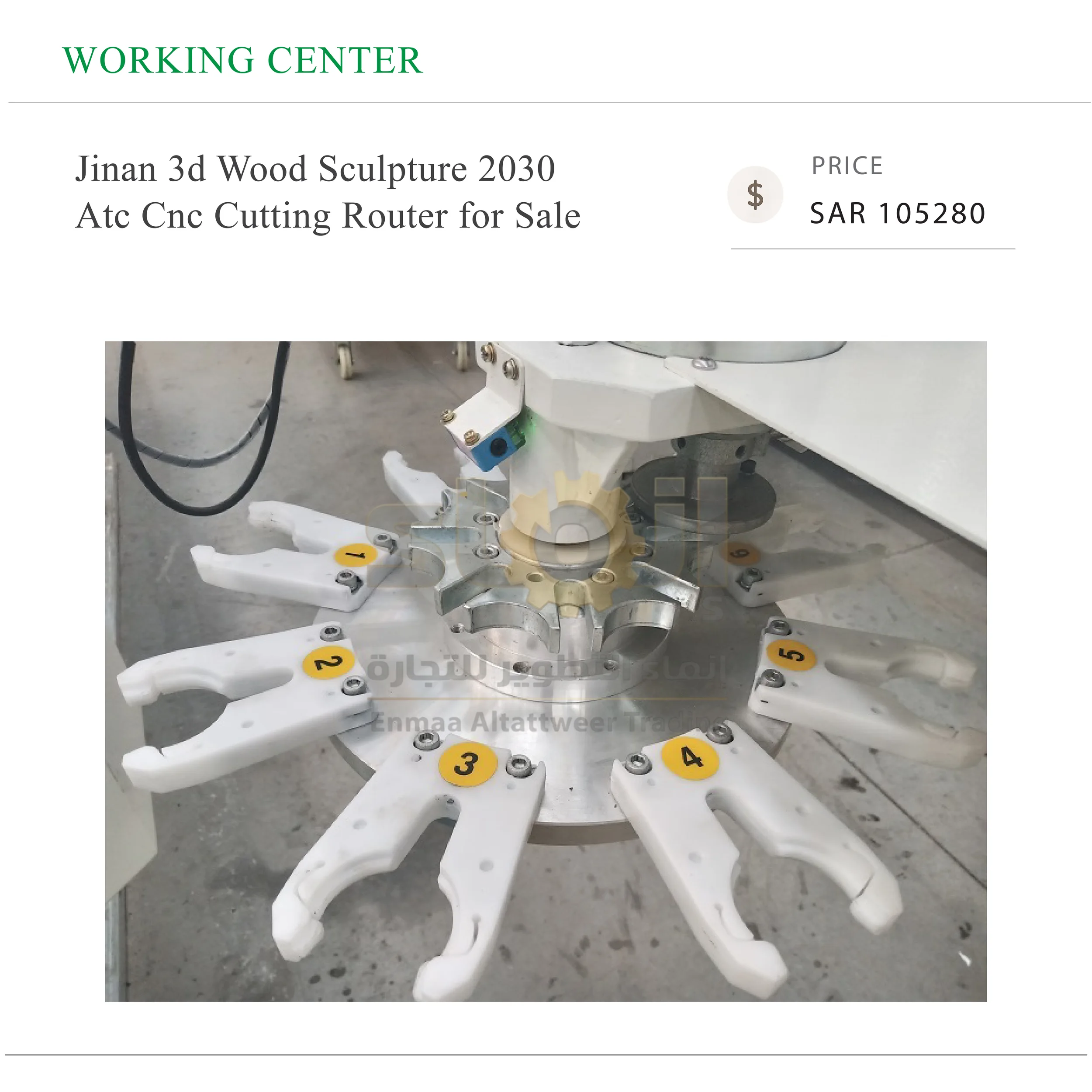

1. Carousel tool magazine
The machine adopts carousel tool magazine, standard equipped with 8 tools, and the number of tool magazines can be selected according to the needs, which can effectively reduce the tool change time and improve work efficiency.

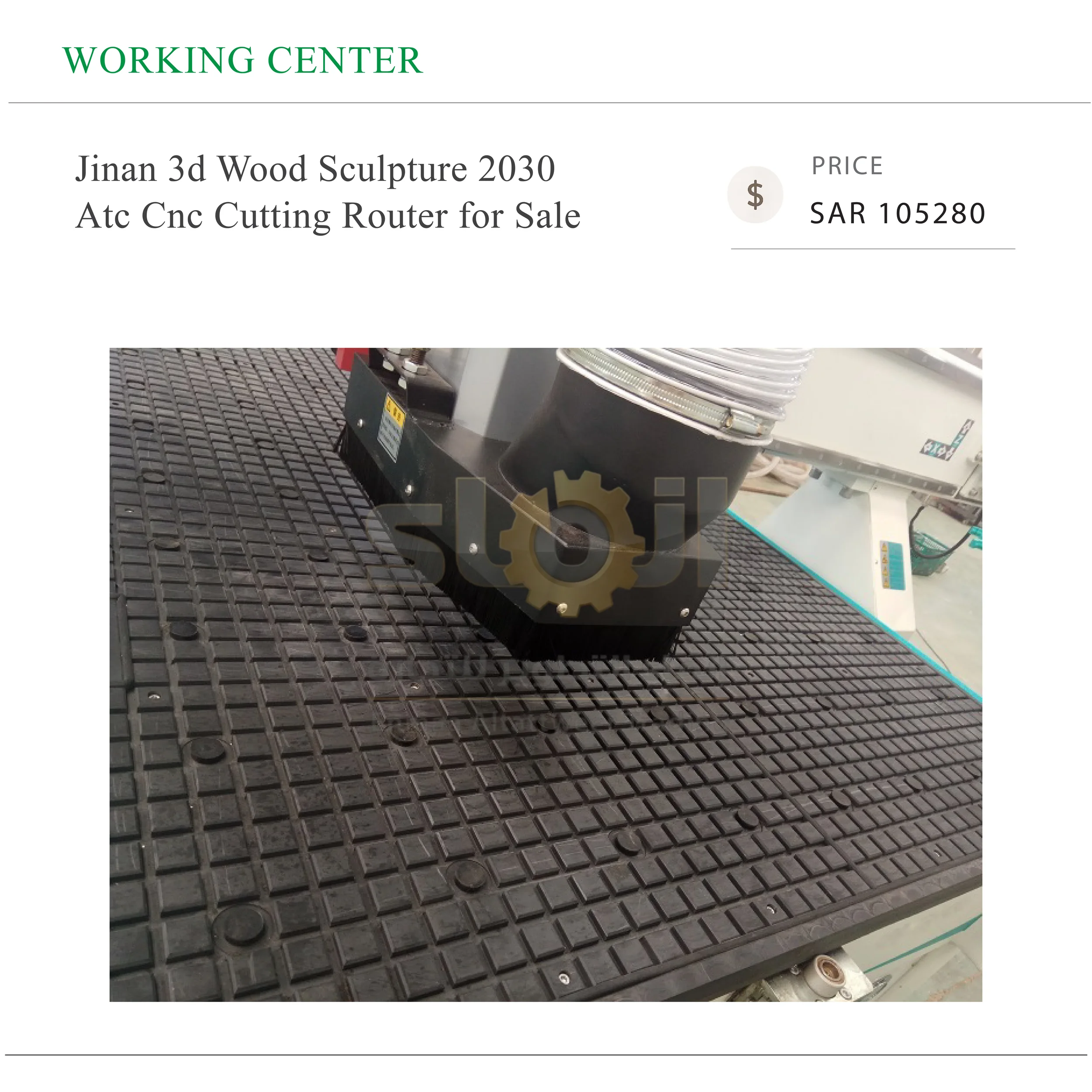

2. T-slot and vacuum table
The table top adopts T-slot and vacuum table combination, can strongly adsorb different areas of materials, also can fix different shpes of materials, flexible and convenient.
3. Japan THK linear rail guide
The machine adopts famous Japanese THK linear guide,with high precision, self-lubrication and long service life.
4. Japan Yaskawa servo motor and driver
The machine adopts Japan Yaskawa servo motor and driver, with high precision, high speed performance, strong anti-overload capability and good stability.
Application:

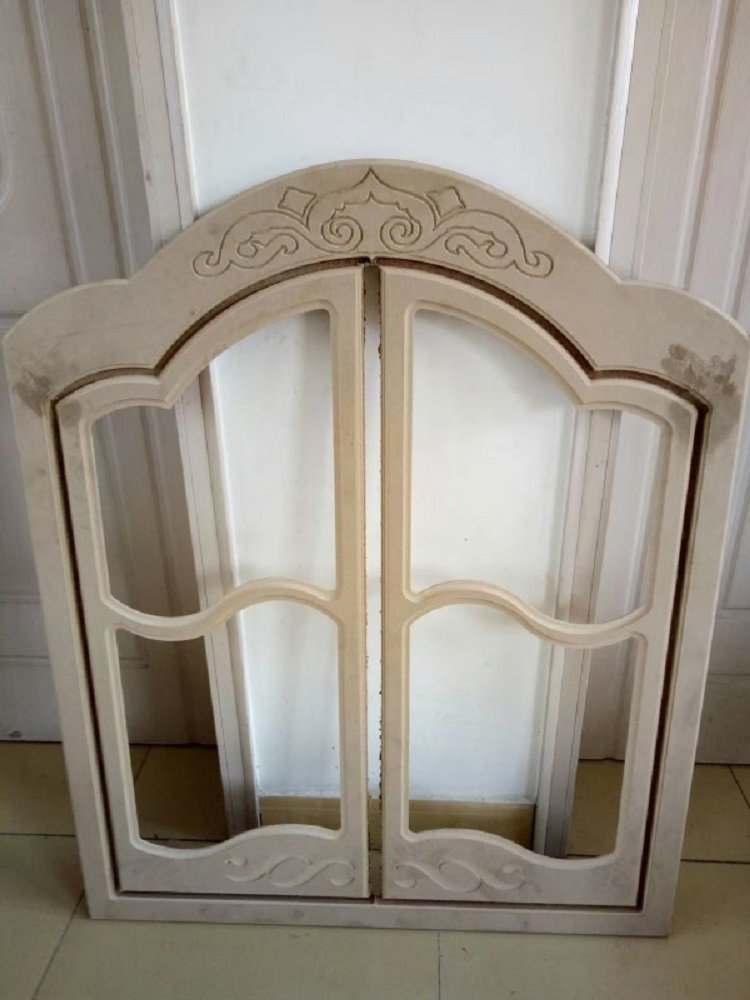

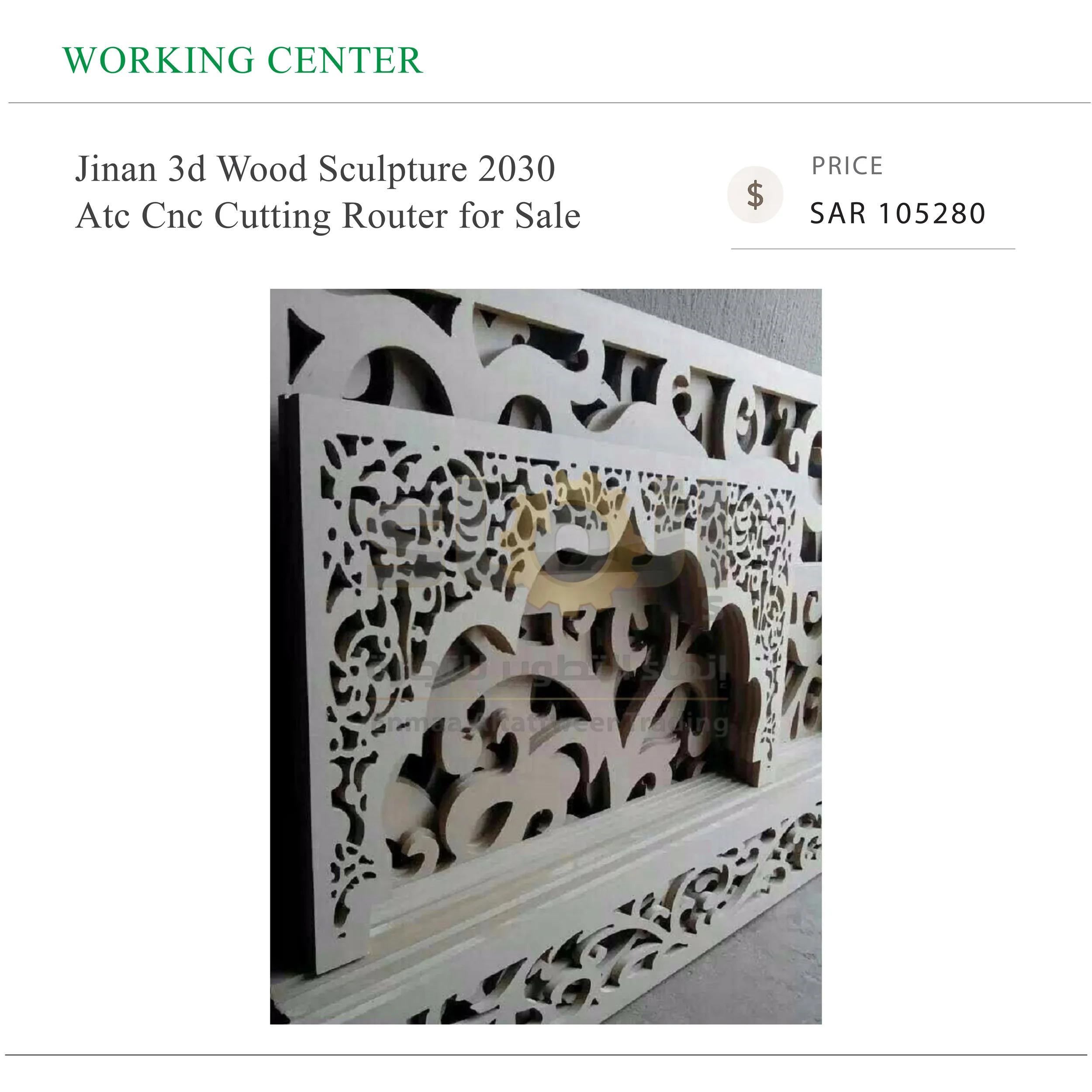

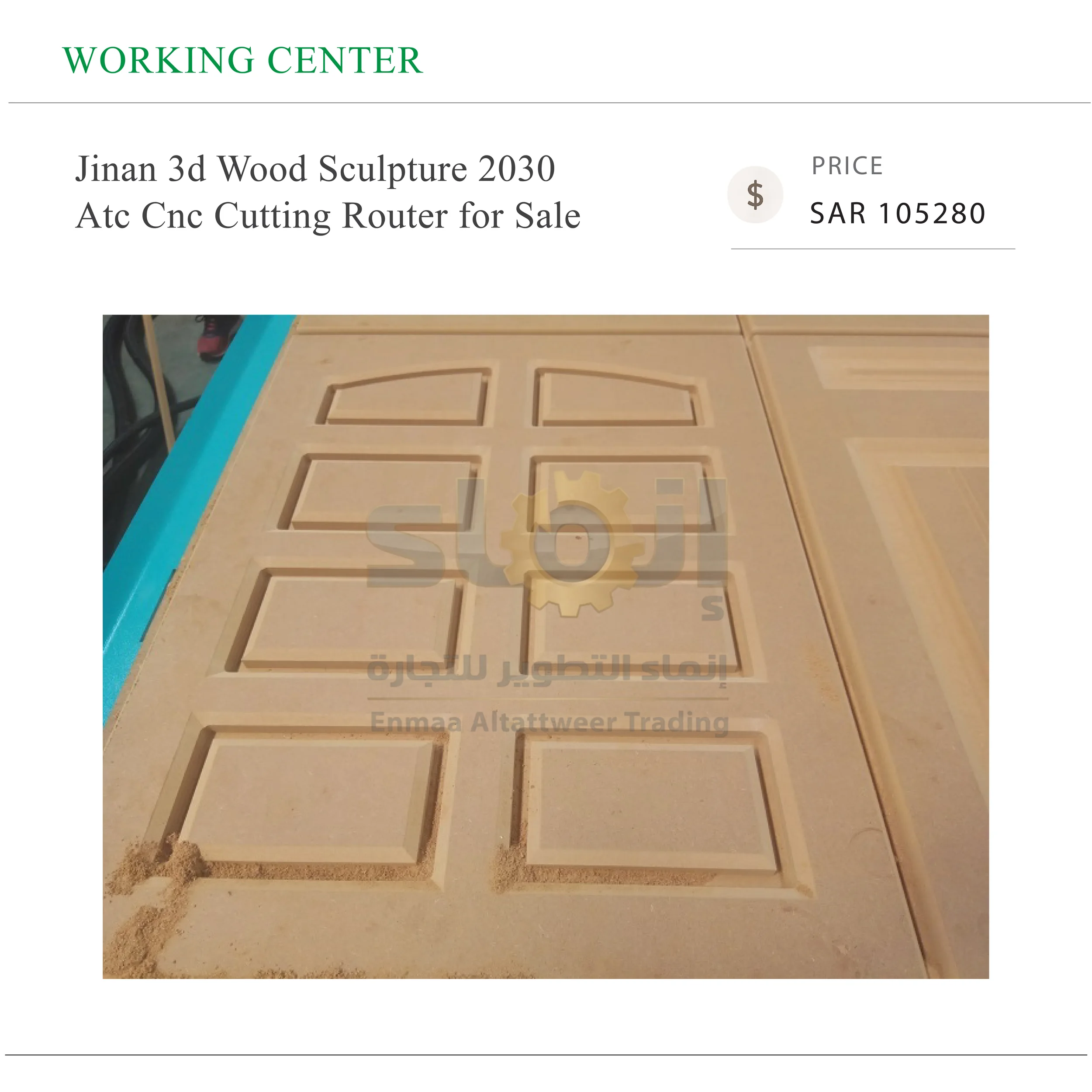

Furniture: widely used for processing cabinet door, wooden door, solid wood furniture, panel wood furniture, windows, tables and chairs, etc.
Other wooden products: stereo box, computer desk, musical instruments, etc. It also can process acrylic, PVC, EPS, density board, organic glass, soft metals like aluminum and copper, etc.
