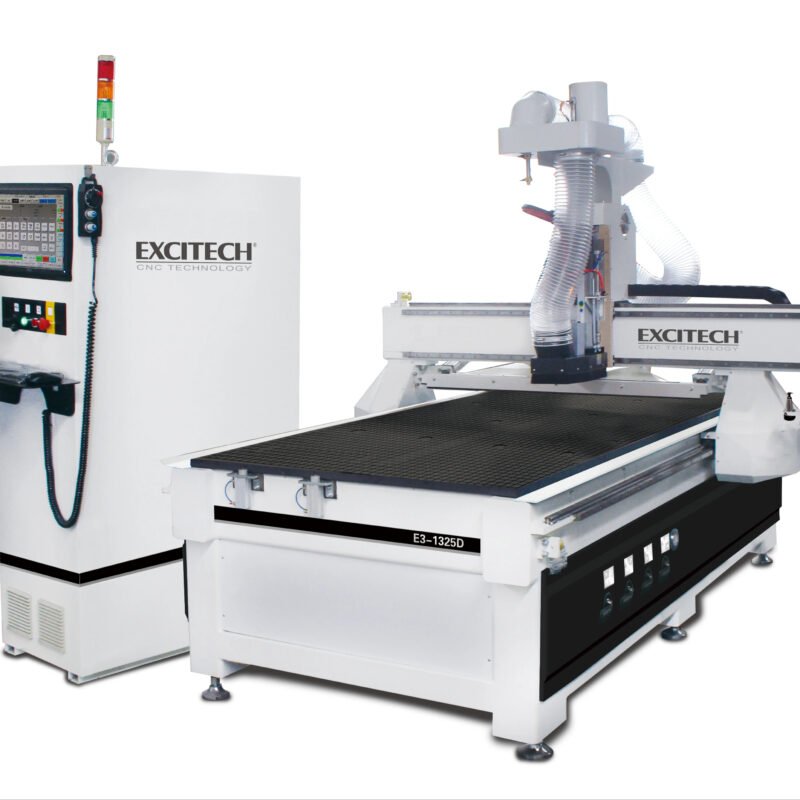

The 1325 CNC Wood Door Cutting Router features a carousel tool magazine with 8, 12, or 16 slots for efficient tool changes and enhanced productivity. Its T-slot and vacuum table combination ensures strong material adsorption and flexibility for various shapes. Equipped with Japan Yaskawa servo motors, THK linear guides, and a high-speed 9.6kw spindle, it delivers precision and reliability for wood, acrylic, PVC, and soft metal processing. Includes a 1-year warranty on core components and supports global service.
The machine with carousel tool magazine, suitable for composite wood products processing, wide function such as boring, drilling, cutting, side milling, and edge cutting,etc. It is a standard processing center with high cost performance. The table top adopt T-slot and vacuum table combination, can strongly adsorb different areas of materials, also can fix different shpes of materials, flexible and convenient. At the same time, the drilling bank is optional according to the customer’s needs.
| E3-1325D | E3-1530D | E3-2030D | E3-2040D | |
Travelling size | 2500*1260*200mm | 3100*1570*200mm | 3100*2060*200mm | 4030*2060*200mm |
Working size | 2480*1230*180mm | 3080*1560*180mm | 3080*2050*180mm | 4000*2050*180mm |
Table size | 2500*1230mm | 3100*1560mm | 3100*2050mm | 4030*2050mm |
Transmission | X/ Y rack and pinion drive, Z ball screw drive | |||
Table structure | T-slot and vacuum table | |||
Spindle power | 9.6kw | |||
Spindle speed | 24000r/min | |||
Travelling speed | 45m/min | |||
Working speed | 20m/min | |||
Tool magazine | Carousel 8/12/16 slots | |||
Driving system | Yaskawa | |||
Voltage | AC380/ 3PH/ 50HZ | |||
Controller | OSAI/Syntec | |||

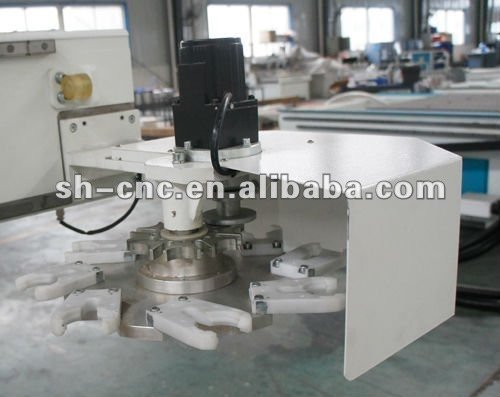

1. Carousel tool magazine
The machine adopts carousel tool magazine, standard equipped with 8 tools, and the number of tool magazines can be selected according to the needs, which can effectively reduce the tool change time and improve work efficiency.
2. T-slot and vacuum table
The table top adopts T-slot and vacuum table combination, can strongly adsorb different areas of materials, also can fix different shpes of materials, flexible and convenient.
3. Japan THK linear rail guide
The machine adopts famous Japanese THK linear guide,with high precision, self-lubrication and long service life.
4. Japan Yaskawa servo motor and driver
The machine adopts Japan Yaskawa servo motor and driver, with high precision, high speed performance, strong anti-overload capability and good stability.
Application:
Furniture: widely used for processing cabinet door, wooden door, solid wood furniture, panel wood furniture, windows, tables and chairs, etc.
Other wooden products: stereo box, computer desk, musical instruments, etc. It also can process acrylic, PVC, EPS, density board, organic glass, soft metals like aluminum and copper, etc.
